1. [MULTIPLE RATES] Achieve rates of 23ml/min, 65ml/min, and 150ml/min with different tubes.
2. [ADJUSTABLE SPEED] Rotate speed ranging from 0.1 to 60 rpm for precise dosing control.
3. [IDEAL TEMPERATURE RANGE] Works between 0-40℃ for consistent performance.
4. [LIGHTWEIGHT] Weighs only 69g for portability and easy handling.
5. [HUMIDITY CONTROL] Operates in relative humidity less than 80% for durability.

Specification:
Features:

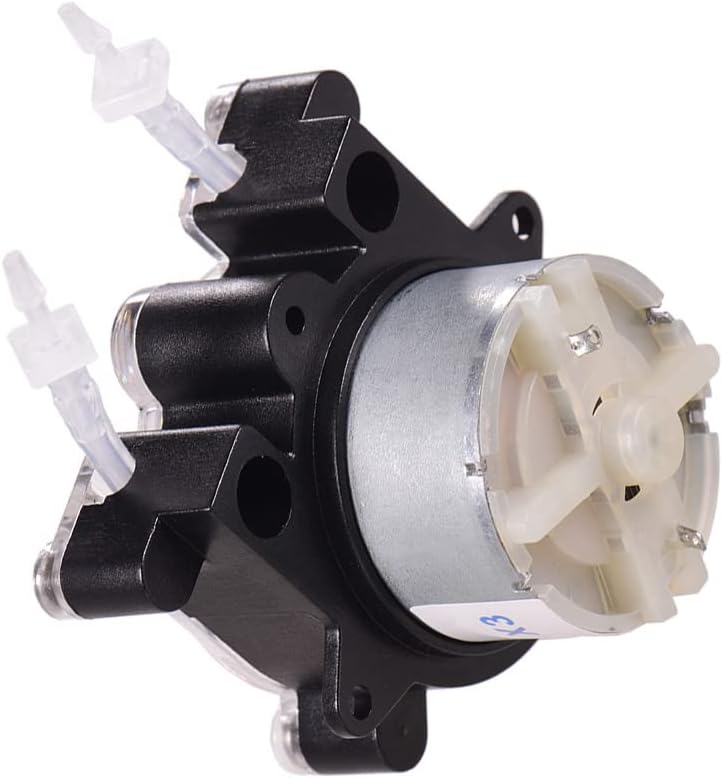

This small dosing pump has the function of self-priming.
Planetary reduction gear transmission, rate stability, long service life.
No valves and seals, convenient hose replacement, easy maintenance.
Direction: You can control the direction by the positive and negative connect.
Widely used in chemical, experiment, food, plants, environmental conservation, family and many other fields.
Specifications:
Model: G528
Gel Tube(internal dia.*outside dia.): 1mm*3mm/2mm*4mm/3mm*5mm(optional)
Motor: DC 6V
Current: 250-300mA
Working Condition: 0-40℃
Relative Humidity: ＜80%
Rate:
1*3 gel tube: 23ml/min
2*4 gel tube: 65ml/min
3*5 gel tube: 150ml/min
Rotate Speed: 0.1-60 rpm
Motor Size(Φ*H): Approx.32*23mm
Installation Hole Distance: Approx.48.5mm
Package Size: 6.0 * 6.0 * 5.0cm / 2.4 * 2.4 * 2.0in
Package Weight: 69g / 2.4oz
Package List:
1 * Dosing pump

PackageList:
1 * Dosing pump
