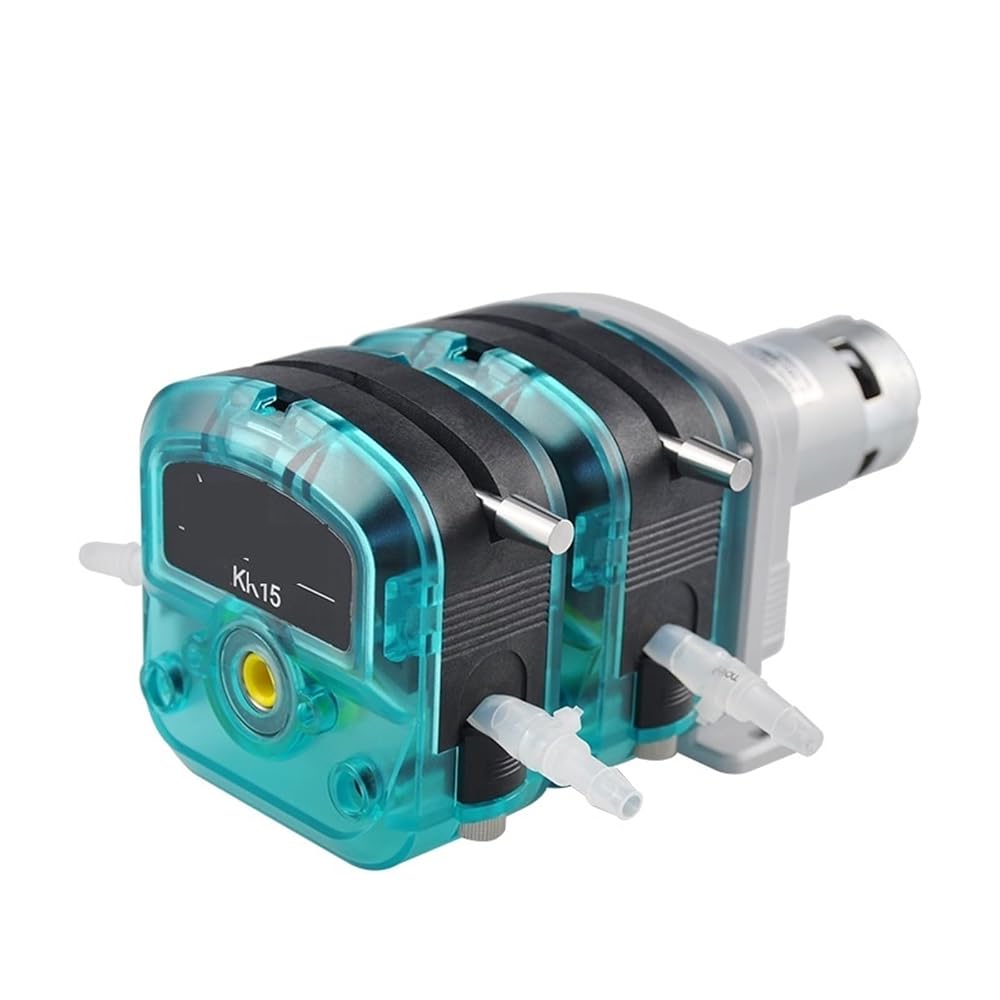

KKDD/KKTS Multi-stage Gear Transmission DC/Stepper Motor Peristaltic Pump
Long lifetime
High precision
Large flow rate

Basic Parameters
Peristaltic Pump Motor: DC motor
Peristaltic Pump Voltage: 12V/24V
Peristaltic PumpPower: 15W
Pump tube: PharMed BPT and silicone tube
Peristaltic Pump Flow rate: 12V: 1240 ml/min; 24V: 1300 ml/min
Pump Head Optional: Single or double head
Pump head: PC and engineering plastics
Mounting plate: Wear plate fixed or L plate
Temperature: 0~40
Humidity: Less than 80%
Various Applications
# Canned liquid
# Laboratory
# Food factory
# Medical equipment
More Details
Tube Selection
Flow Rate
Material
Silicone
Silicone
Silicone
Silicone
BPT
BPT
BPT
Code
S40
S25
S17
S18
B40
B25
B17
ID*OD
4.0×7.2
4.8×8.0
6.4×9.6
7.9×11.1
4.0×7.2
4.8×8.0
6.4×9.6
Flow Rate
KKDD
DC motor
24V; 0.6A
440
600
1000
1300
440
600
860
12V; 1.2A
440
570
900
1240
410
560
800
KKDD Double head-single head flow 24V 1A 440 600 1000 1300 440 600 860
KKDD Double head-single head flow 12V 2.4A 400 570 900 1240 410 560 800
Material
Silicone
Silicone
Silicone
Silicone
BPT
BPT
BPT
Code
S40
S25
S17
S18
B40
B25
B17
ID*OD
4.0×7.2
4.8×8.0
6.4×9.6
7.9×11.1
4.0×7.2
4.8×8.0
6.4×9.6
FlowRate
KKTS
Stepper Motor
24V; 1.8A
420
650
1100
1600
420
650
1000
KKTS Double head-single head flow 24V 2.5A 420 650 1100 1600 420 650 1000
Note: The above flow parameters are measured with pure water without at 20 room temperature and standard atmospheric Actually, according to different media, different outlet pressures, DC motor speed errors, etc., the flow will have certain errors. The data is for reference.
Left is KKDD (DC motor)
24: voltage
N: material
17: Tube size
L: Mounting plate(installation method)
A: Single/double head
Right is KKTS (Stepper motor)
24: voltage
N: material
17: Tube size
L: Mounting plate(installation method)
A: Single/double head
Size Drawings KKDD & KKTS
Straight Plate
L Plate

Application : Metering
Theory : Rotary Pump
Structure : Gear Pump
Model Number : KKDD/KKTS Peristaltic pump
Power : Electric
Standard or Nonstandard : Standard
Usage : Water
Fuel : Electric
Pump Head : Double Head
Peristaltic Pump Flow rate : 400ml/min-1300ml/min
Peristaltic Pump Power : 15W
Weight : about 888g
Peristaltic Pump Motor Lifetime : 800H
Tubing option : Silicone-200H; BPT-1000H
