CORE SPECIFICATIONS & 6-PIN LAYOUT: The T92S7D22-22 is a professional-grade Double Pole Single Throw (DPST-NO) Power Relay. Featuring a 22VDC Coil and a heavy-duty 30A 277VAC / 20A 28VDC contact rating, this 6-pin component is designed for high-current switching in demanding industrial and HVAC environments
BROAD INDUSTRY COMPATIBILITY: Engineered as a precision Replacement for Potter & Brumfield and TE Connectivity T92S7D22 series. These relays are widely compatible with major HVAC brands including Goodman, Amana, and Lennox control boards, providing a cost-effective solution for condenser and blower motor circuits
HVAC DIAGNOSTIC SOLUTION: Ideal for resolving common heating and cooling failures. If your outdoor condenser unit fails to kick on or the compressor is stuck, this relay serves as the critical switching component to restore system functionality and eliminate "No Cooling" symptoms or control board errors
DUAL-MATERIAL CRAFTSMANSHIP: Built for longevity with Internal AgSnO2 (Silver Tin Oxide) Contacts to resist electrical arcing and welding under heavy loads. The external Tin-Plated Terminals ensure superior conductivity and oxidation resistance, maintaining a secure connection even in high-vibration settings

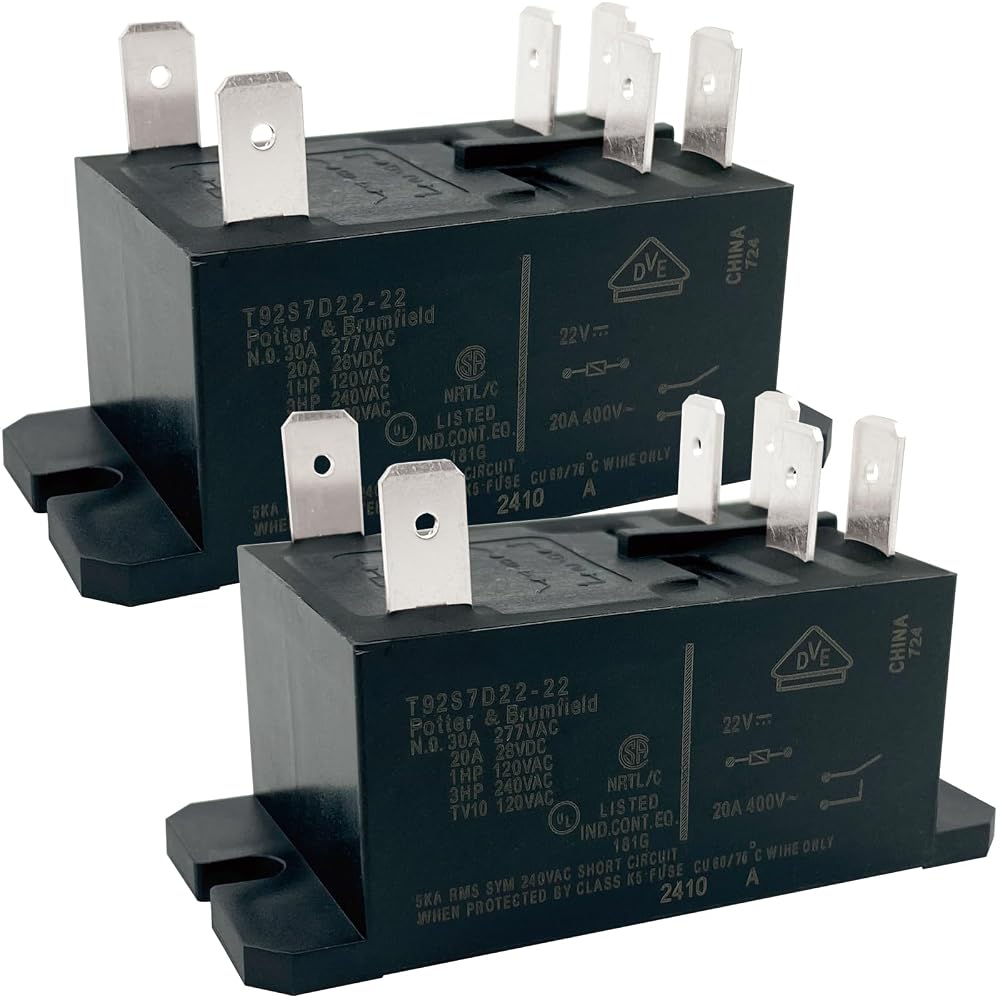

PROFESSIONAL REPLACEMENT VALUE: This 2-Pack bundle ensures you have an immediate replacement and a backup on hand for emergency repairs. Rated as a Class F insulation component, it is a direct Replacement Part designed to meet or exceed OEM performance standards for power switching

وصف

Heavy-Duty Power Switching: The Professional T92S7D22-22 2-Pack Relay Solution
Restore your equipment's reliability with the T92S7D22-22 Power Relay. Specifically engineered for high-inrush current applications, this DPST-NO (Double Pole Single Throw, Normally Open) relay is the industry standard for HVAC control, industrial automation, and power management. Whether you are a technician repairing a commercial HVAC system or a DIYer fixing a home AC condenser, these relays provide the durability required for 30A circuits.
Technical Specifications:
Model Number: T92S7D22-22

Pin Count: 6-Pin (Quick Connect Terminals)

Contact Rating: 30A @ 277VAC; 20A @ 28VDC

Coil Voltage: 22VDC

Contact Material: AgSnO2 (Silver Tin Oxide)

Configuration: DPST-NO (2 Form A)

Interchange & Cross-Reference:
Compatible with T92 Series Power Relays

Replacement for P&B T92S7D22-22-01

Fits various HVAC Control Boards (Condenser/Blower)

FINAL BUYER WARNING: IMPORTANT: To ensure 100% compatibility, please verify your original part number and terminal configuration (Pin Count) against our product images prior to purchase. Specifically, check that your system requires a 22VDC Coil, as this is a specialized voltage variant. Cross-referencing physical dimensions with your existing unit is essential to prevent incorrect fitment. Model T92S7D22-22 is a precision replacement component.
