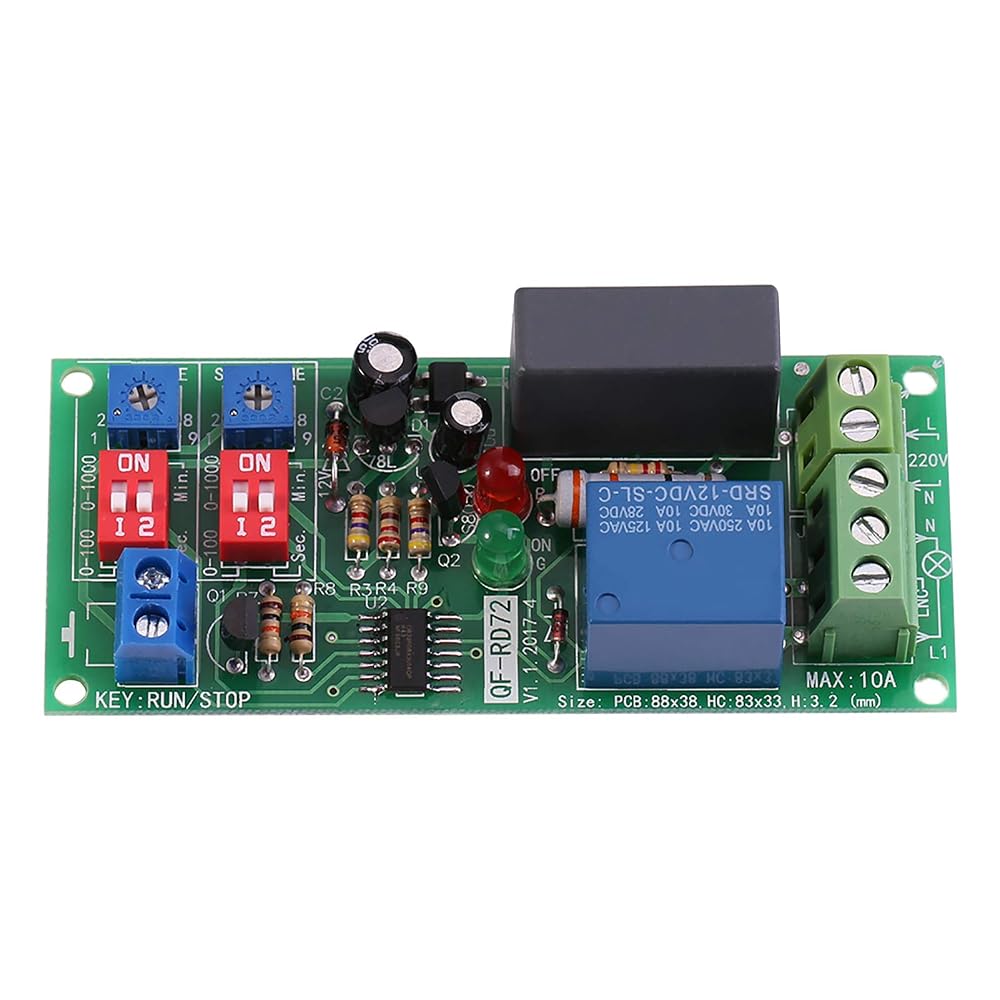

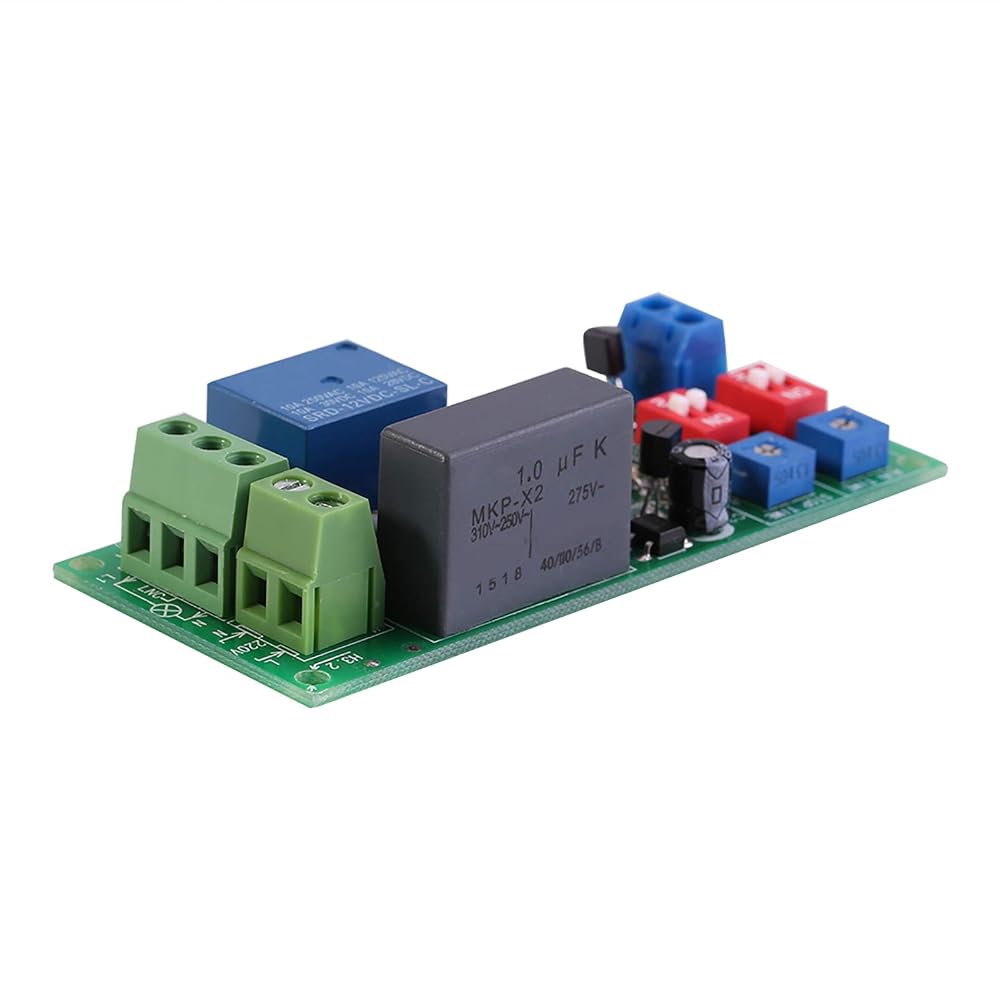

Specifications:
Voltage: AC100V~250V
Power:
Maximum Output Current:

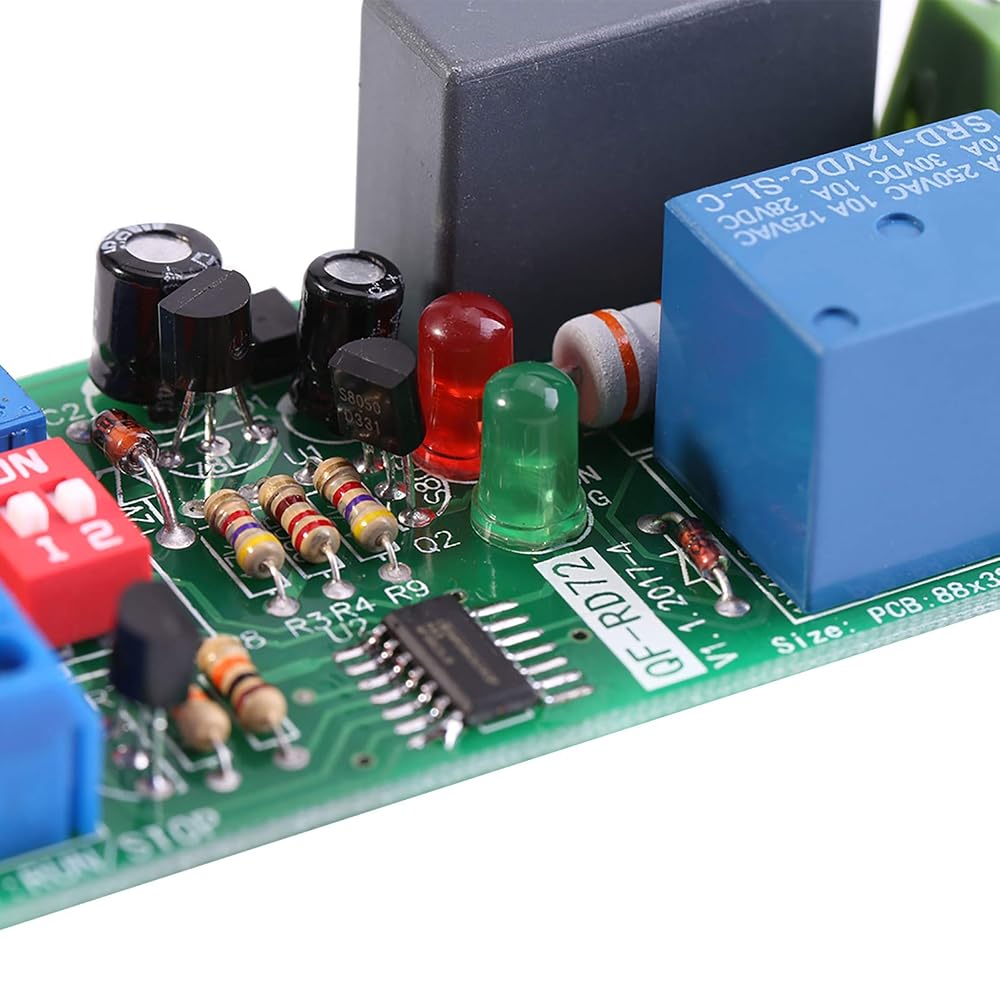

Input: Passive switch input, green led lights up after turn on, red led lights up after stop
Time Range: 0.5sec. to 1000min.
Time Accuracy: Maximum range value*0.001
Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop
Start input is not necessary. Connect these 2 terminals and then the board will cycle infinitely after power on.

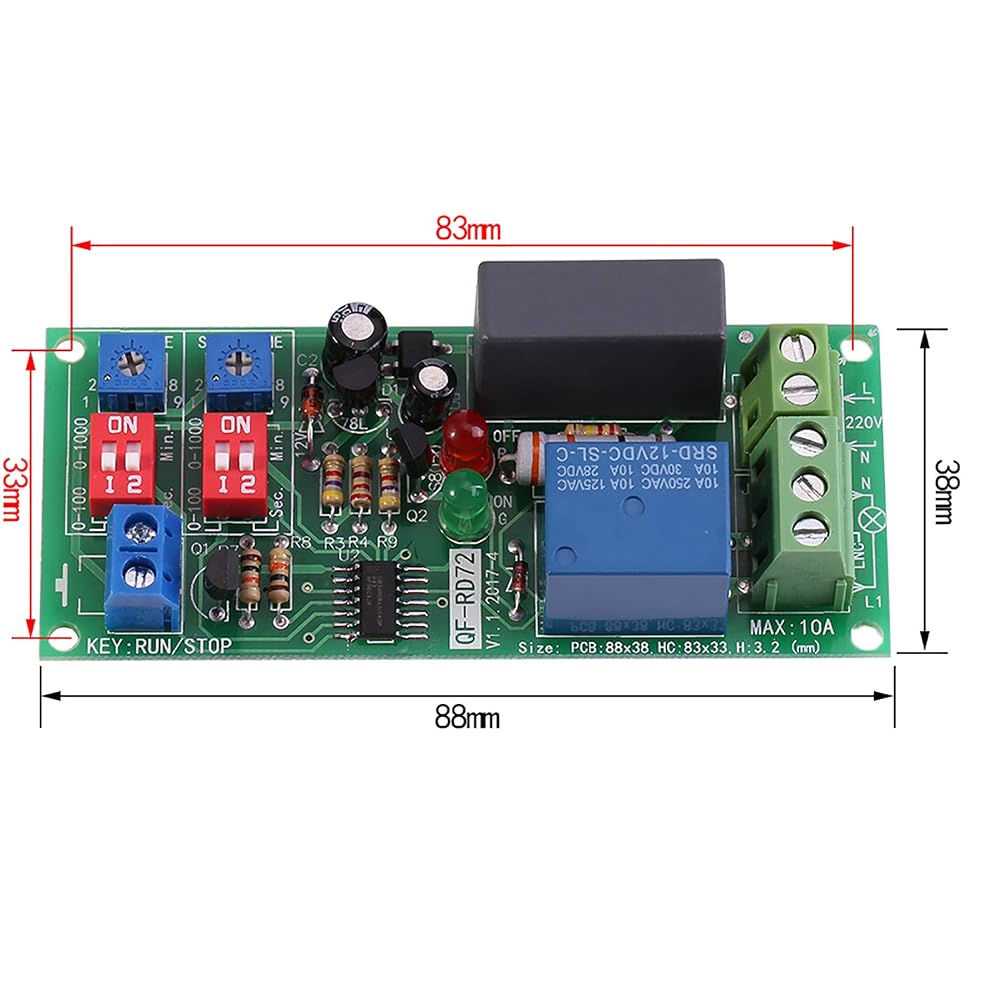

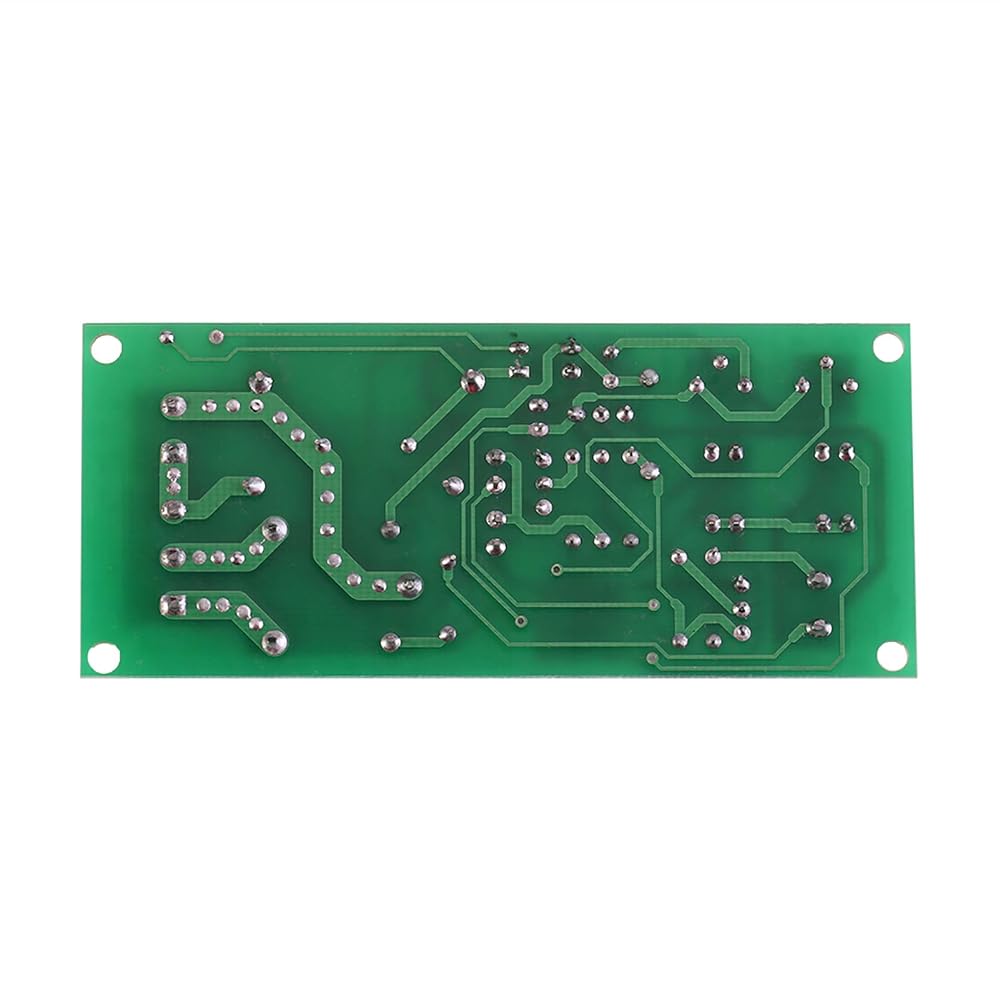

Size: 88 x 38 x 22mm / 3.46 x 1.49 x 0.86"
Mounting Hole Spacing: 83 x 33mm / 3.26 x 1.3"
Mounting Hole Diameter: 3.2mm / 0.12"

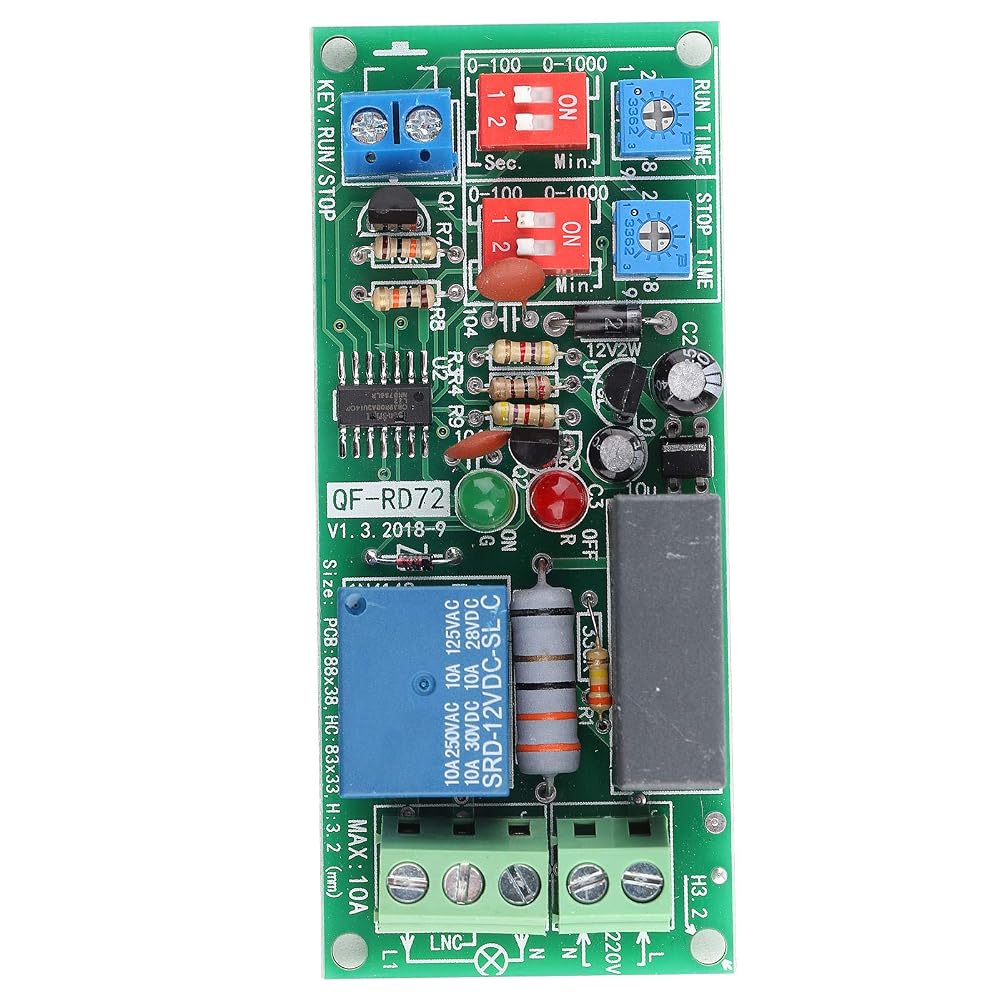

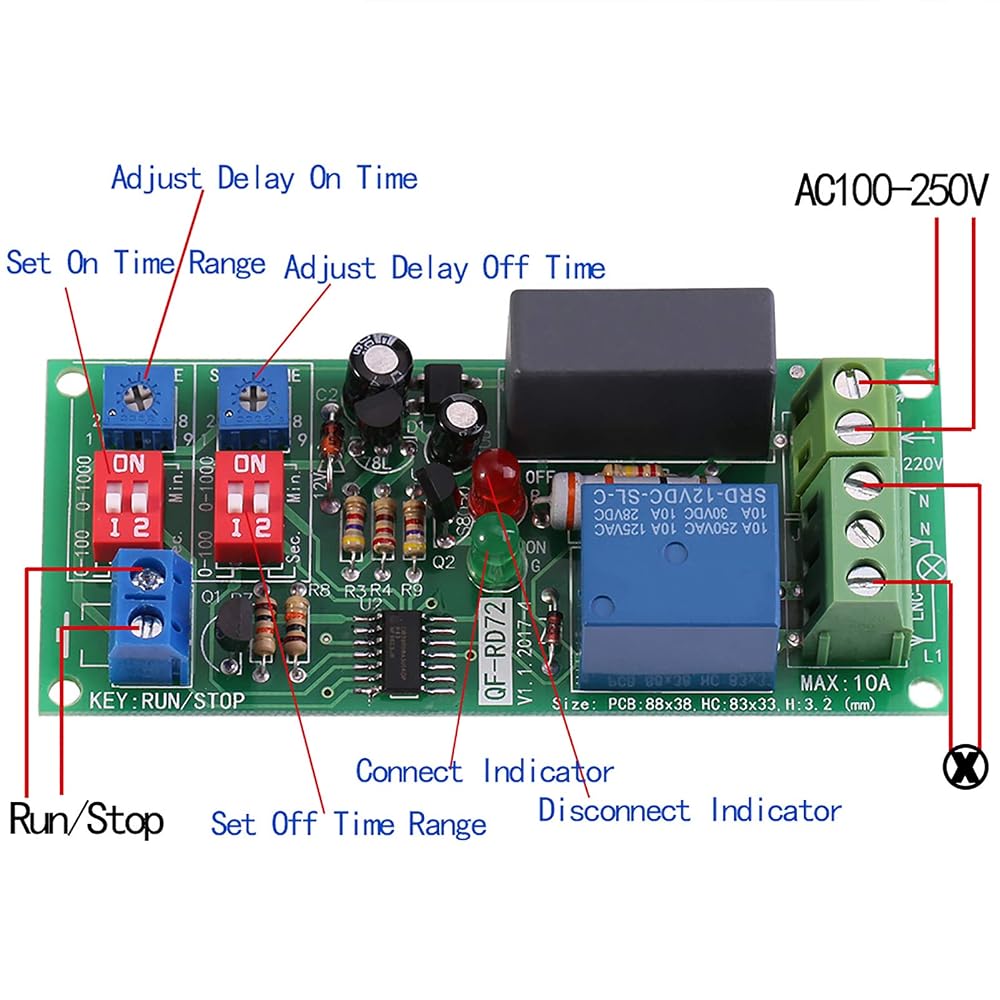

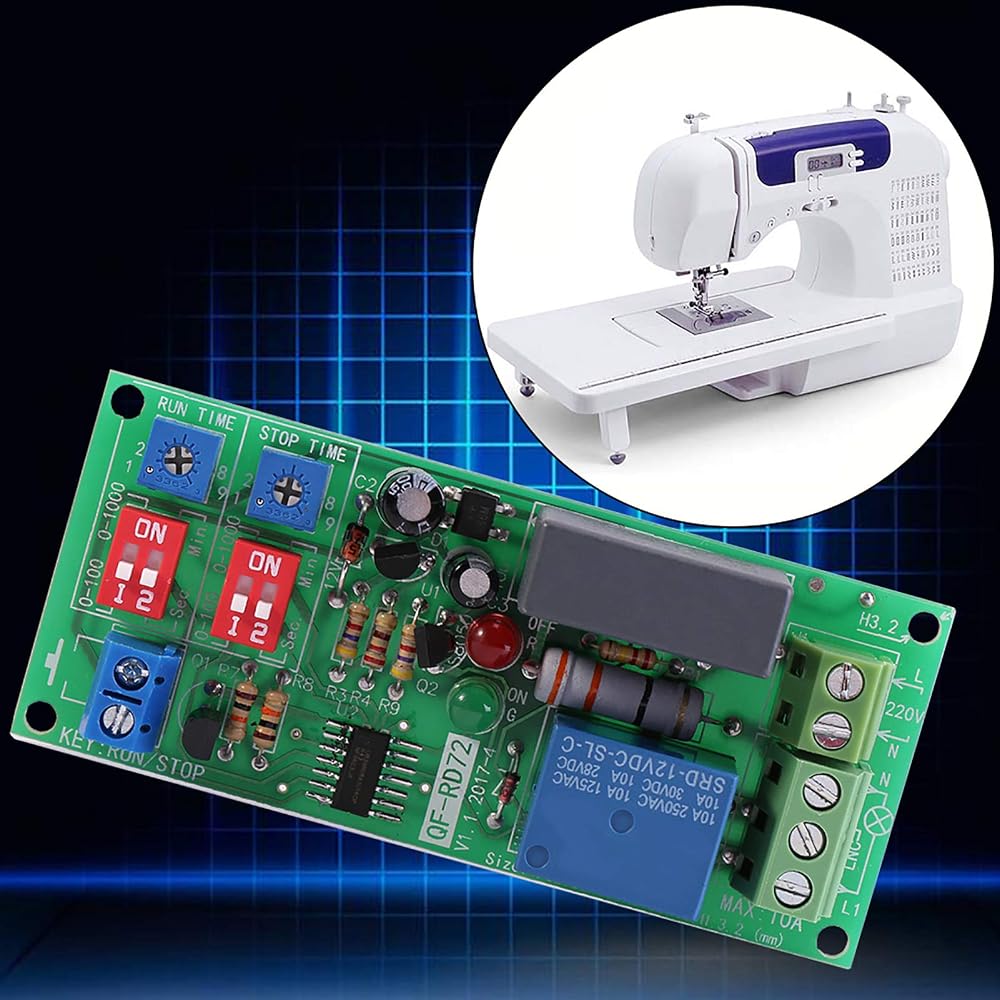

Instruction:
Time can be set when the board is powered on or powered off.

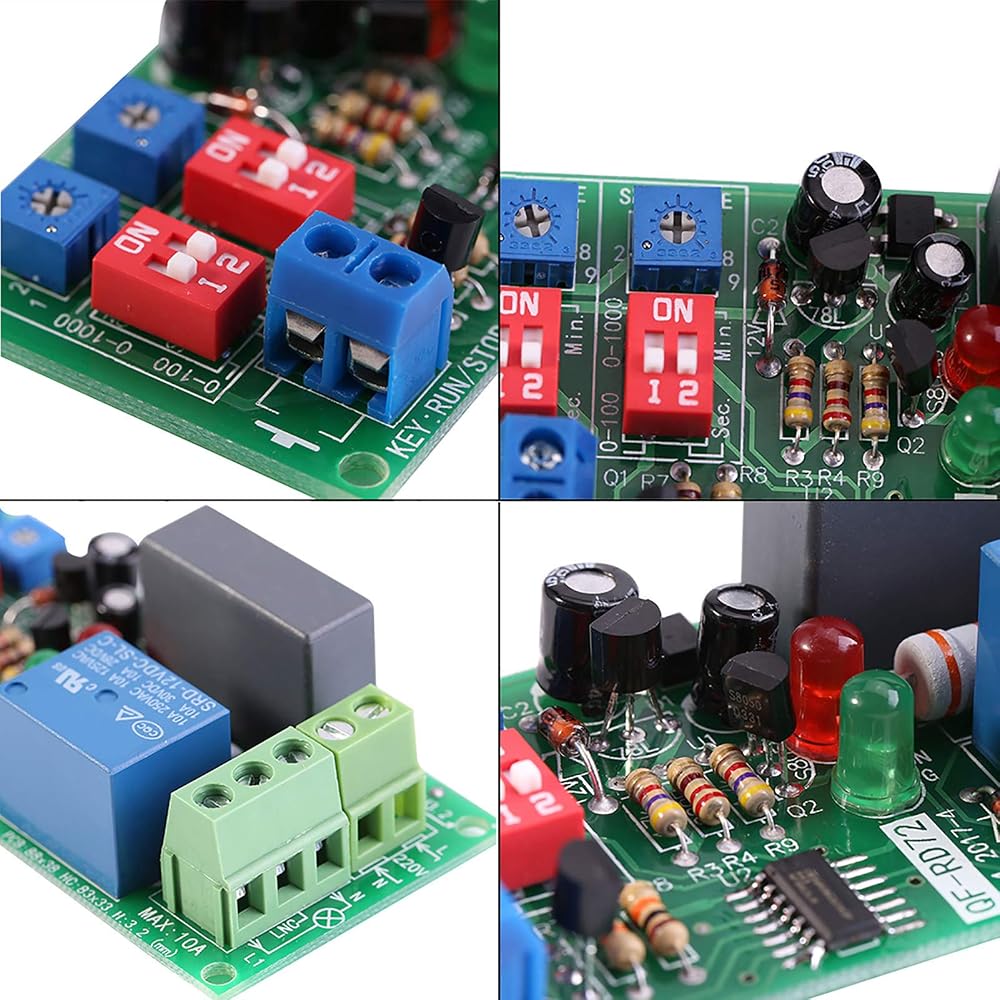

1, Set Run Time:
Adjust the RUN TIME potentiometer clockwise to increase, counterclockwise to decrease.
The red switch below can set time range(left, 0-100 or 0-1000)
and unit(right, Sec. or Min.)
2. Set Stop Time:
Adjust the STOP TIME potentiometer clockwise to increase, counterclockwise to decrease.
The red switch below can set time range(left, 0-100 or 0-1000)
and unit(right, Sec. or Min.)
3. Start Button(Not included):
Connect a momentary push-button switch and press it, then green LED lights up indicating it is working. The board would automatically run according to the setting run time and stop time, infinite cycle.Press the start button again, then red LED lights up indicating it stops.
4. Time Setting Example:
Requirement: Run for 20 seconds, stop for 30 minutes, infinite cycle.
Settings:
(1)Set run time range to 0-100;
(2)Set run time unit to Sec.;
(3)Set run time potentiometer to 20 position, namely the position of 20/100 from left;
(4)Set stop time range to 0-100;
(5)Set stop time unit to Min.;
(6)Set stop time potentiometer to 30 position, namely the position of 30/100 from left;
Note:
1. Use a start button whose current is more than 0.1A
2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package Includes:
1 x Timer Relay Module
