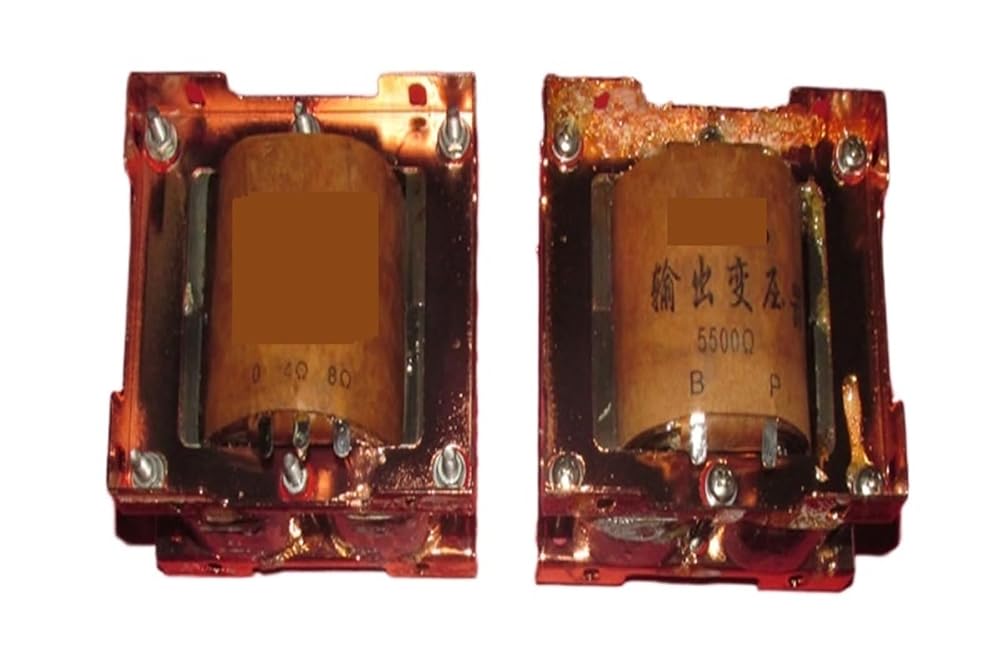

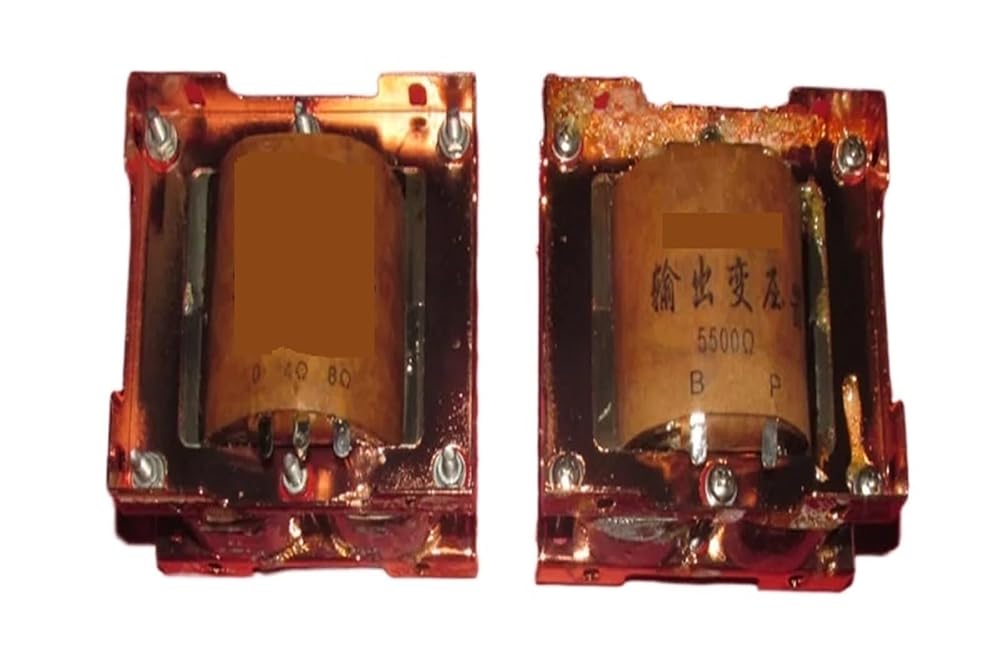

Amplifier Output Transformer Amorphous 4C core 5K5 Single-Ended Output Transformer, Suitable for 6P6P 6P14 6V6 and Other Electronic Tubes(5K5 of 16 ohm) in Kuwait Amplifier Output Transformer Amorphous 4C core 5K5 Single-Ended Output Transformer, Suitable for 6P6P 6P14 6V6 and Other Electronic Tubes(5K5 of 16 ohm) in Kuwait Amplifier Output Transformer Amorphous 4C core 5K5 Single-Ended Output Transformer, Suitable for 6P6P 6P14 6V6 and Other Electronic Tubes(5K5 of 16 ohm) in Kuwait Amplifier Output Transformer Amorphous 4C core 5K5 Single-Ended Output Transformer, Suitable for 6P6P 6P14 6V6 and Other Electronic Tubes(5K5 of 16 ohm) in Kuwait

Amplifier Output Transformer Amorphous 4C core 5K5 Single-Ended Output Transformer, Suitable for 6P6P 6P14 6V6 and Other Electronic Tubes(5K5 of 16 ohm)

KWD 0
Brand
CAARLA
Color
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

Actual measurement parameters: The data will be different due to different measuring instruments.
The primary inductance is about 17H-20H. DC resistance is about 267, secondary DC resistance is about 0.6 (8), impedance: 5K5 / 48, leakage inductance is more than 30 to more than 50mH, distributed capacitance is 1.9nF-2.2nF, complex sixteen clips and six windings Method, counting the frequency response of 42 joints: 16Hz ~ 30KHz-3db. 20Hz ~ 20KHz -1.8db. Volume 82mmX65mmX100mm. Weight 2.75 kg / pair.
The output power is about 15W, and the working current is about 80-100mA.
==========
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
