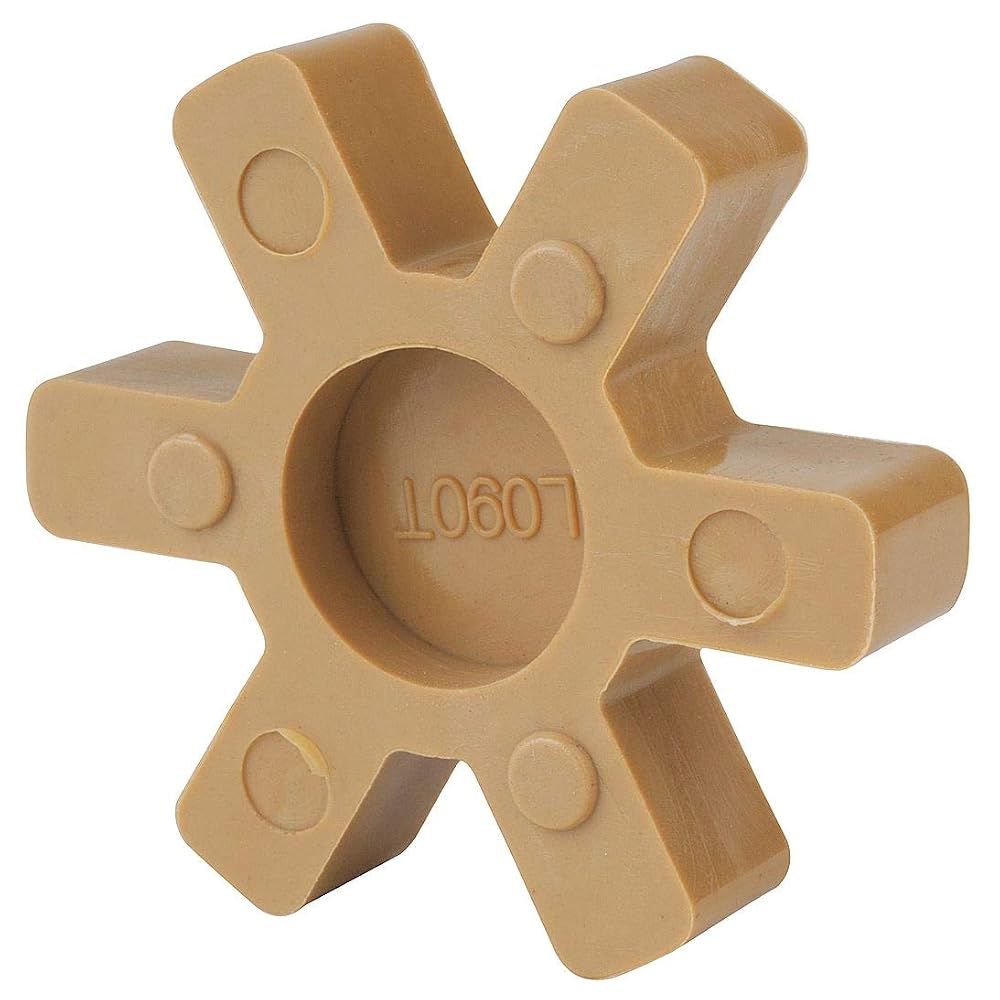

Oil- and high temperature-resistant insert conforms to the sintered alloy couplings to help them maintain position and structure for equal power transfer.
Specification:
Item - Jaw Coupling Spiders: Jaw Coupling Insert
Size - Jaw Couplings: L090/L095
Material - Spiders: Hytrel
Rated Torque: 561 in.-lb.
Max. RPM: 9000
HP Rating @ 100 RPM: 0.63/0.89
Temp. Range: -60 Degrees to 70 Degrees F
HP Rating @ 1200 RPM: 7.63/10.68
HP Rating @ 1800 RPM: 11.45/16.02
HP Rating @ 3600 RPM: 22.90/32.04
Coupling Weight (Lb.): 0.036
Max. Parallel Misalignment (In.): 0.015
Max. Angular Misalignment: 1.5 Degrees
Shaft Dia. Range (In.): 1/4 - 1 / 7/16 - 1-1/8
Color: Tan
Length (In.): 0.441
Width (In.): 2.087
Height (In.): 2.087
Accommodates: 1/2 Degree Angular and 0.015" of Parallel Misalignment
Application: Close Coupling L-Type
