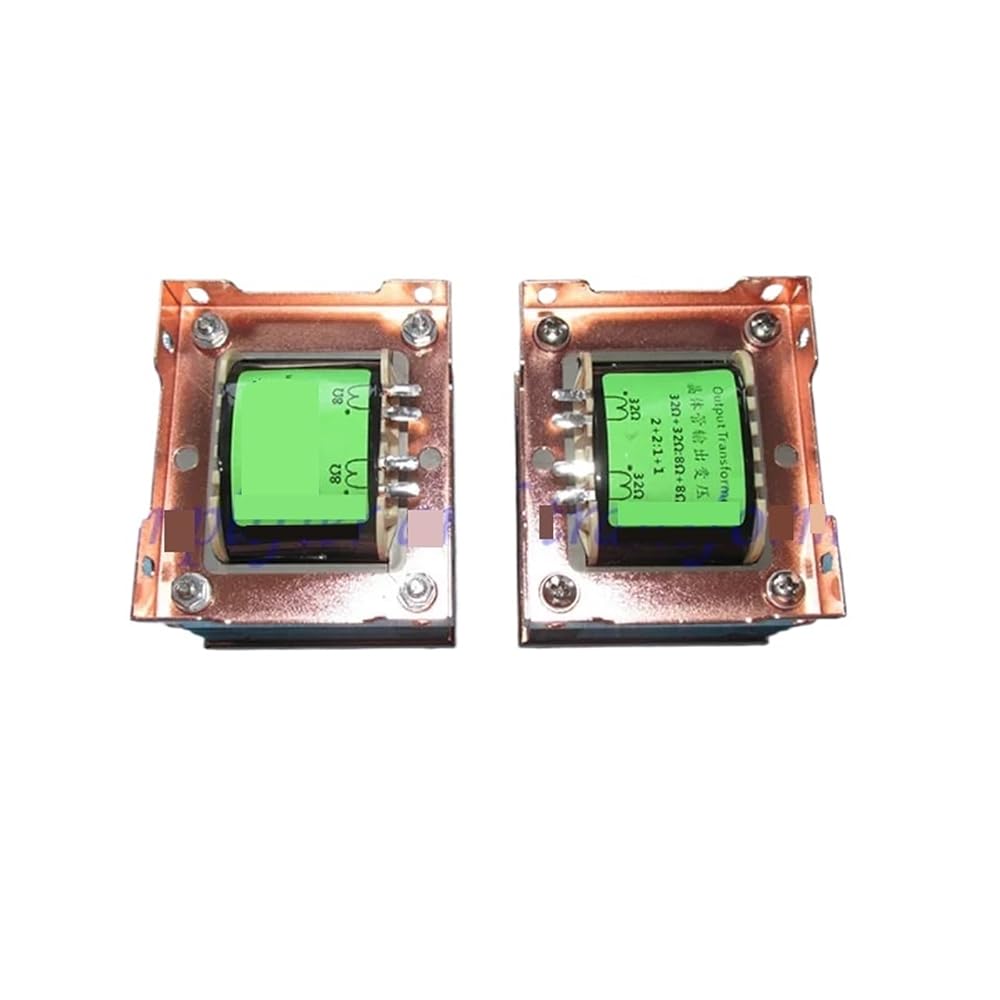

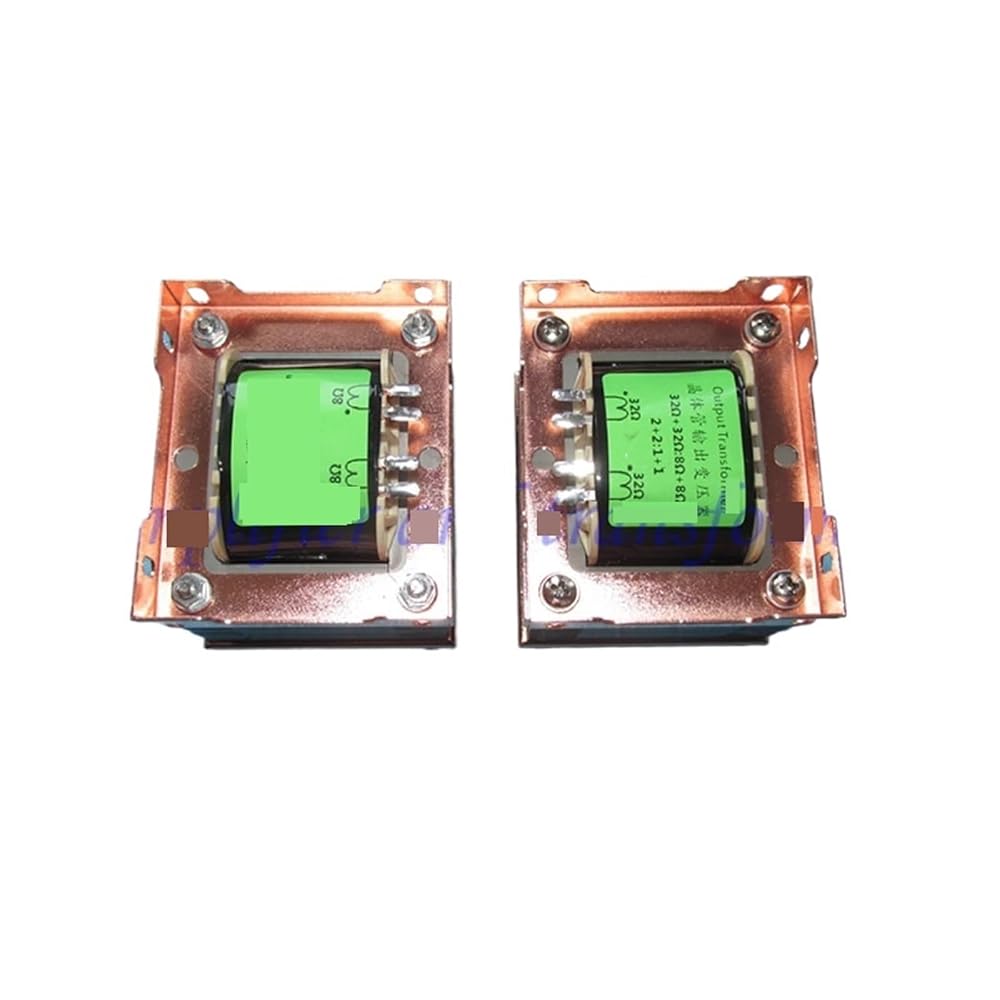

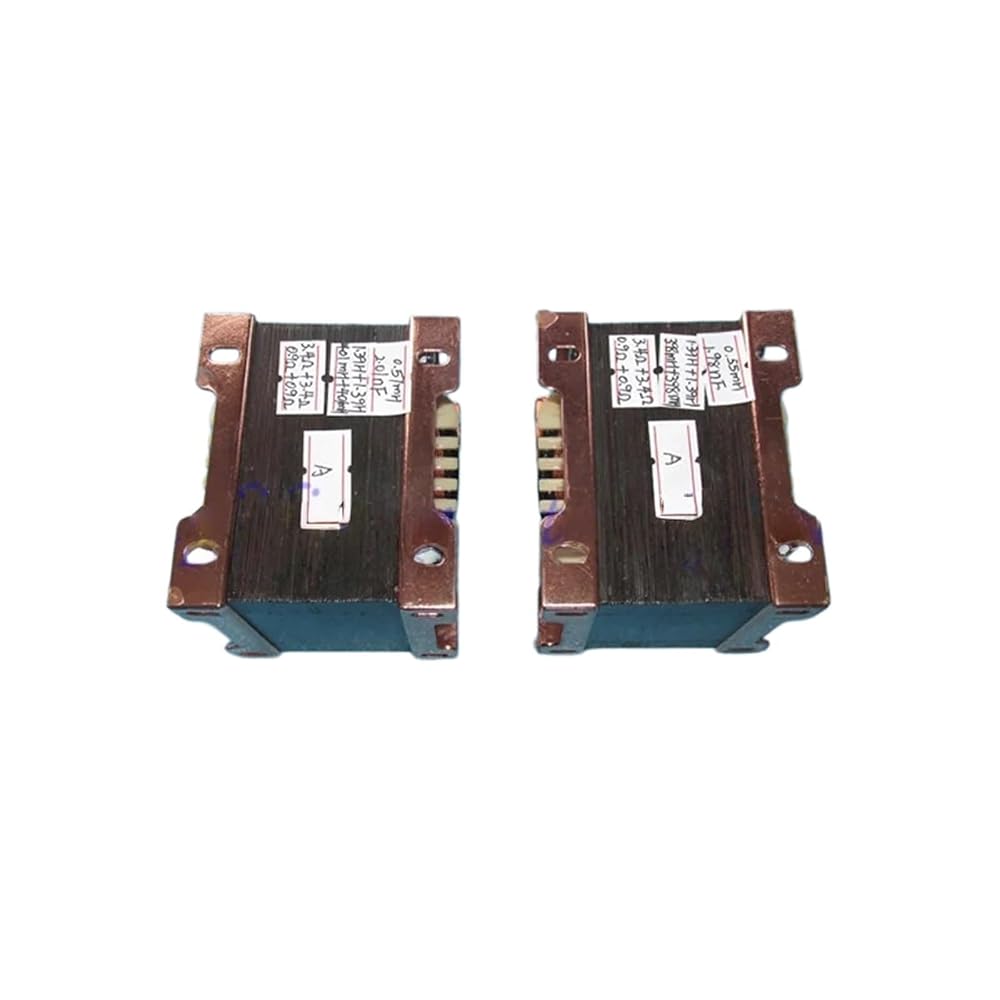

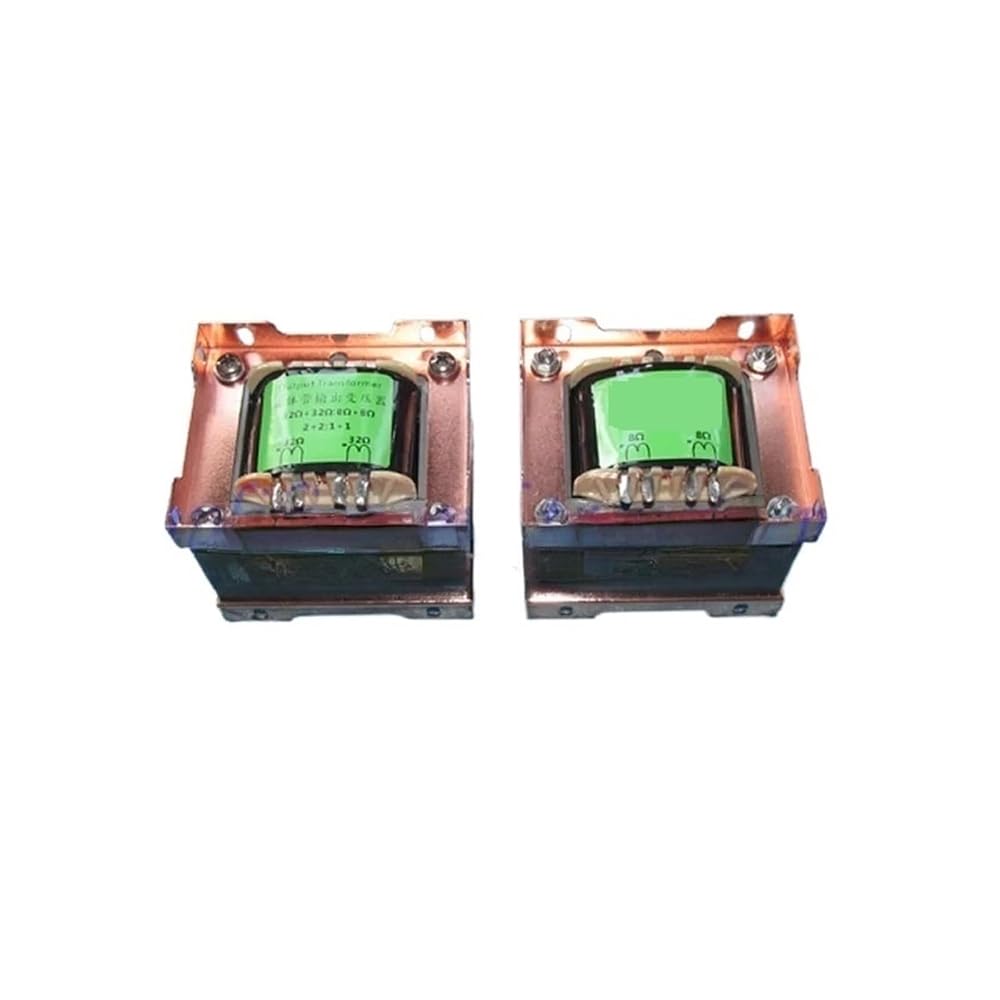

Amplifier Output Transformer 2:2:1:1 Transistor Output Transformer 50W, Multi-Purpose McIntosh Power Amplifier Output Transformer Winding Process

KWD 146
Brand
CAARLA
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

Transformer parameters:
Power: 50W
Applicable impedance: 2 ohms, 4 ohms, 8 ohms, 16 ohms, 32 ohms.

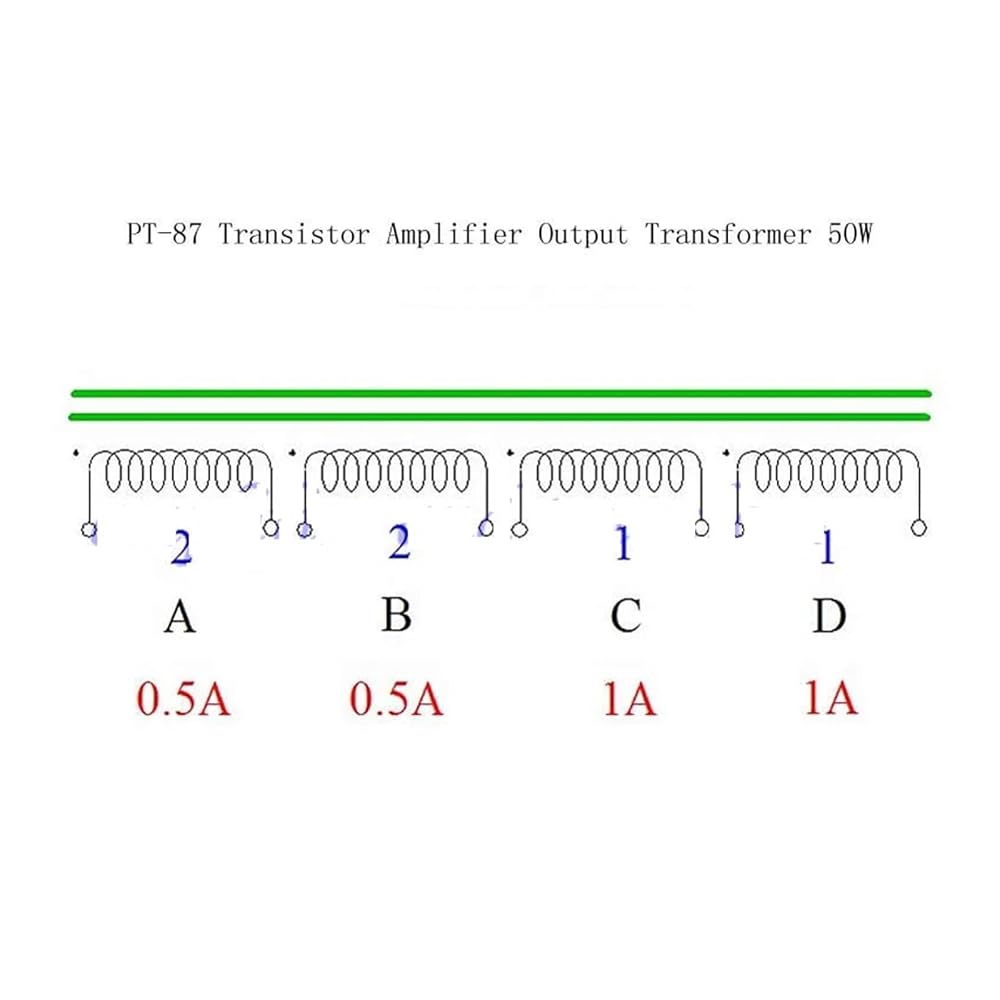

Four groups of coil copper resistance: in the figure, group A is 3.4, group B is 3.4, group C is 0.9, and group D is 0.9.
Four sets of coil currents: A and B are both 0.5A, C and D are both 1A
Four groups of coil inductance: A group 1.39H, B group 1.39H, C group 398mH, D group 398mH, 100HZ test.
Leakage inductance: 0.55mH
Distributed capacitance: about 2nF
Frequency response: 5HZ-50KHZ-0.5DB, 79KHZ-1DB
Weight: 3KG/pair
==========
High-concerned chemical : None
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
