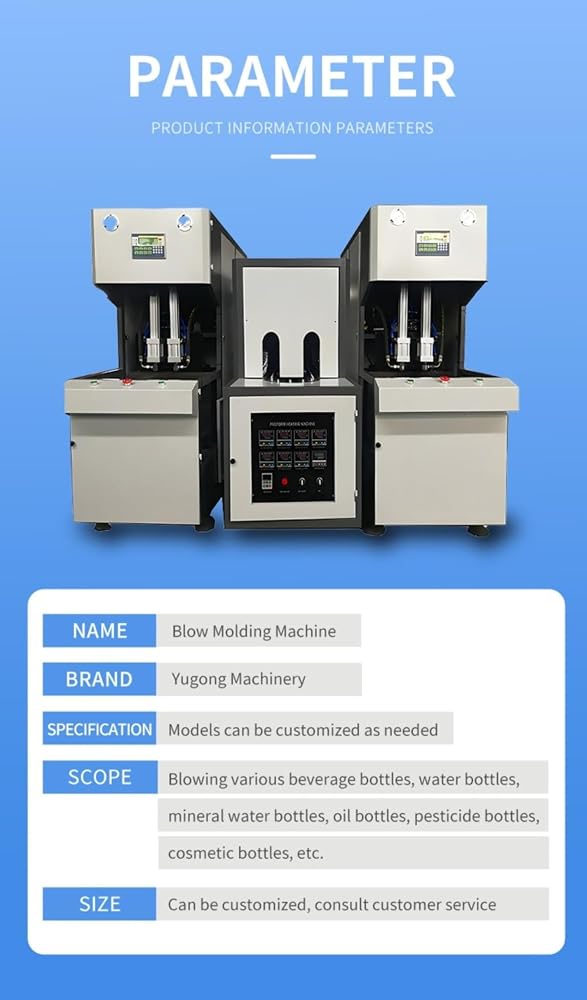

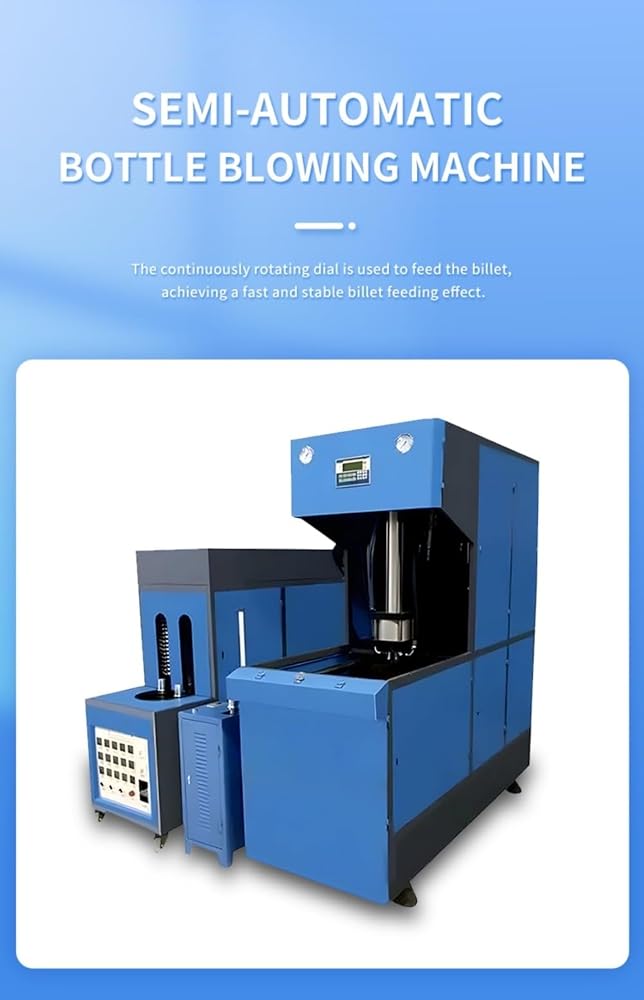

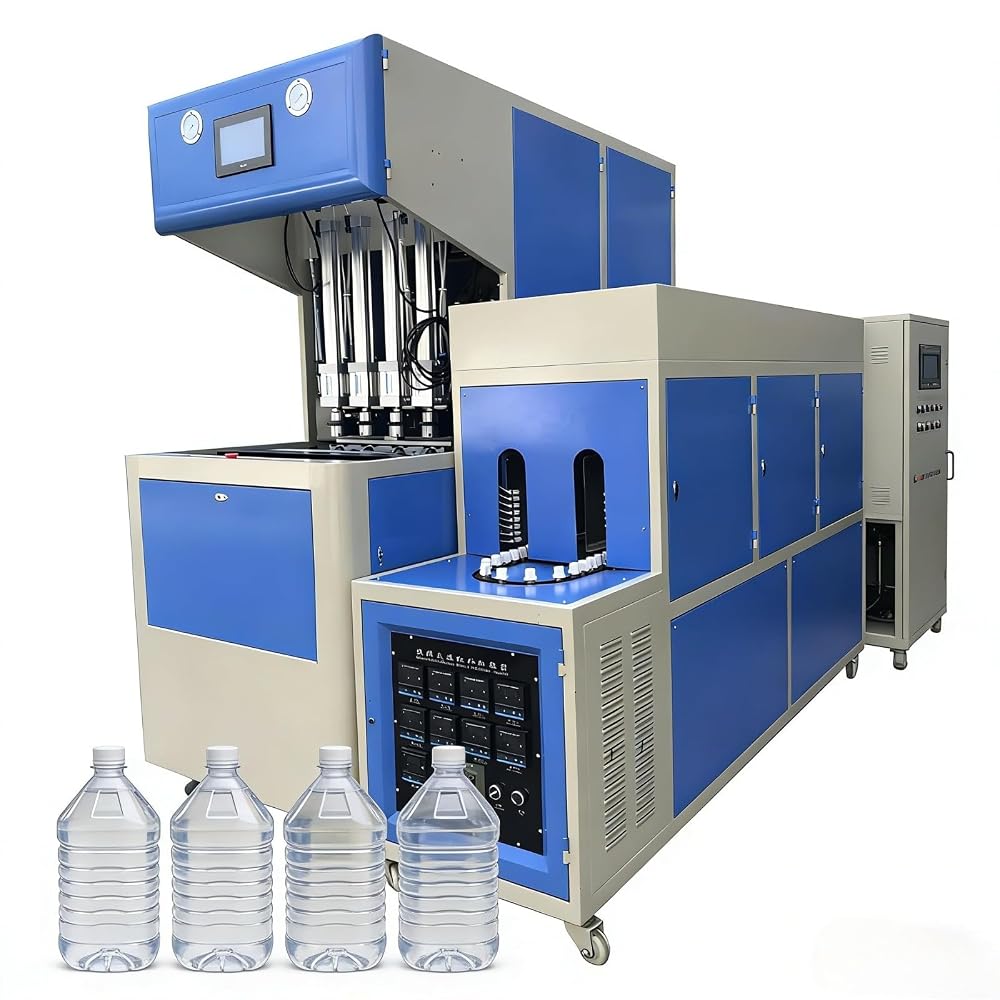

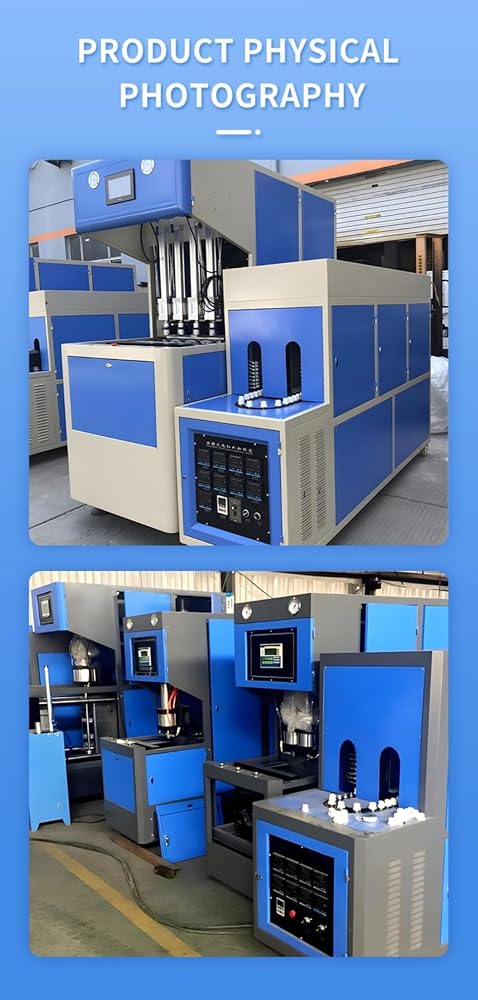

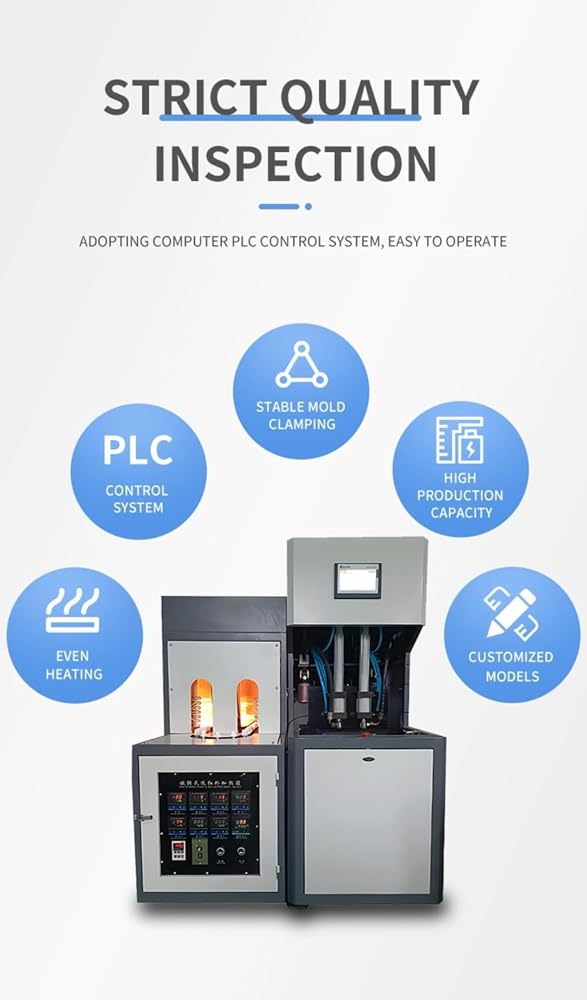

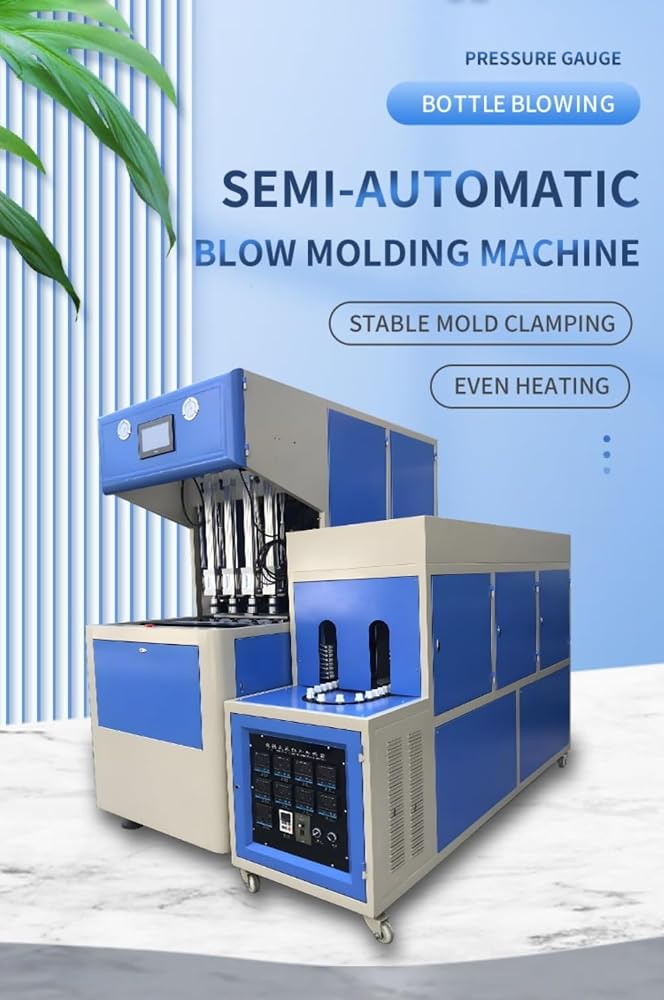

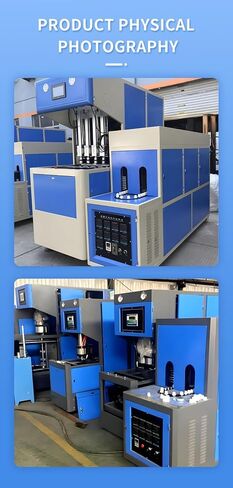

Semi-Automatic Blow Molding Machine – Multi-Model & Customizable

This semi-automatic blow molding machine is designed for high-efficiency production of plastic bottles, suitable for various industries. It supports a wide range of product sizes and is fully customizable to meet your production needs. For higher output, we also offer fully automatic blow molding production lines.

Technical Specifications:
Max Product Volume: 8–20 L
Production Capacity: 100–200 pcs/h
Neck Size: Useful Area of Mold Plate: 420 × 640 mm
Max Mold Thickness: 400 mm
Min Mold Thickness: 350 mm
Mold Stroke: 330 mm
Clamping Force: 100 kN
Stretching Stroke: 530 mm
Working Pressure: 0.8–1.2 MPa
Blowing Air Pressure: ≤3.0 MPa
Main Blower Power: 1 kW
Main Blower Weight: 2000 kg
Main Blower Dimensions: 2200 × 720 × 2000 mm
Preheater Power: 18 kW
Preheater Weight: 560 kg

Applications: Suitable for producing plastic bottles in food, beverage, chemical, and industrial packaging industries.
