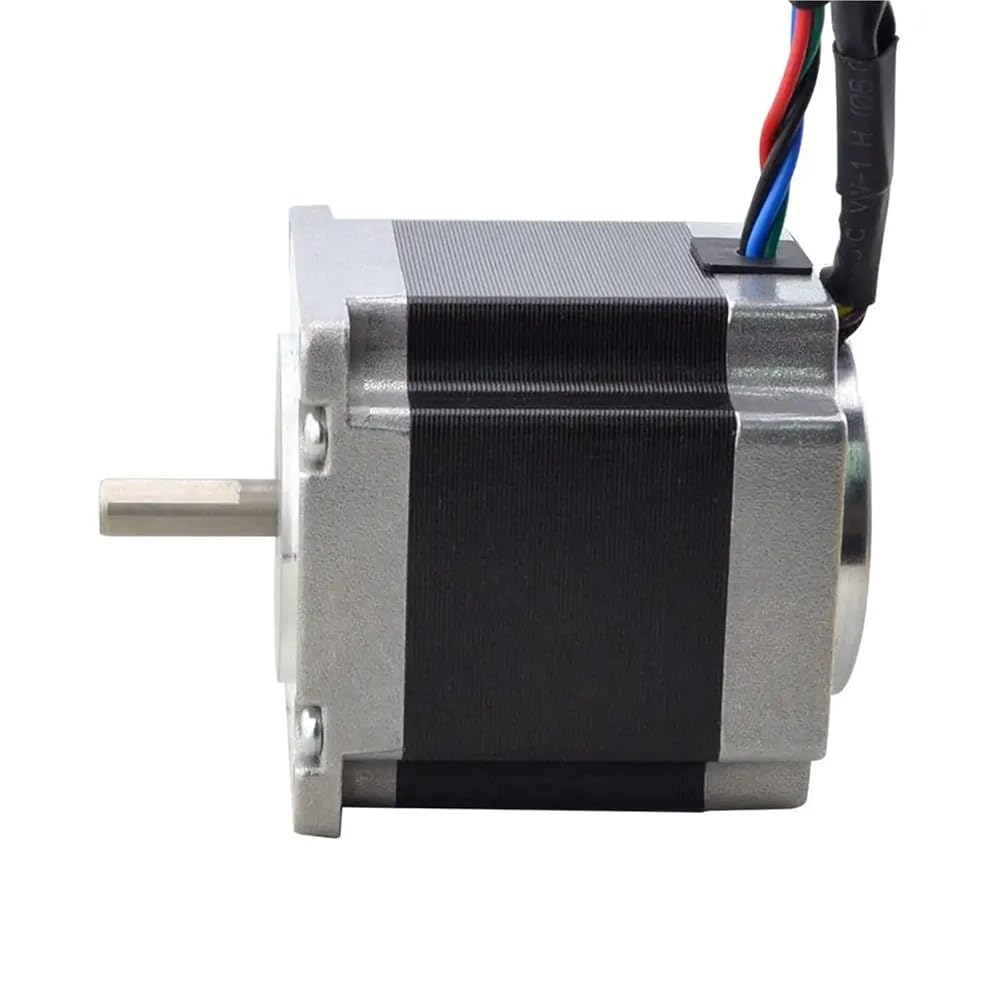

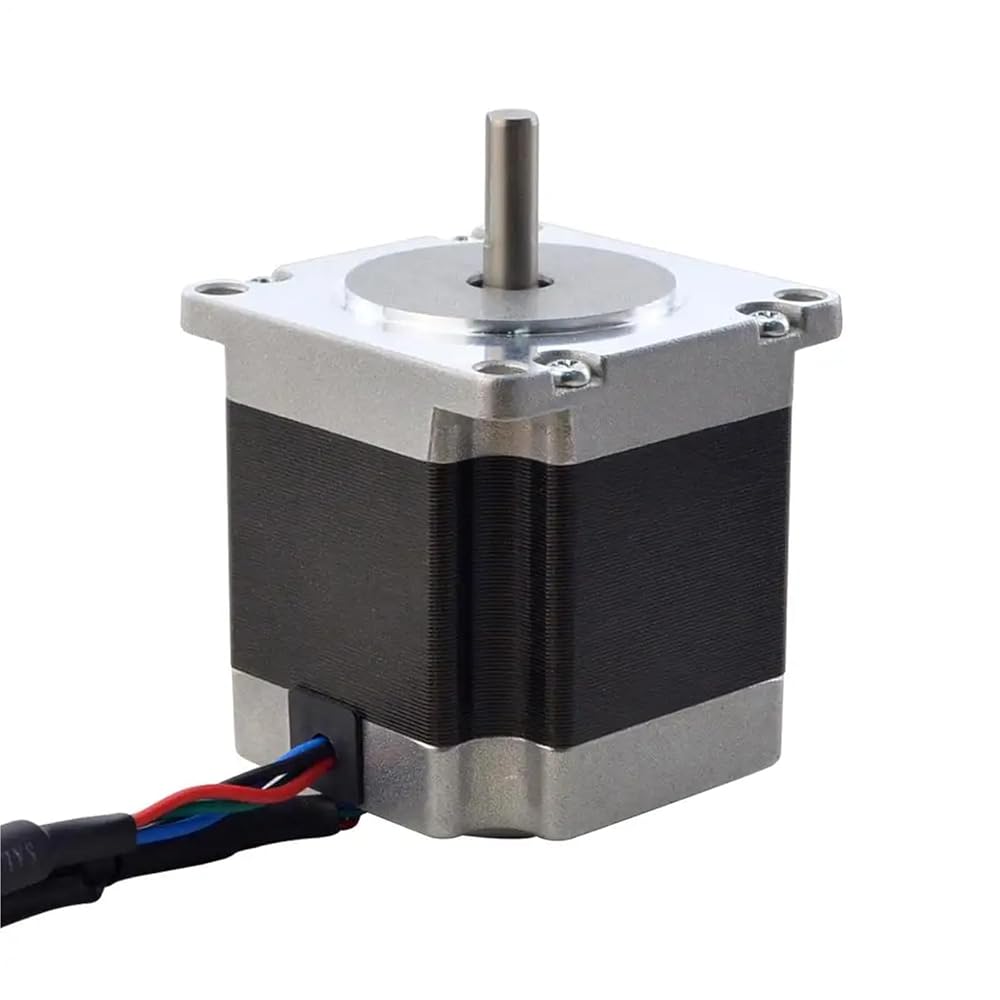

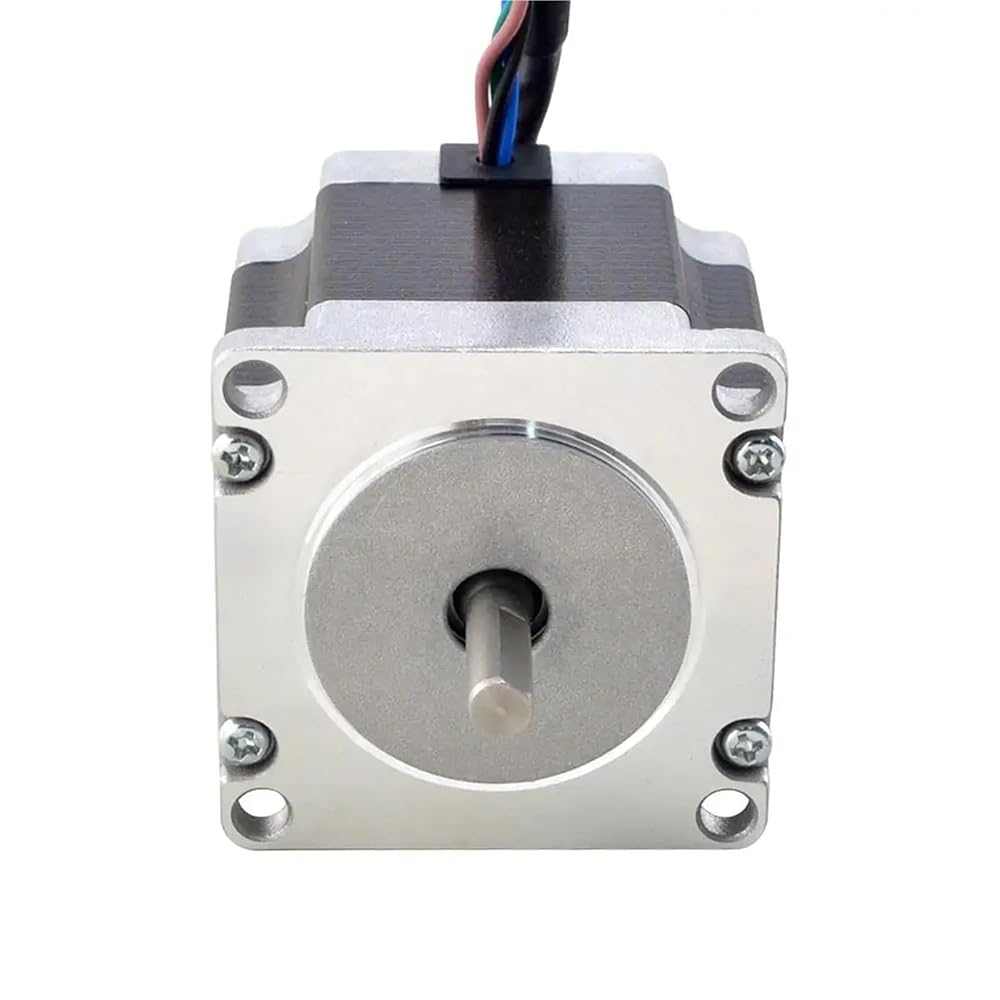

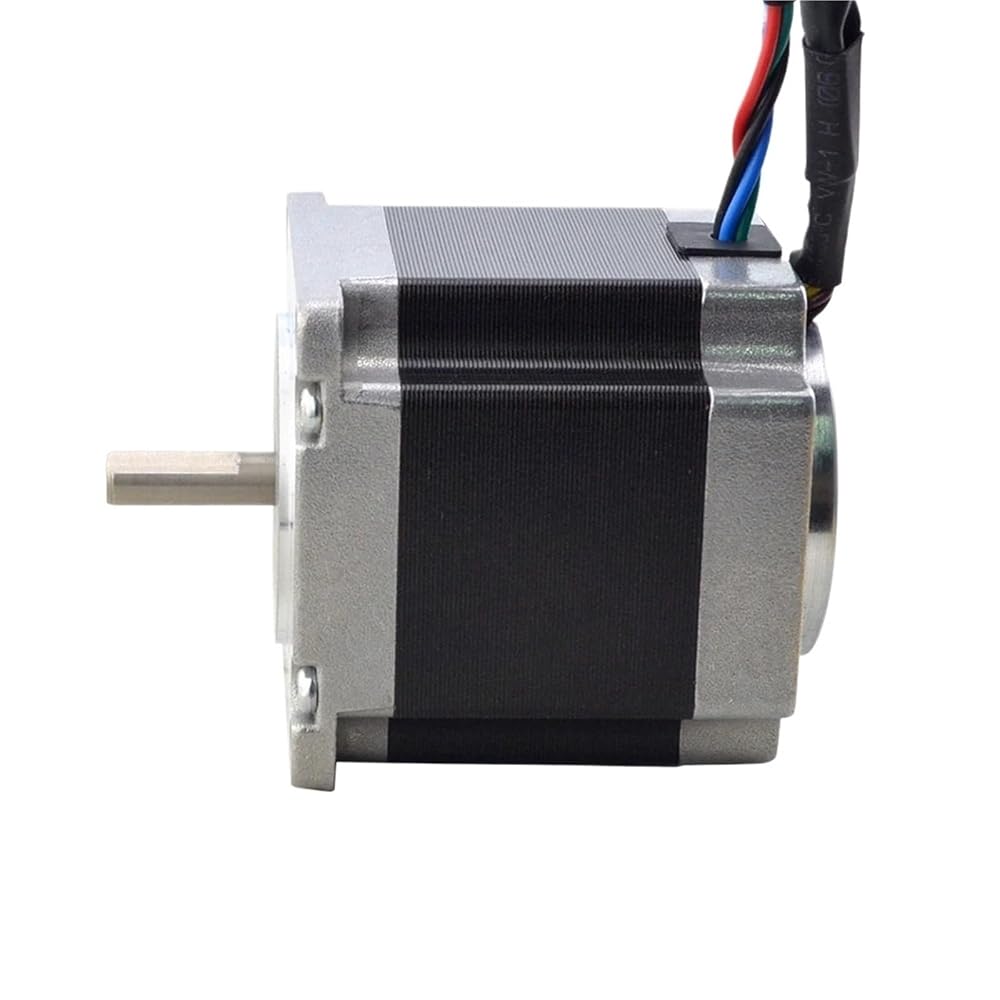

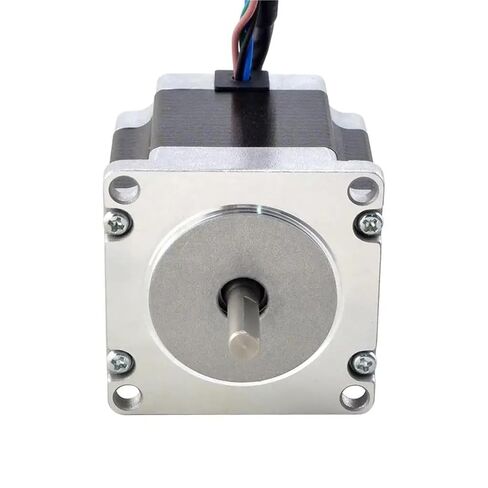

Closed Loop Stepper Motor 1.2Nm 2.8A with Magnetic Encoder 6.35mm Shaft Servo 1Pcs

KWD 52
– 1 +

Special Features

  • Pneumatic Motors

Description

Pneumatic Motors
Part Number: 23HS22-2804-ME1K
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.2Nm(170oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms± 10%
Inductance: 2.6mH ± 20%(1KHz)

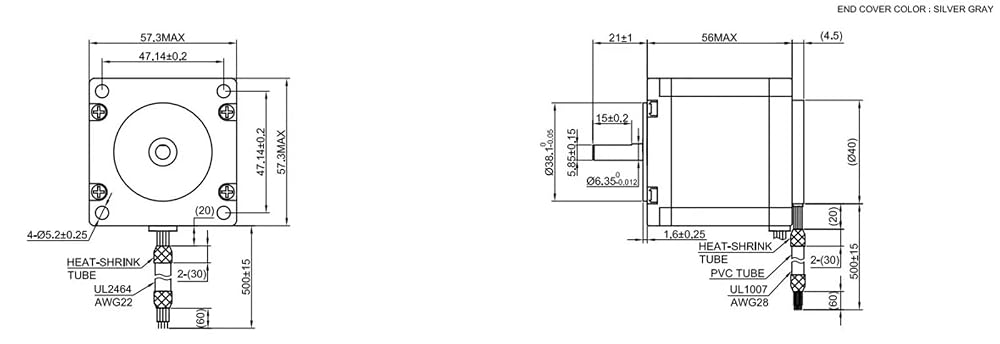

Frame Size: 57 x 57mm
Body Length: 60.5mm
Shaft Diameter: 6.35mm
Shaft Length: 21mm
D-CUT Shaft Length: 15mm
Lead Length: 500mm
Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ
