Product introduction

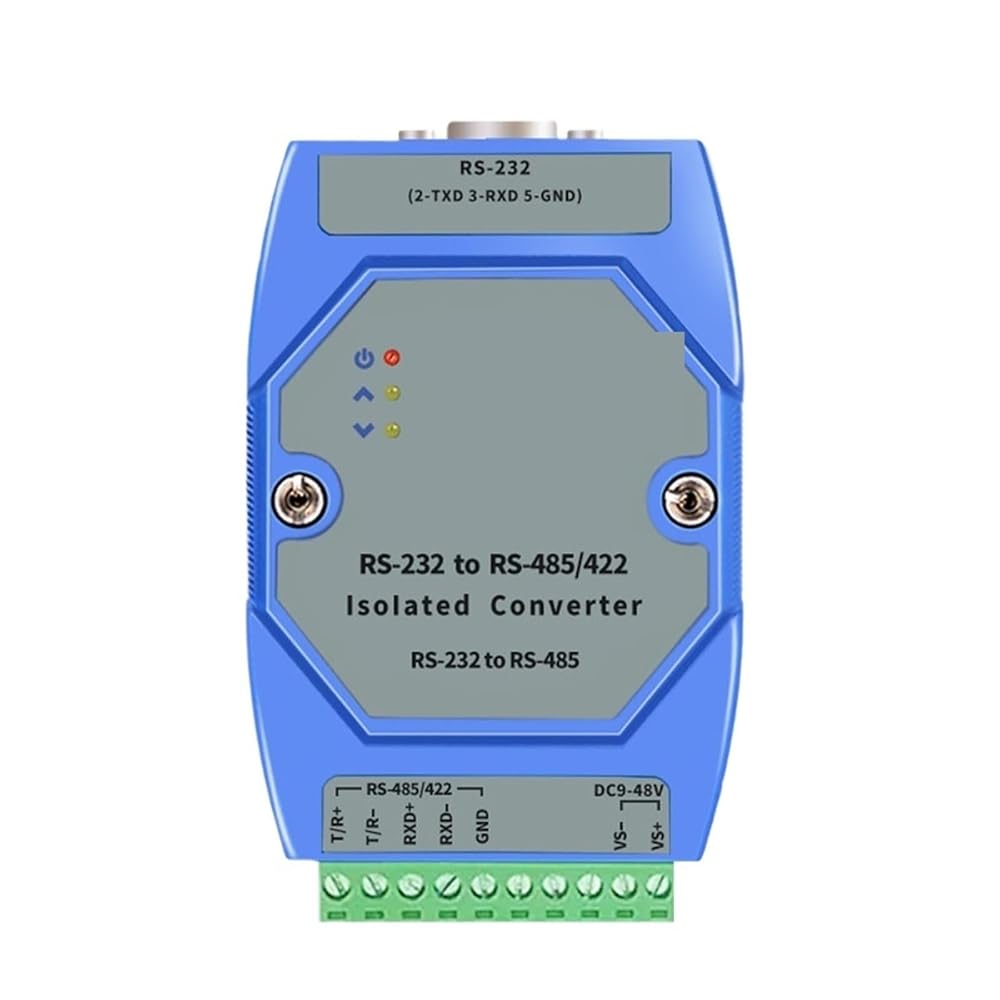

ADM-2720 is designed for industrial automation communication, solve the signal RS-232 interface into a photoelectric isolation converter of RS-485/422 signal, support the maximum transfer rate up to 115.2Kbps, RS-485 interface adopts photoelectric isolation technology, 600W surge protection circuit to provide isolation voltage 1000V can effectively suppress the protection and ESD. The discriminating circuit used in the RS-485 working mode can automatically perceive the direction of data flow, and automatically switch the enabling control circuit, so as to solve the problem of RS-485 transceiver conversion delay easily. The transmission distance of the RS-485 interface is more than 1000 meters, and the performance is stable. Widely used in highway toll collection system, road monitoring system and power collection system areperformance data conversion products.
performance parameter
1. Compatible RS-232, RS-485 /EIA standard
2. Automatic transmission and reception of data: RS232 three line (TXD.RXD.GND) communication
3, input interface: RS-232 interface (DB9 parent), distribution bus serial port line
4, output interface: RS-485/422, RS485 (T/R+, T/R-), RS422 (T/R+, T/R-, RXD+, RXD-)
5. Communication rate: 300BPS-115.2KBPS
6, work power: DC9-48V, DC12V150MA (MAX) (can be connected to 24V power)
7, load capacity: RS485 can connect 32 devices per Road
8. Communication distance: 1000 meters (1200BPS)
9, LED instructions: power, data direction instructions
10, mode of work: asynchronous half duplex (RS-485), asynchronous full duplex (RS-422)
11, photoelectric isolation: isolation voltage 1KVrms /500VDC insulation, isolated DC/DC module
RS-485/422 provides surge for 600W, 15KV ESD protection
12, electrical interface: RS232 (DB9), RS-485/422 (8 core industrial terminal), power supply (2 core industrial terminal)
13. Transmission medium: twisted pair or shielded line
14, installation way: 35mm DIN guide rail installation
15. Structure size: 103x72x27 (mm), long x wide x high (millimeter)
16. Use the environment: -20 C to 75 C, relative humidity of 5% to 95%
Origin : Mainland China
Certification : CE
