Pneumatic Motors
Specification:
1. Brand: Motor
2. Model: 180 precious metal brush micro motor
3. Motor specification: 32*20.5*15.5mm (length * width * height)
4. Shaft length: 8.4mm
5. Shaft diameter: 2mm
6. Weight: 32g
7. Voltage range: DC 2.4V-6V
Reminder: DC motor, within the applicable voltage range, the higher the voltage, the faster the speed; the locked-rotor current is a parameter measured by pliers; the motor is 2.4 volts or 3 volts, which is very quiet and should be shaver Motor; the voltage is 6 volts, the speed is faster, but the noise is relatively increased.

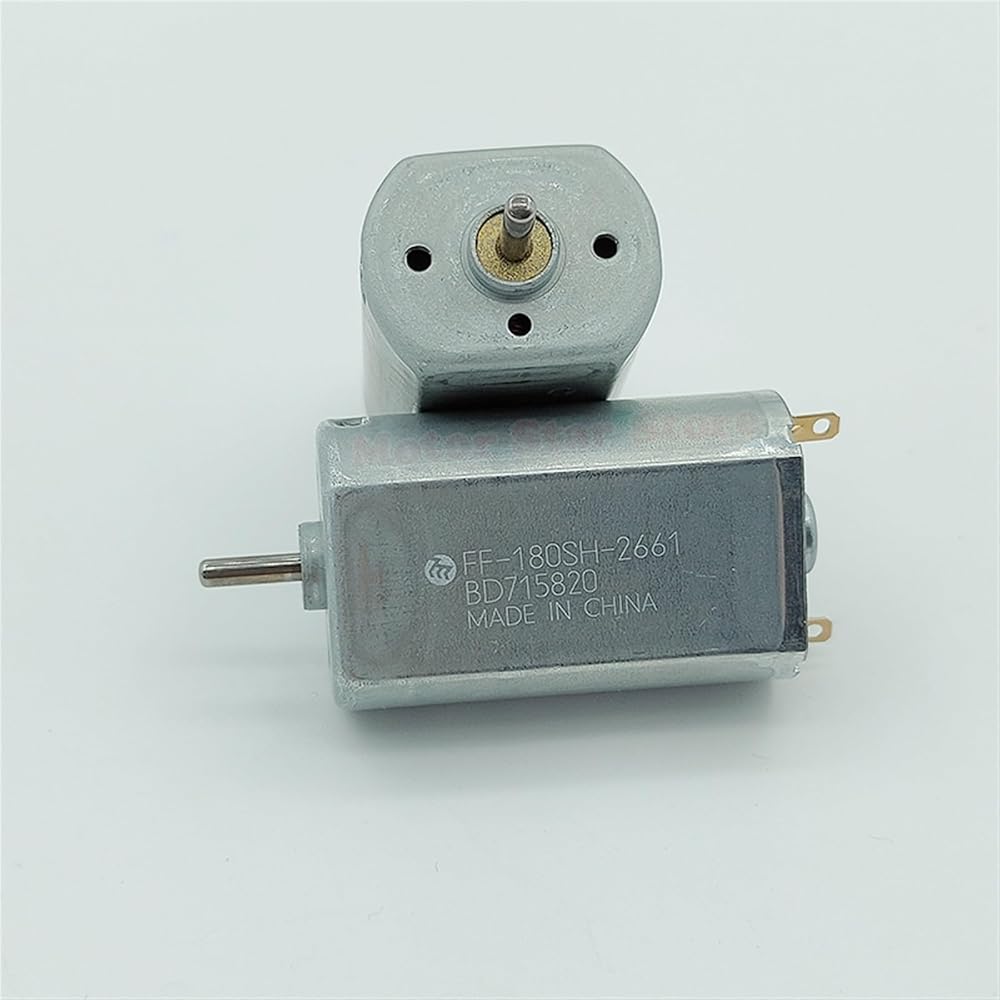

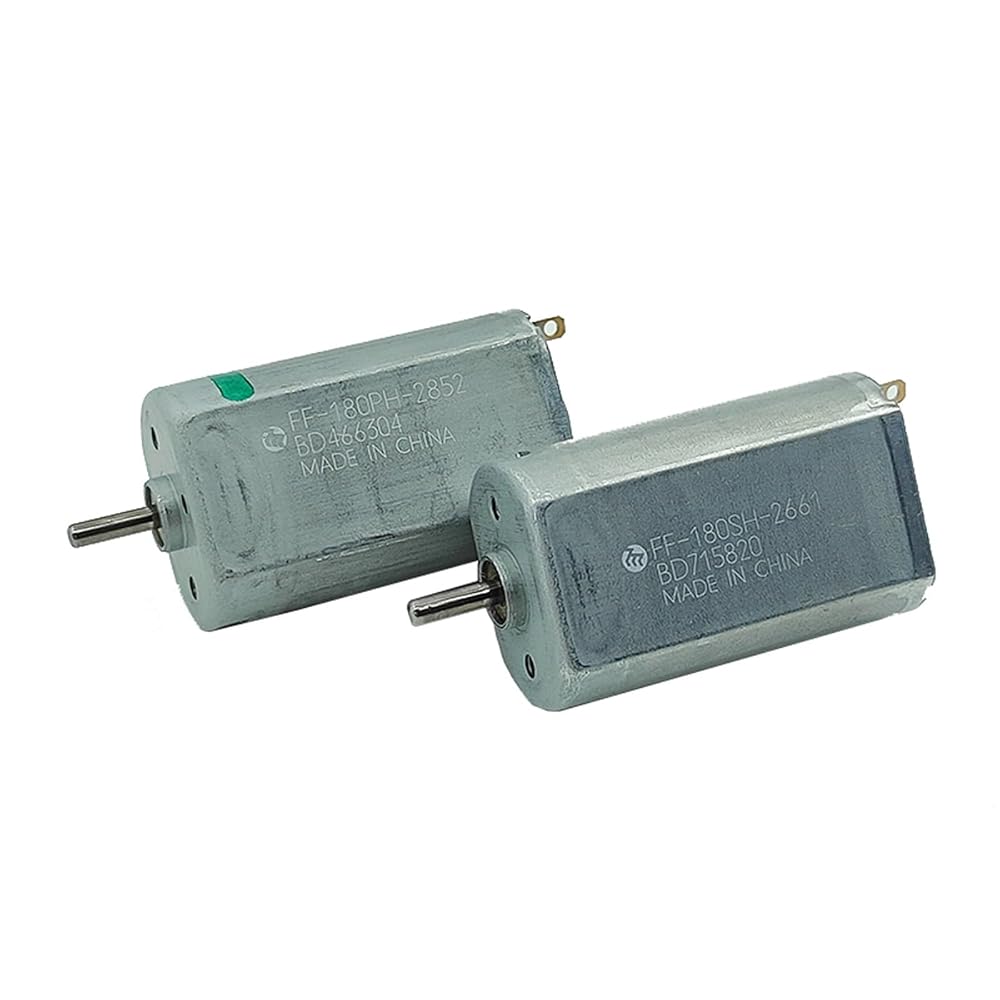

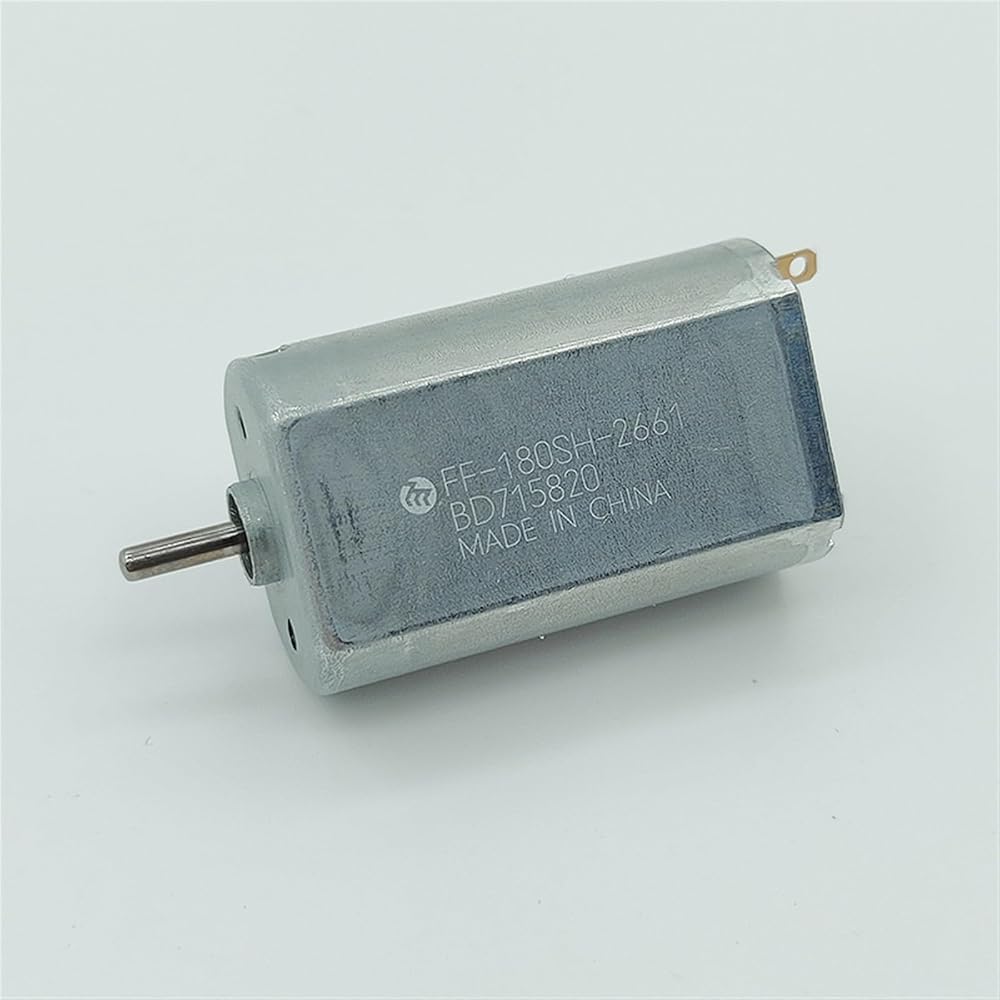

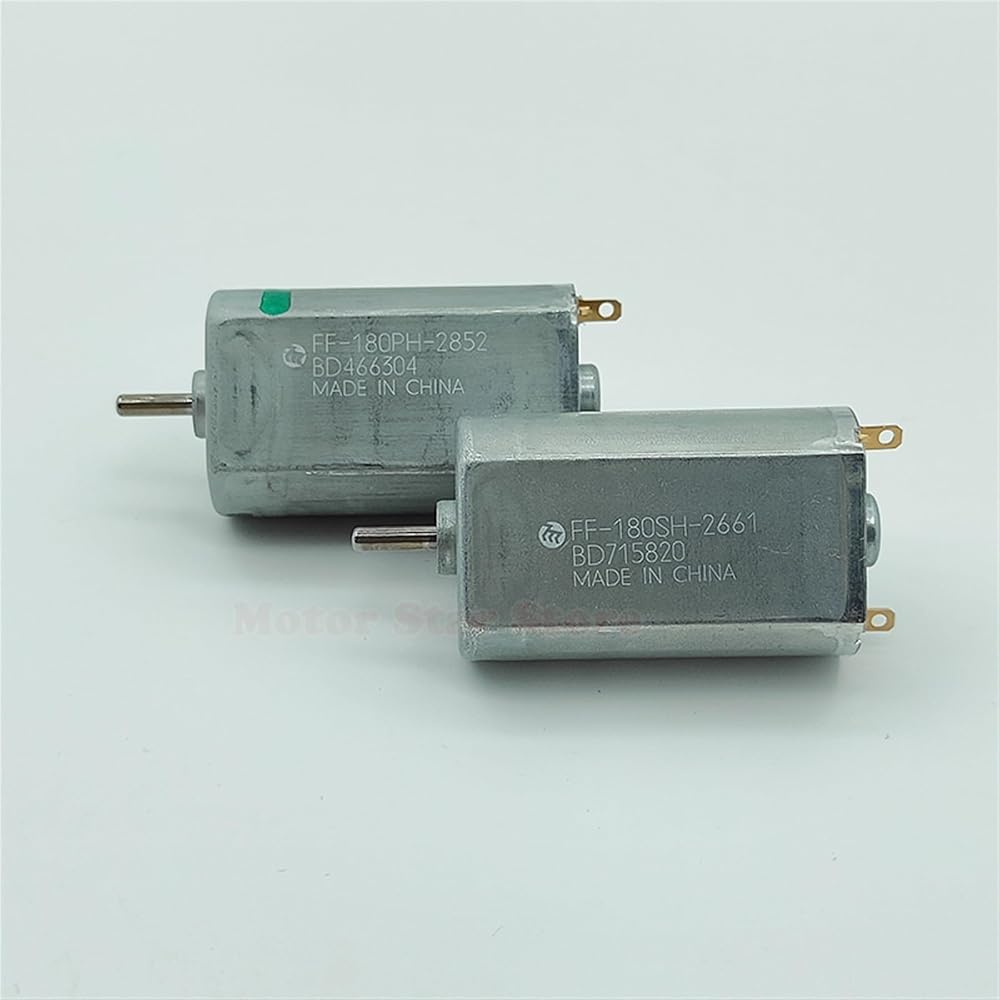

Model: Mabuchi FF-180SH-2661 Motor
Voltage: DC2.4V no-load current: 120 mA locked-rotor current: 1.8 A no-load speed: 6710RPM
Voltage: DC3.0V no-load current: 140 mA locked-rotor current: 3.2 A no-load speed: 8675RPM
Voltage: DC4.5V no-load current: 140 mA locked-rotor current: 4.8A no-load speed: 13326RPM
Voltage: DC5.0V no-load current: 140 mA locked-rotor current> 5 A no-load speed: 14270RPM

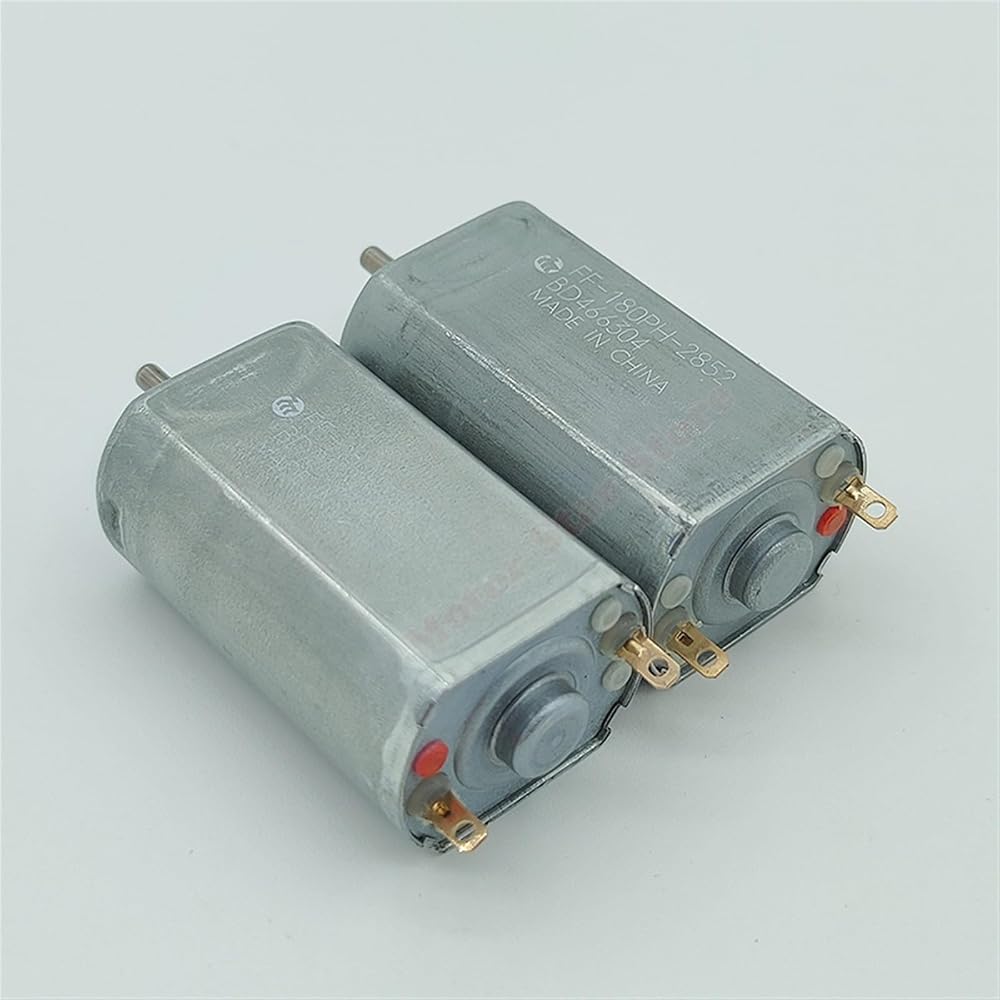

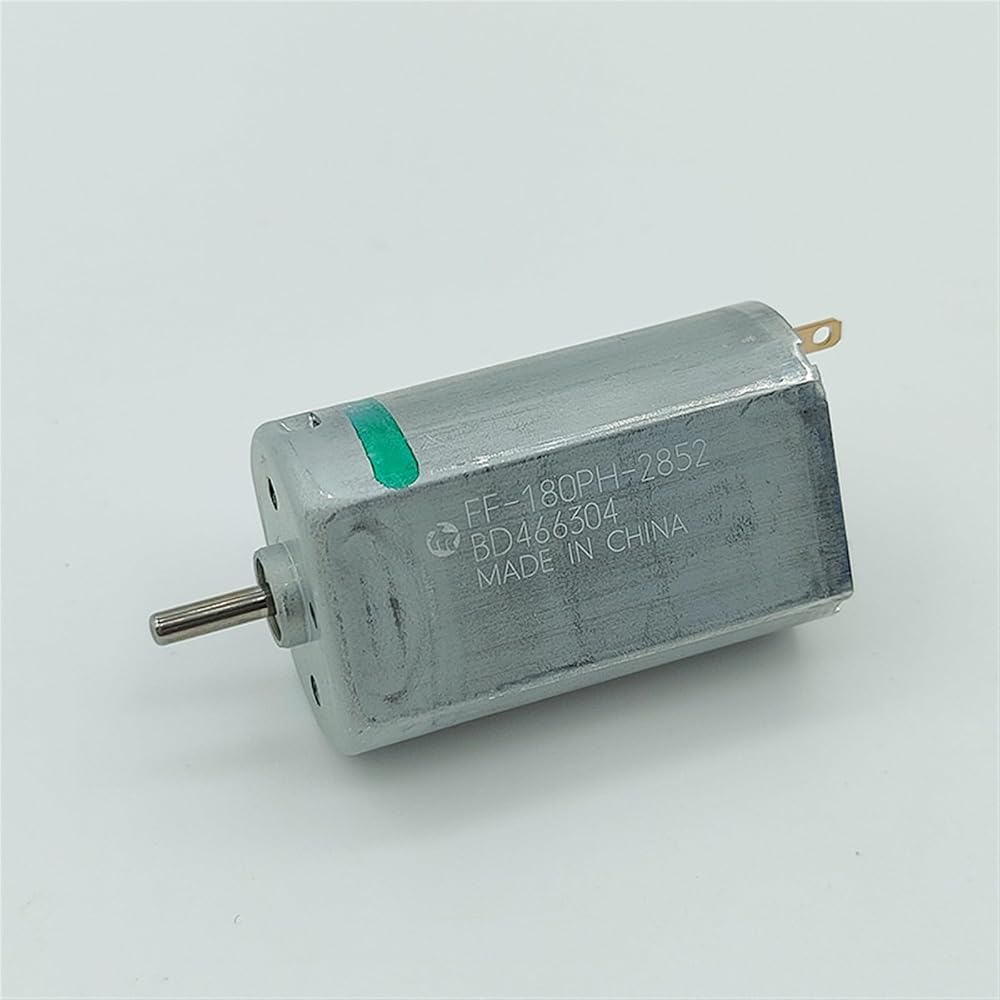

Model: Mabuchi FF-180PH-2852 Motor
Voltage: DC2.4V no-load current: 140mA locked-rotor current: 2A no-load speed: 8622RPM
Voltage: DC3.0V no-load current: 140mA locked-rotor current: 3.8A no-load speed: 10250RPM
Voltage: DC4.5V no-load current: 160mA locked-rotor current> 5A no-load speed: 15658RPM
Voltage: DC5.0V no-load current: 180mA locked-rotor current> 5 A no-load speed: 16570RPM
=============================================================================
Package List:
Motor x 1pcs
