Function Introduction:
1. Real time control of PWM signal output by writing duty cycle and frequenc
through registers
2. Support continuous output and specified pulse number output
3. The duty cycle and frequenc of all four channels are independently adjustable
4. Power on output function, automatically outputting saved values when powered on
5. The amplitude voltage can be set to 5V or the supply voltage
6. Anti reverse connection of power supply, anti static surge of 485 interface
7. Recommended 9~24V power supply, maximum 7~30V
8. Industrial grade quality, watchdog ensures 24-hour stable operation, wide temperature range of -40~85 to adapt to various environments
Modbus Register Table
Electrical parameters

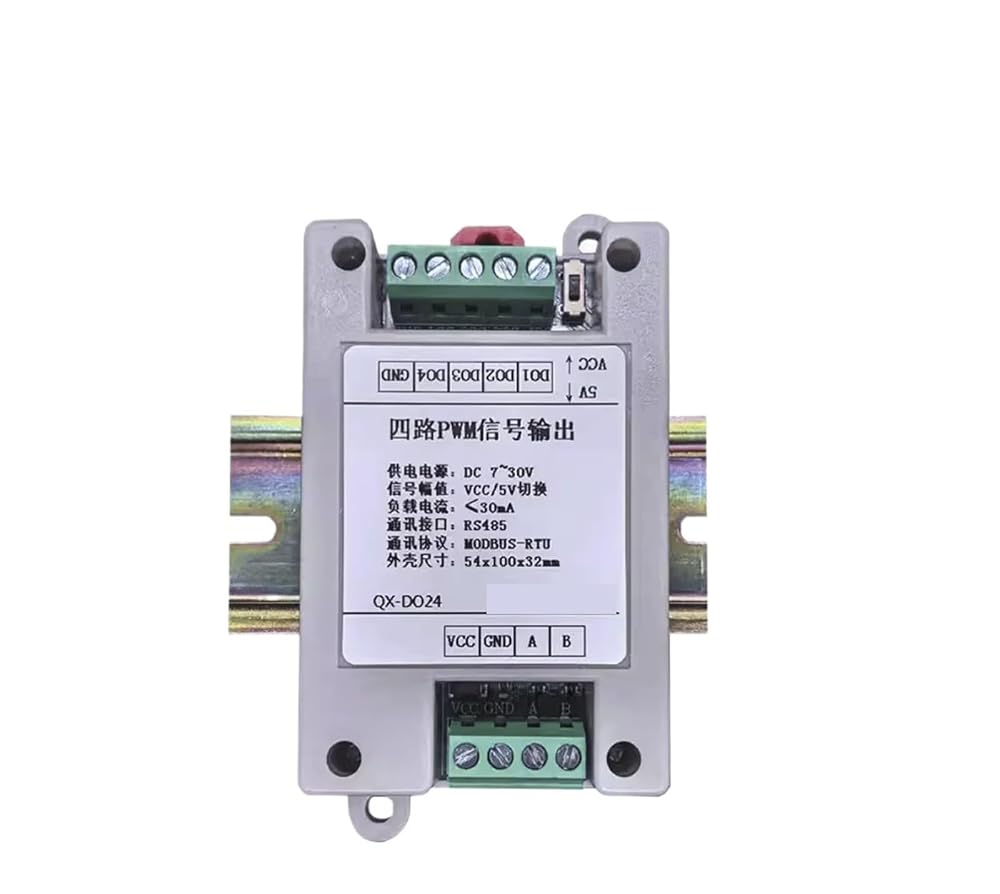

Product model: QX-D024
Supply voltage: DC 9~24V, maximum 7~30V
Output signal: PWM square wave
Frequenc range: 1Hz~200KHz (four independent adjustable channels)
Frequenc adjustment resolution: 1Hz
Duty cycle range: 0~100.0% (four independent adjustments)
Duty cycle adjustment resolution: 0.1%
PWM amplitude: Supply voltage or 5V (selected by dip switch)
PWM driving current: amplitude voltage/(1000+input impedance)
Output impedance: 1K
Jumping delay: 2us
Communication interface: RS485
Communication format: 9600 (default), 8, N, 1
Communication protocol: Modbus RTU slave
Working temperature: -40~80
Working humidity: 5~95% RH without condensation
Installation method: rail or 2 * M3 screws
Size: 54 * 100 * 32mm
Origin : Mainland China
Certification : CE
