No complex switch, no jumbled jumper, no need to set up
Function 1 USB to 232 (9 needles);
Function 2 USB to 485/422;
Function 3 USB to TTL (with DTR RTS);
Function 4232 turn 485/422;
Function 5232 turn TTL;
Function 6 485/422 to TTL;
Fully support , WinXp, Win2K, WinCE, Linux, Mac, system, 32 bit, 64 bit system.
In embedded applications, serial ports are widely used communication peripherals, but embedded engineers are inevitably disturbed by various level standards and voltages of serial ports.
For historical reasons, the TTL level interface, the RS232 level interface, the RS485 level interface, the different interfaces have the characteristics, and the interface of the device preference is different.
Yu Ning technology has made embedded engineers easy to use debug module, all level conversion full coverage, is your development and commissioning of the necessary artifact!

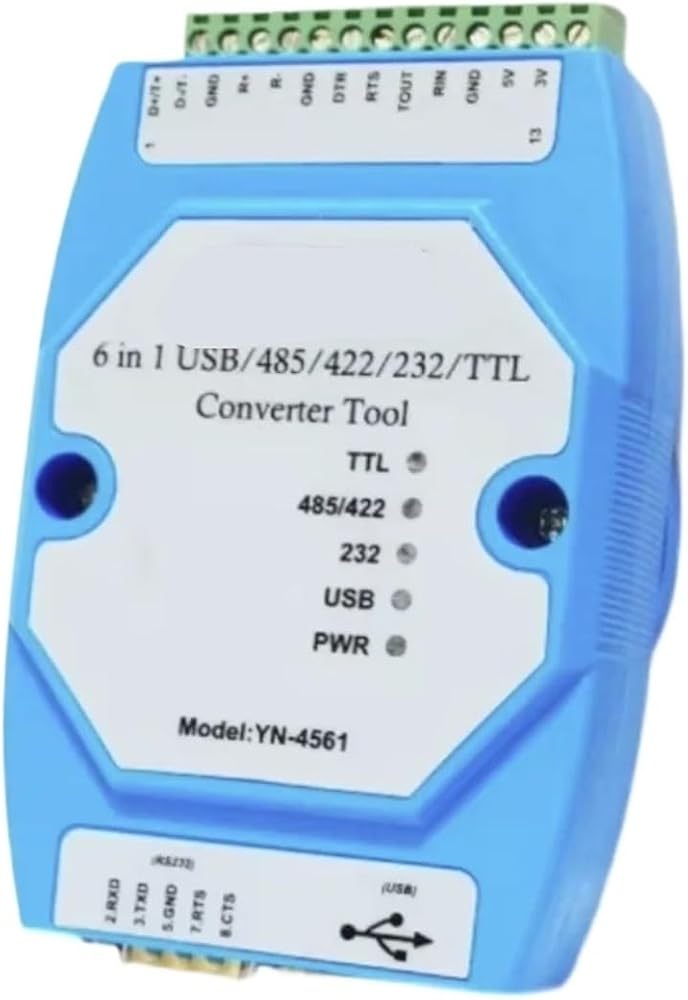

A top 6 USB serial module! Compatible with 3.3V and 5V levels. Spend a module of money, buy 6 modules of the function!
1. USB to 232
After the USB access, the power light is steady green.
when USB sends data to 232 , USB red light flashes
when 232 sends data to USB , 232 red light flashes
2. USB to 485/422
After the USB access, the power light is steady green.
when USB sends data to485/422, USB red light flashes
when485/422sends data to USB ,485/422red light flashes
3. USB to TTL
After the USB access, the power light is steady green.
when USB sends data to TTL, USB red light flashes
whenTTLsends data to USB ,TTLred light flashes
4.TTL to 232
After the 5Vpower is connected between 5V and GND, the green light is always on.
when TTLsends data to 232 ,TTLred light flashes
when232sends data toTTL,232red light flashes
5.TTL to 485/422
After the 5Vpower is connected between 5V and GND, the green light is always on.
when TTLsends data to 485/422 ,TTLred light flashes
when485/422sends data toTTL,485/422red light flashes
6. 232to 485/422
After the 5Vpower is connected between 5V and GND, the green light is always on.
when 232sends data to 485/422 , 232red light flashes
when485/422sends data to 232,485/422red light flashes
Origin : Mainland China
Certification : CE
