Feature:
RS485 to Ethernet
Small Size
Virtual Serial Port
3 Sockets
Romote Management
D2D/MQTT/Modbus Function
Overview of Characteristic
1. Cortex-M3 MCU with 2MB Flash and 128KB
2. Use FreeRTOS Operation System
3. Support/IP/Telnet /Modbus Protocol
4. Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps
5. Support 10/100M Ethernet Auto-Negotiation
6. Support Easy Configuration Through a Web Interface or PC IOTService Tool
7. Support Security Protocol Such As AES/DES3
8. Support Web OTA Wirelss Upgrade
9. Support Industrial Temperature: -40 to +85 C
10. Wide DC Input 5~36VDC
11. Size: 79 x 65 x 25 mm (L x W x H)
Main Application

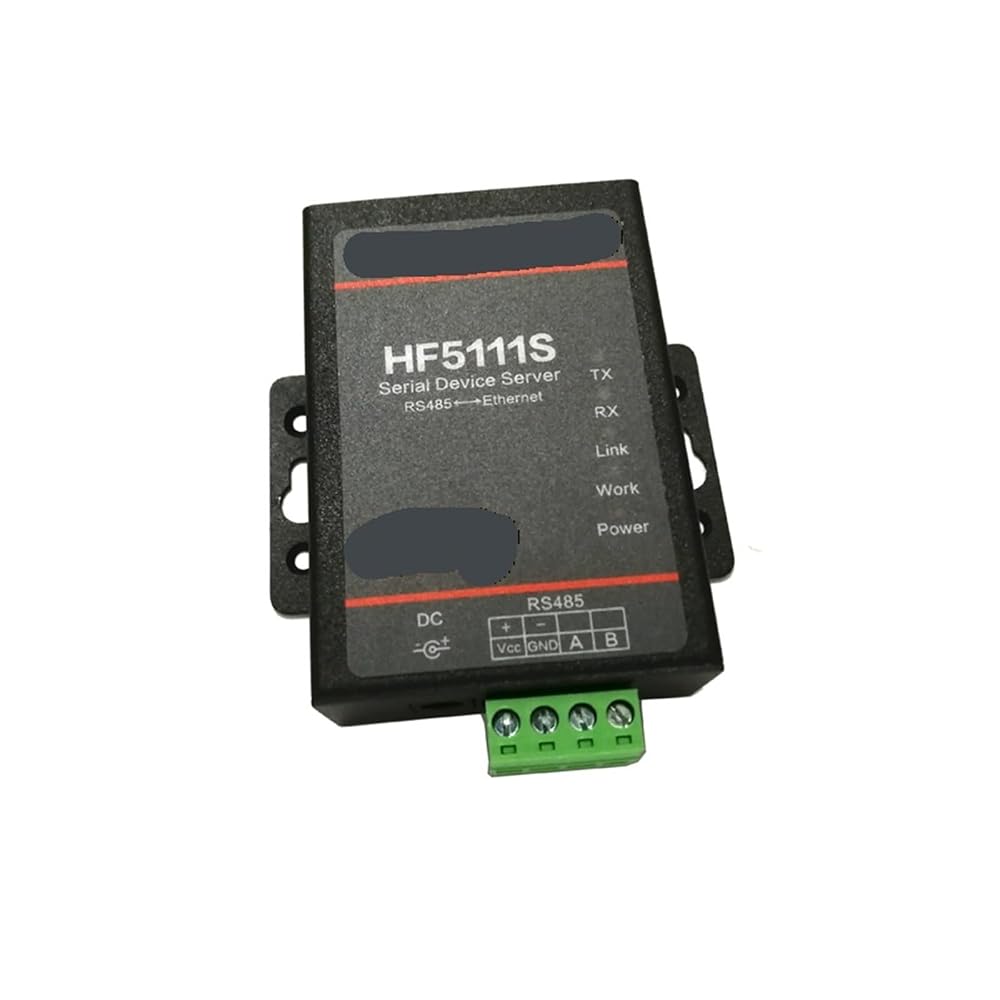

HF5111S serial server connects serial devices to the Internet and transmits data in accordance with / IP protocol.
Device Monitoring
Asset Tracking and Monitoring
Security Field
Industrial Sensors and Controllers
Health Equipment
ATM Equipment
Data Acquisition Equipment
USP Power Management Equipment
Data Display Equipment
Origin : Mainland China
Certification : CE
