مميزات خاصة

High Precision Measurement: Features a measurement range of 160um with an accuracy of 0.001um, ensuring reliable surface roughness evaluations.
Versatile Evaluation Parameters: Capable of measuring Ra, Rz, Ry (JIS), Rq, and more, making it suitable for various industrial applications.

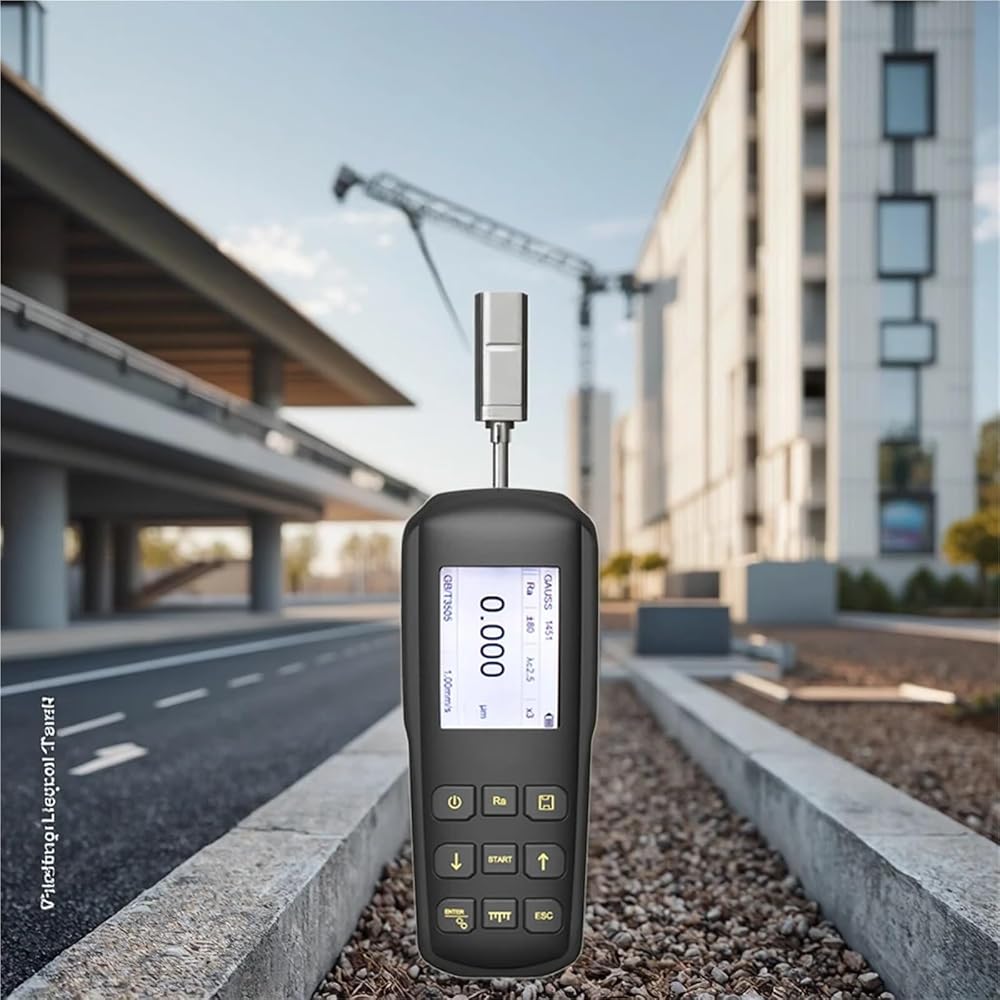

User-Friendly Design: Compact and lightweight (450g), designed for easy portability and on-site testing in different environments.
Built with a natural diamond stylus and robust alloy guide head, ensuring longevity and consistent performance.
Rechargeable and Convenient: Equipped with a built-in lithium battery, easily charged via a DC5V, 800mA charger for continuous operation.

وصف

ModelBC-200
Measurement RangeZ - axis (Vertical)160um
X - axis (Horizontal)17.5mm(0.71inch)
ResolutionZ - axis (Vertical)0.002um±20um0.004um±40um0.008um±80um
Items
Parameters
Ra Rz==Ry(JIS) Rq Rt==Rmax
Rp Rv R3z R3y Rz(JIS)
Rs Rsk Rku Rsm Rmr
Rpc RK Rpk Rvk Mr1 Mr2
FiltersRC,PC-RC,Gauss,D-P
Sampling Length (lr)0.25,0.8,2.5
Evaluation Length (ln)Ln=lr×n n=1-5
Sensor
Measurement Principle
Displacement - type Differential Inductance
Stylus
Natural Diamond, 90° Cone Angle, Tip Radius 5m
Guide Head
hard alloy, Radius in Sliding Direction 40mm
Sliding Speed
lr=0.25 ,Vt=0.135mm/S
lr=0.8 , Vt=0.5mm/S
lr=2.5 , Vt=1mm/S
Return: Vt=1mm/S
Indication Accuracy0.001um
Indication Error± (5m + 0.1A), A: Standard Value of Ra Parameter of Multi - scribed Plate
Indication VariabilityNo more than 3%
Residual ProfileNo more than 0.01m
Power SupplyBuilt - in Lithium - Rechargeable Battery, Charged with DC5V, 800mA Charger

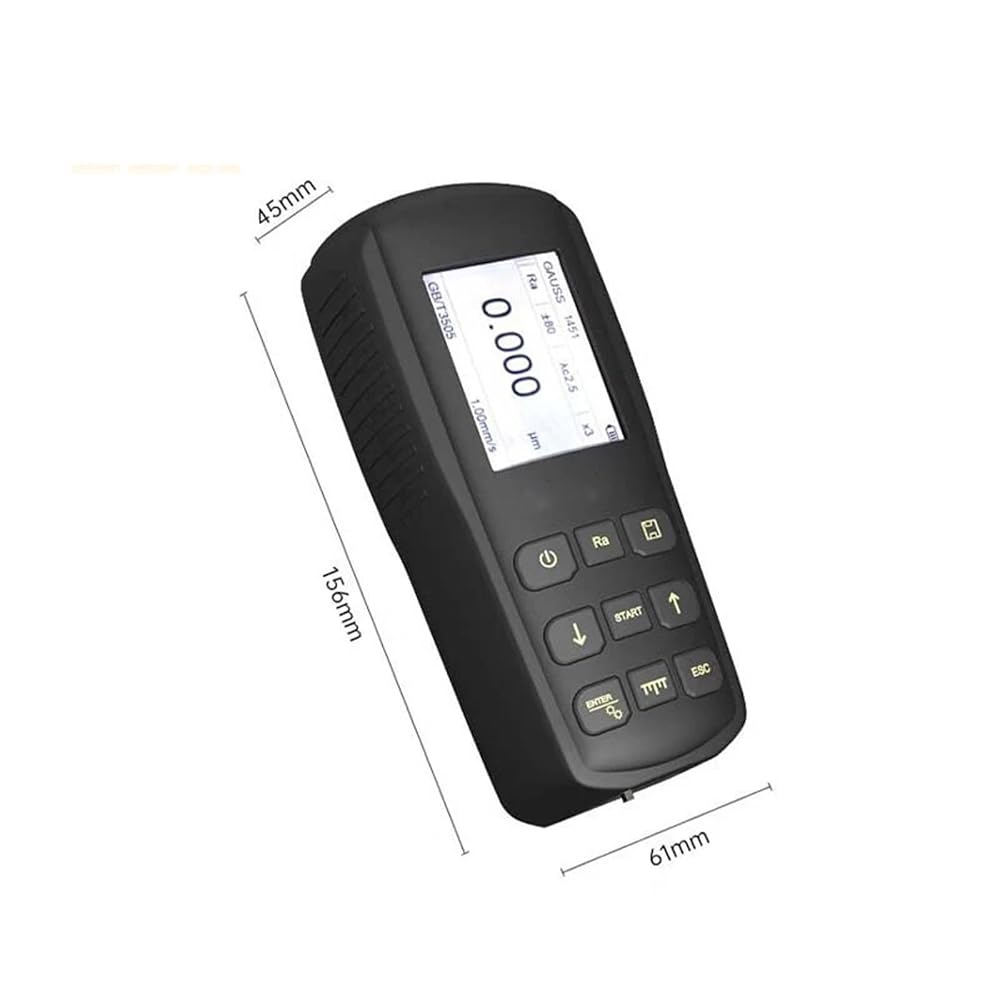

Dimensions
156mm×61mm×45mm
Weight
Approximately 450g
Operating Environment
Remark: Parameters above correspond to standard sensors. Using alternatives may result in slight variations.

مرحبًا،

بحث

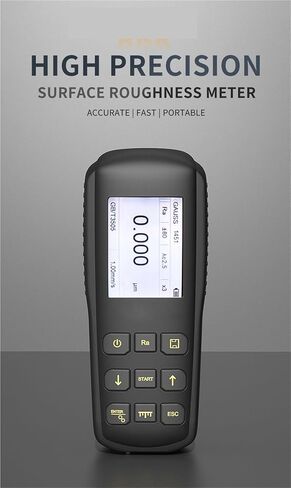

جهاز اختبار خشونة السطح، BC-200 + جهاز قياس خشونة محمول بمستشعر قياسي Ra/Rz للكشف عن الأجزاء الآلية في الموقع والقياس المحمول
