علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع فتحة متقاطعة وعمود بمفتاح CW/CCW 1:1 in Kuwait علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع فتحة متقاطعة وعمود بمفتاح CW/CCW 1:1 in Kuwait

علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع فتحة متقاطعة وعمود بمفتاح CW/CCW 1:1

KWD 61.500
– 1 +

مميزات خاصة

  • Technical Information:
  • Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
  • Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
  • Input Shaft: 1" X 2-1/4" with 5/16" Crosshole
  • Output Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Input Power: 40 HP
  • Input Speed: 1,800 Max RPM

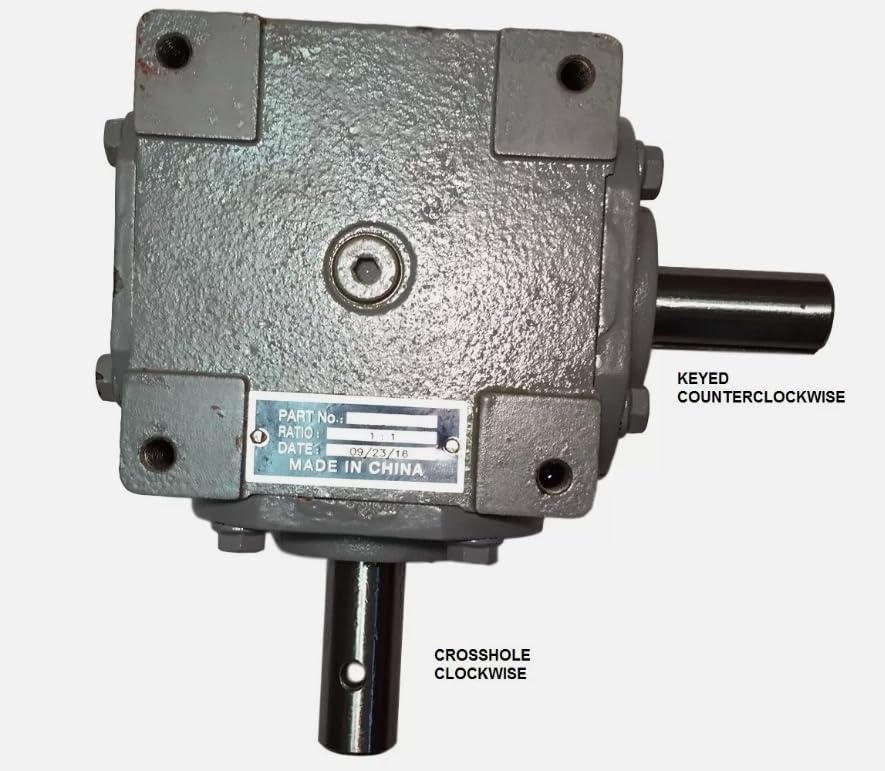

  • Shaft Rotation: CW to CCW with 1:1 Ratio

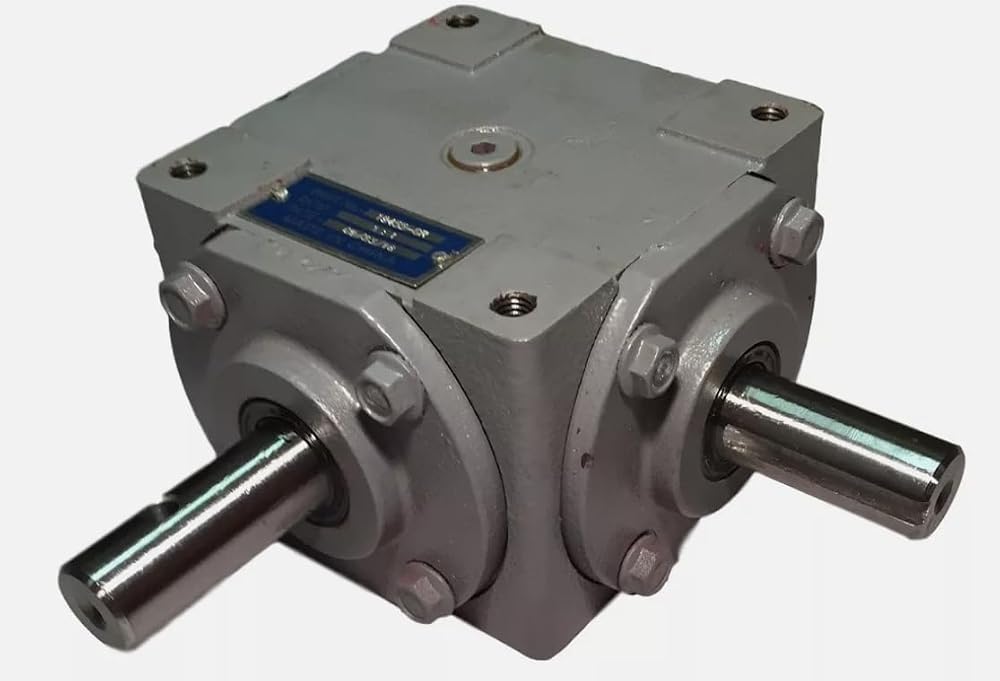

  • Right angle gearbox with a 1" crosshole shaft and a 1" keyed shaft. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W) Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN OPPOSITE DIRECTIONS (CW/CCW).

وصف

Right angle gearbox with a 1" crosshole shaft and a 1" keyed shaft. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W) Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. SHAFTS TURN IN OPPOSITE DIRECTIONS (CW/CCW).
