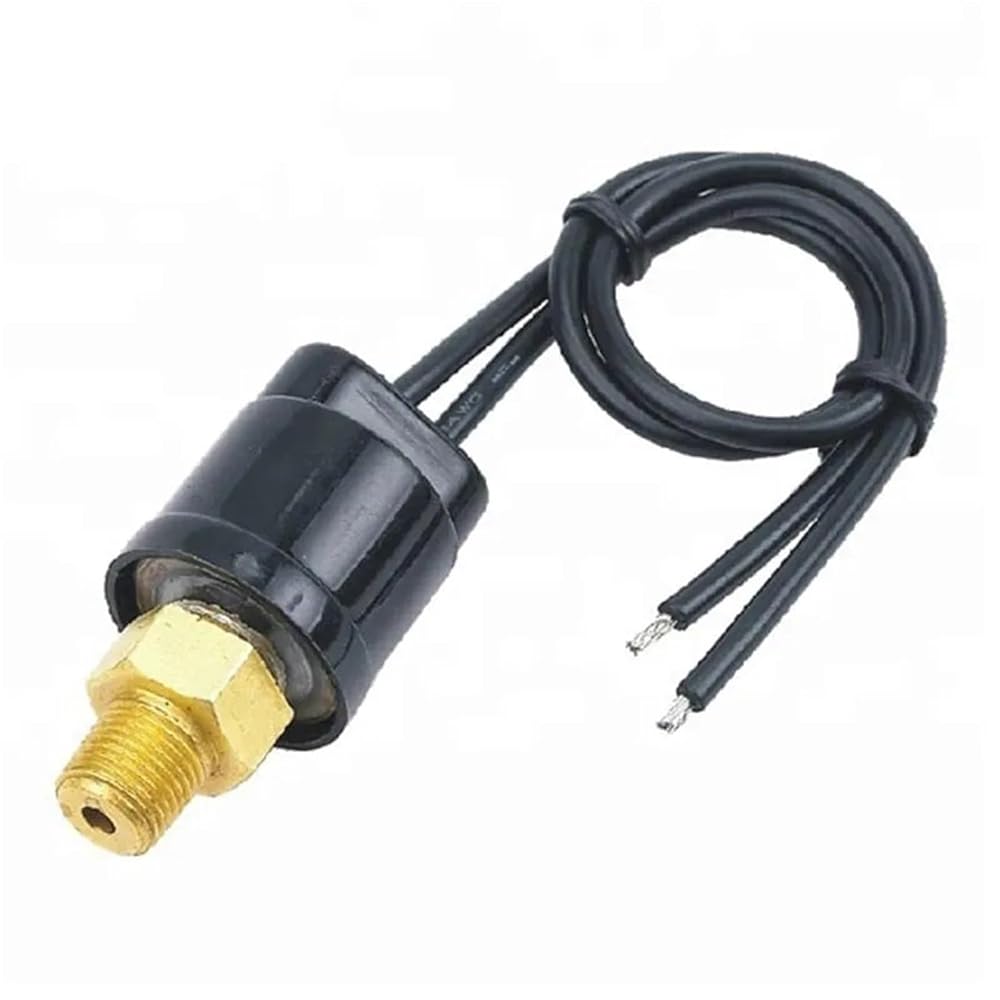

Pressure Switches
Description:
Item No. : LF08
Ratedcurrent: 6A
Max Current: 10A
Voltage: 110V-240V, 12V-48V
Connector: G1/4 and G1/8 Male Thread
Application: Air compressor, water pump, oil pump and refrigeration equipment
Transformation:
1 KG/cm² = 14.2psi
1 KG/cm² = 0.1MPA=1bar
LF08-1: G1/4 NO 1-2KG/cm² ( ON:2, Off:1)
LF08-2: G1/4 NO 2-3KG/cm² ( ON:3, Off:2)
LF08-3: G1/4 NO 3.5-4.5KG/cm² ( ON:4.5, Off:3.5)
LF08-4: G1/4 NO 8-14KG/cm² ( ON:14, Off:8)
LF08-5: G1/4 NO 15-16KG/cm² ( ON:16, Off:15)
LF08-6: G1/4 NC 1-2KG/cm² ( ON:1, Off:2)
LF08-7: G1/4 NC 4.5-8KG/cm² ( ON:4.5, Off:8)
LF08-8: G1/4 NC 5-7KG/cm² ( ON:5, Off:7)
LF08-9: G1/4 NC 6-8KG/cm² ( ON:6, Off:8)
LF08-10: G1/4 NC 13-16KG/cm² ( ON:13, Off:16)
LF08-11: G1/8 NO 0.5-1.5KG/cm² ( ON:1.5, Off:0.5)
LF08-12: G1/8 NO 1.5-2.5KG/cm² ( ON:2.5, Off:1.5)
LF08-13: G1/8 NO 3.5-4.5KG/cm² ( ON:4.5, Off:3.5)
LF08-14: G1/8 NO 6-8KG/cm² ( ON:8, Off:6)
LF08-15: G1/8 NO 8-14KG/cm² ( ON:14, Off:8)
LF08-16: G1/8 NC 0.5-1.5KG/cm² ( ON:0.5, Off:1.5)
LF08-17: G1/8 NC 1.5-2.5KG/cm² ( ON:1.5, Off:2.5)
LF08-18: G1/8 NC 1-3KG/cm² ( ON:1, Off:3)
LF08-19: G1/8 NC 5.5-6.5KG/cm² ( ON:5.5, Off:6.5)
LF08-20: G1/8 NC 5-7.5KG/cm² ( ON:5, Off:7.5)
Switch Type : Pressure Switch
Model Number : LF08
Item Type : SWITCHES
