Product Overview

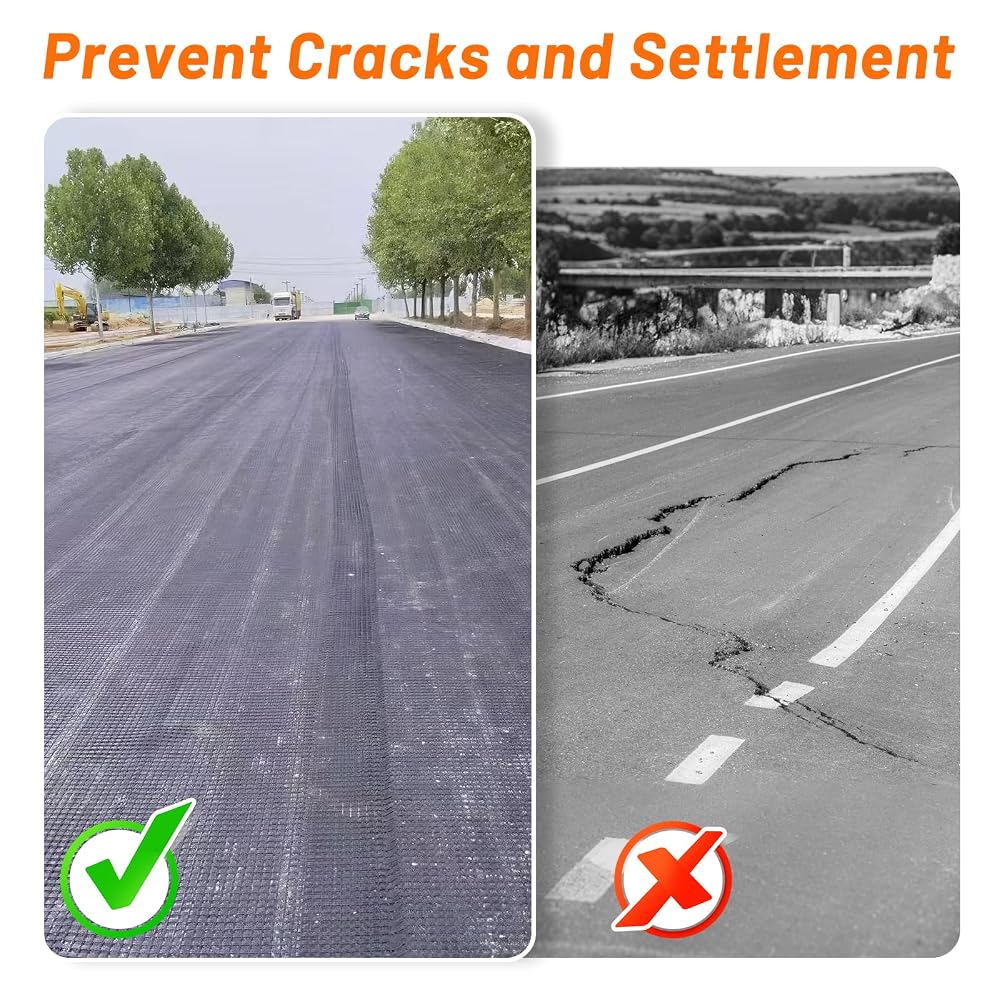

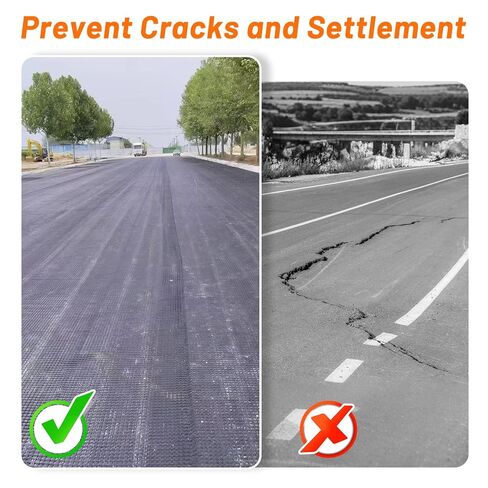

This 50KN Fiberglass Geogrid is a professional-grade asphalt reinforcement solution designed to prevent cracking, rutting, and pavement failure. With a generous 3.28ft x 328ft (1m x 100m) roll covering 1075.8 sq ft, it is ideal for driveways, parking lots, roads, and airport runways.

Key Features
50KN High Tensile Strength: Providing superior load distribution and crack resistance. Standard 1" x 1" Mesh Opening (2.54cm x 2.54cm): Optimized for asphalt interlocking and bonding. Bitumen-Coated Surface: Enhances adhesion with tack coat and hot asphalt, resistant to 200°C+ paving temperatures.

Alkali-Resistant Fiberglass: Withstands chemical attack; anti-aging for long-term durability. How It Works

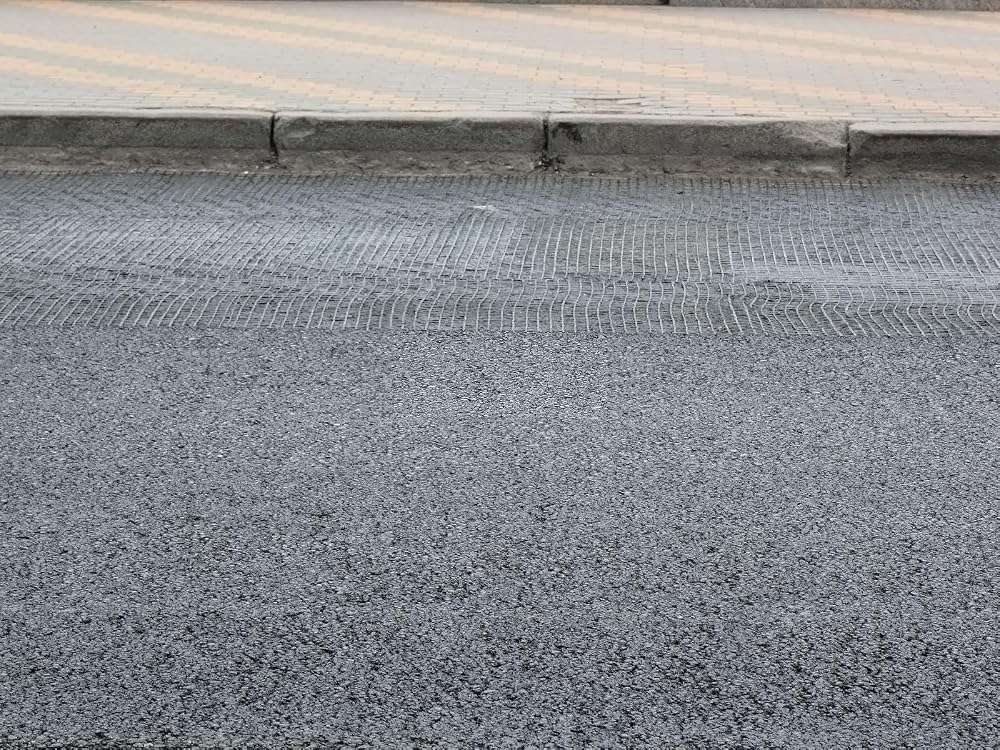

When placed between an existing pavement (or base layer) and a new asphalt overlay, the geogrid acts as a reinforcement interlayer. It absorbs tensile stresses that cause reflective cracks, while the bitumen coating ensures full integration with the asphalt matrix. This extends pavement life to 50+ years under normal traffic and environmental conditions.

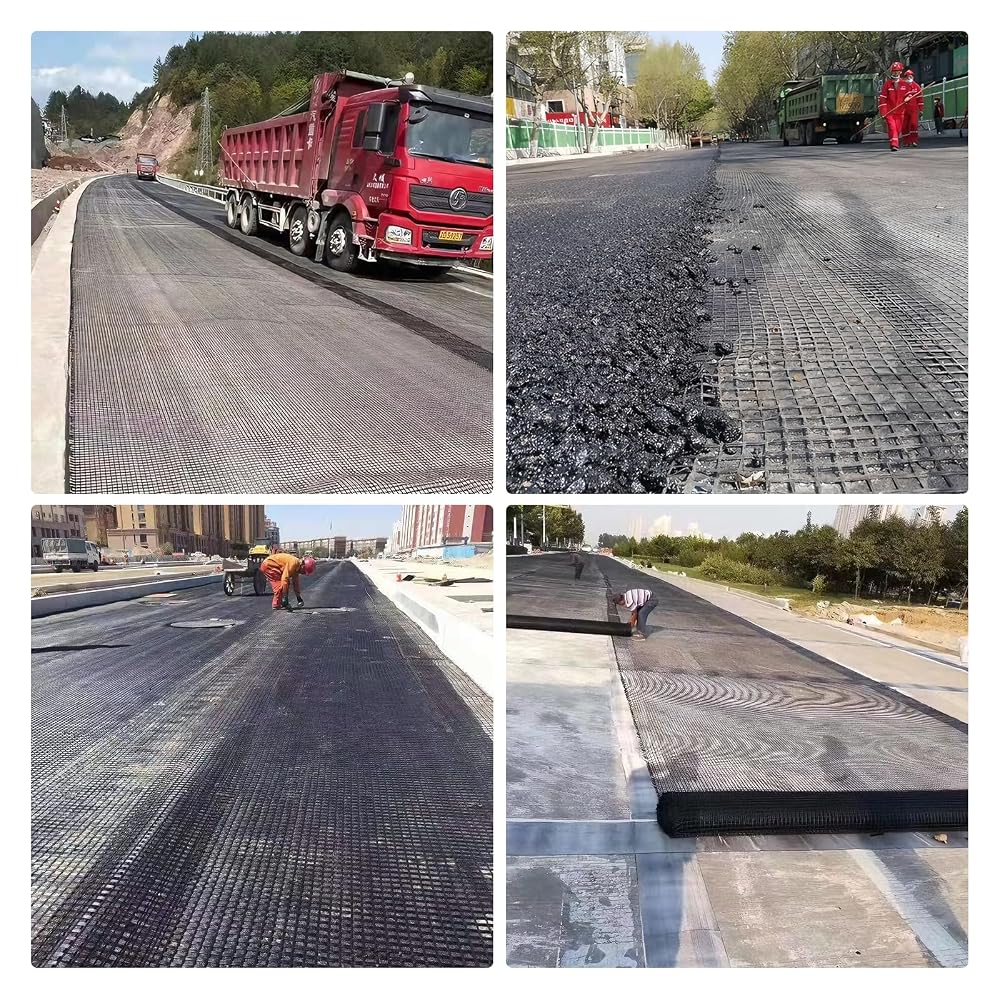

Installation Instructions
1. Clean and level the existing surface. Fill any potholes or large cracks.
2. Apply a tack coat (asphalt emulsion or cutback)

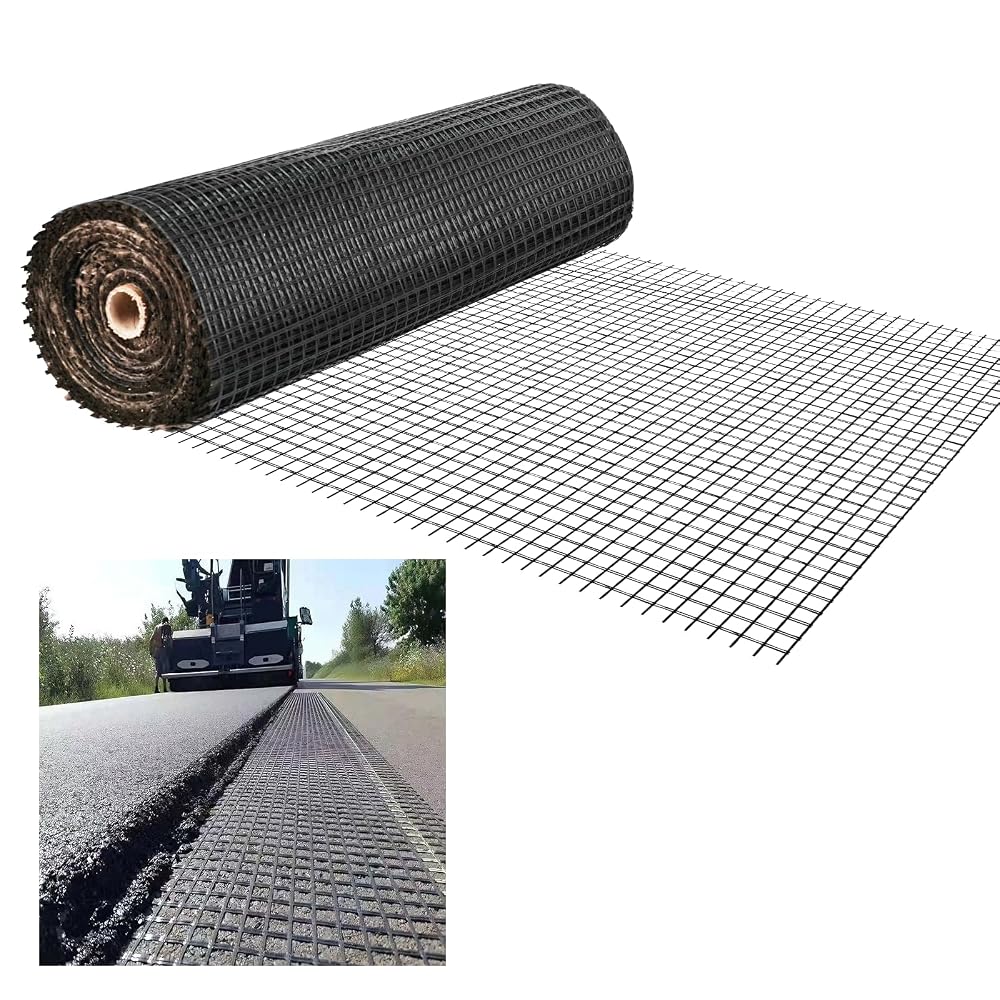

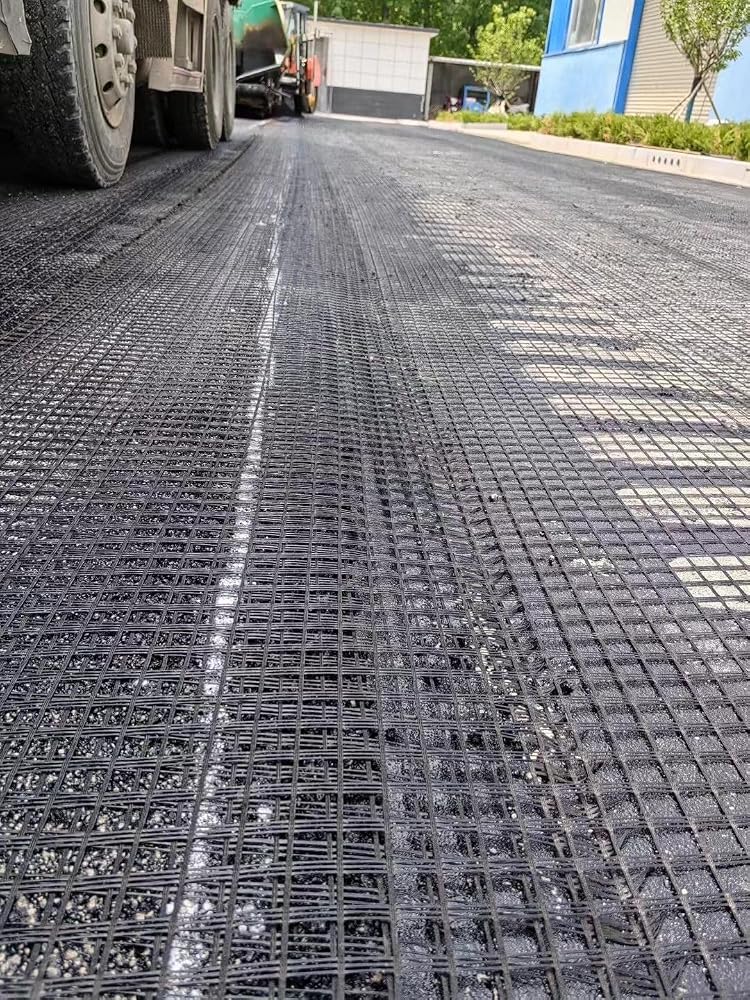

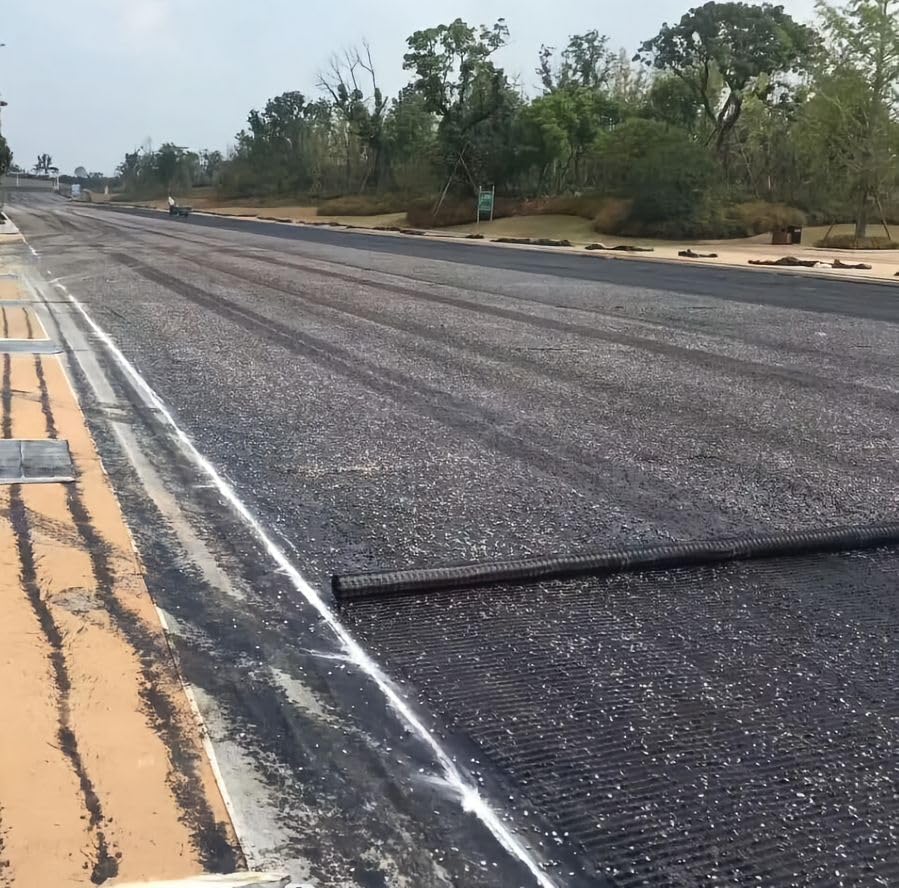

3. Unroll the geogrid onto the wet tack coat, smooth side down. Avoid wrinkles.
4. Overlap edges by 4–6 inches longitudinally and 6–12 inches transversely. Use staples or anchor pins if needed.
5. Compact the geogrid lightly with a rubber-tired roller or paving equipment.
6. Pave hot asphalt mix (≥ 1.5 inches thickness) directly over the geogrid. Compact as usual.

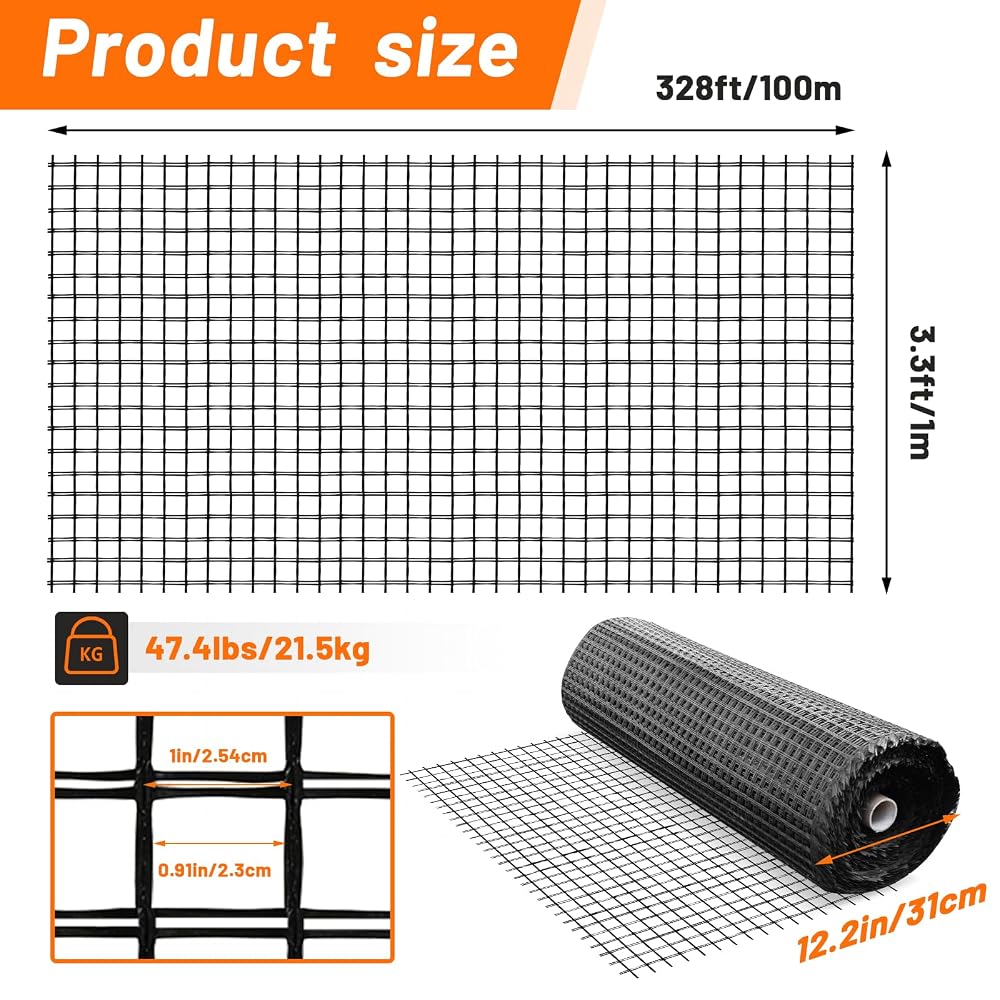

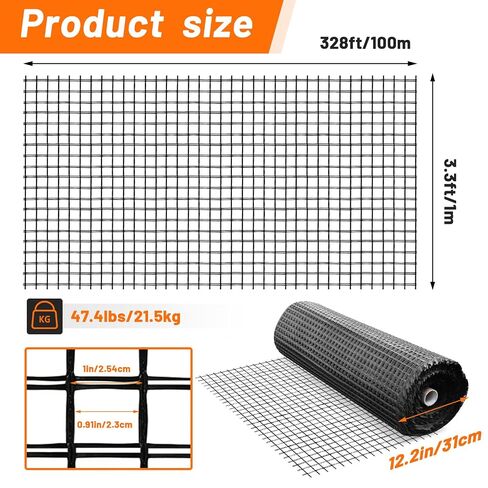

Technical Specifications
Tensile Strength: 50 KN
Mesh Size: 1 x 1 in (2.54 x 2.54 cm)
Roll Size: 3.28 ft x 328 ft (1m x 100m)
Coverage Area: 1075.8 sq ft
Roll Weight: 47.4 lbs (21.5 kg)
Roll Diameter: 12.2 in (31 cm)
Material: Alkali-resistant fiberglass with bitumen coating
Service Life: (in asphalt) 50+ years
