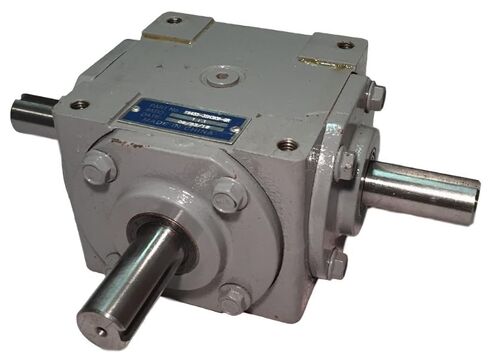

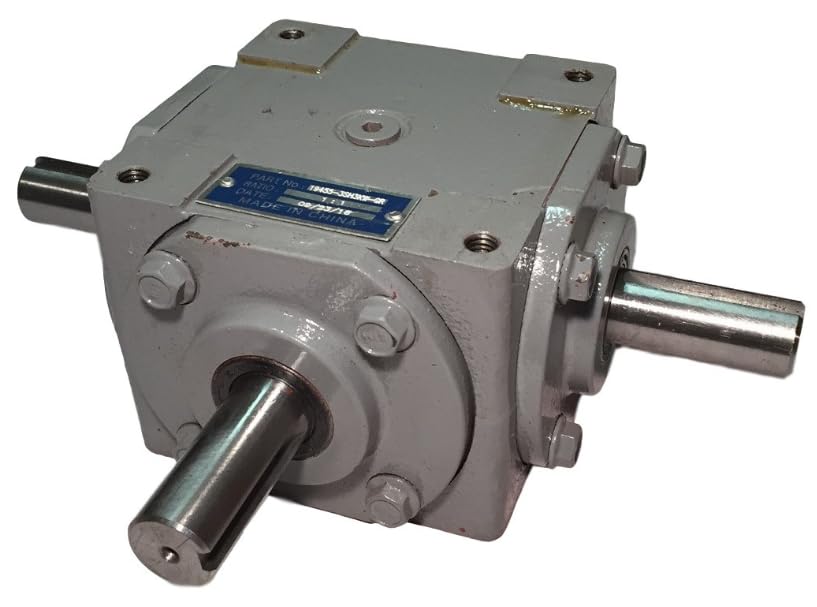

علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع 3 أعمدة مفاتيح 1:1 - غلاف من الحديد الزهر - سرعة الإدخال: 1,800 دورة في الدقيقة كحد أقصى؛ 19455-3SH-3KW-GR in Kuwait علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع 3 أعمدة مفاتيح 1:1 - غلاف من الحديد الزهر - سرعة الإدخال: 1,800 دورة في الدقيقة كحد أقصى؛ 19455-3SH-3KW-GR in Kuwait

علبة التروس المخروطية ذات الزاوية اليمنى بقوة 40 حصانًا مع 3 أعمدة مفاتيح 1:1 - غلاف من الحديد الزهر - سرعة الإدخال: 1,800 دورة في الدقيقة كحد أقصى؛ 19455-3SH-3KW-GR

KWD 68

1 +

مميزات خاصة

  • Technical Information:
  • Dimensions: 5-7/8" X 6-1/4" X 4-1/8"
  • Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
  • Input Shaft: 1" X 2-1/4" with 1/4" Keyway
  • Output Shaft: 1" X 2-1/4" with 1/4" Keyway (Both)
  • Input Power: 40 HP
  • Input Speed: 1,800 Max RPM
  • Shaft Rotation: CW to CW/CCW with 1:1 Ratio

وصف

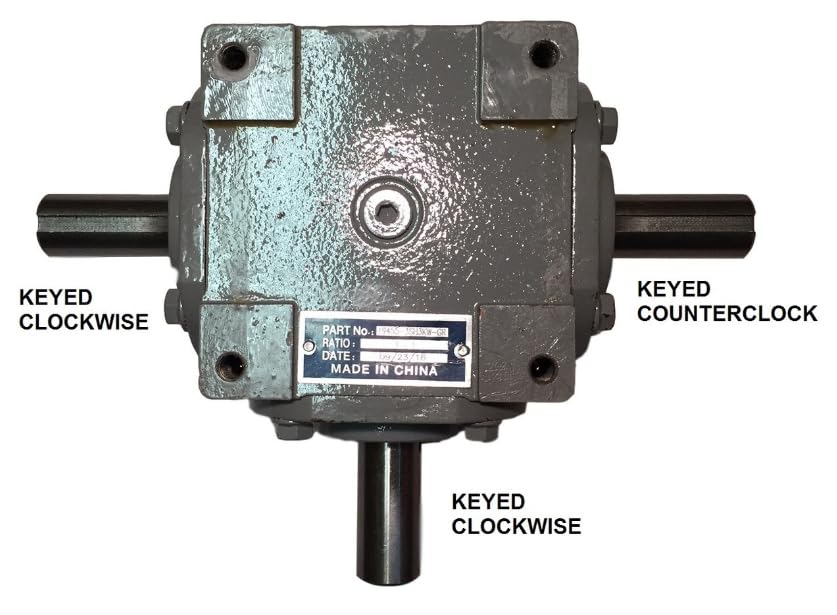

Right angle gearbox with three 1" keyed shaft. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W). Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. ***Input shaft turning clockwise will make one output shaft turn clockwise and the other turn counterclockwise (CW/CW/CCW).***
