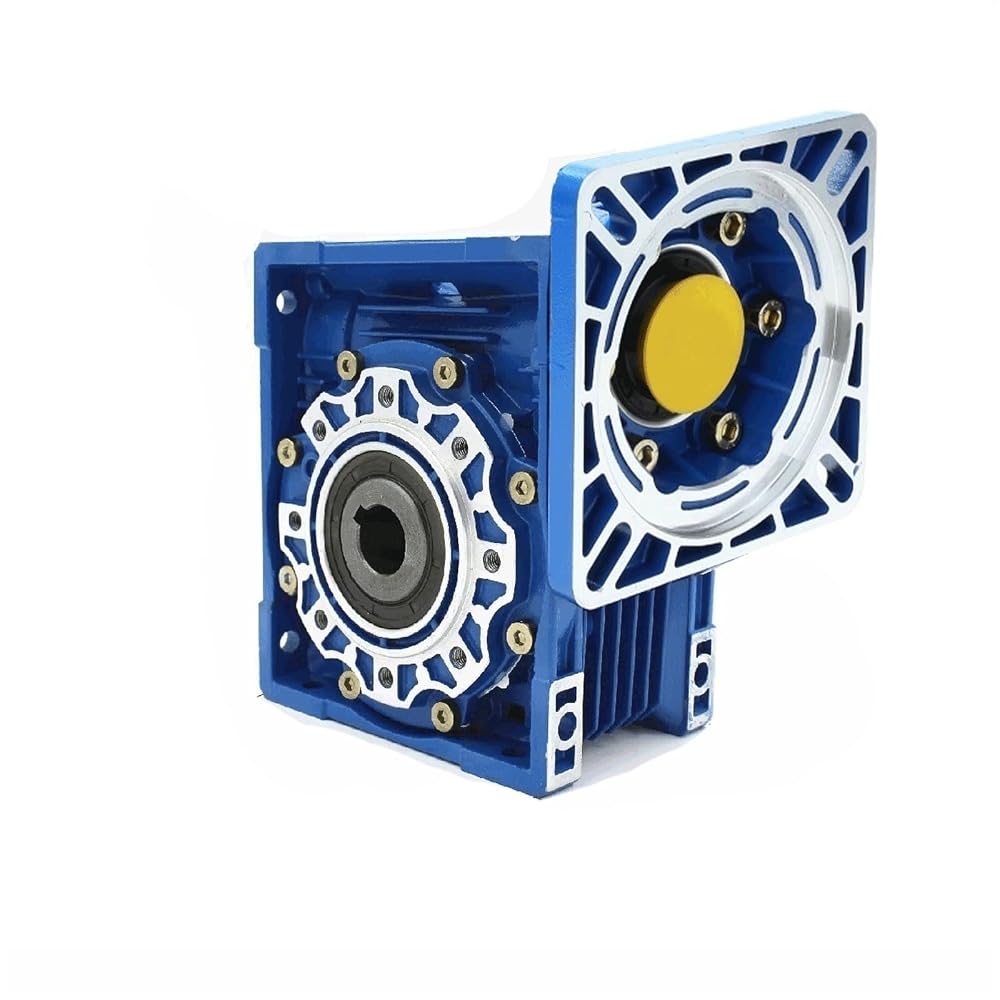

GTPBAO NMRV075 Worm Gearbox Speed Reducer 130x130mm Flange with 22mm Input Shaft 35mm Output Bore Reducer Shaft(Ratio 30 to 1) in Kuwait

Ratio 20 to 1

KWD 174.500
Brand
GTPBAO
Weight
1.2 kg
SizeRatio 20 to 1
– 1 +

Special Features

  • Precision Engineering: 130x130mm input flange with a 22mm bore and 6mm keyway; 35mm output bore with a 10mm keyway for optimal performance.
  • Versatile Applications: Ideal for automotive, elevators, petrochemicals, construction, textiles, and lifting operations.
  • Sturdy Construction: Made from high strength 20CR carburized alloy steel for maximum durability and reliability in demanding environments.
  • Advantages: high torque, low noise, stable operation, strong adaptability, high overload, and strong impact resistance
  • Application: With delay and torque increasing functions, it is widely used in mechanical equipment, light industry, food industry, chemical construction, textile industry, building materials, logistics, environmental protection, and other fields

Description

Enhance your motor performance with our Worm gear Speed Reducer, designed for optimal efficiency. Available with speed ratios of 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60,80 and 100 Choose the ratio that best meets your needs.

Specifications:
- Output Bore Size: 35mm (1.37") with a 10mm (0.39") keyway
- Input Bore Size: 22mm (0.86") with a 6mm (0.23") keyway
- Input Flange Model: 130x130mm (5.11"x5.11")
- Installation hole distance on the same side: 103mm (4.05") U shape hole
- Input Flange Spigot Diameter: 110mm (4.33")
- Input flange Diagonal Bolt Hole Distance: 145mm (5.70")

Ideal for servo and stepper motor applications, our speed reducer guarantees durability and precision. As a professional reducer manufacturer, we offer a wide range of reducer types to suit your specific needs.

Maximize your project's potential with our reliable Worm Gearbox Speed Reducer!
