عمود المحرك المعدني وصلات Gimbal موصل عمود مشترك كاردان مشترك قابل للتعديل in Kuwait

عمود المحرك المعدني وصلات Gimbal موصل عمود مشترك كاردان مشترك قابل للتعديل

KWD 0
مقاس
أسلوب
– 1 +

مميزات خاصة

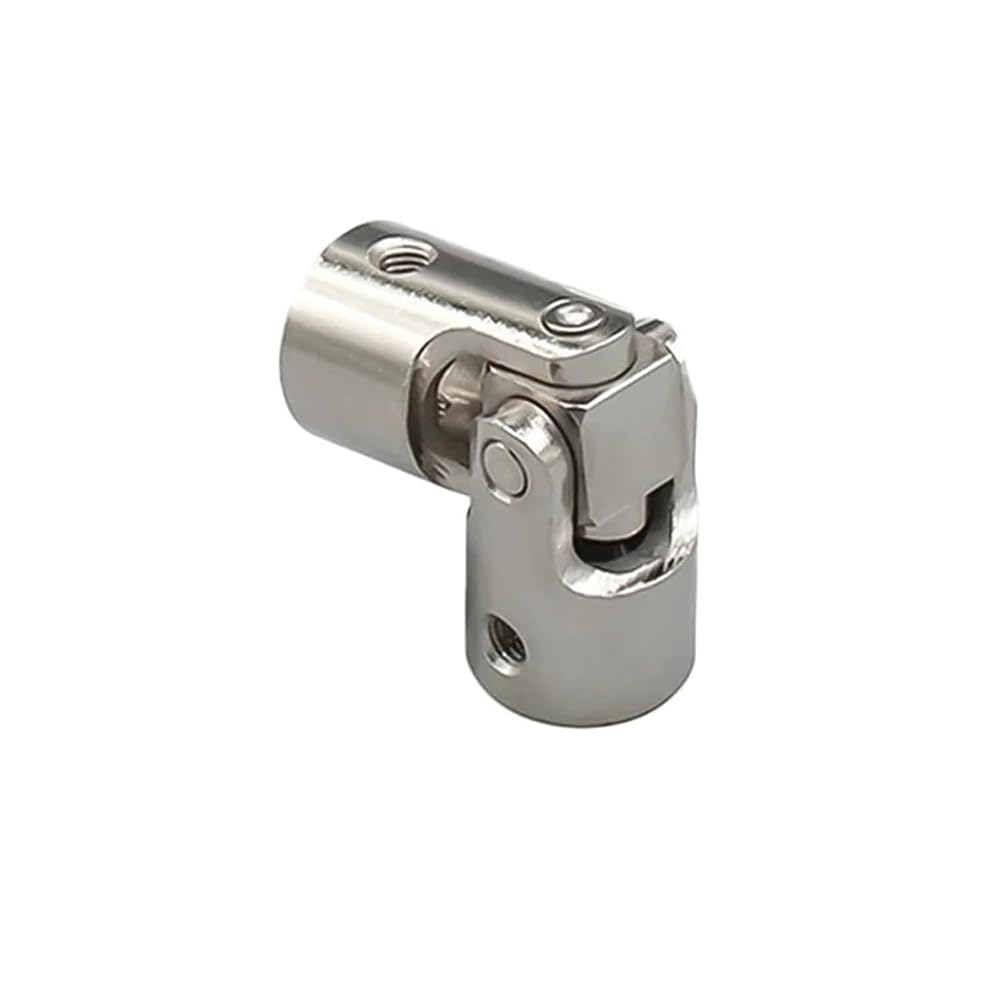

  • Motor Gimbal Couplings 2mm 2.3mm 3mm 3.175mm 4mm 5mm 6mm 8mm 10mm Shaft Connector Universal Joint Metal Cardan Joint
  • Versatile Compatibility: Perfectly suited for a wide range of applications, including blowers, 3D printers, DIY robots, CNC machines, and stepper motors. This shaft coupler ensures seamless integration into your projects, providing the stability and performance you need Precision Required: Our coupling features for a secure grip, delivering exceptional torque with minimal inertia. Enjoy enhanced sensitivity and reliability in your motor and gearbox assemblies
  • Part Number: XHK-0083

وصف

Package includes: Coupling x 1+ machine screw x 2+wrench x 1(Only one wrench is delivered per order.)

Size description:
1. The following 3 types, the outer diameter is 8mm, length is 18mm, screw hole diameter is 3mm:
2.3-2.3mm, 2-2.3mm, 2-2mm

2. The following 8 types, the outer diameter is 9mm, length is 23mm, screw hole diameter is 3mm:
3-3.17mm, 3.17-3.17mm, 2.3-3mm, 3-3mm,3.175-4mm, 3-4mm, 4-4mm, 2.3-4mm

3. The following 6 types, the outer diameter is 11mm, length is 23mm, screw hole diameter is 4mm:
4-5mm, 3-5mm, 5-5mm, 4-6mm, 5-6mm, 6-6mm

4. The following 3 types, the outer diameter is 14mm, length is 35mm, screw hole diameter is 4mm:
5-8mm, 6-8mm, 8-8mm

5. The following 2 types, the outer diameter is 16mm, length is 35mm, screw hole diameter is 4mm:
8 to 10mm, 10 to 10mm
Part Number: XHK-0083
