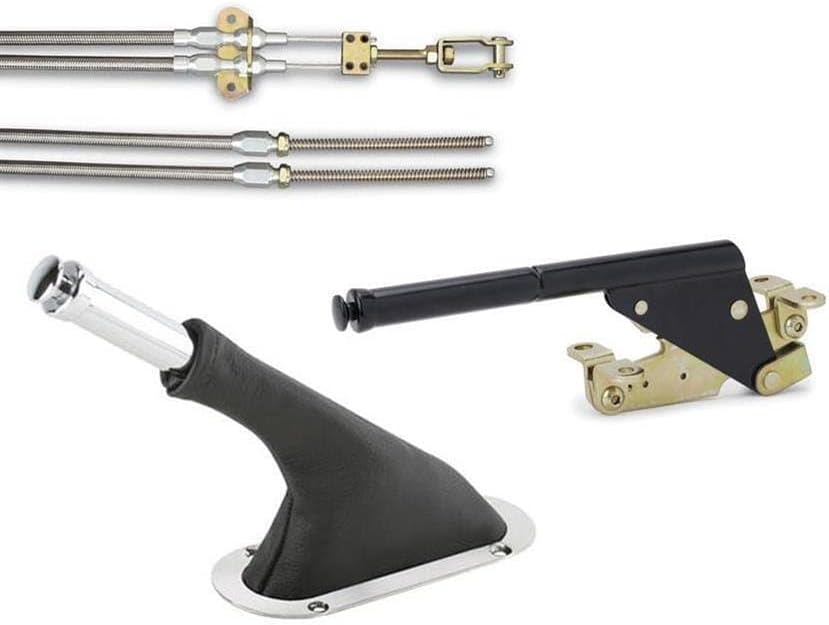

Paired together to save you time and money, this convenient hand e-brake/boot/cable kit features a powder coated finish with naugahyde boot and 96" cable.
Kit Includes:
-1- XEHB-7000F Floor Mount Hand Brake, Finish
-1- EC-80FHT Brake Cables, Housing
-1- Floor Mount E-Brake Boot
XEHB-7000F Floor Mount Hand Brake, Finish
powder coated construction
Designed after the automotive industry
Ratchet cut gear plate and lock - heat treated for strength and
4-point mounting capabilities for floor mount or side mounting for applications
Comes complete with clevis for installation with Brake Cables
EC-80FHT Brake Cables, Housing
Comes equipped with quality one-piece aluminum adjusters and aluminum ferrule to fraying of housing
Outer housing is designed with specially extruded liner for extended life of the cable
inner cable resists moisture
Design allows rear end backing plate fittings to be removed without removing brake cables
Base ring is 6.25" x 2.5" outside diameter and 5.25" x 1.5" inside diameter.
: .75"
Hole Pattern: 3.75" x 2.00"
Installation Tips
Install Tip: think about mounting the floor mount hand brake sideways in front of your ? You !
:
Length of upper chrome is 9-1/8" from rear to end of release button
From end of release button to center of clevis pin is 10-5/16"
From pivot point to end of release button is 9-3/16"
From pivot point to center of clevis pin is 1-7/8"
From center of clevis pin to top of is 3-1/4"
Mounting:
Mounting centers for horizontal brackets are 4-11/16"
Horizontal mounting bracket holes are 2" center to center side to side
Horizontal mounting bracket holes are also 4-11/16" center to center from front to rear
From center of clevis pin to end of clevis is 1-1/8"
Clevis referred to is at bottom of assembly and where the e-brake cables attach
Not for , & Disc w/ Internal Drum E-Brakes - see for this application.
