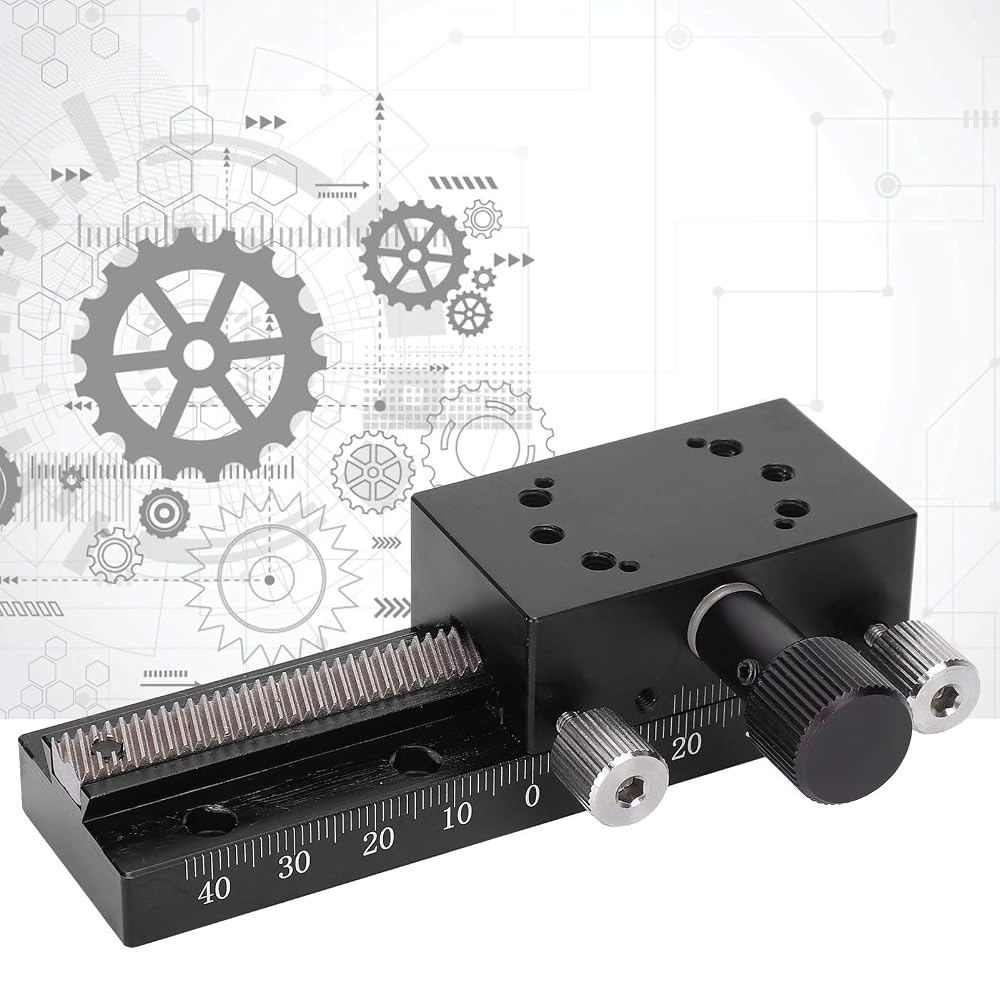

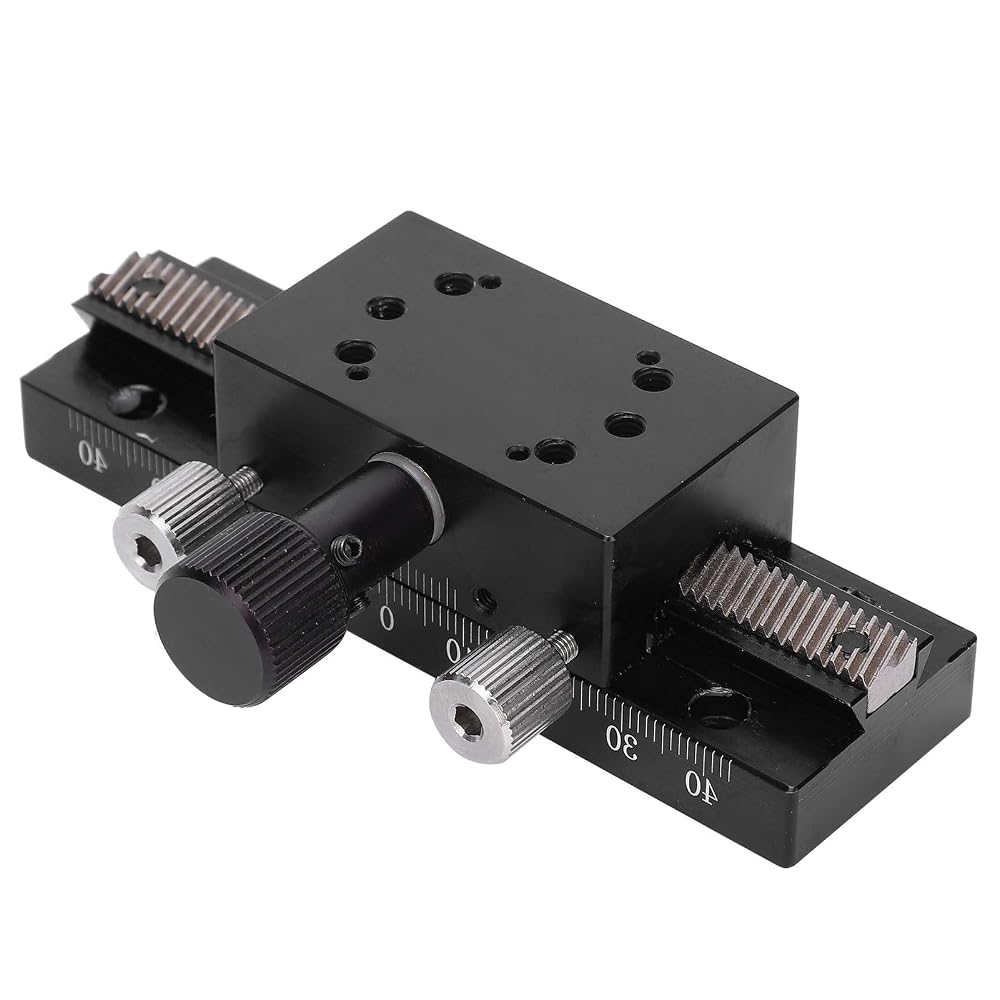

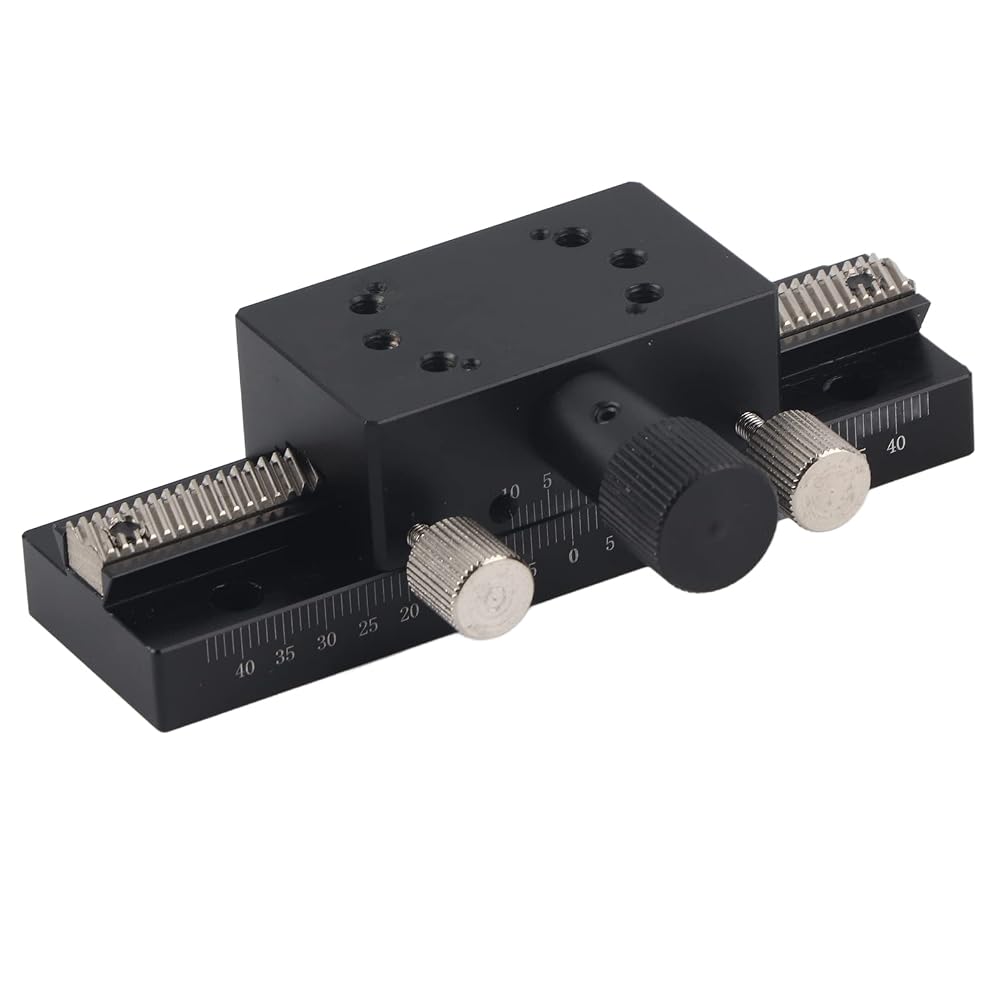

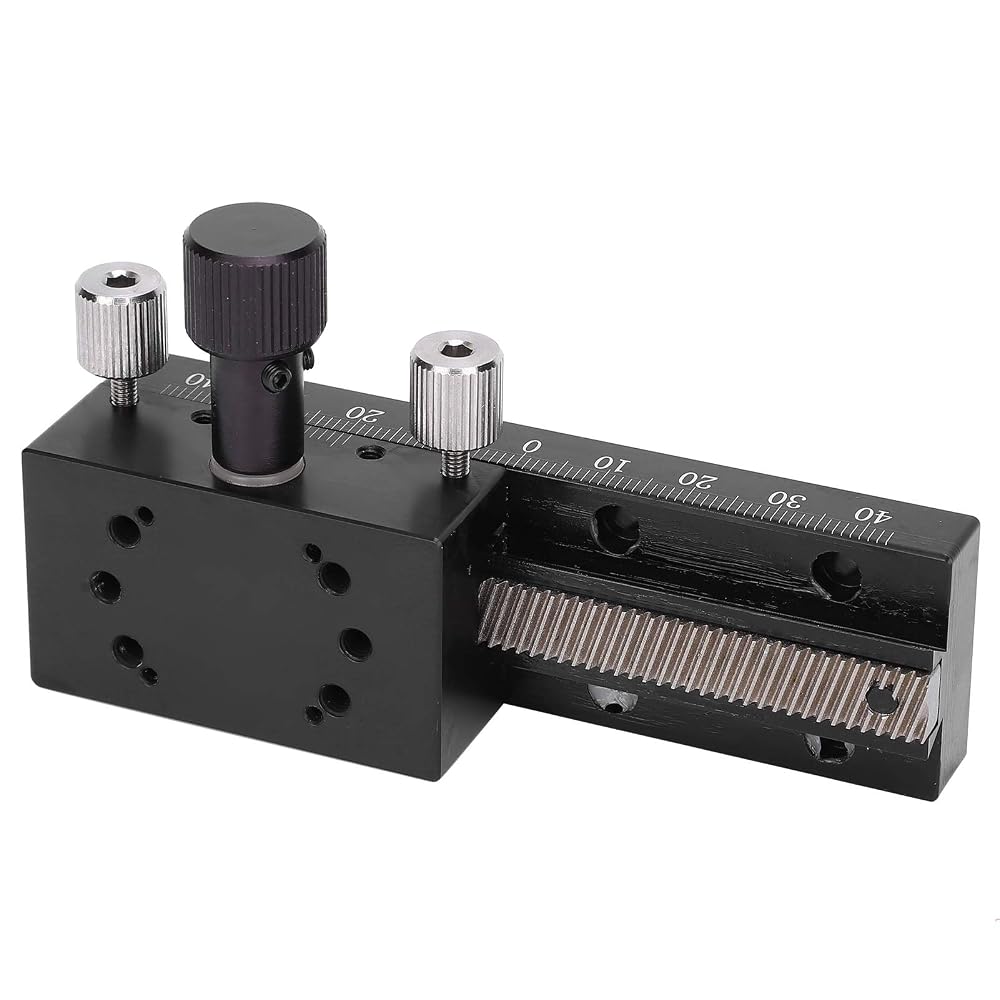

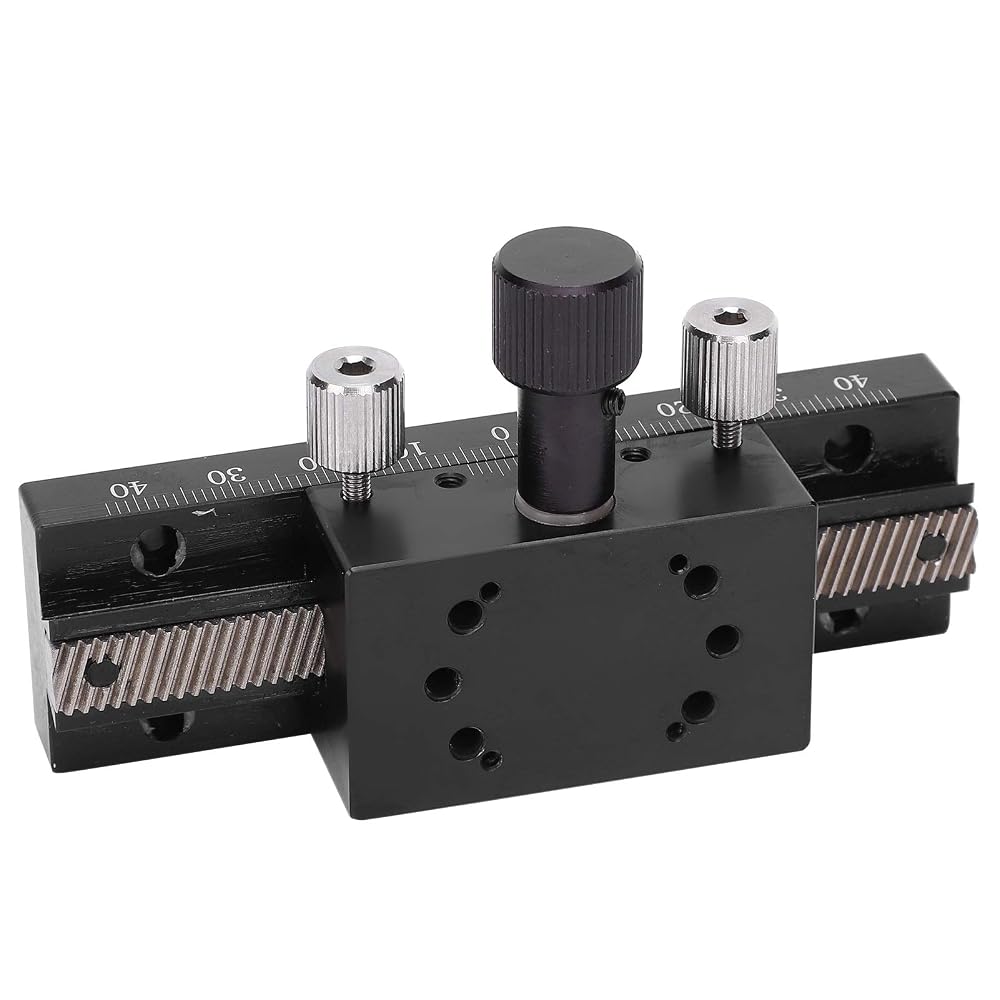

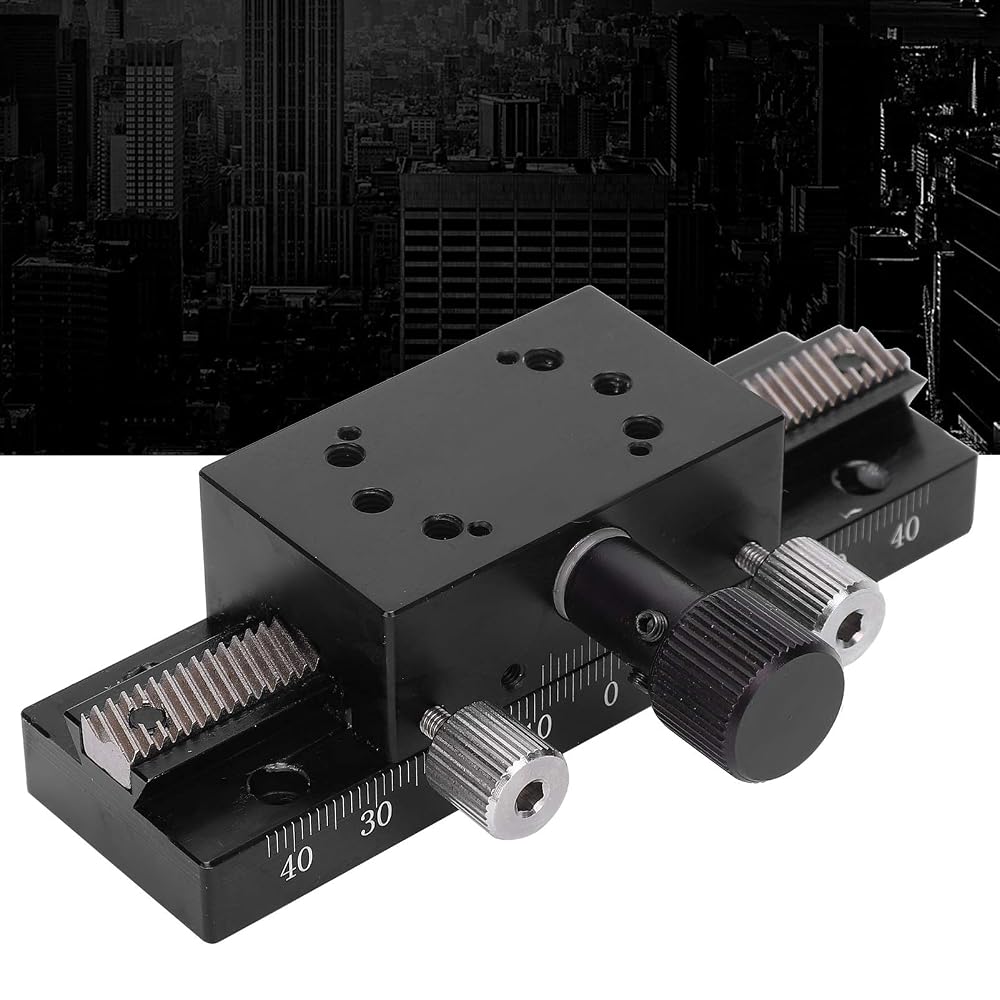

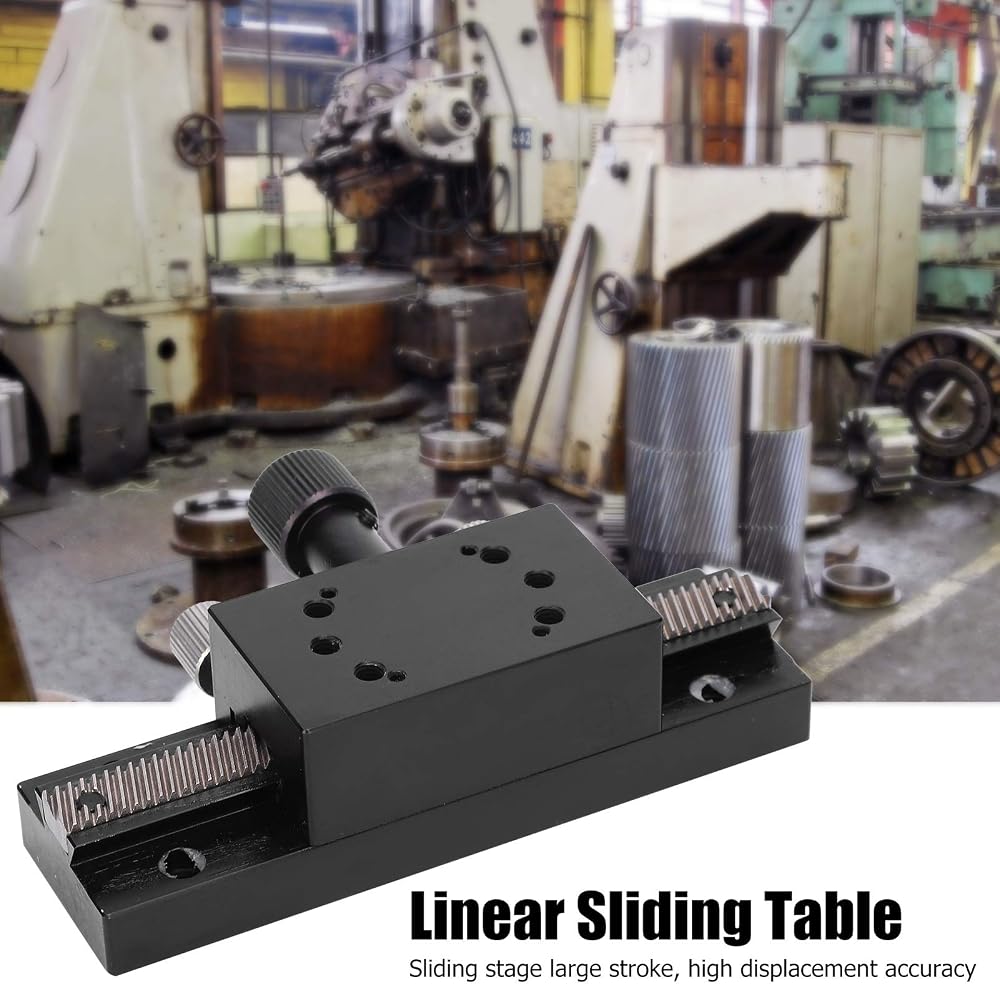

【Precision Motion】This sliding stage supports linear manual adjustment with 30μm movement accuracy and ±40mm travel, suited for positioning tasks in optical experiment measurement and equipment setup.
【Compact Platform】Linear translation stage features a 30 x 50mm table surface with 8 mounting holes, including 6 M4 and 4 M2 depth 5mm, making installation easier for small assemblies and fixtures.
【Aluminum Alloy Build】Made of aluminum alloy with black oxidation treatment, this fine tuning sliding table is designed for stable mechanical motion in laboratory instruments and production machinery.
【Rack and Pinion Drive】Manual trimming platform uses a rack and pinion rail type, with about 18.8mm movement per knob turn, allowing direct control during alignment, adjustment, and measurement work.
【Load and Application】Withstand load level is 29.4N and vertical load is 14.7N, suitable for optical experiment measurement equipment, micropositioning tasks, inspection setups, and machinery adjustment.

Item Type:?Sliding Stage
Model: SEMCIC-100
Material: Aluminum alloy
Purpose: A mechanical device that can provide linear motion for equipment
Sliding Table Surface (mm): Approx.30 x 50mm / 1.2 x 2in
Moving Amount (mm): ± Approx. 40mm / 1.6in
The Amount of Movement of the Knob One Turn (mm): Approx. 18.8mm / 0.7in
Number of Mounting Holes: 8
L (mm): Approx. 12.5mm / 0.5in
Withstand Load Level (N): 29.4
Withstand Load Vertical (N): 14.7
Movement Accuracy (μm): 30
Rail Type: Rack and pinion

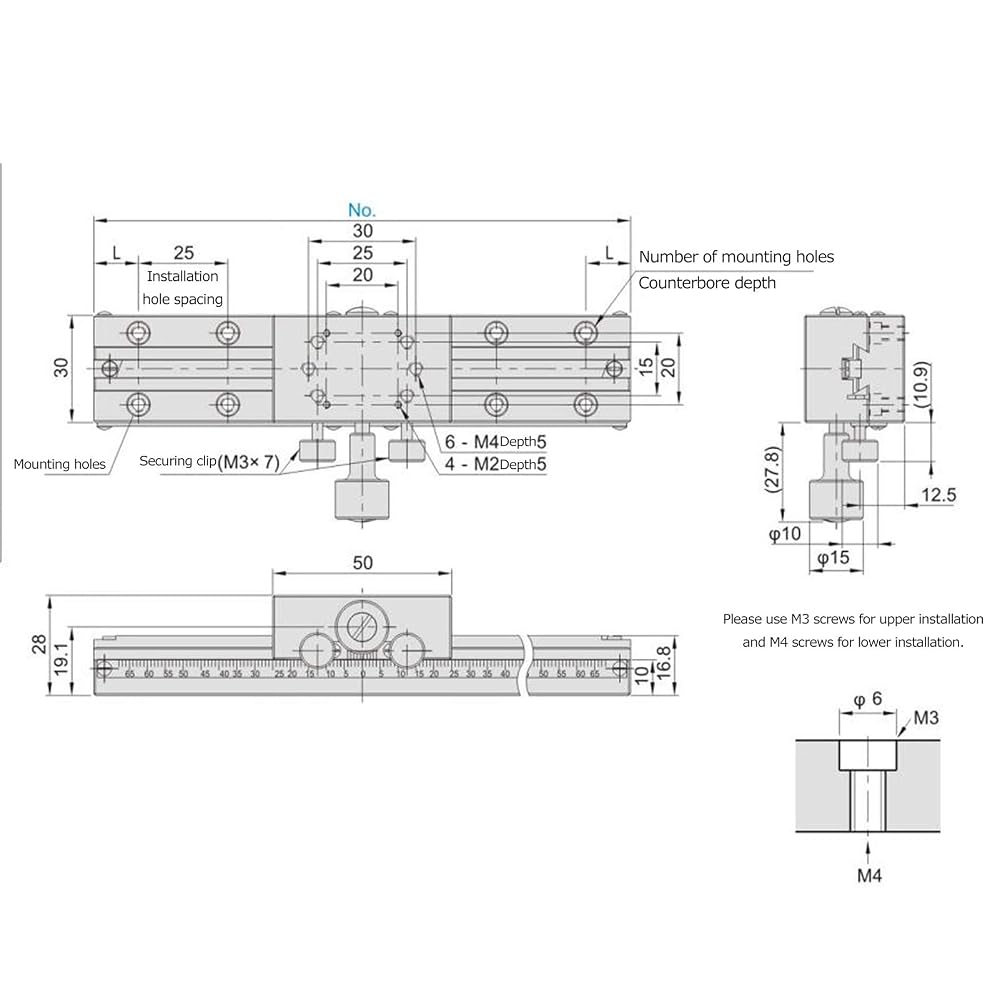

Size: Approx.
30mm / 1.2in
25mm / 1in
20mm / 0.8in
15mm / 0.6in
50mm / 2in
19.1mm / 0.8in
28mm / 1.1in
10mm / 0.4in
16.8mm / 0.7in
27.8mm / 1.1in
10.9mm / 0.4in
12.5mm / 0.5in
6-M4 Depth Approx. 5mm / 0.2in
4-M2 Depth Approx. 5mm / 0.2in
1 x

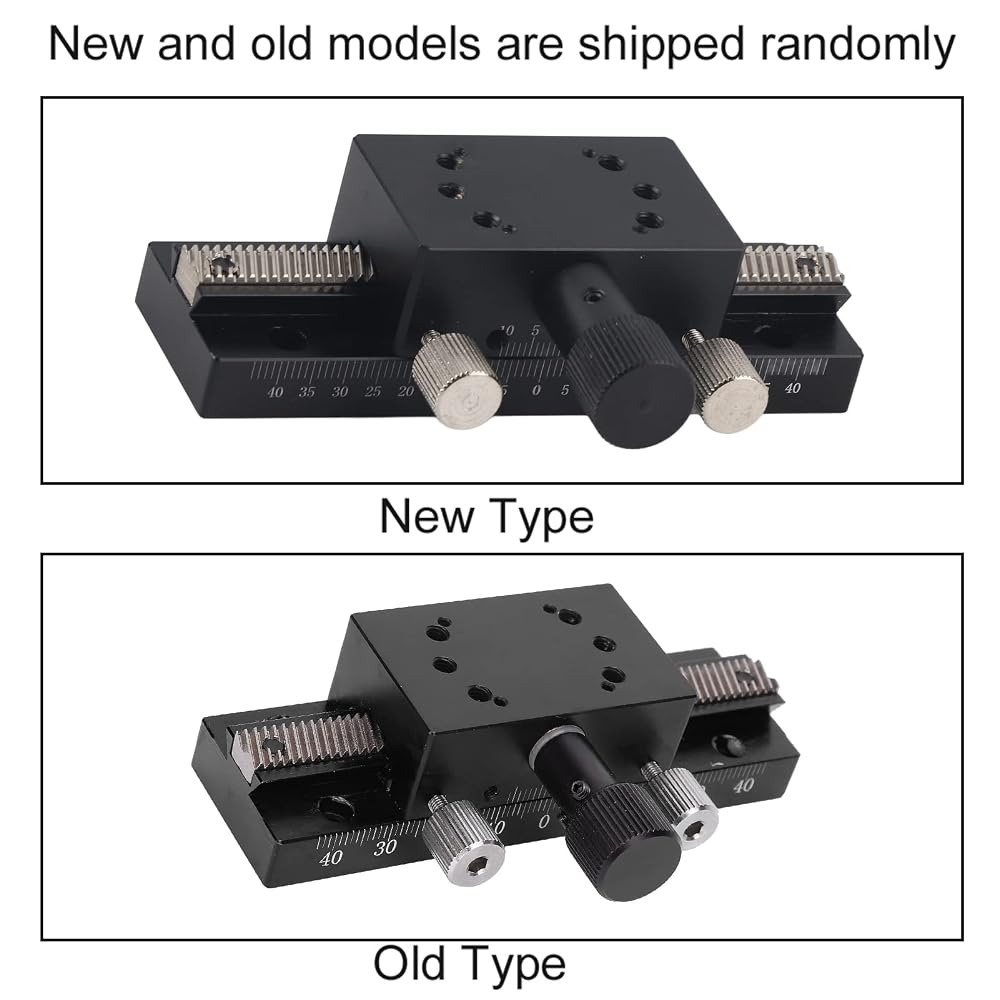

Sliding StagePlease note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
