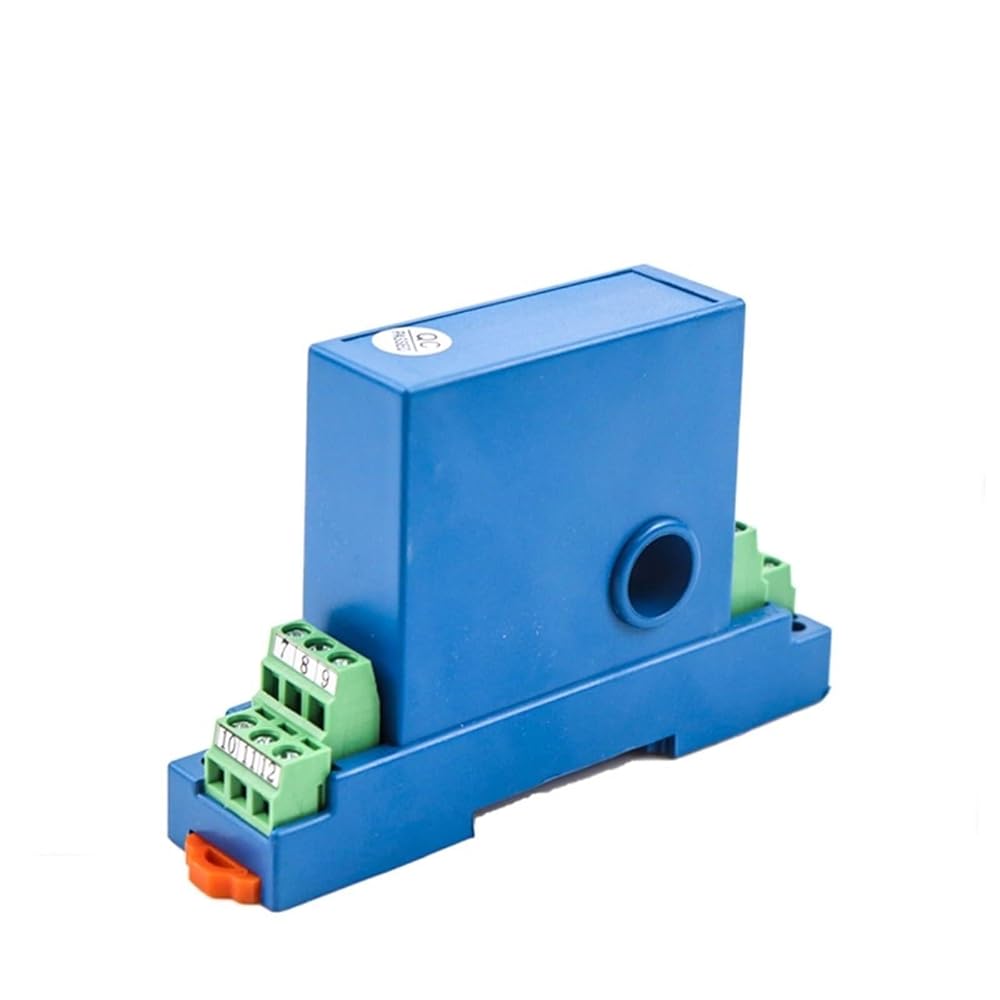

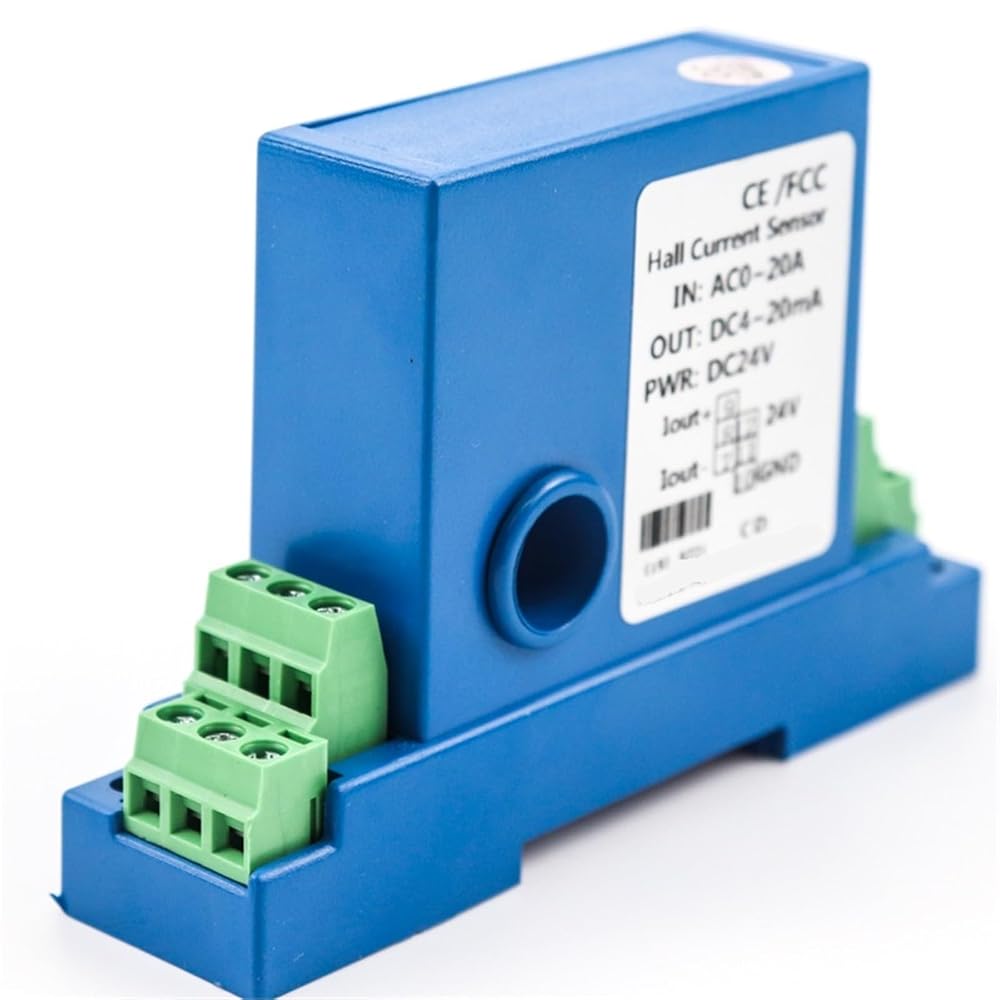

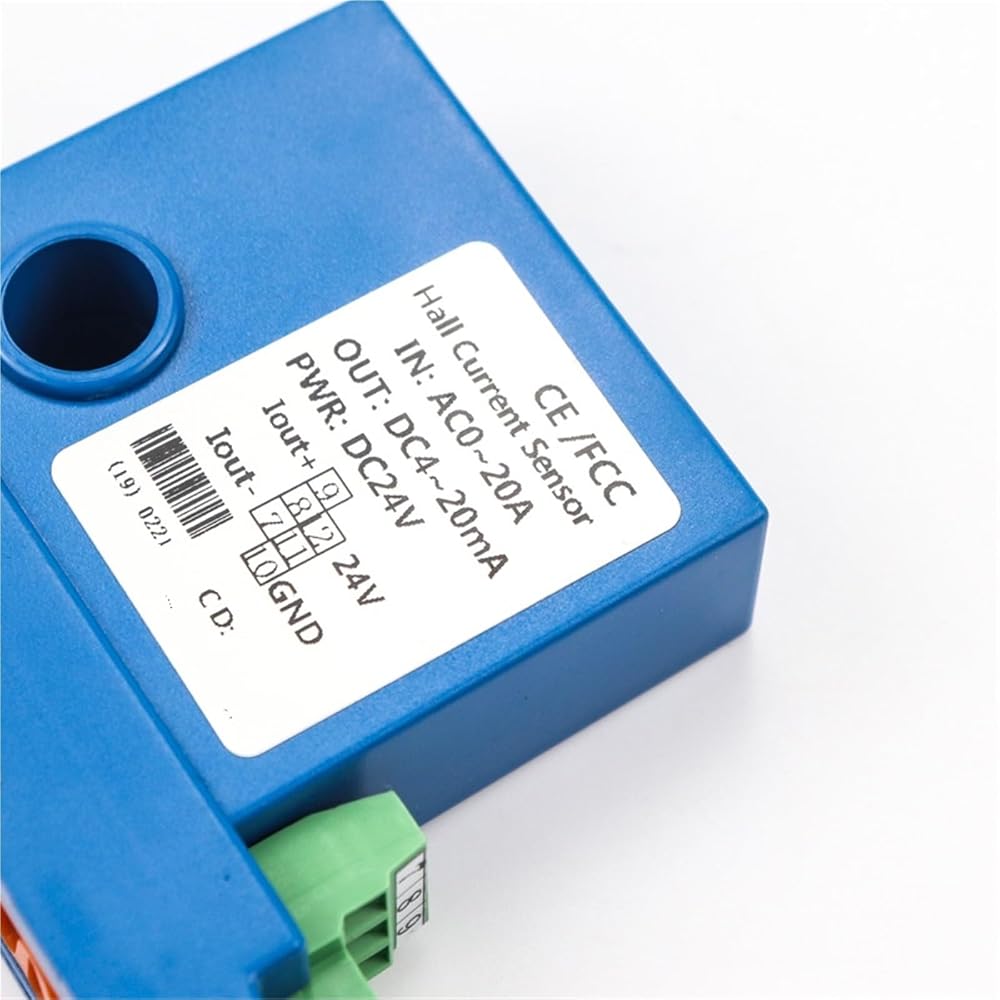

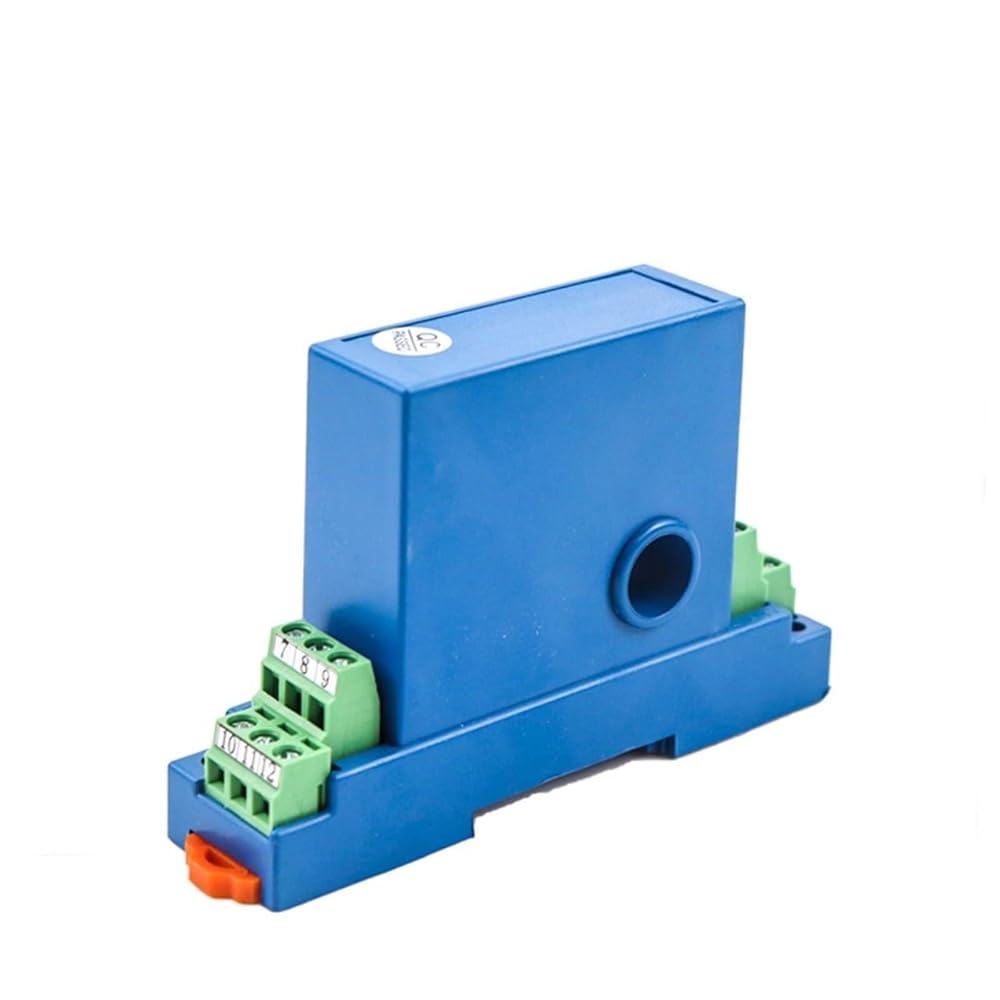

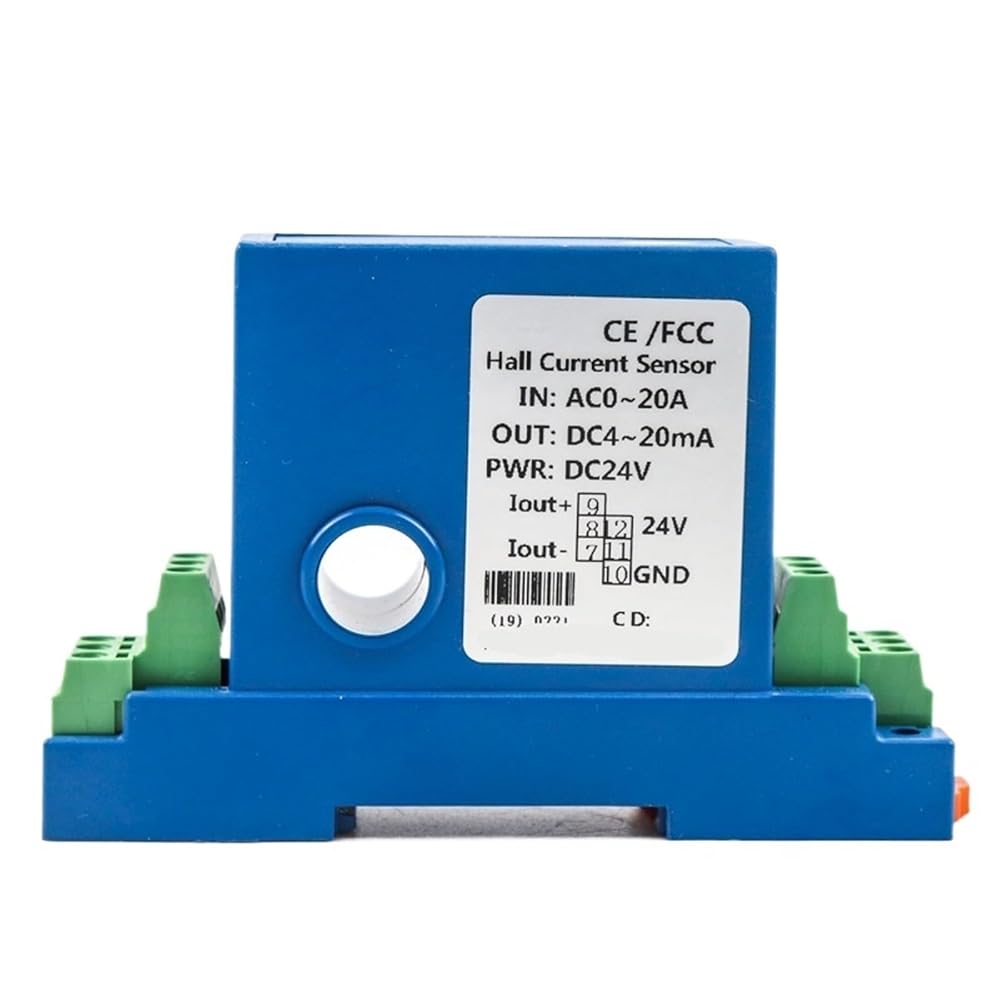

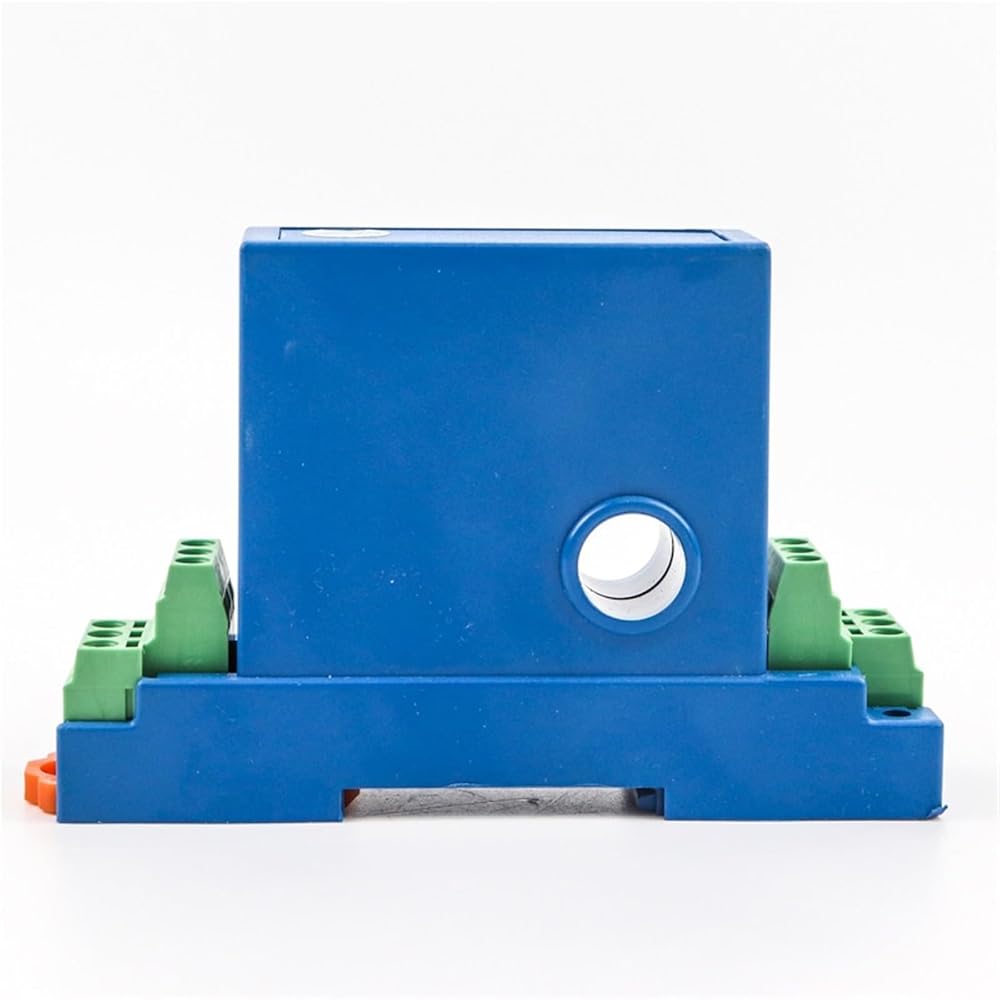

100A input split core ac current transmitter 4-20ma output small hall effect current transducer
Product description
HD-T4I ac current transmitter adopts Hall Principle to directly convert the high-current signal from the industrial field into the standard analog signal, and the input and output signals are linear.
No need for transformer, the input, output, and power supply are reliably isolated from each other.
Product details
AC current transmitter
Dimensions : 24*99*65mm
Operating Temperature : -40~85
Supply Voltage : DC12-28V,85-265VDC AC
Accuracy Class : 0.2%
Model Number : HD-T4I
Display Type : Analog and Digital
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Product name : Hall current sensor
Input signal : 0-5A,0-10A,0-50A,0-100A,0-150A
Output signal : 4-20ma,0-5V,0-10V
Channels : 8mm,12mm split core
Power supply : DC12-28V,85-265VDC AC
Response time : 50MS
Linearity : 0.1%
Insulation intensity : 3KV/50HZ,1Min
Temperature drift : 100ppm/C
Installation : 35mm DIN rail
