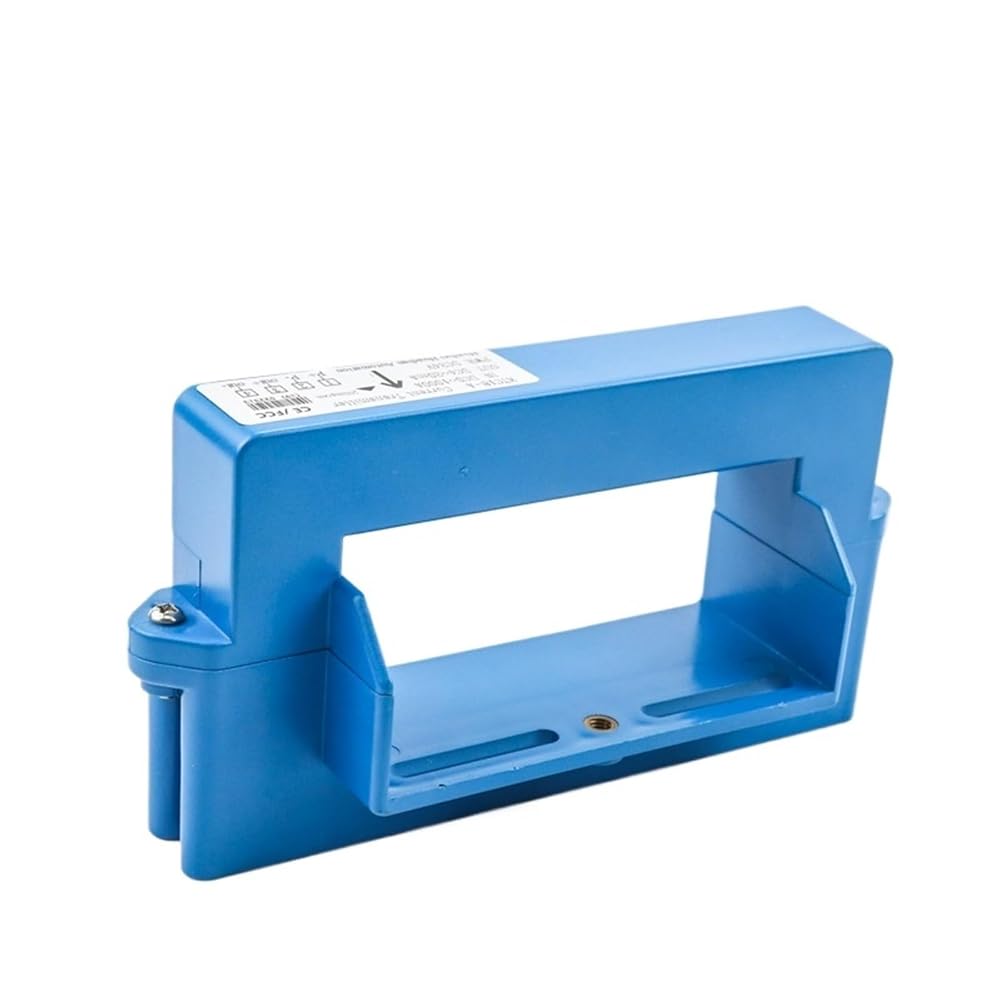

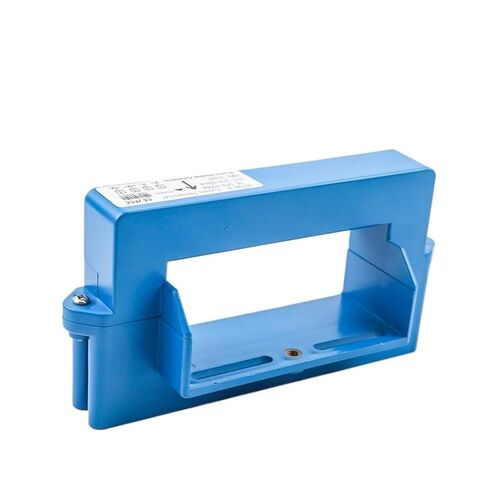

±15V power hall current sensor 0-±2000A input open loop stype perforated current transmitter
Product description
HD-K ac current transmitter adopts Hall Principle to directly convert the high-current signal from the industrial field into the standard analog signal,and the input and output signals are linear.
No need for transformer,the input,output,and power supply are reliably isolated from each other.
Opening measurement is more convenient.
Product details
AC/DC Current Transmitter
Dimensions : 24*120*63mm
Operating Temperature : -40~85
Supply Voltage : +-15VDC
Accuracy Class : 0.2%
Model Number : HD-K24
Display Type : Analog and Digital
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Product name : AC/DC Hall Current Transmitter
Input signal : 0-10A,0-100A,0-200A,0-500A,0-1000A
Output signal : 4-20ma,0-5v,+-5vdc
Power supply : +-15VDC
Aperture size : 84*22MM
Installation : Screw mounting
Accuracy : 0.2%
Working temperature : -40~85
Linearity : 0.1%
Response time : 50MS
