3 phase current transducer three phase current transmitter sensor 5A analog output 4-20mA/0-20mA/0-5V
Product description
HD-26-3I three-phase ac current transmitter adopts Hall Principle to directly convert the high- current signalfrom the industrial field into the standard analog signal,and the input and output signals are linear.
No need for transformer, the input, output and power supply are reliably isolated from each other
Detailed Images

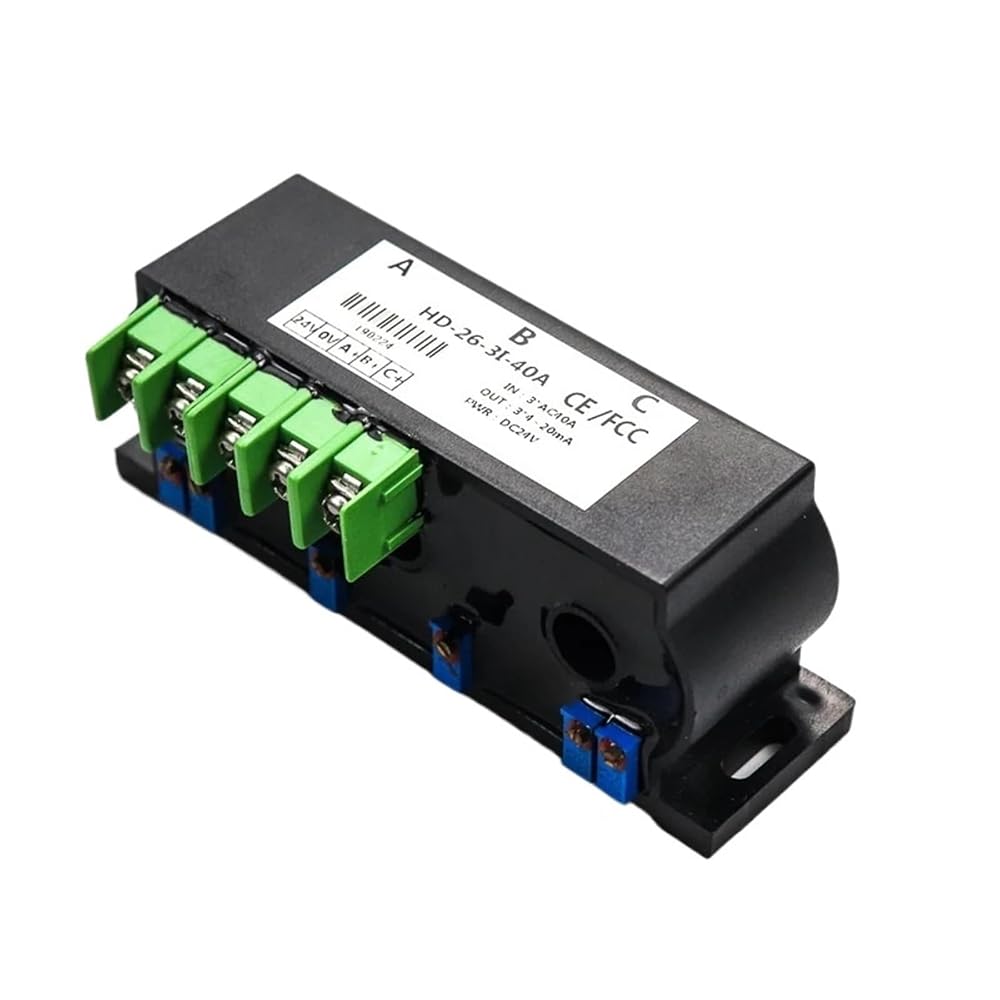

three phase current transmitter
Dimensions : 23*92*135mm
Operating Temperature : -40~85Deg,C
Supply Voltage : DC24V
Accuracy Class : 0.2%
Model Number : HD-26-3I
Display Type : Analog and Digital
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Product name : three phase current sensor transducer
input signal : 0-5A,0-10A,0-50A,0-100A,0-500A
output signal : 4-20mA,0-20mA,0-10v
power supply : DC24V
Output : Analog Sensor
Theory : Hall Sensor
Usage : Industrial and electrical
precision grade : 0.2%
linearity : 0.1%
load capacity : 500
response time : 50MS
