10PCS WTH118-1A Potentiometer Kit 2W 470R 1K 2.2K 4.7K 3.3K 10K 22K 33K 100K 220K 500K 1M 4.7M Potentiometer Kit

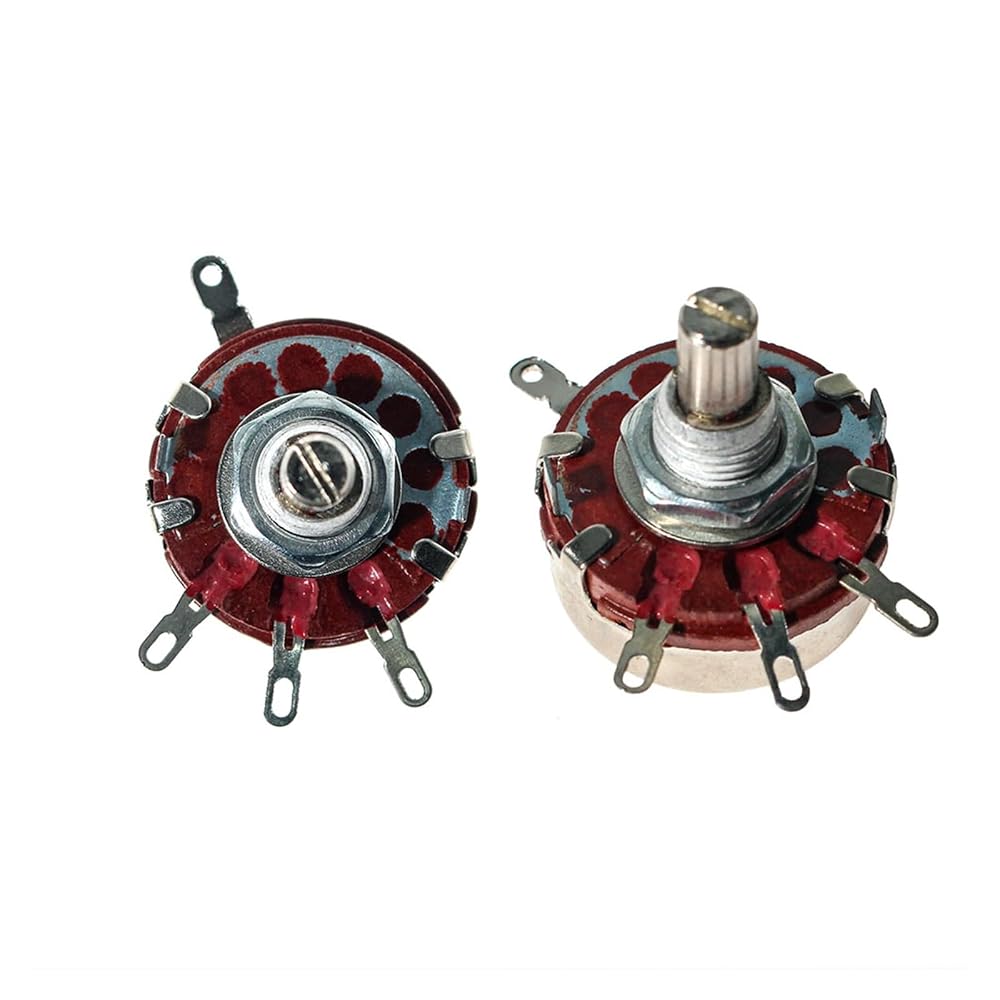

Name:WH118-1A potentiometer
Product Introduction:
1.Carbon film potentiometers and ordinary potentiometer applications have three pins, but
Inside, connected to two of the pins are two lenses of varying lengths, and connected to the third pin is a metal moving piece with teeth around it.
2.There are four states when the carbon film potentiometer rotates; Carbon film potentiometers are made by coating a layer of carbon film on horseshoe shaped paper adhesive. There are three types of relationships between the resistance change of carbon film potentiometers and the position of intermediate contacts: exponential, linear, and logarithmic. There are three types of carbon film potentiometers: , small, and large. Some types of switches together form potentiometers with switches.
Parameters:
Shaft diameter: 6mm
Resistance material: carbon film
Number of revolutions: 1
Sealing: IP40
Temperature range: - 10 degrees+85 degrees
Power: 2W
Standard shaft length: 20mm
Resistance tolerance: ± 20%
Rotation life: 1W revolution
Mechanical angle: 260 degrees ± 10 degrees
Product Application:
Carbon film potentiometers are commonly used in , adjustment tables, toys
Audio, car audio, power amplifier, radio; DVD/VCD, TV, electronic message equipment, earphones, lamps, and other related electronic digital and electronic equipment.
Package List:
10pcs WH118-1A potentiometer
