Timer switch relay , it is continuous type

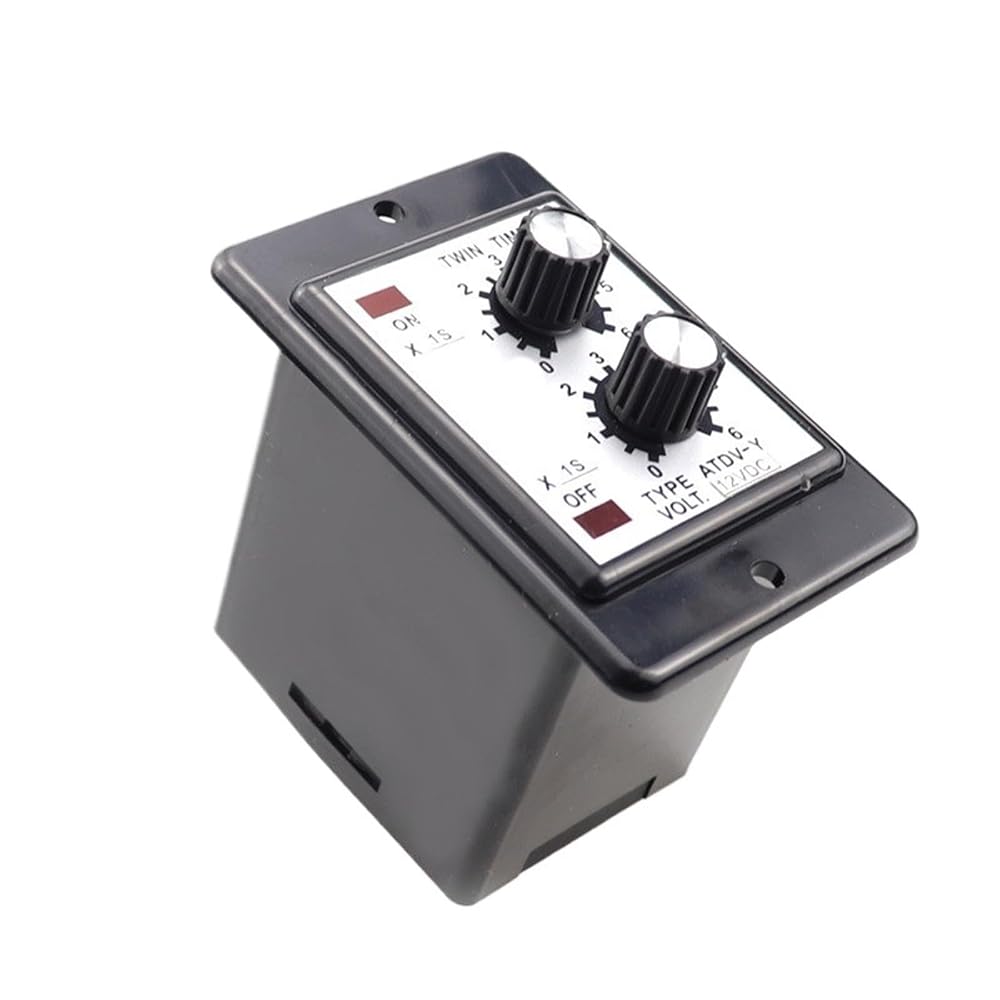

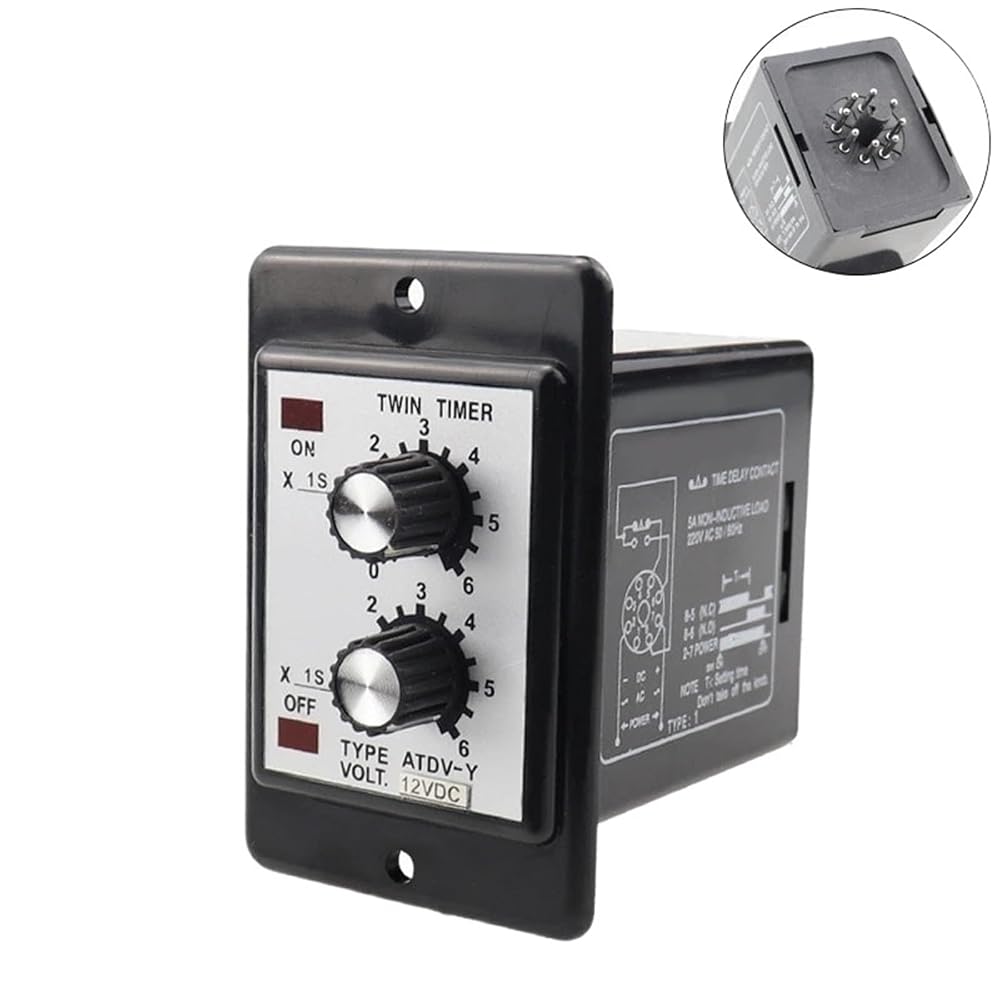

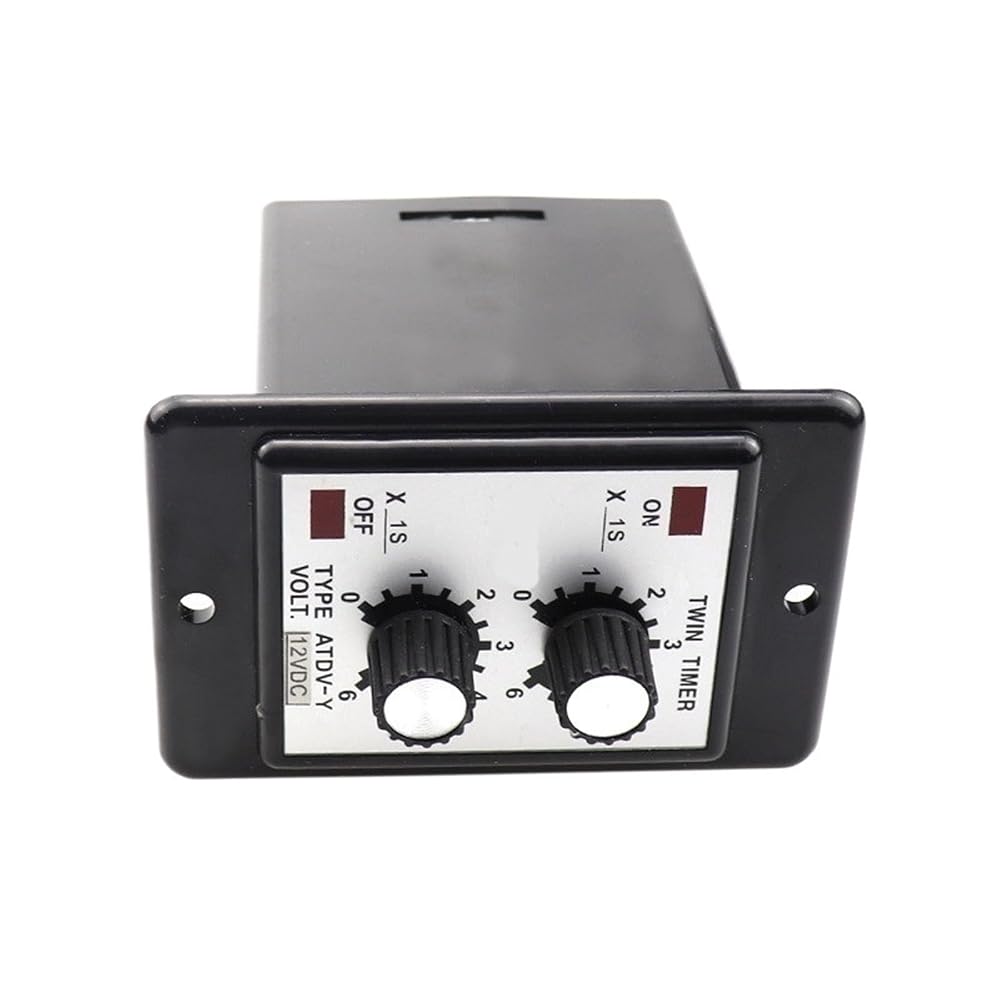

Timer ATDV-Y 220V AC Adjustable dual double Delay Twin Time Relay
Time relay is a very important component in the electrical control system. In many control systems, it is necessary to use the time relay to achieve delay control. Time relay is an automatic control electrical appliance that uses the principle of electromagnetic or mechanical action to delay the closing or breaking of contacts. Its characteristic is that there is a delay from the time the attracting coil gets the signal to the action of the contact.
Classification
Multi Range Timer
Twin Timer
Twin Timer
Specification Model
AH2-N/Y
ATDV-N
ATDV-Y

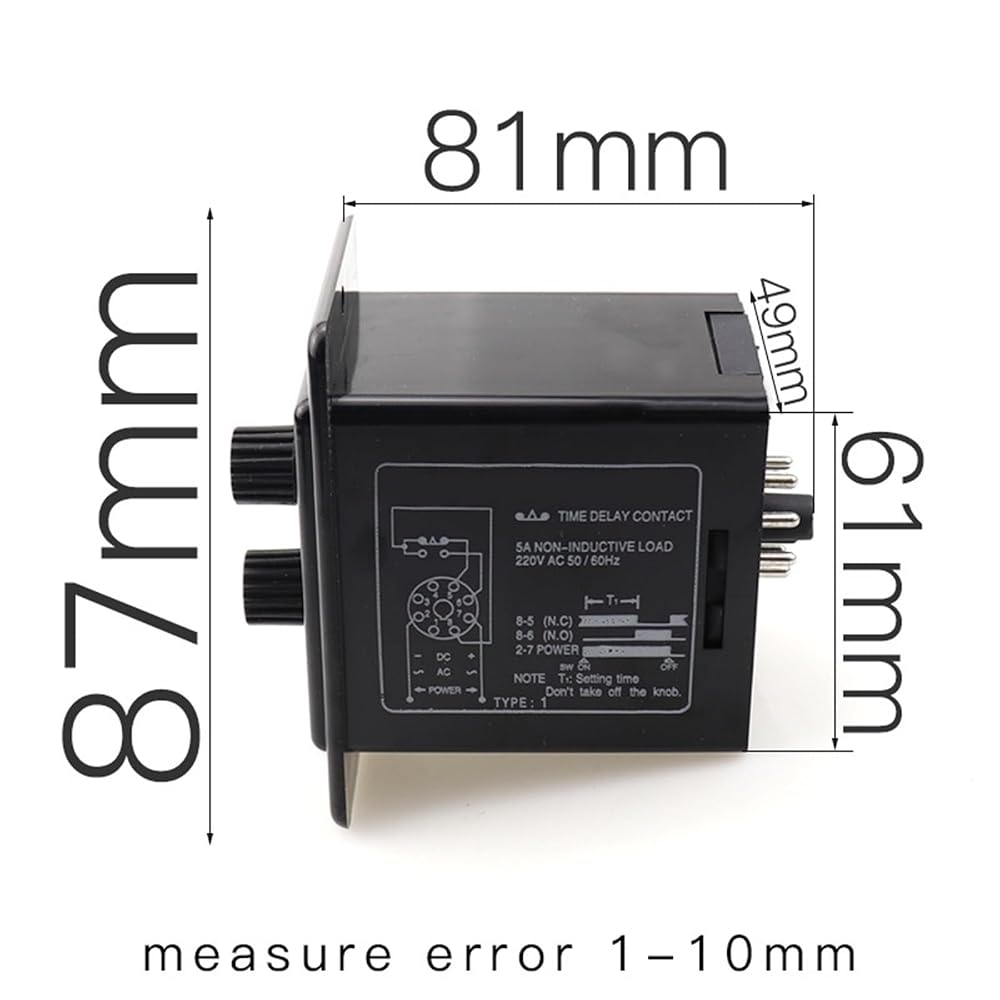

Dimension
61H×49W×70D 88H×58W×68D
61H×49W×70D
88H×58W×68D
Mounting & Socket
SurfaceN
PF083A PS08
P2CF08 PS08
PF083A
FlushY
US08 P3G08
PF083A
US08 P3G08
Full Range
A 1S10S1M10M
B 3S30S,3 metres,30M
C: 6S,60S,6M,60M
D: 1M,10M,1H,10H
E: 3 metres,30M,3H,30H
6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)
AC: 12,24,110,220, 240 50/60Hz : 12,24
AC: 12,24,110,220,240 50/60Hz : 12,24
AC: 12,24,110,220,240 50/60Hz : 12,24
Indicator Operating
ON-UP Two Indicator Lamp
ON,OFF Operating
ON,OFF Operating
O/P Contact
Model
AH2-N/AH2-Y
ATDV-N
ATDV-Y
Time Limit 1C
5A
5A
5A
Time Limit 2C
Instantaneous 1C
5A
Life
Mechanical
5×106 Times
5×106 Times
5×106 Times
Electrical
105 Times
105 Times
105 Times
Accuracy
Repeat Error
±1% max
±1% max
±2% max
Setting Error
±10% max
±10% max
±20% max
Voltage Error
±1% max
±1% max
±1% max
Temp Error
±2% max
±2% max
±2% max
Reset Time
0.1 sec max
0.2 sec max
0.2 sec max
Consumed Power
3VA
3VA
3VA
Ambient temperature
-10oC~+55oC
-10oC~+55oC
-10oC~+55oC
Ambient Huminity
48~85% RH
48~85% RH
48~85% RH
Weight
220g
160g
210g
