50mm Travel Mini Linear Stage Actuator, Linear Rail Slide Actuator with 28 Stepper Motor, T Screw Rod for DIY CNC Router Parts X Y Z Axis

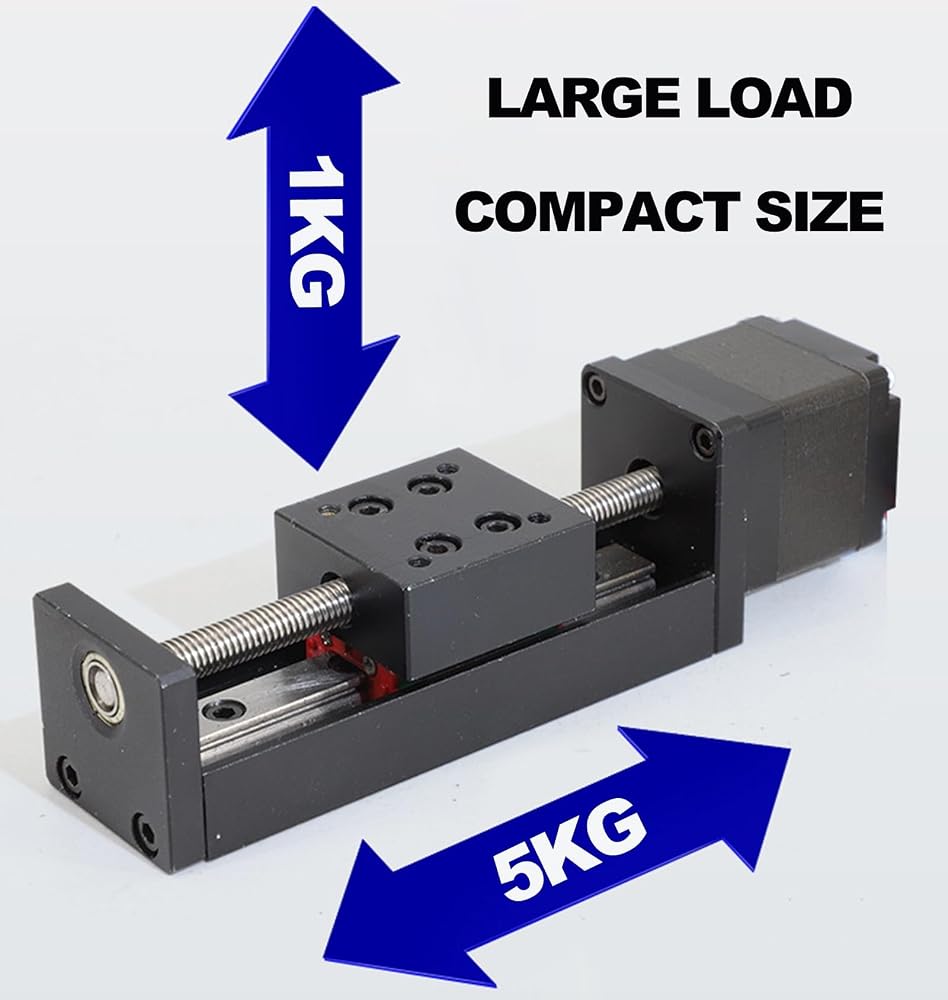

Mini linear stage actuator provides an effective travel of 50mm or 2 inch, load capacity up to 5kg horizontally and 1kg vertically

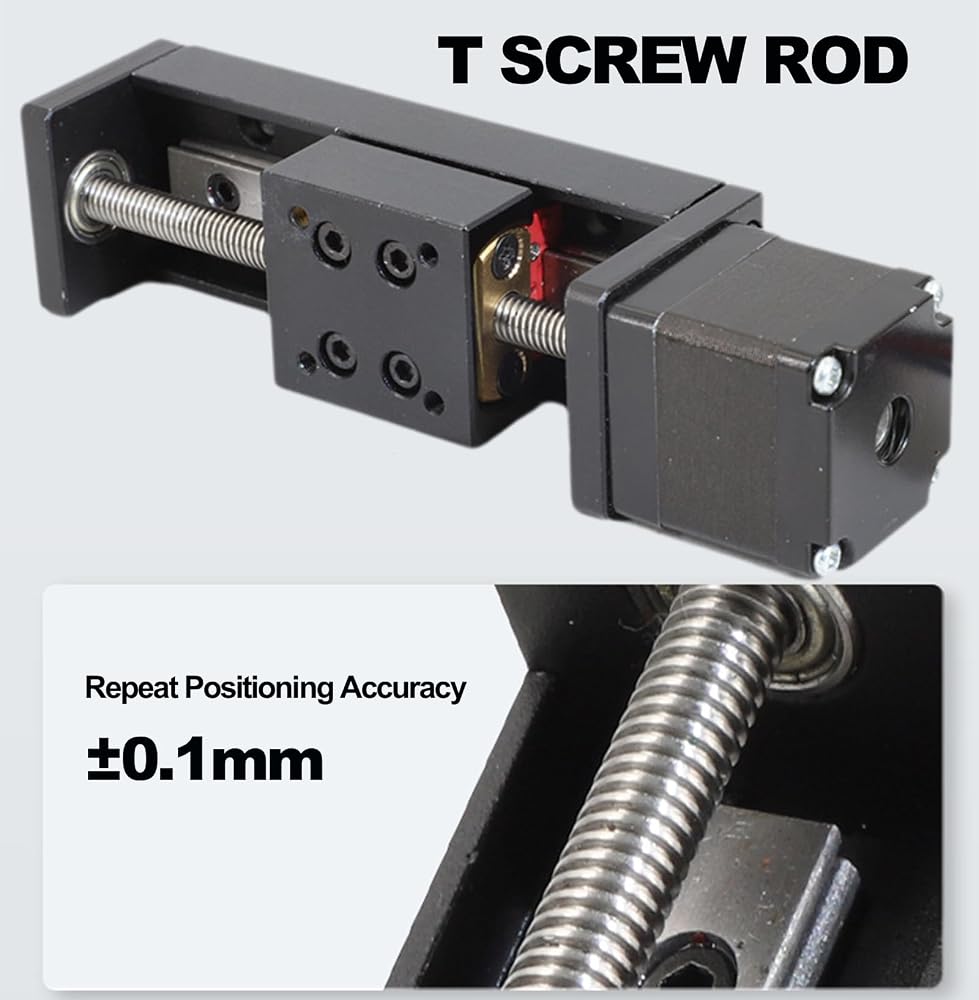

Linear rail slide actuator features a T screw threaded rod, diameter of 6mm, lead of 1mm, repeat positioning accuracy of ±0.1mm
Linear slide table allows for speed adjustment 0-8mm, where a pulse generator is required

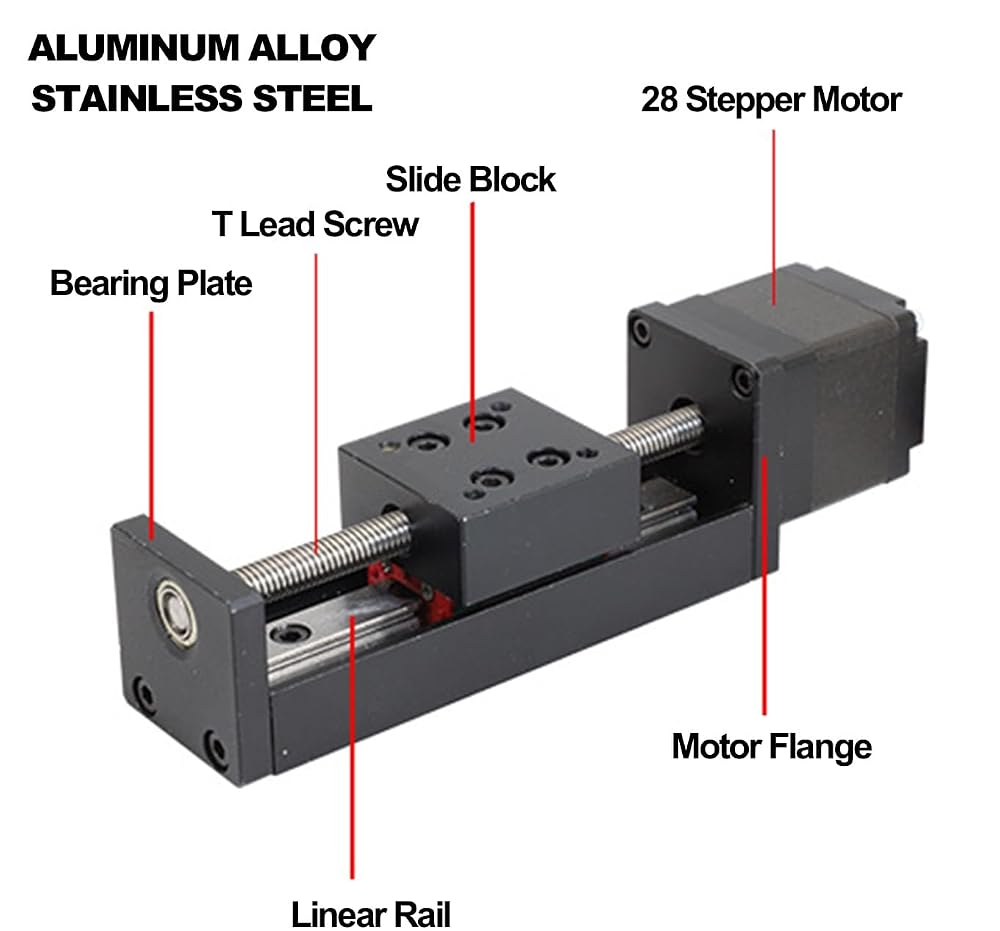

Linear motion table constructed with premium aluminum alloy and stainless steel, thickened plate ensuring stability during running

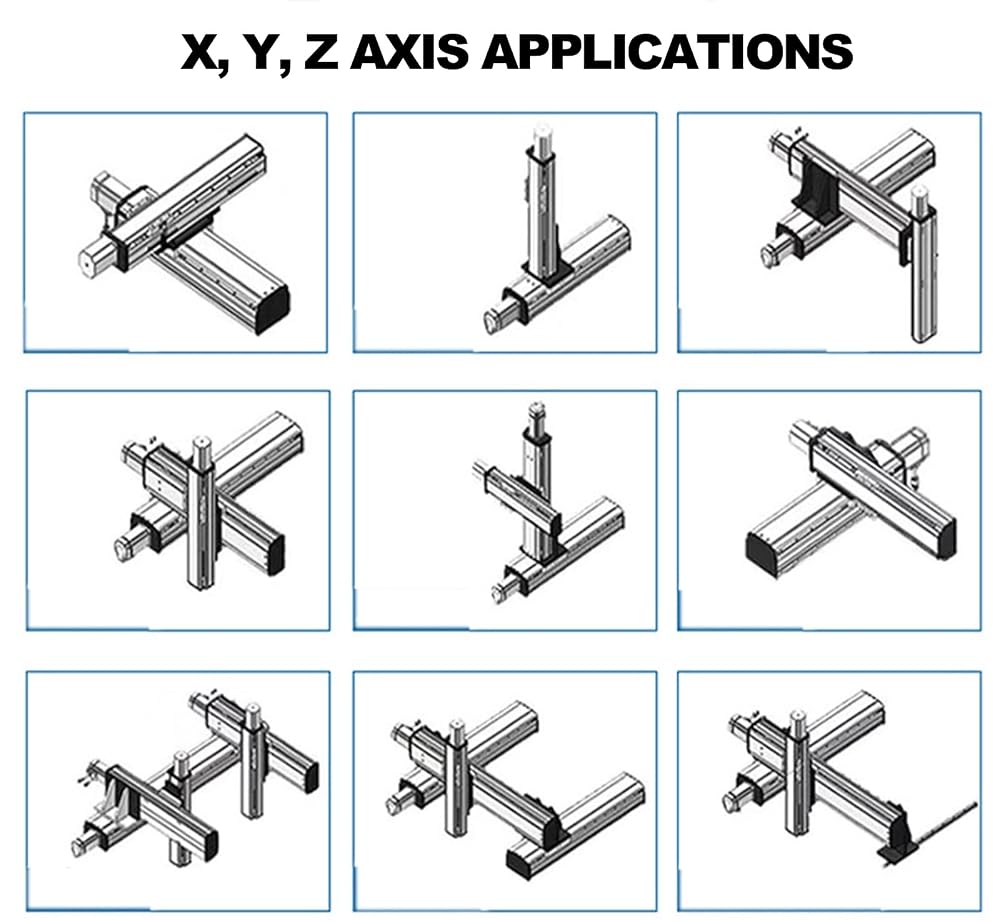

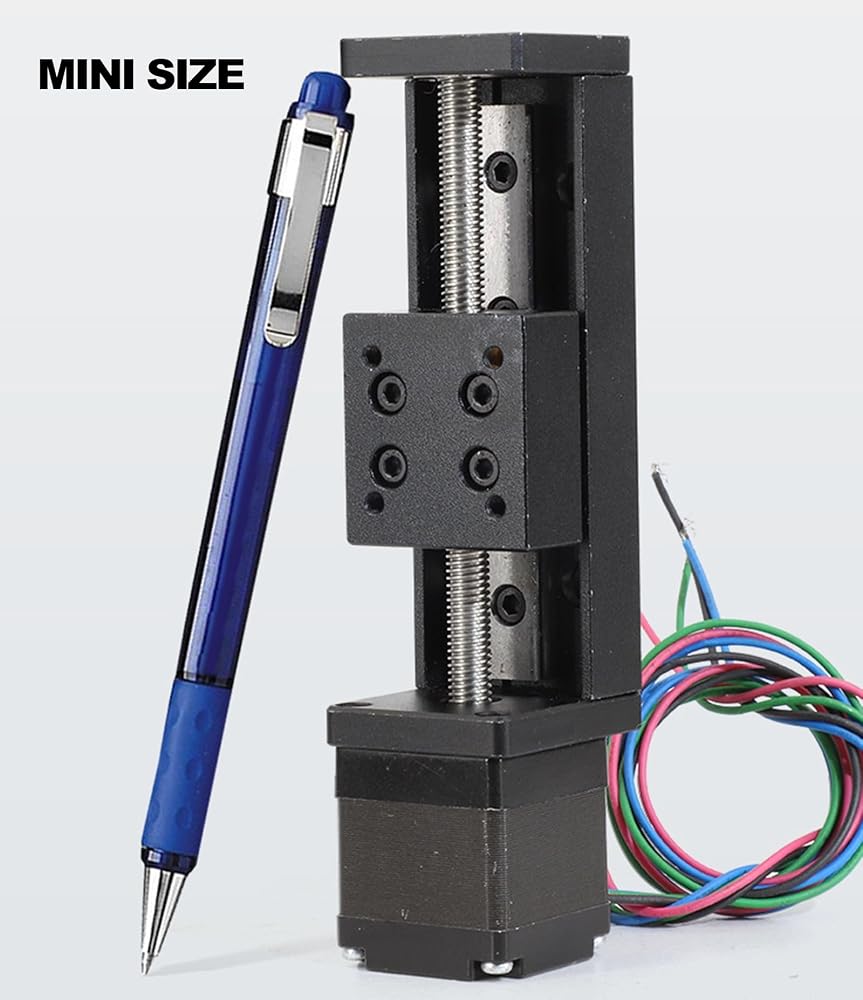

Mini linear slide table actuator boasts a mini size, 5-inch in length, easy to combine several together for X, Y and Z axis applications
The 28 stepper motor mini linear rail slide actuator is ideal for DIY CNC milling carving, 3D printing, laser engraving, automated testing equipment, optical measurement, fine tuning displacement, mechanical positioning and more
SPECIFICATION
Material: aluminum alloy, stainless steel
Travel Length: 50mm (2 in)
Load Capacity: horizontal ≤5kg; vertical ≤1kg
Speed: adjustable 0-8mm/s (pulse generator required)
T Screw Rod: diameter 6mm

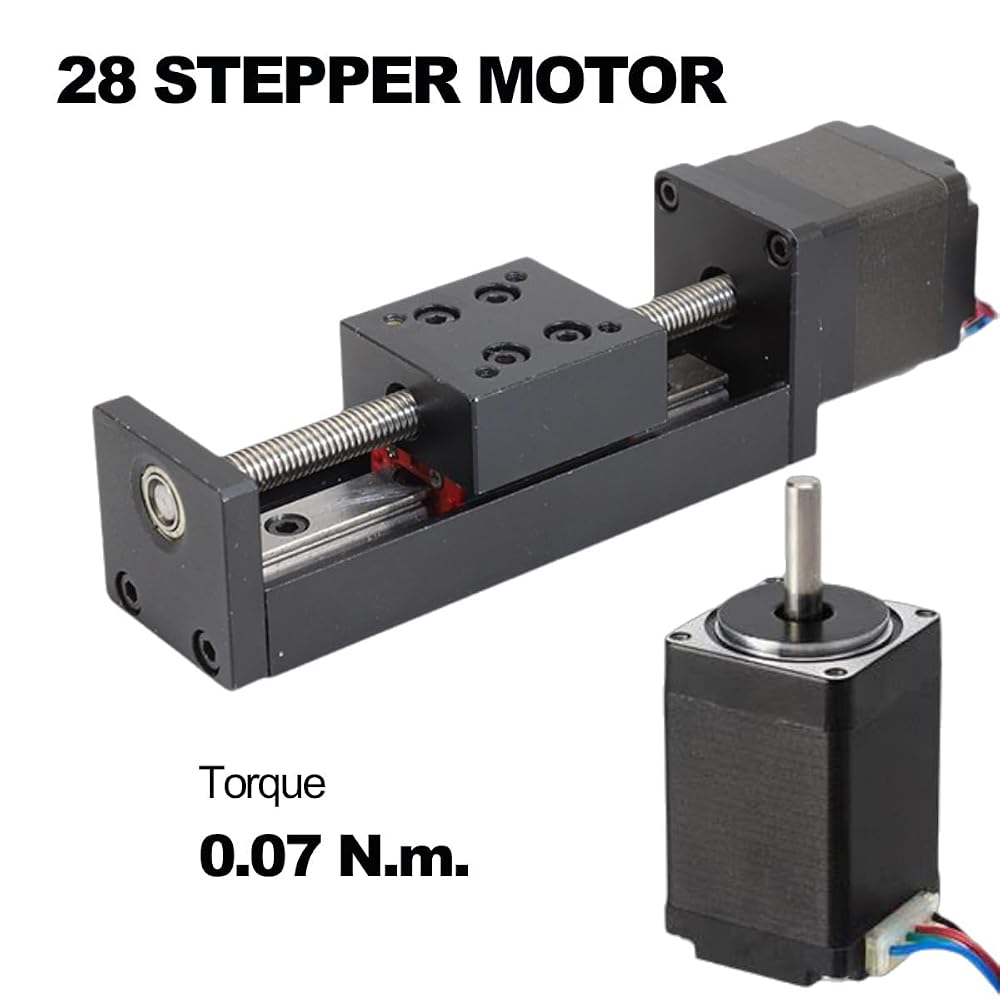

Motor Torque: 0.07 N.m.
Motor Current: 0.6A
PACKAGE
1 x 50mm Stroke Mini Linear Stage Actuator with 28 Stepper Motor
