1. [HIGH TIMER MODULE] with stable and reliable performance
2. Supports 2 modes: mon mode and cycle mode for versatile use
3. Easily adjust timing parameters from 1 second to 15 minutes
4. Ideal for controlling reciprocating strokes or repetitive power on/off
5. Widely applicable in timer operating equipment and repetitive test circuits

Spec:

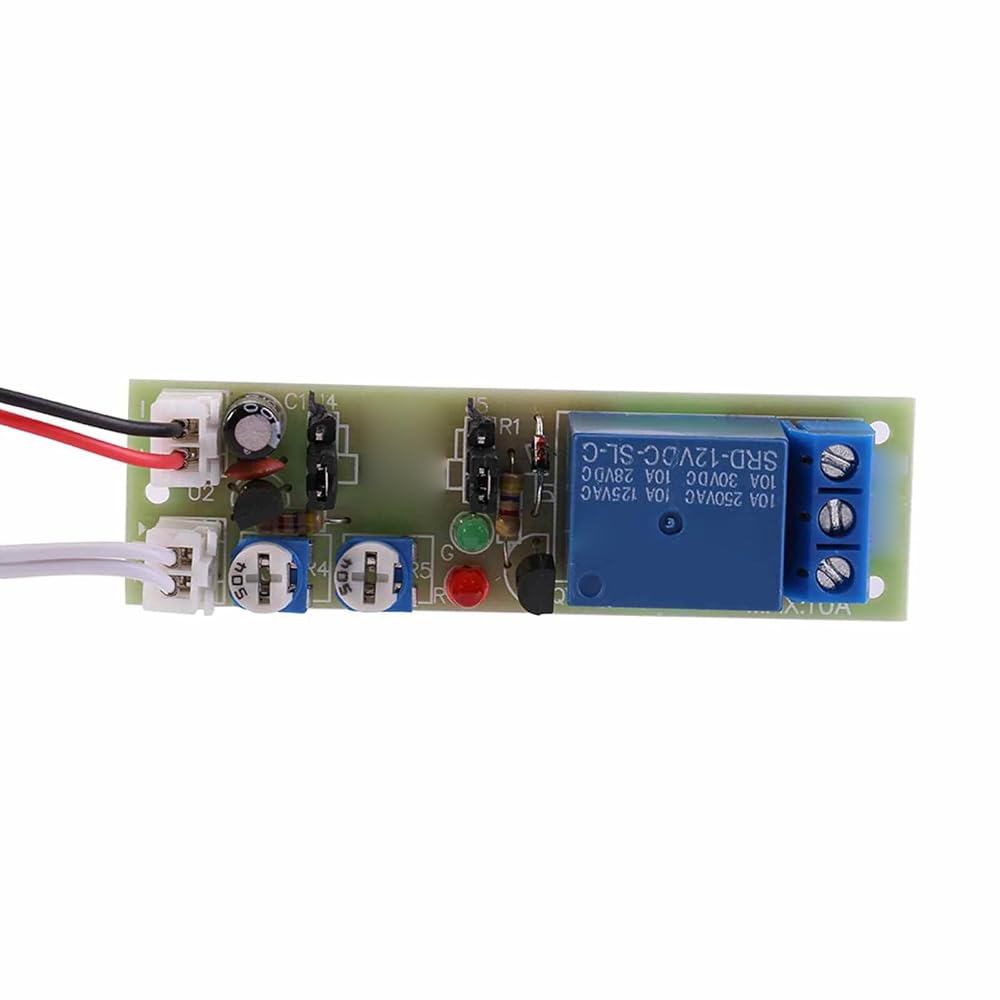

Item Type: Timer Module
Material: Metal, Plastic
Special Note: The Actuator button is not necessary. If you need to start cycling when powered on instead of pressing the button. Please short circuit the Actuator wire of the button directly.
This module uses a microcontroller as the main control part, with high time accuracy. The microcontroller has built in watchdog circuit and a dedicated reset chip, ensuring stable and reliable operation
Single Mode:
1. No action after power on, the relay connects after triggering, and disconnects when the time is reached
2. During the delay process after the relay is turned on, triggering it again will immediately interrupt the delay
Cycle Mode:
1. No action after power on, the relay connects after triggering, disconnects after reaching T1 time, connects after reaching T2 time. Such a cycle. T1 and T2 are set by two adjustable resistors respectively
2. During the delay work process, starting again will immediately interrupt the delay
Typical Application Reference:
1. Time limited work equipment, such as automatic power off after 5 minutes of each button Actuator
2. Machine repetition test circuit, such as powering on for 1 minute and then turning off for 1 minute in this cycle of testing
3. Intermittent pumping and oxygen extraction of fish tank water pump
4. Other time control devices
Performance Indicators:
Jumping OP1: 1 second to 100 seconds, with an adjustment accuracy of 0.1 seconds
Jumping : 1 second to 15 minutes, with an accuracy of 1 second
Delay error not exceeding 2% under various temperatures and humidities

PackageList:

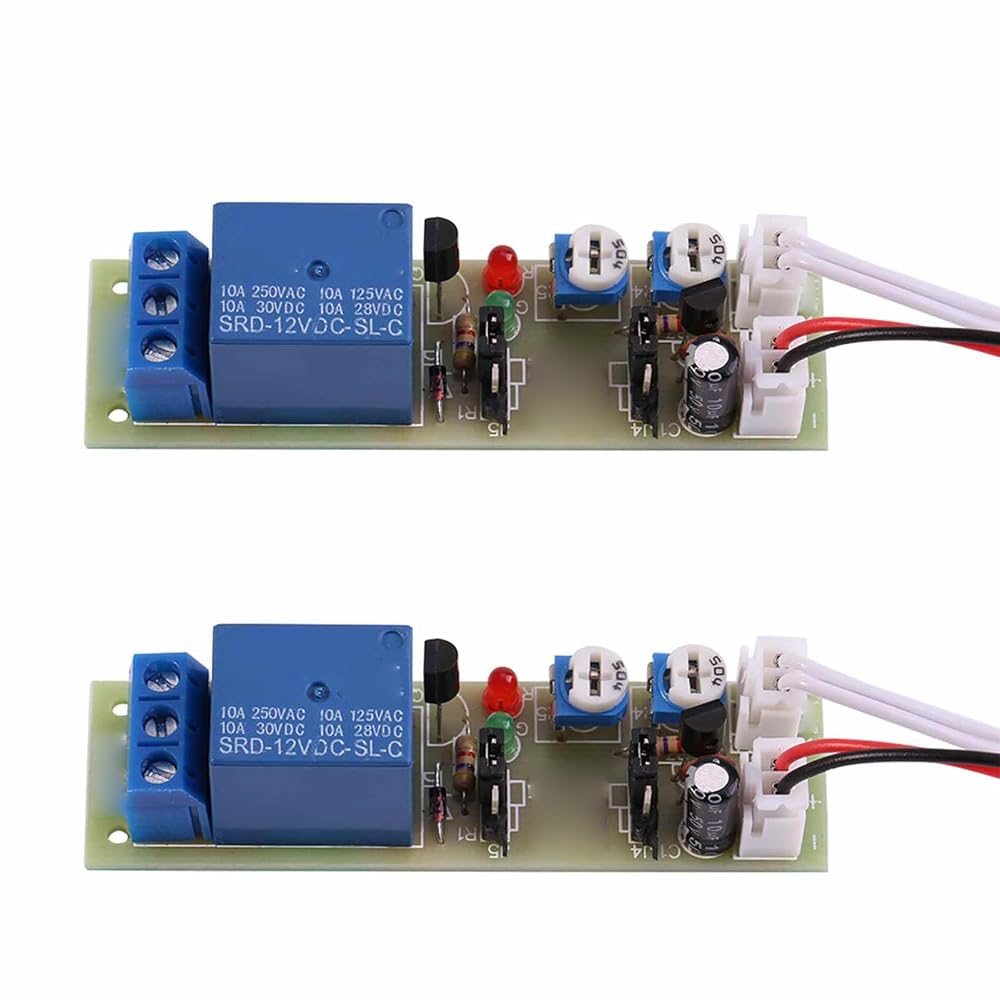

2 x Timer Module
