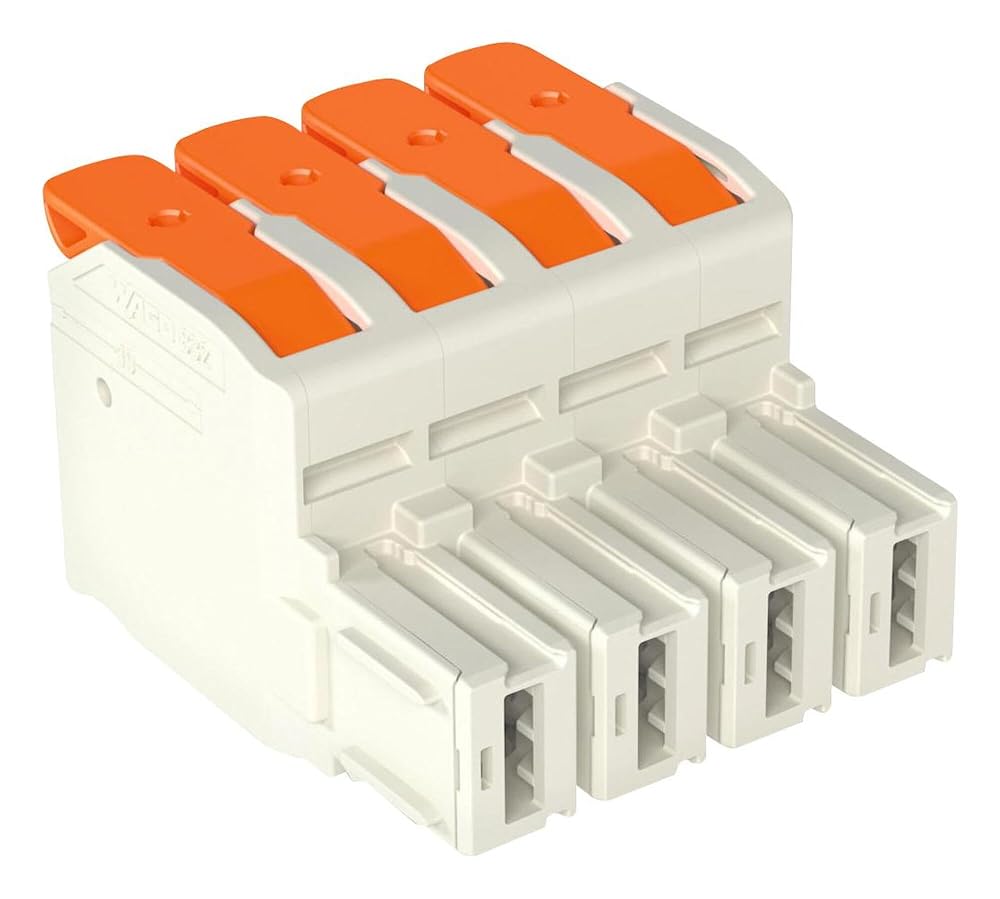

Intuitive and tool-free lever actuation Universal connection for all conductor types Push-in termination of solid or ferruled conductors Test slot 0° and 90° to conductor entry 100% protected against mismating Coding option available Rated voltage (II / 2): 1000 V Rated surge voltage (II / 2): 8 kV Rated current: 76 A Actuation type: Lever Single wire conductor max. mm²: 16 mm² Single wire conductor max. AWG: 4 AWG Single wire conductor min. mm²: 0.75 mm² Single wire conductor min. AWG: 18 AWG Fine stranded conductor max. mm²: 25 mm² Fine stranded conductor max. AWG: 4 AWG Fine stranded conductor min. mm²: 0.75 mm² Fine stranded conductor min. AWG: 4 AWG Stripping_length_from_1_mm: 18 mm Total number of clamping points: 4 Total number of potentials: 4 Width mm: 41.94 mm Height mm: 29.1 mm Depth mm: 49.8 mm Color: light gray Flammability class UL94: V0 Weight: 53.696 g
