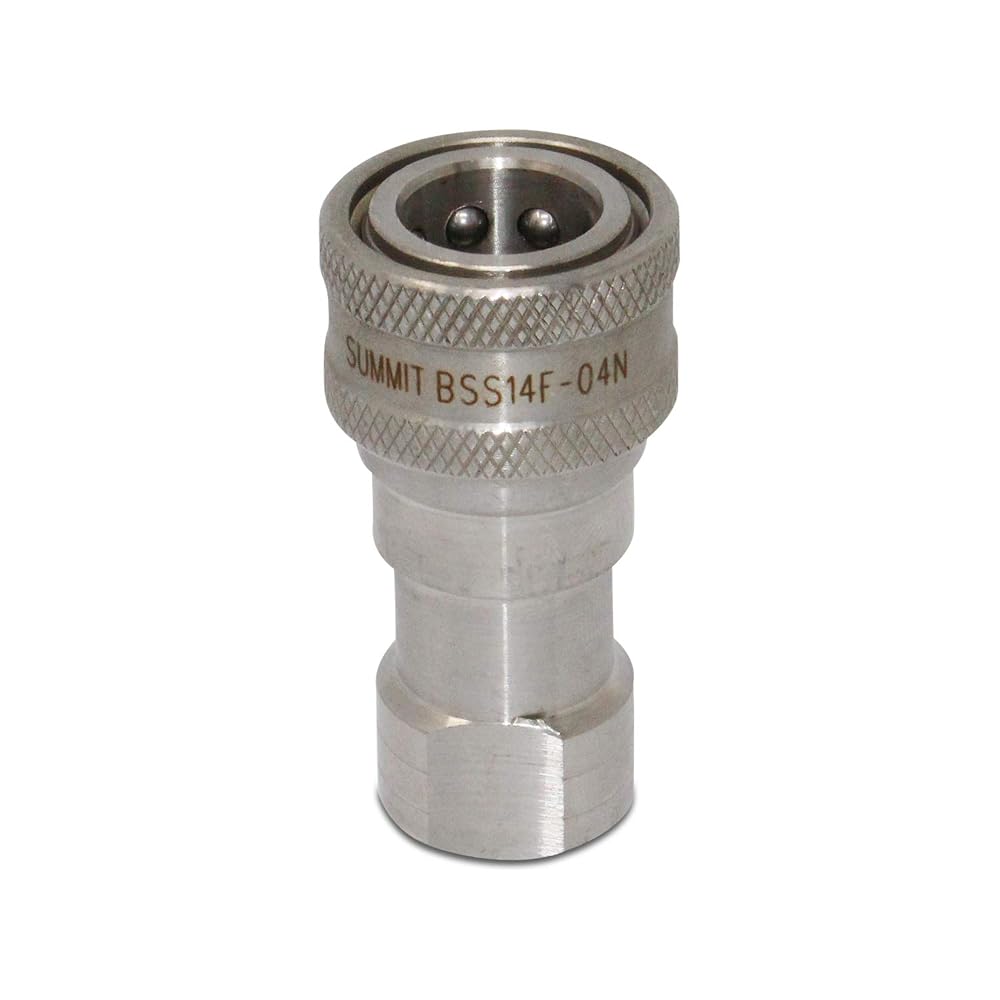

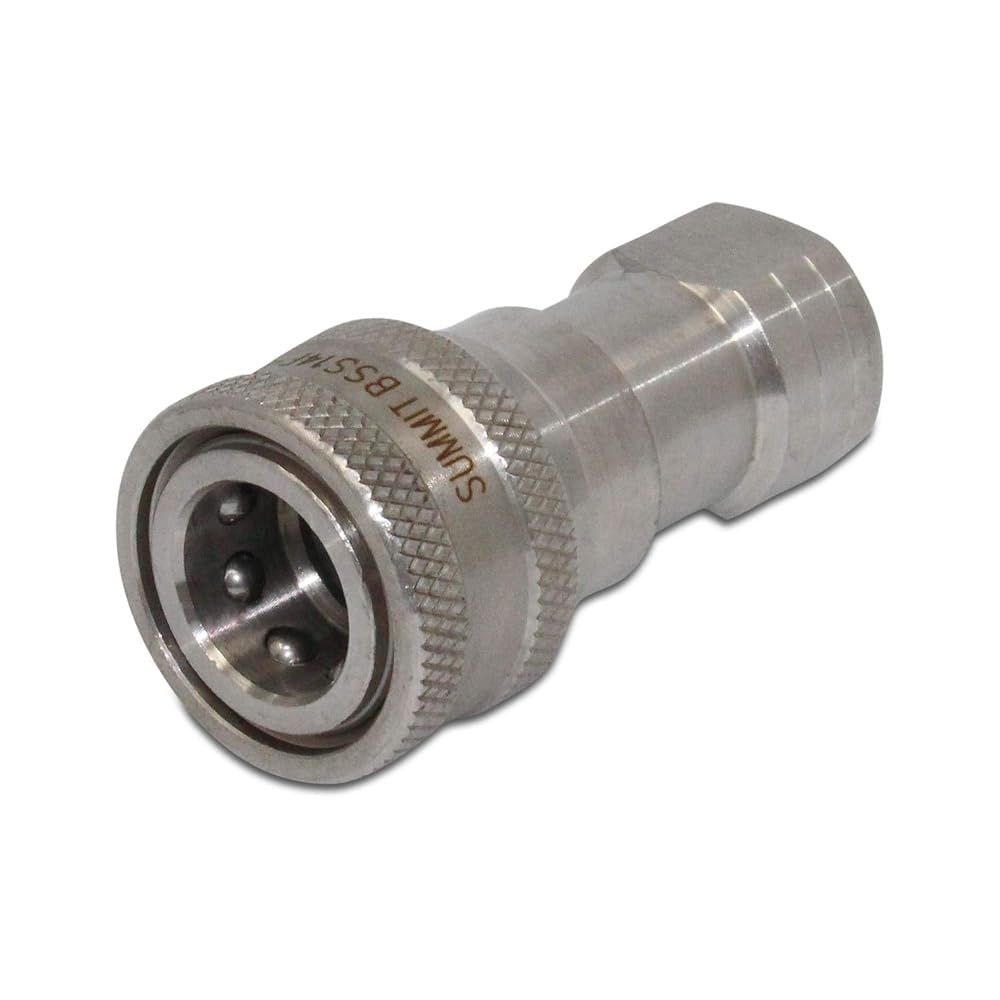

SKU: BSS14F-04N

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 1/4″ Body

Thread Size: 1/4″ NPT Thread, Poppet Valve

Benefits:
Body Material: 316 Stainless Steel
Spring Material: 304 Stainless Steel
Locking Ball Material: 316 Stainless Steel
Stainless Steel Body is highly resistant to corrosion
Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
Seal Type: Viton FKM
Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
Interchangeable with all ISO 7241 B series couplings
Temperature Range: -15°F to +400°F

Features:
3600 PSI Rating
14,500 PSI Burst Rating (Coupled)
Nominal Flow Rate: 3.17 GPM
Max Flow Rate: 6.34 GPM

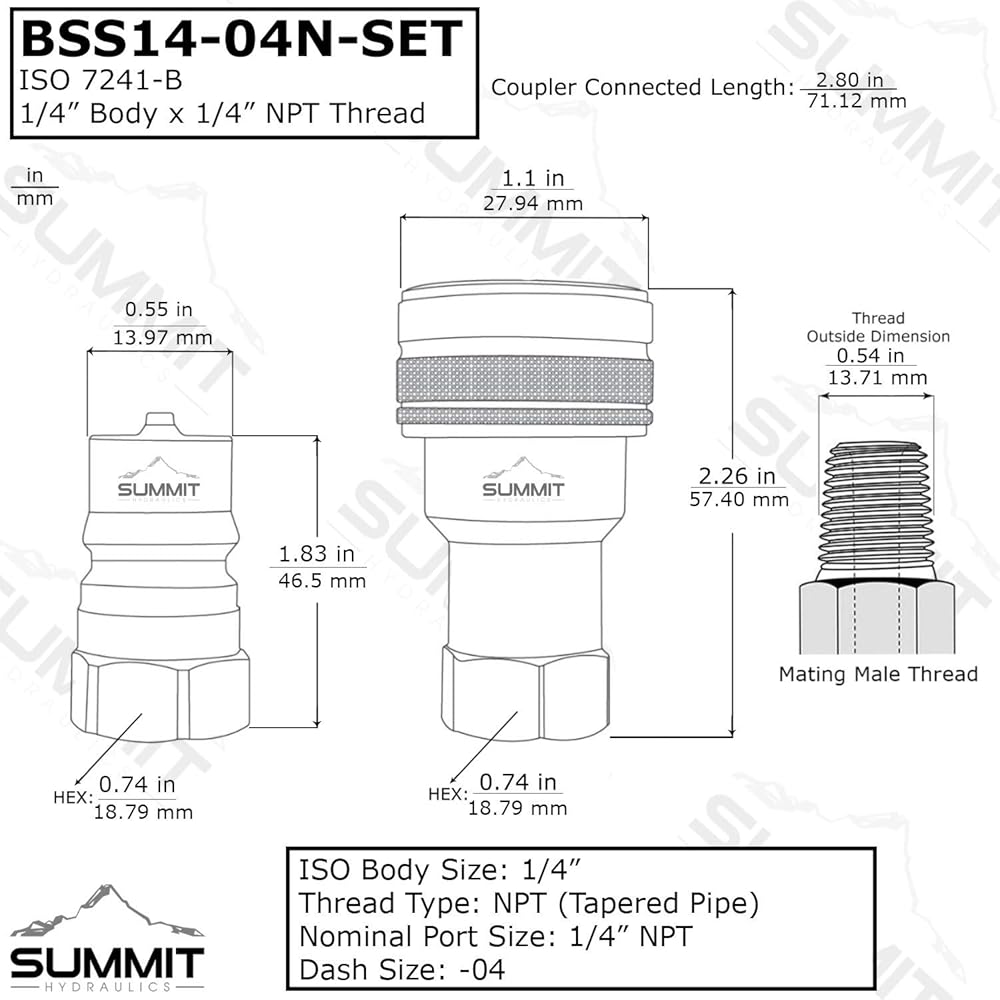

Female Face Diameter 1.1” (27.94mm)
Female Length: 2.26” (57.4mm)
Hex: 0.74” (18.79mm)

Kit Includes:
1 Female Coupler
