Features:

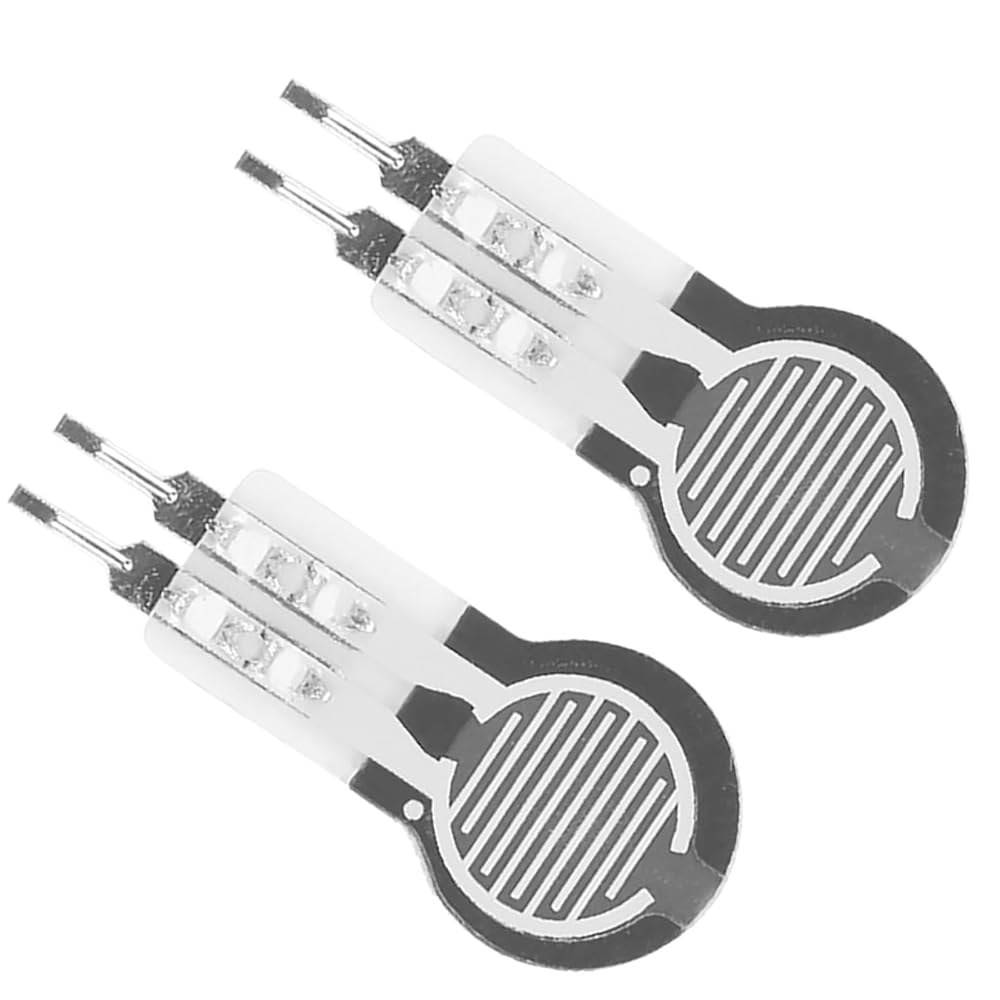

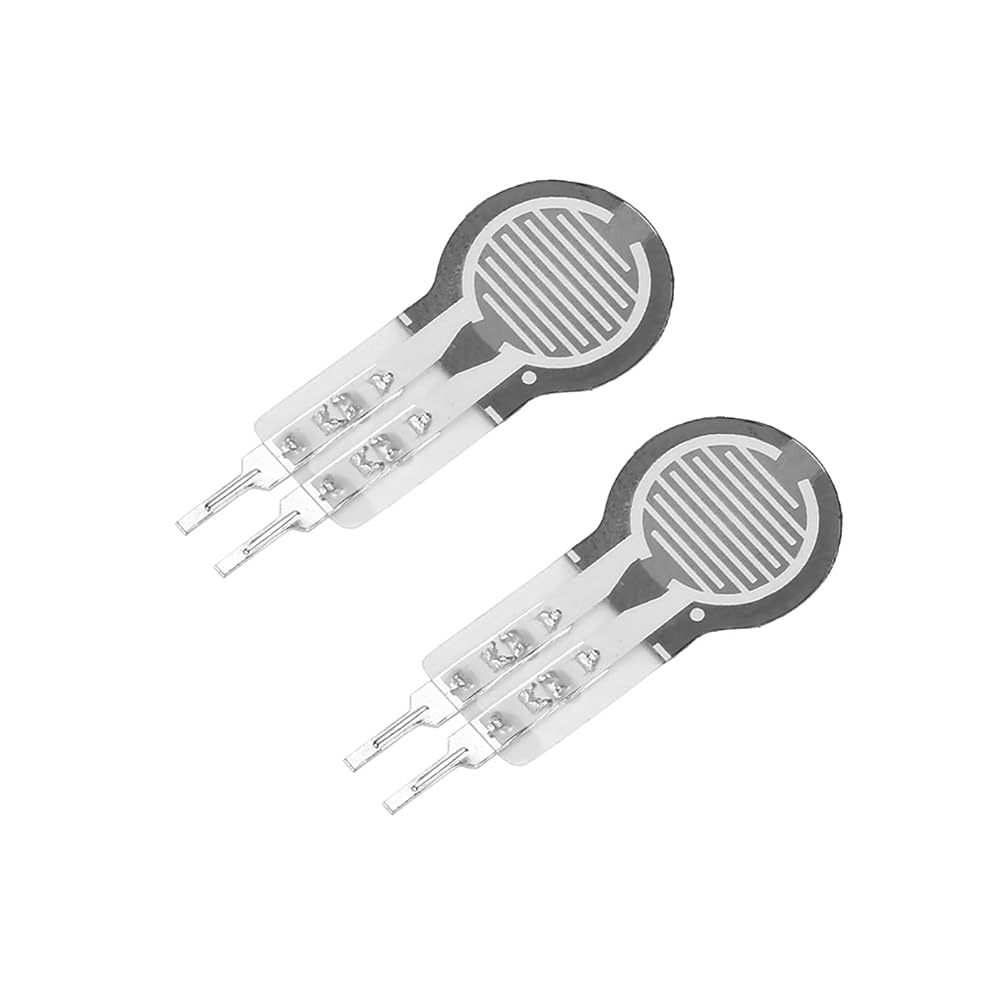

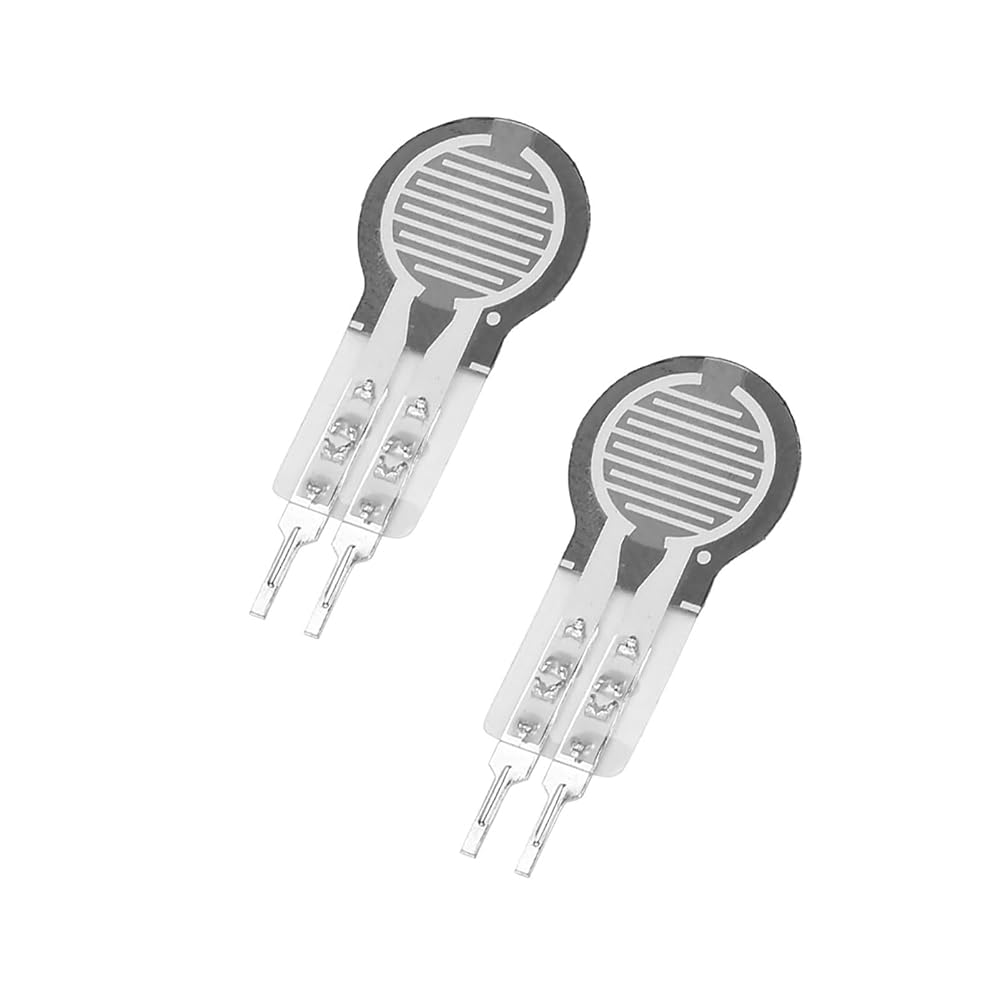

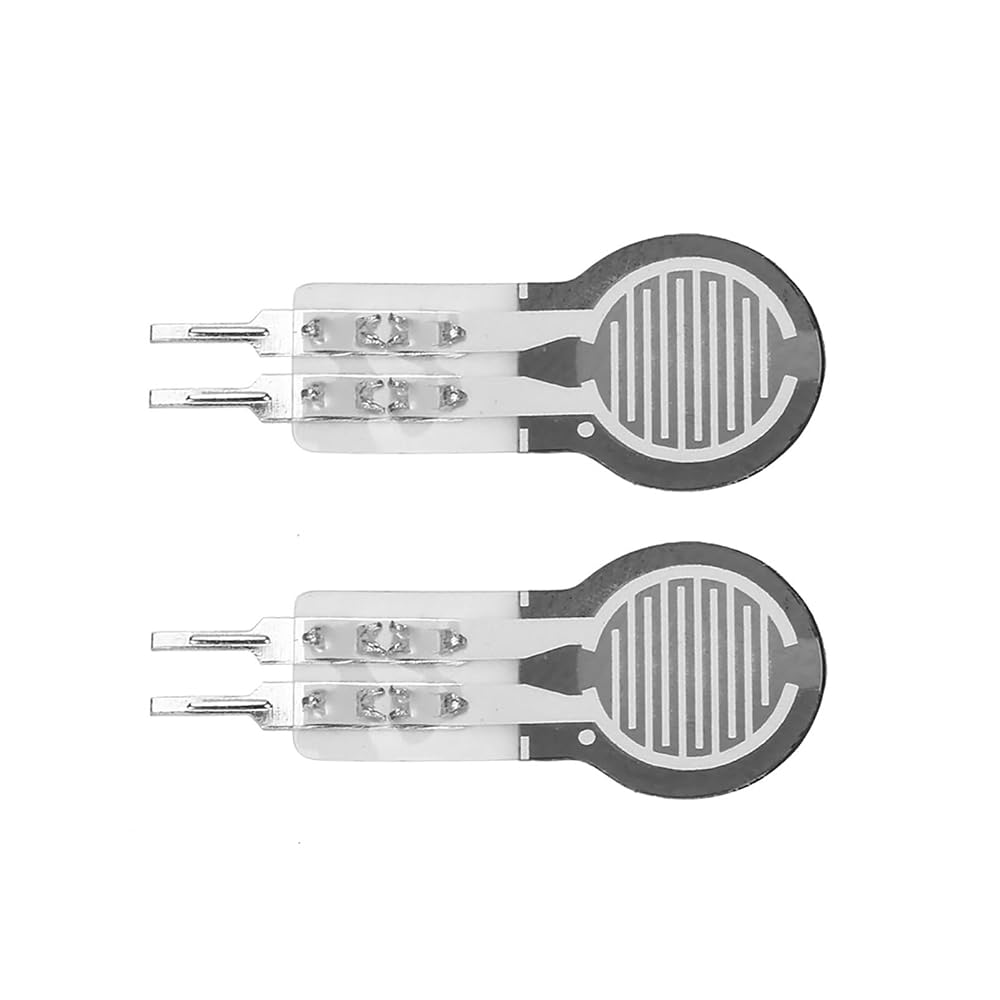

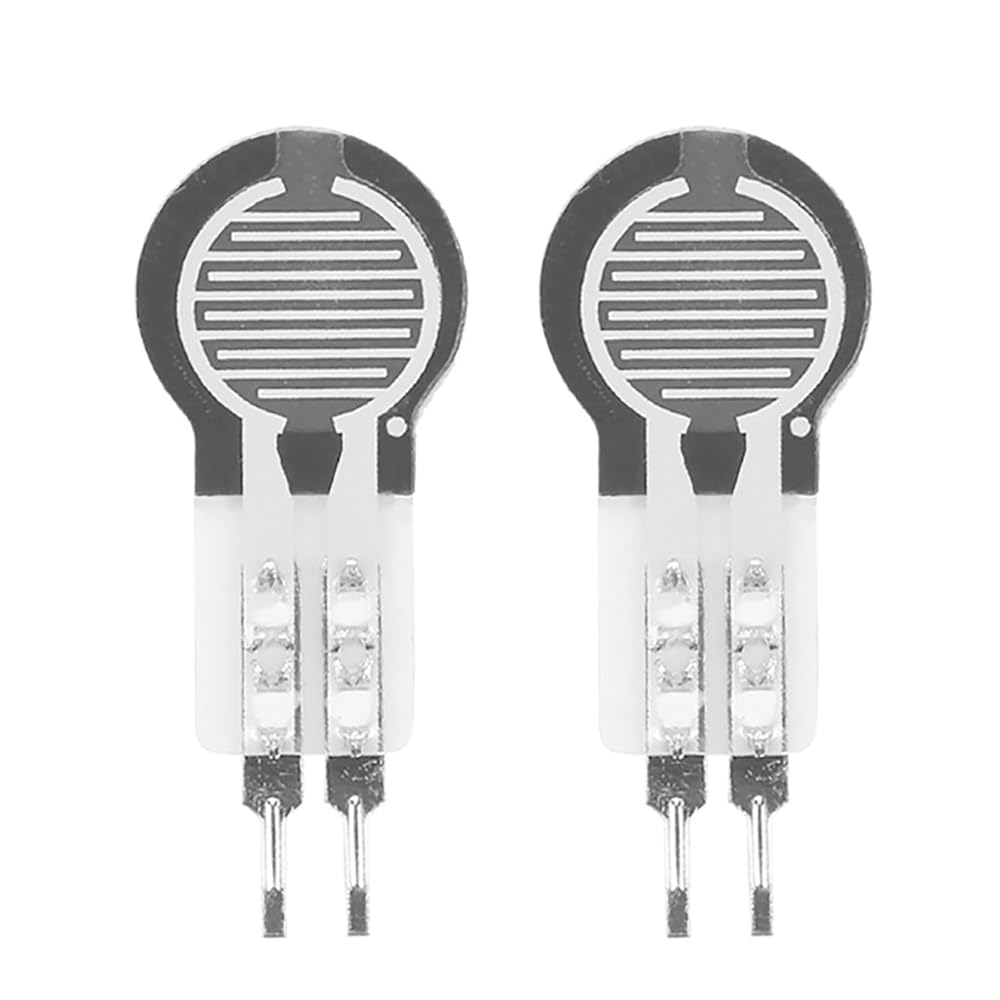

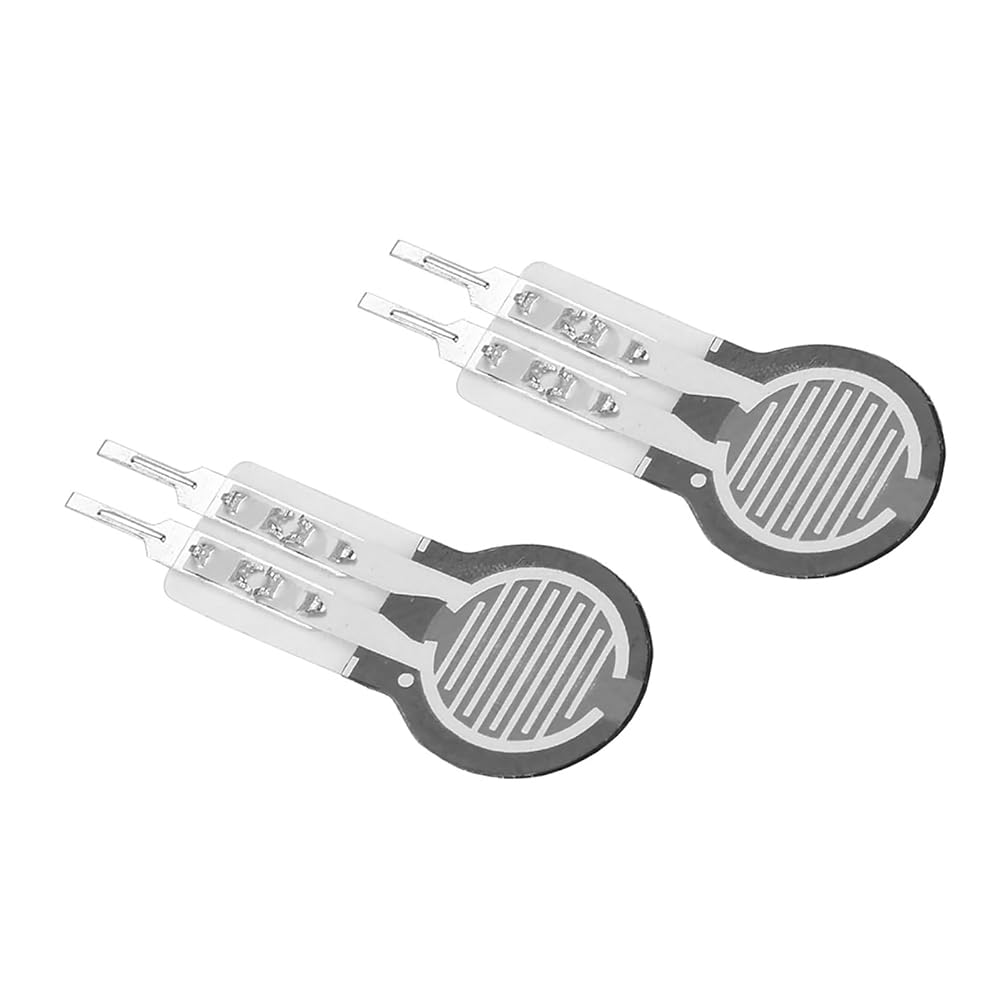

The RP-C resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases.
Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.
The pressure sensor supports static/dynamic pressure sensing, and has fast response speed.
Made of electric material, the sensor is durable and has long service life.
Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters.

Specification:
Model: DF9-16

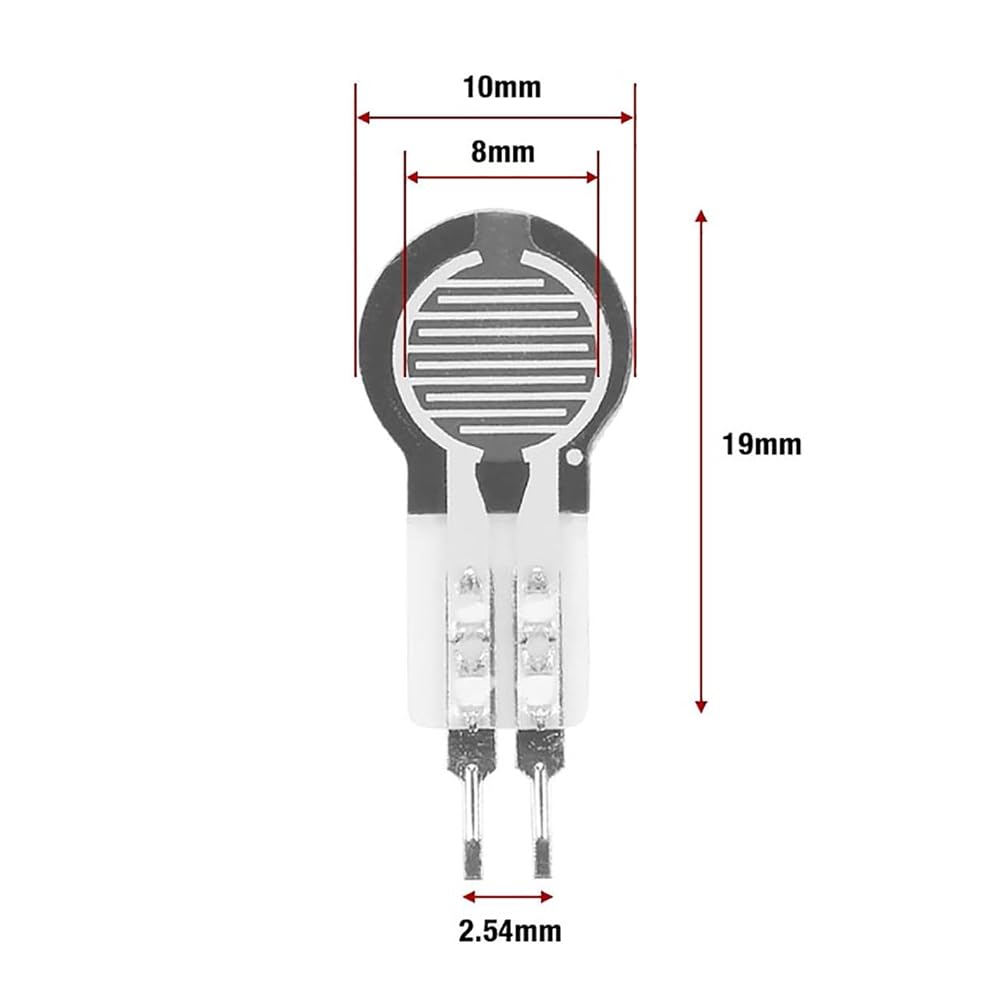

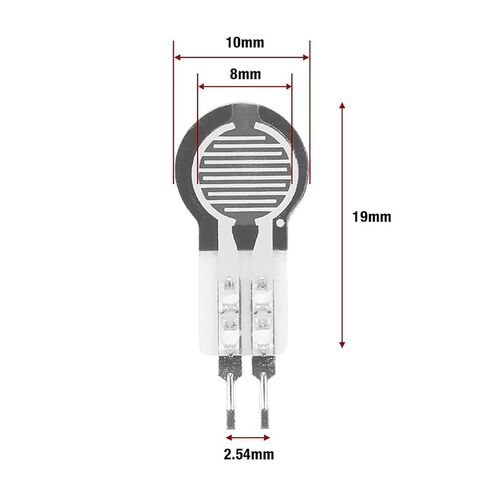

Thickness: 0.4 mm
actuation force: 20 g, triggered when resistance is less than 200 kΩ by default
Pressure sensing range: 20 g ~ 2 kg
Pressure action mode: Static or dynamic (frequency within 10 Hz)
Non-actuation resistance: More than 10 MΩ
Activation time: less than 0.01 S
Working temperature: -40 ℃ ~ +85 ℃
Lag: +10%, (RF+ - RF-)/FR+, 1000g force
Response time: Drifting:
Weight: 1g / 0.04oz (approx.)

Package list:
2 * Pressure Sensors

Note: Please allow small size error due to manual measurement. Thanks for your understanding.
