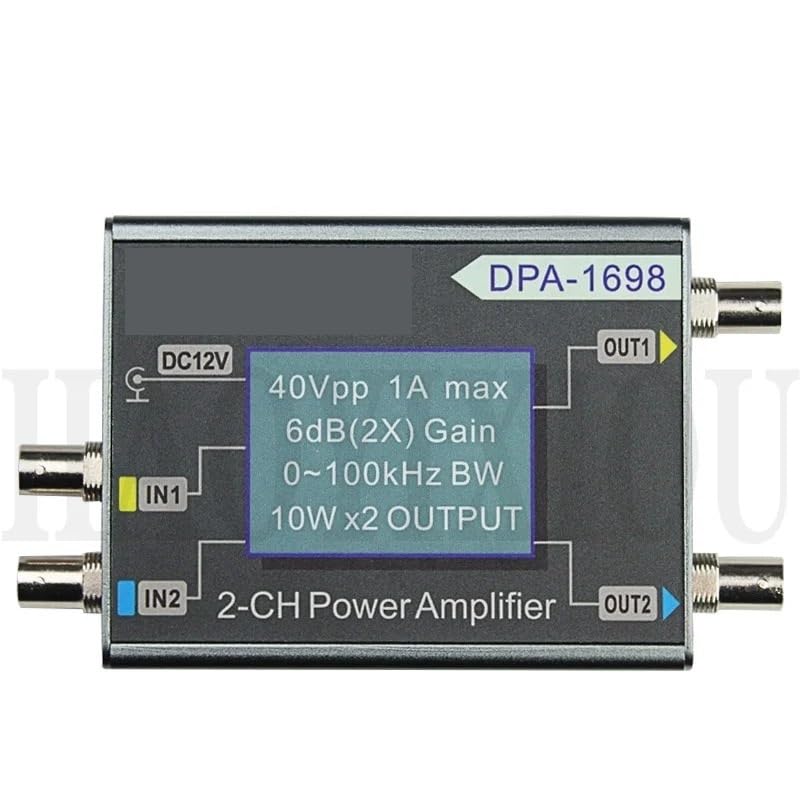

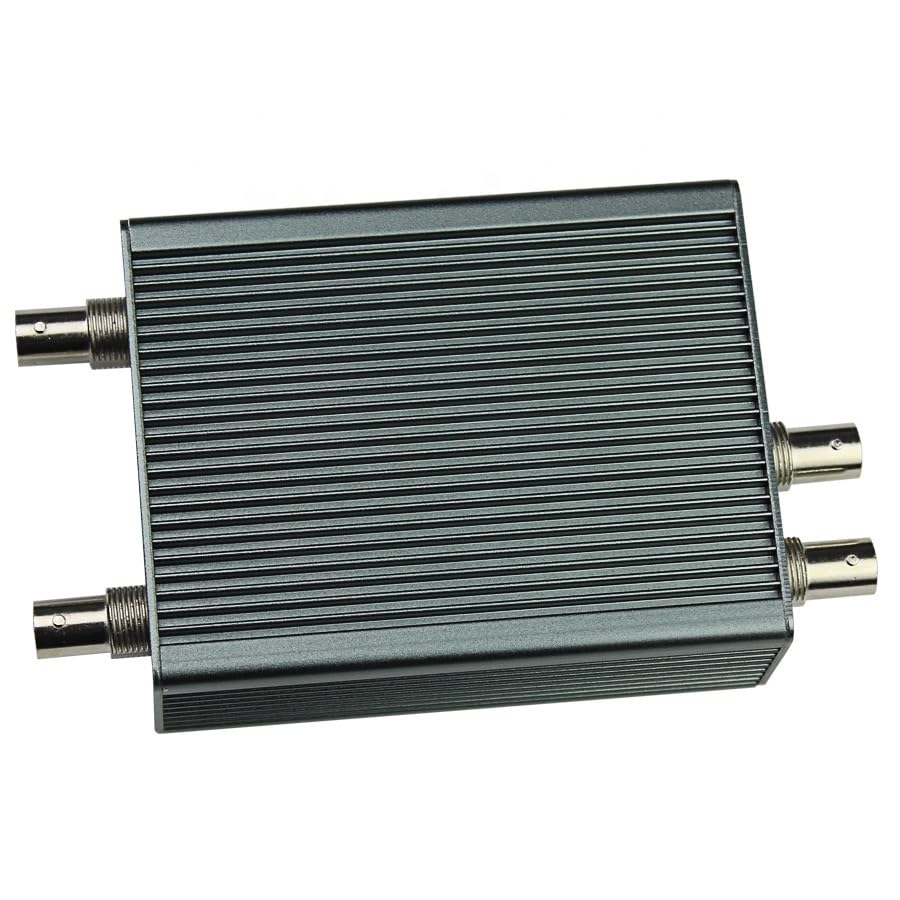

DPA-1698 Dual Channel Power Signal Amplifier.DPA-1698 dual-channel power signal amplifier is made of high-strength aluminum alloy, which is durable and easy to dissipate heat.
2 times the amplitude of the input signal, the single channel current can reach 1A, the frequency range is 0-100KHz..It is also very suitable for use in teaching equipment, industrial control, product line testing, metal detection, medical physiotherapy, medical beauty, ultrasonic equipment driving and other fields.
The power amplifier is very simple and convenient to use. The power supply adopts 12V 5A power adapter, which is very safe.
The input sine wave frequency is 80KHz, and the amplitude is 20Vpp. After the power amplifier, the signal amplitude is amplified by 2 times to 40Vpp.

Signal bandwidth：0~100KHz

Input Amplitude Range：0~20Vpp

Output Amplitude Range：0~40Vpp

Voltage gain：6dB(Magnify 2 times)

Output maximum current：1A

Maximum output power：10W*2

Output impedance：≤1Ω

Output phase：In phase with input

Distortion：≤1%

Flatness of output signal：±1dB

Input power supply voltage：DC12V±10%

Input maximum current：5A

Product Dimension：139*80*37.5mm

Package Dimension：195*160*60mm

Net Weight：351g

Gross Weight：850g
