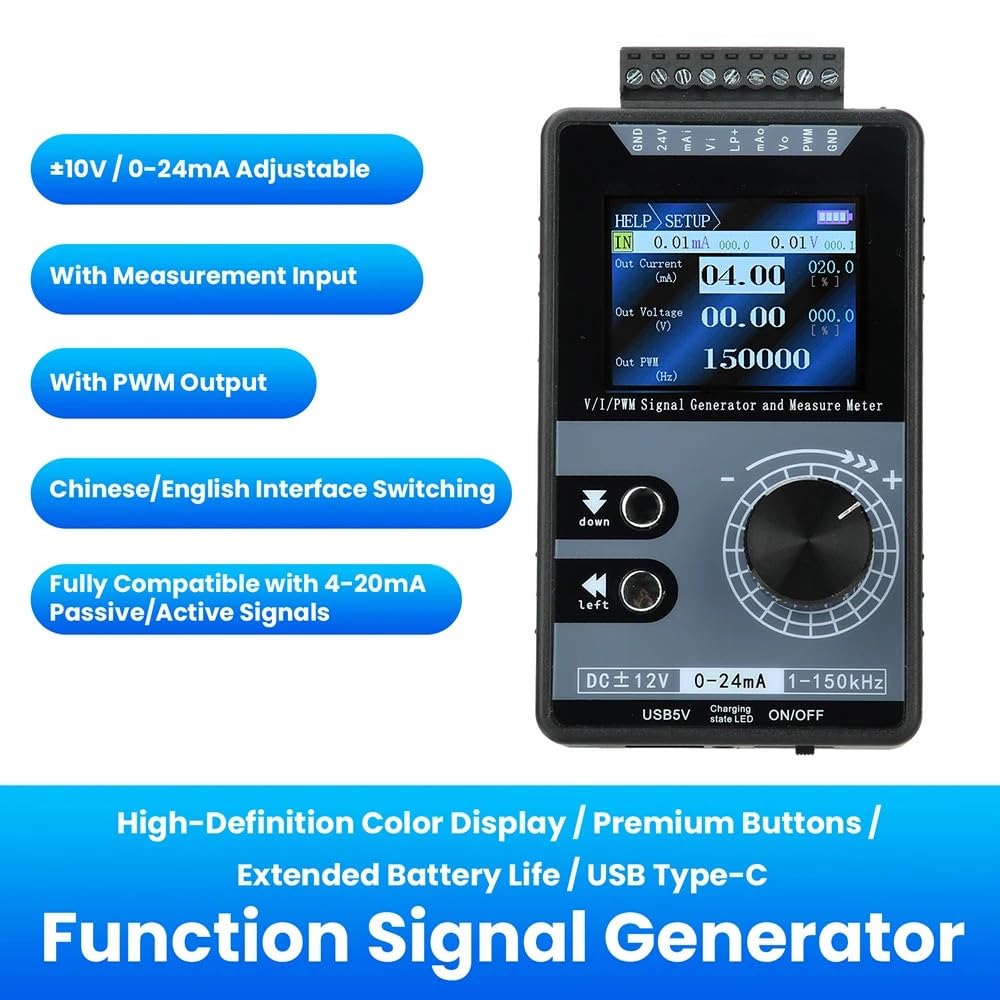

مميزات خاصة

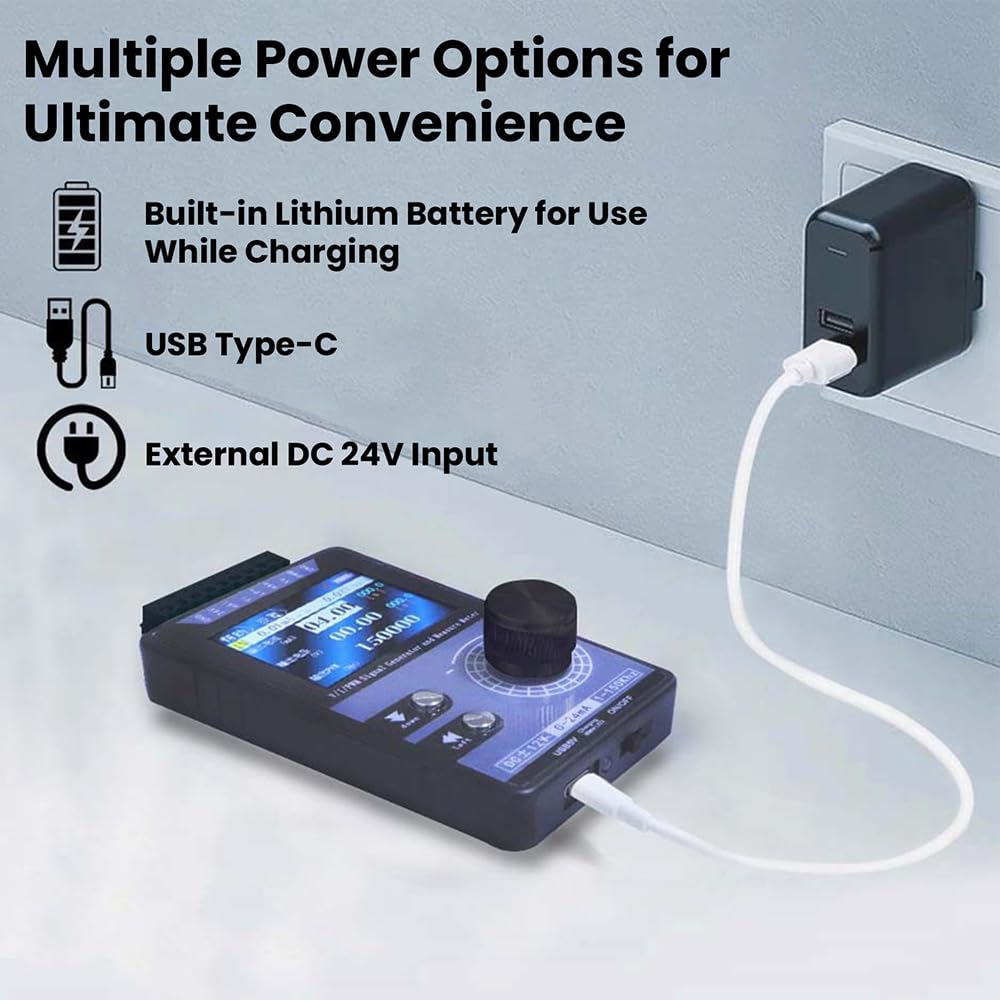

Triple power supply options: 24V terminal/USB-C/built-in lithium battery, flexibly adapting to diverse operational scenarios

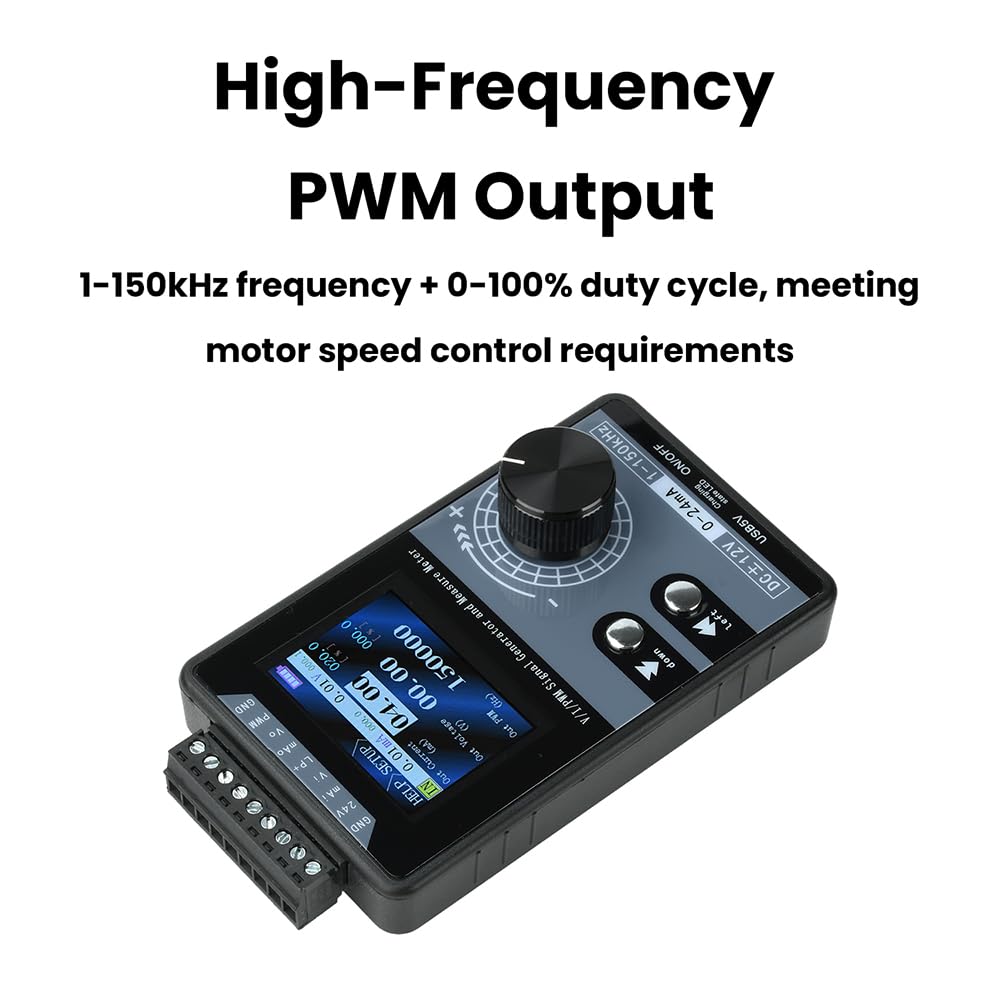

High-frequency PWM output: 1-150kHz frequency + 0-100% duty cycle, meeting motor speed regulation requirements

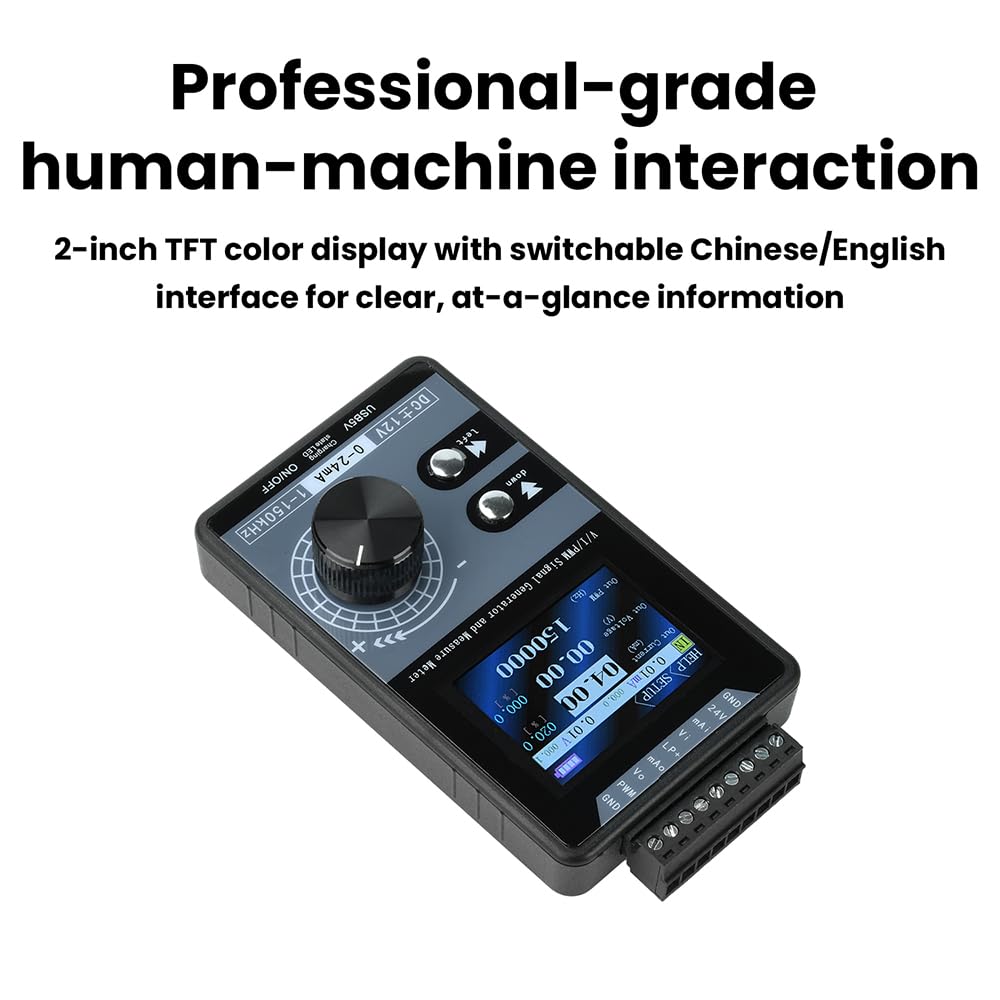

Professional-grade human-machine interface: 2-inch TFT colour display with switchable Chinese/English interface for clear information presentation
Precise and Convenient Adjustment: EC11 digital encoder large knob with electroplated keycaps for excellent tactile feedback
Deeply Adapted for Industrial Environments: Specialised for industrial control signal debugging and PWM motor speed regulation across multiple scenarios

وصف

Specifications:
3 Power Supply Methods: External DC 24V terminal / USB-C / (Battery-equipped model) Built-in lithium battery
Battery Type: Built-in 3.7V 1500mAh lithium battery
Interface: Type-C port

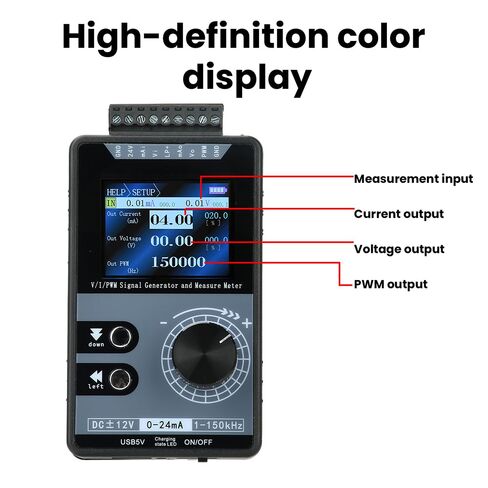

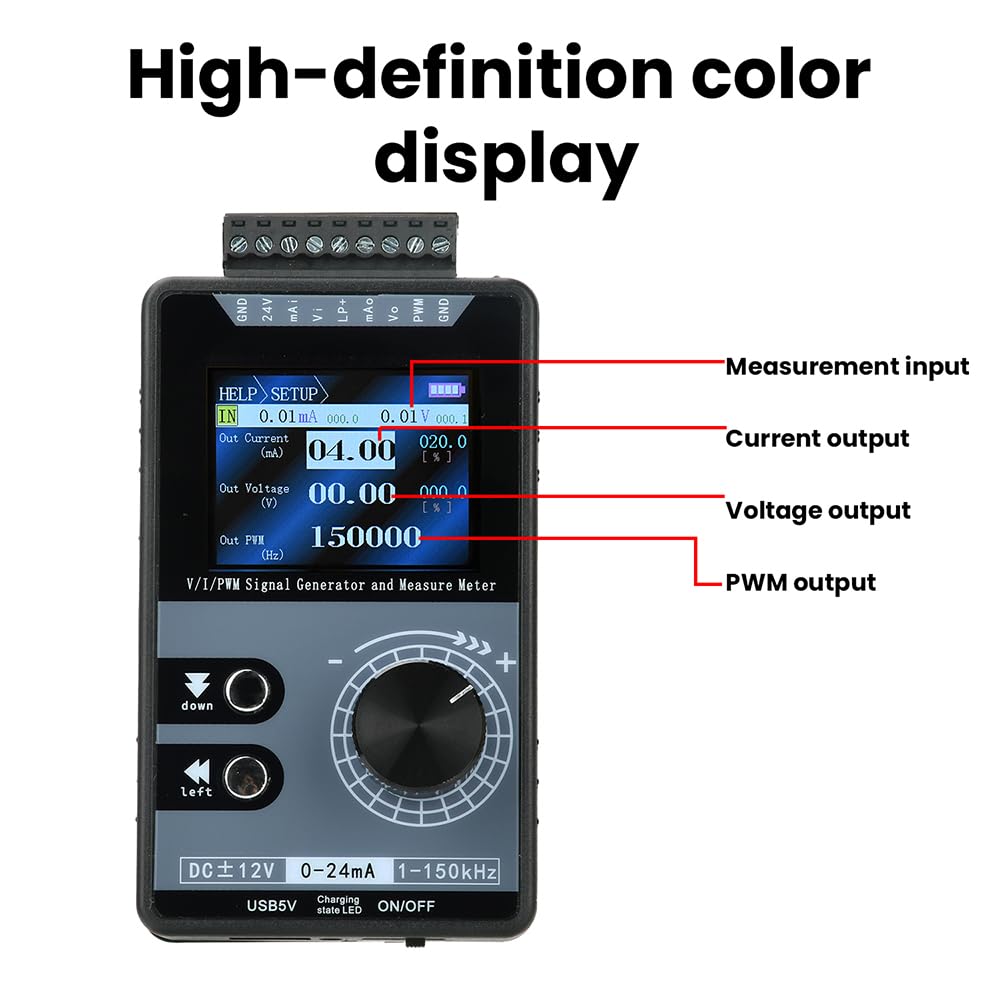

Display: 2-inch TFT colour screen (320×240 pixels)
Display Interface: Switchable Chinese/English interface
Knob: EC11 digital encoder knob (20-step per revolution, with push button)
Terminal Plug Specification: 15EDGK3.81 (9-pin)
Applications: Industrial control DC analogue signal debugging, electrical equipment installation and maintenance, PWM motor speed regulation, etc.
Voltage Output Range: ±12V (maximum 20mA under load, with short-circuit protection)
Voltage Measurement Range: ±50V
Current Output Range: 0-24mA (maximum sampling resistance 500, short-circuit capable)
Current measurement range: ±50mA
Output adjustment range: Freely configurable, e.g. 0-20mA/4-20mA/0-10V/0-5V. Engineering display values user-configurable
(Note: This PWM output is unsuitable for 12V or 24V systems, as 5V constitutes a low level for both):
