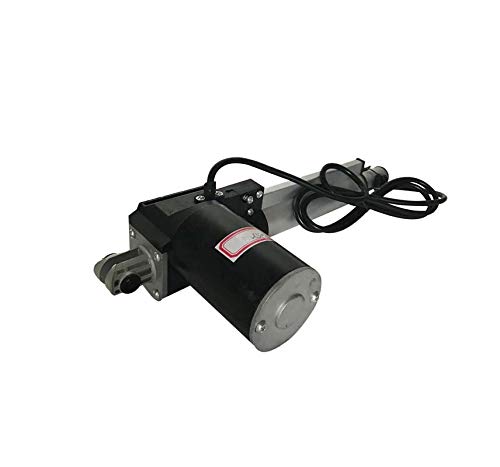

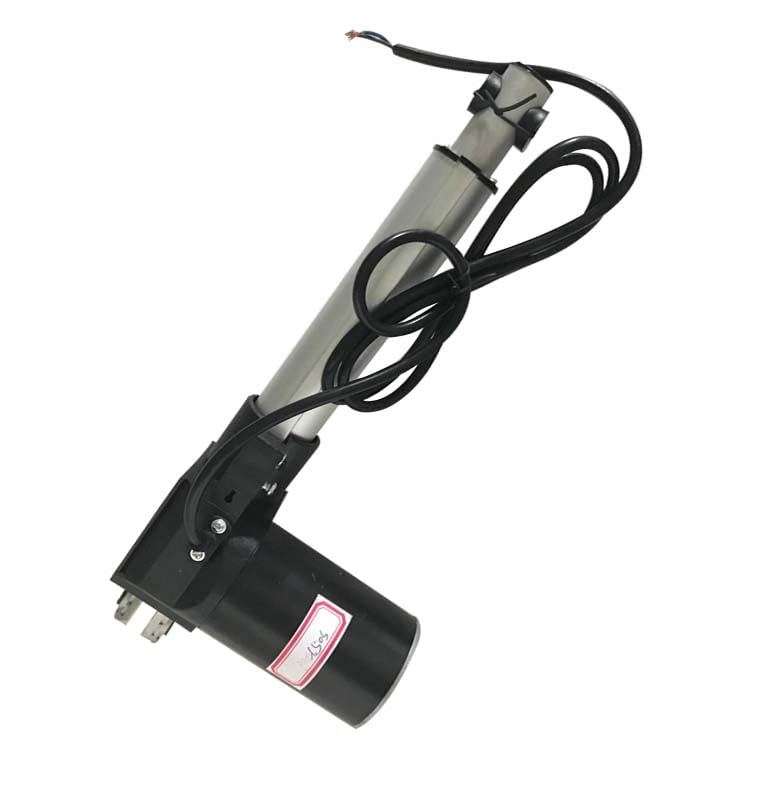

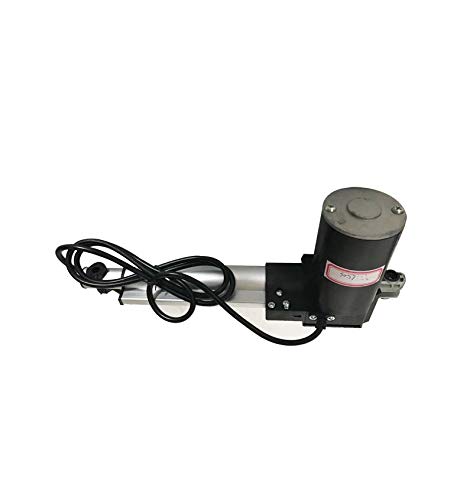

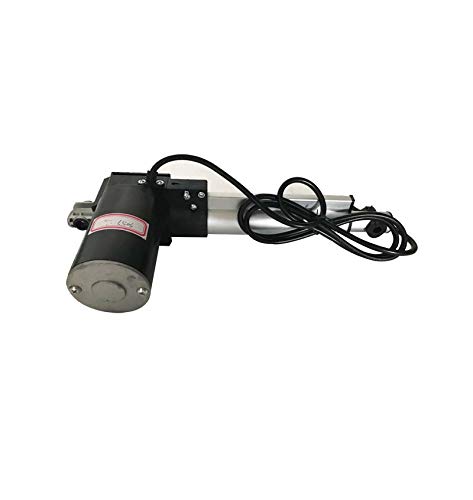

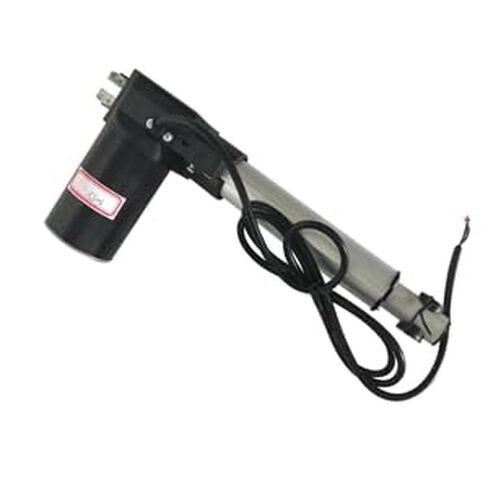

[6000N High Thrust Load Capacity]: This 24V DC linear actuator delivers 6000 Newtons (approx. 1320 lbs) of thrust and 4500 Newtons (990 lbs) of pull force, and is specifically designed for high-load applications. Whether used in heavy-duty robotic arms, industrial lifting platforms, or agricultural automation equipment, it delivers stable and reliable power output, ensuring smooth operation even under full load.
[5.9-Inch Precision Stroke Control]: Featuring a standard 5.9-inch (15 cm) stroke design, it operates at a stable speed of 5–7 mm/s. This specification makes it ideal for applications requiring precise linear motion, such as positioning large lifting platforms or controlling the pushing and pulling of heavy equipment.
[Rugged Durability and Protective Design]: The main body is constructed from high-quality aluminum alloy and features an IP54 protection rating, effectively preventing dust ingress and protection against water splashes from all directions. It operates in a wide temperature range of -26°C to 85°C, making it suitable for long-term use in indoor, outdoor, and complex industrial environments.
[25% Duty Cycle Thermal Management Design]: Designed with a 25% duty cycle and a maximum operating frequency of 25%, this configuration optimizes motor heat dissipation to prevent overheating damage caused by prolonged operation. It is suitable for industrial automation applications requiring frequent intermittent motion, ensuring long-term, stable equipment operation.

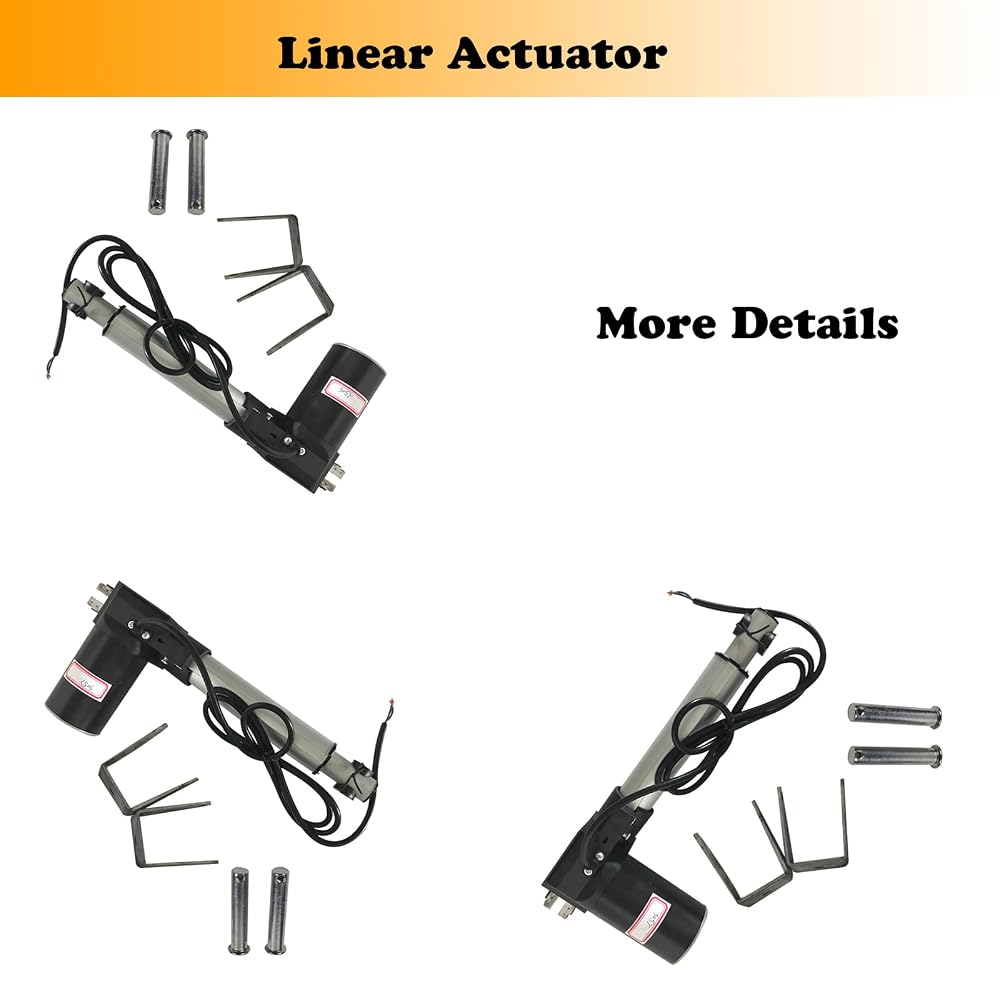

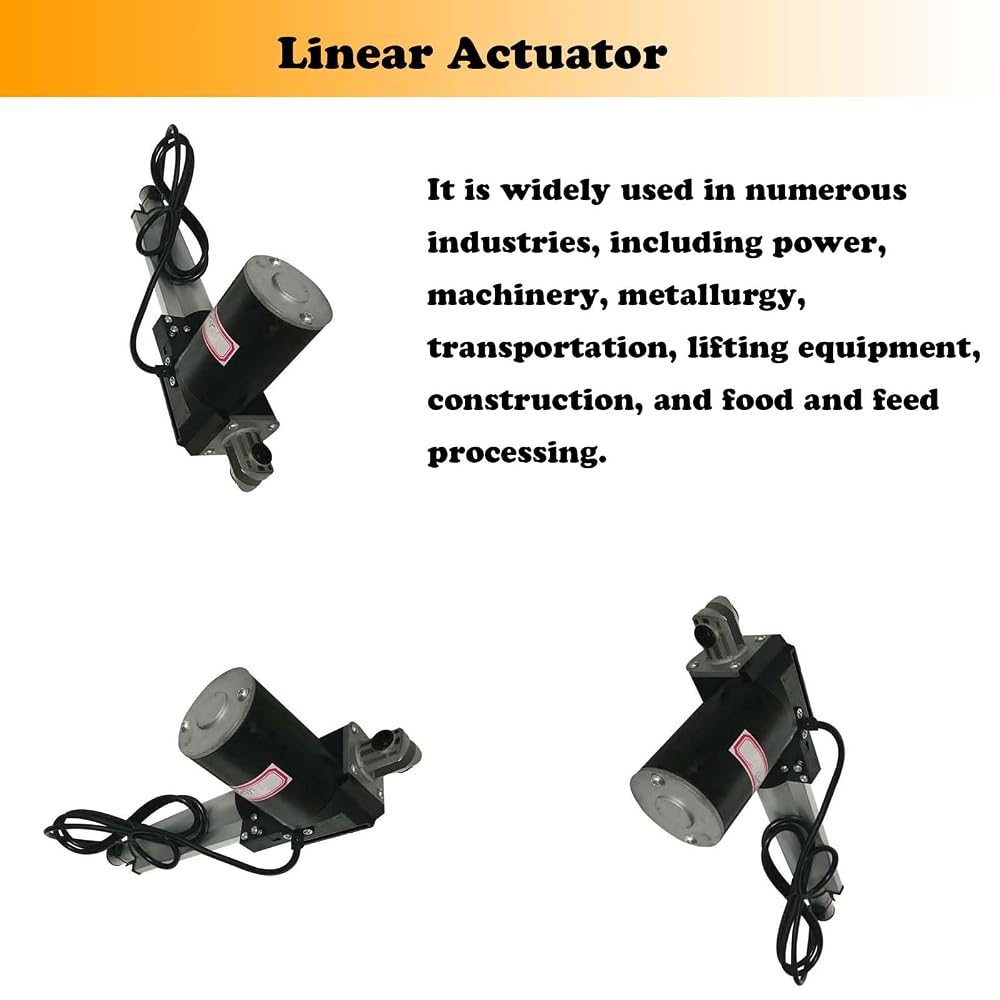

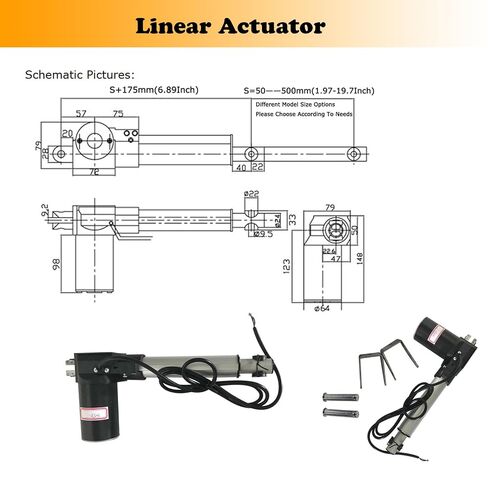

[Wide Applicability]: The product features standardized mounting dimensions (minimum mounting dimension L = S + 175 mm, maximum mounting dimension A = 2S + 175 mm) and includes standard mounting bracket holes. It is widely used in numerous industries, including power, machinery, metallurgy, transportation, lifting equipment, construction, and food and feed processing.
وصف

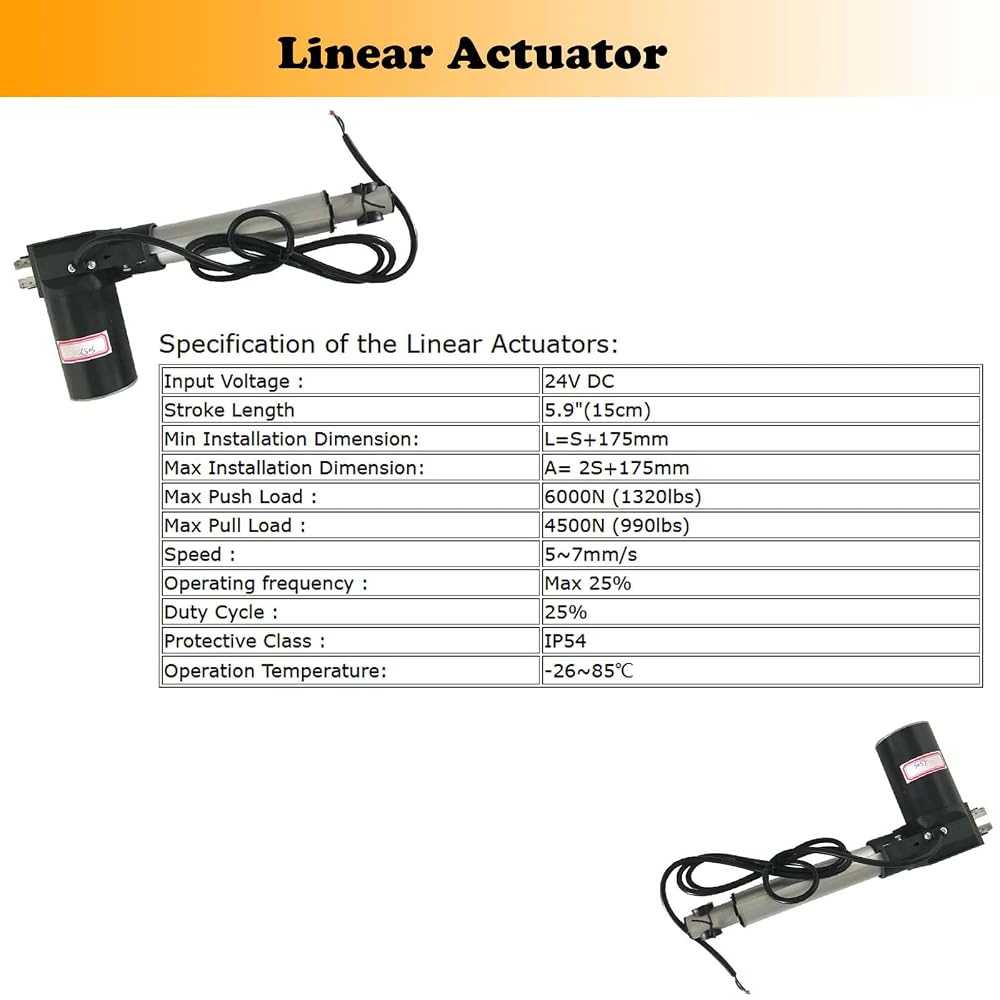

Input Voltage: 24V DC
Stroke Length: 5.9"(15cm)

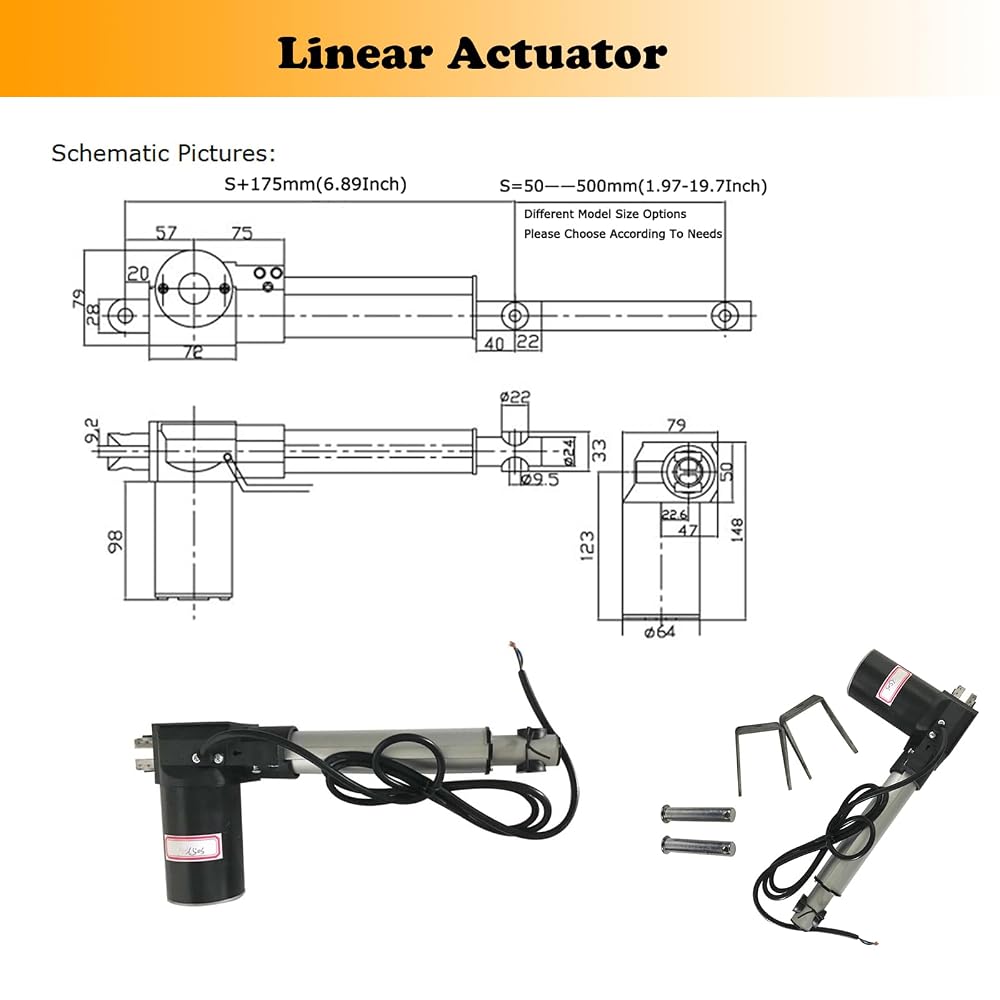

Min Installation Dimension: L=S+175mm
Max Installation Dimension: A= 2S+175mm
Max Push Load: 6000N (1320lbs)
Max Pull Load: 4500N (990lbs)
Speed: 5~7mm/s
Operating frequency: Max 25%
Duty Cycle: 25%
Protective Class: IP54
Operation Temperature: -26~85℃
