Amplifier Output Transformer Tube Power Amplifier Single-Ended Drive Transformer 5K:6K6, Operating Current 50mA, 4C amorphous Iron core in Kuwait Amplifier Output Transformer Tube Power Amplifier Single-Ended Drive Transformer 5K:6K6, Operating Current 50mA, 4C amorphous Iron core in Kuwait Amplifier Output Transformer Tube Power Amplifier Single-Ended Drive Transformer 5K:6K6, Operating Current 50mA, 4C amorphous Iron core in Kuwait

Amplifier Output Transformer Tube Power Amplifier Single-Ended Drive Transformer 5K:6K6, Operating Current 50mA, 4C amorphous Iron core

KWD 0
Brand
CAARLA
Color
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

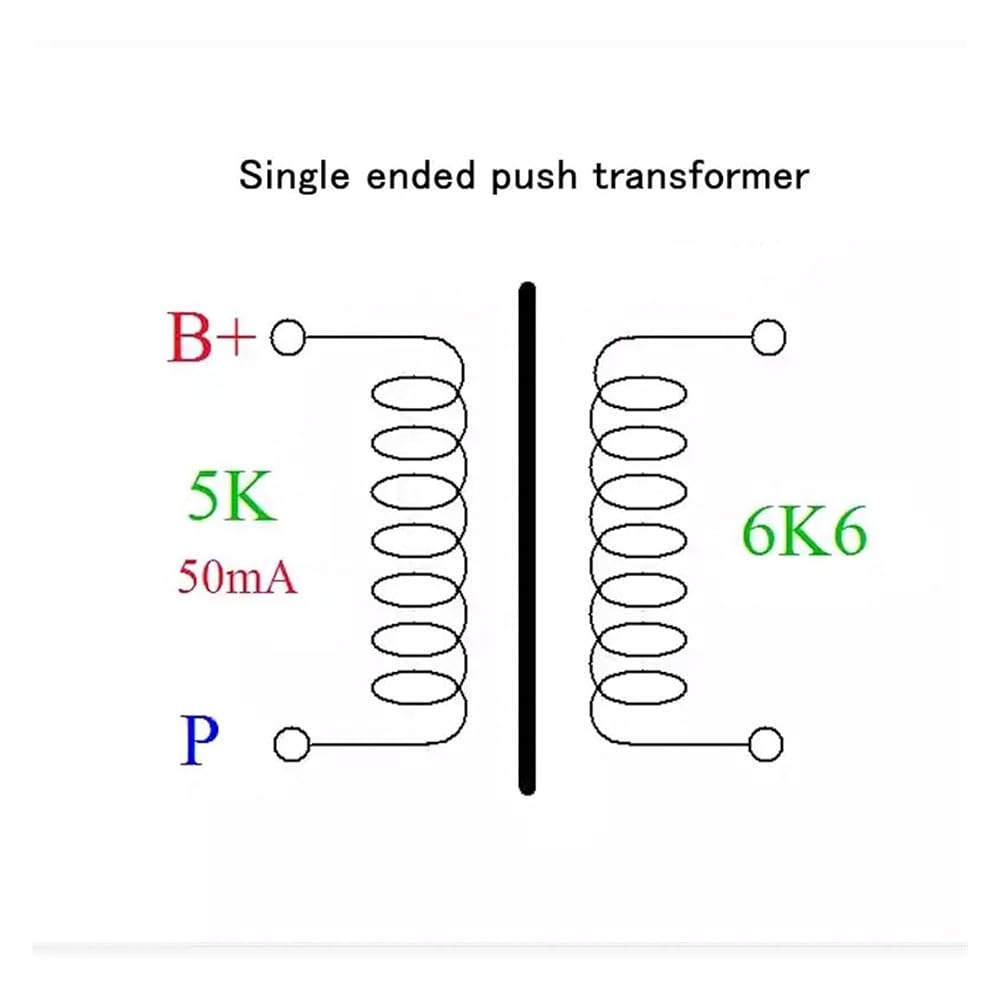

Vacuum tube single-ended drive transformer 5K:6.6K, primary DC 50mA, imported 4C amorphous iron core. The primary 5K has 2 terminals B and P, and the secondary 6K output has 2 terminals.

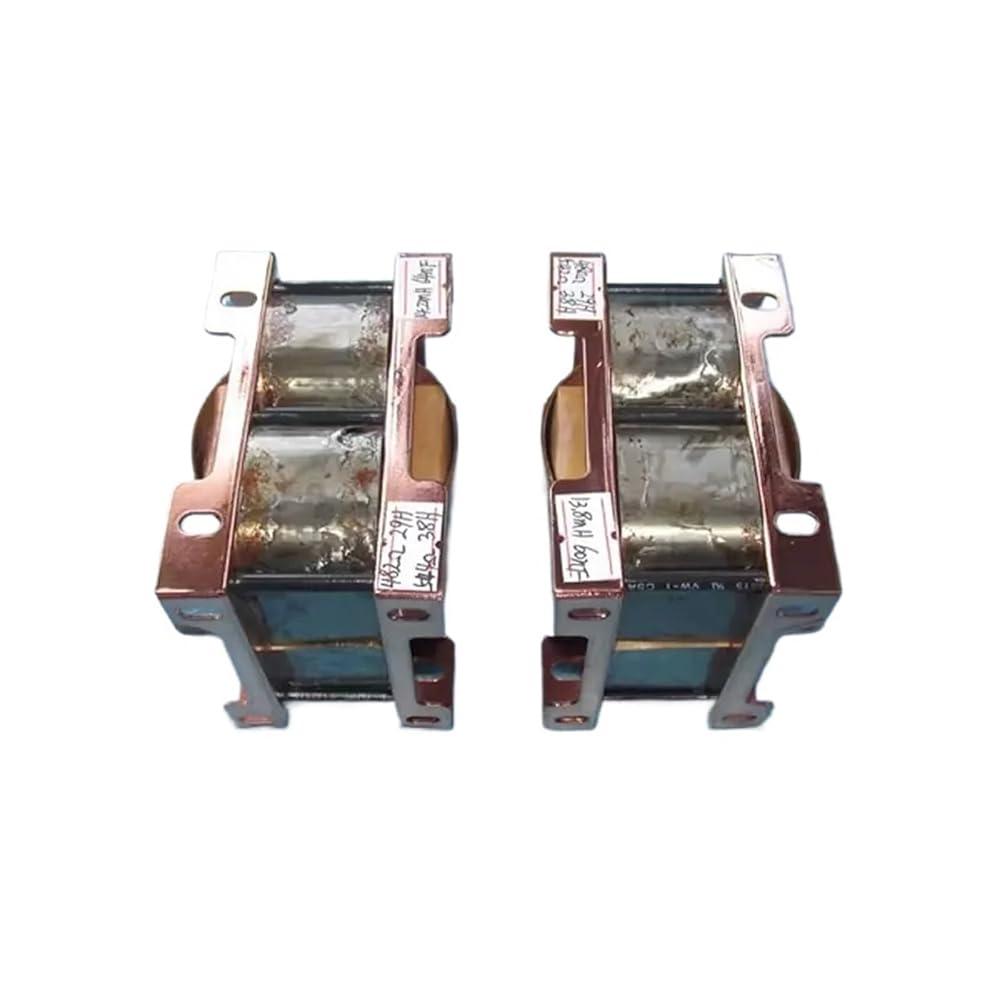

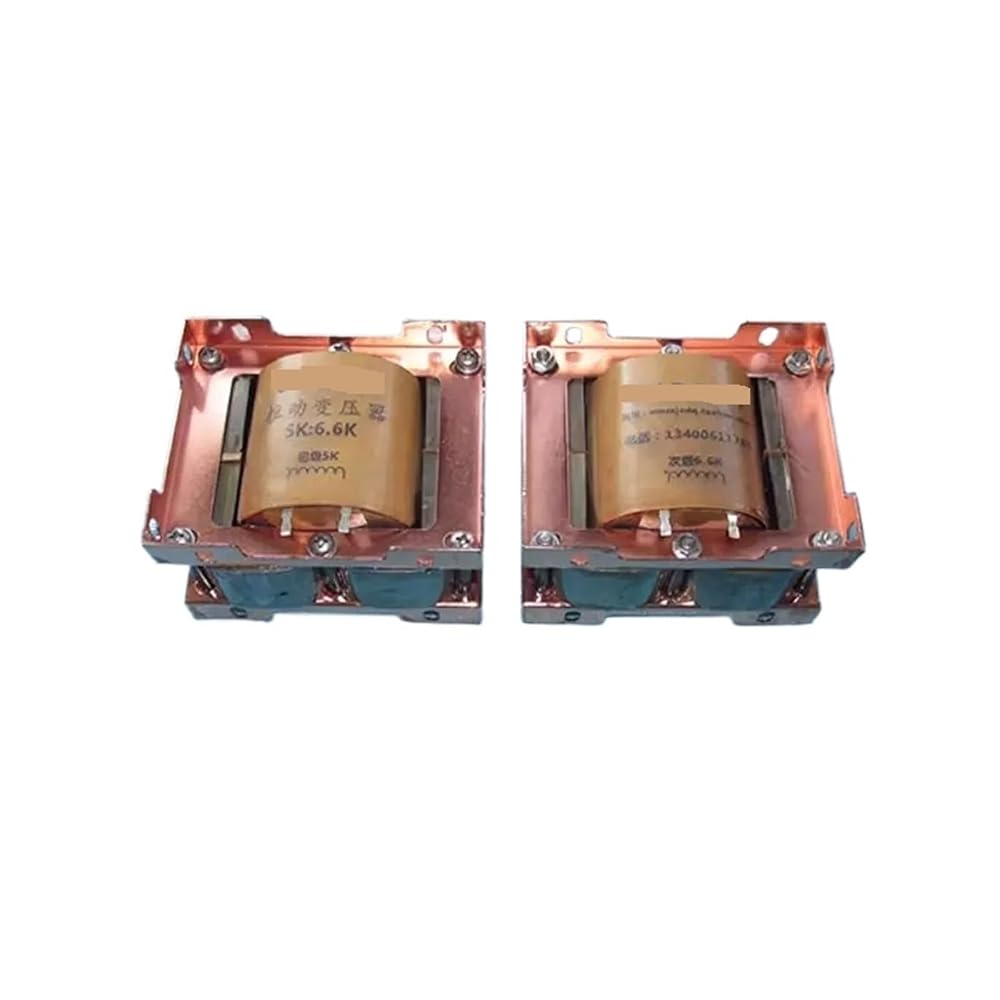

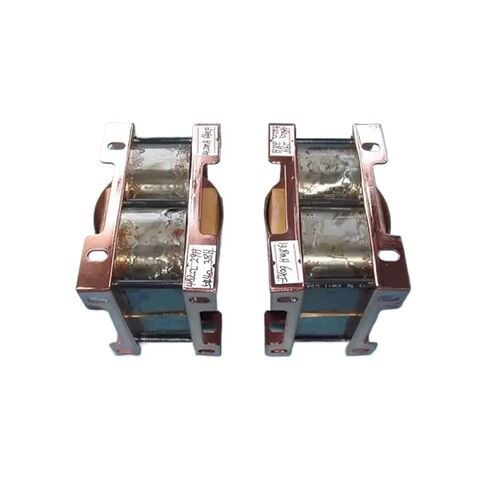

Iron core paper. The primary passes DC 50mA. Oxygen-free copper enameled copper wire, layered with paper pads, carefully wound using complex processes. Transformer outer dimensions: about 100mmX65mmX85mm, weight about 2.8Kg/pair.
Actual measured parameters: Due to different measuring instruments, the data will be different and are for reference only.
Primary inductance: 29H measured at 100Hz
Primary current: 50mA
Primary copper resistance: 482 ohms
Secondary inductance: 38H 100Hz measurement
Secondary copper resistance: 542 ohms
Distributed capacitance: measured at 6400P 20KHz
Leakage inductance: 14.2mH measured at 1000Hz
Frequency response: 5HZ-24KHZ-1DB, 35KHZ-2DB
==========
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
High-concerned chemical : None
Origin : Mainland China
Certification : NONE
Use : AUDIO
