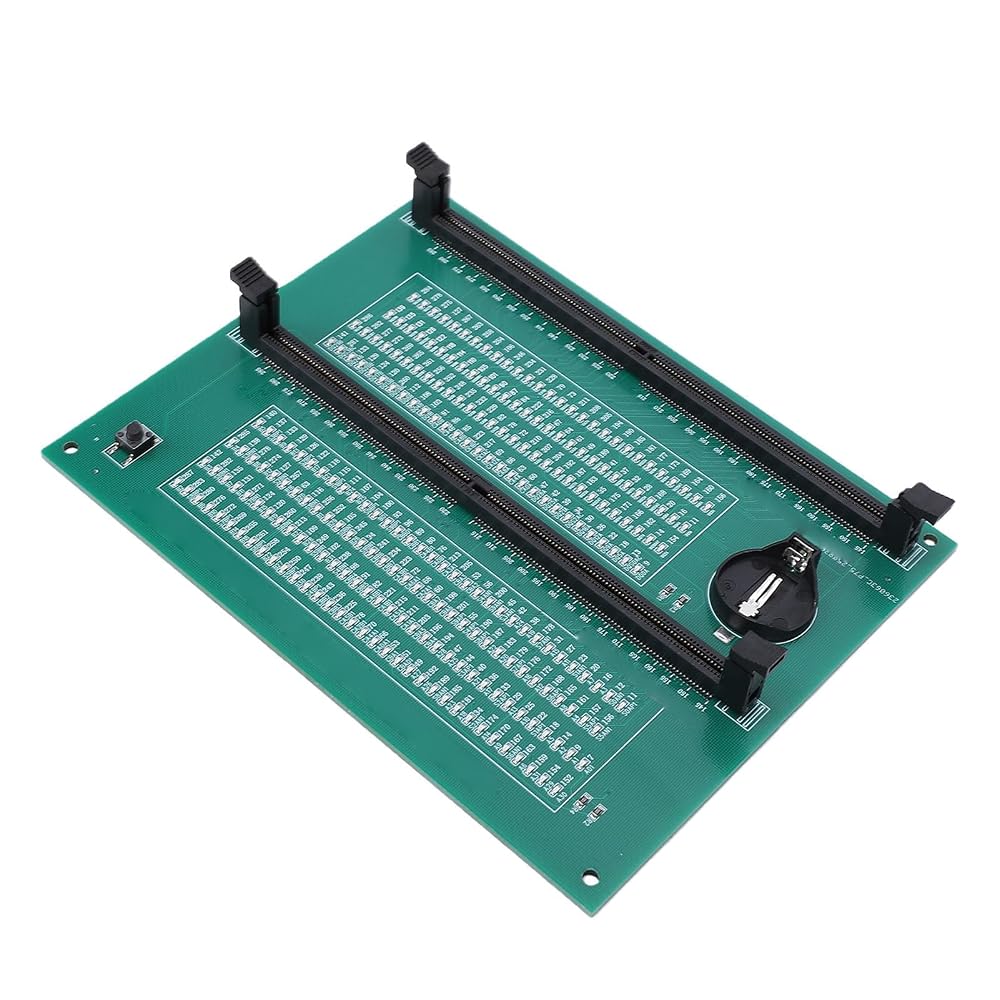

[EFFORTLESS HARDWARE FAULT DIAGNOSIS] This advanced DDR5 memory tester is your solution for pinpointing complex hardware faults quickly and accurately. It intelligently diagnoses common memory issues like poor contact on connecting fingers, physical wear and tear, PCB board damage, and open or short circuits in the data lines. The intuitive LED indicator system provides clear visual feedback on the status of every data cable, allowing you to isolate problems without guesswork and dramat

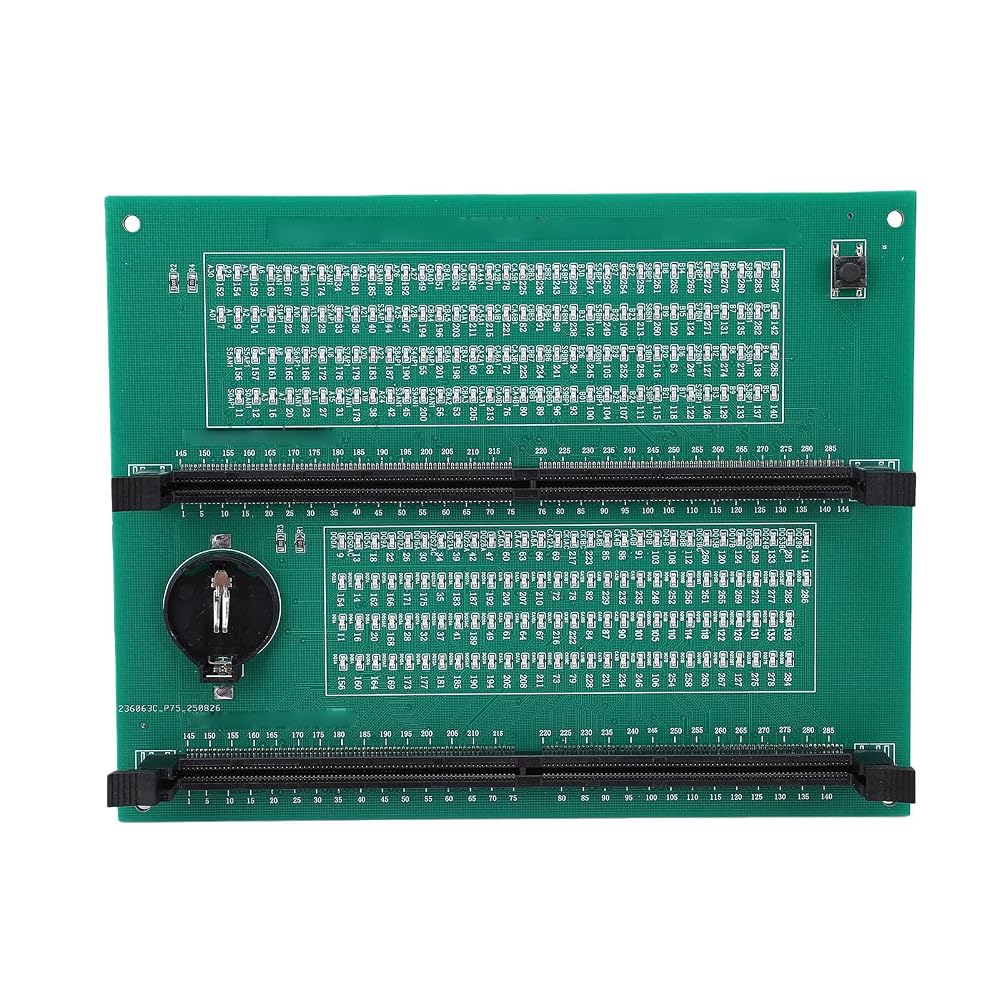

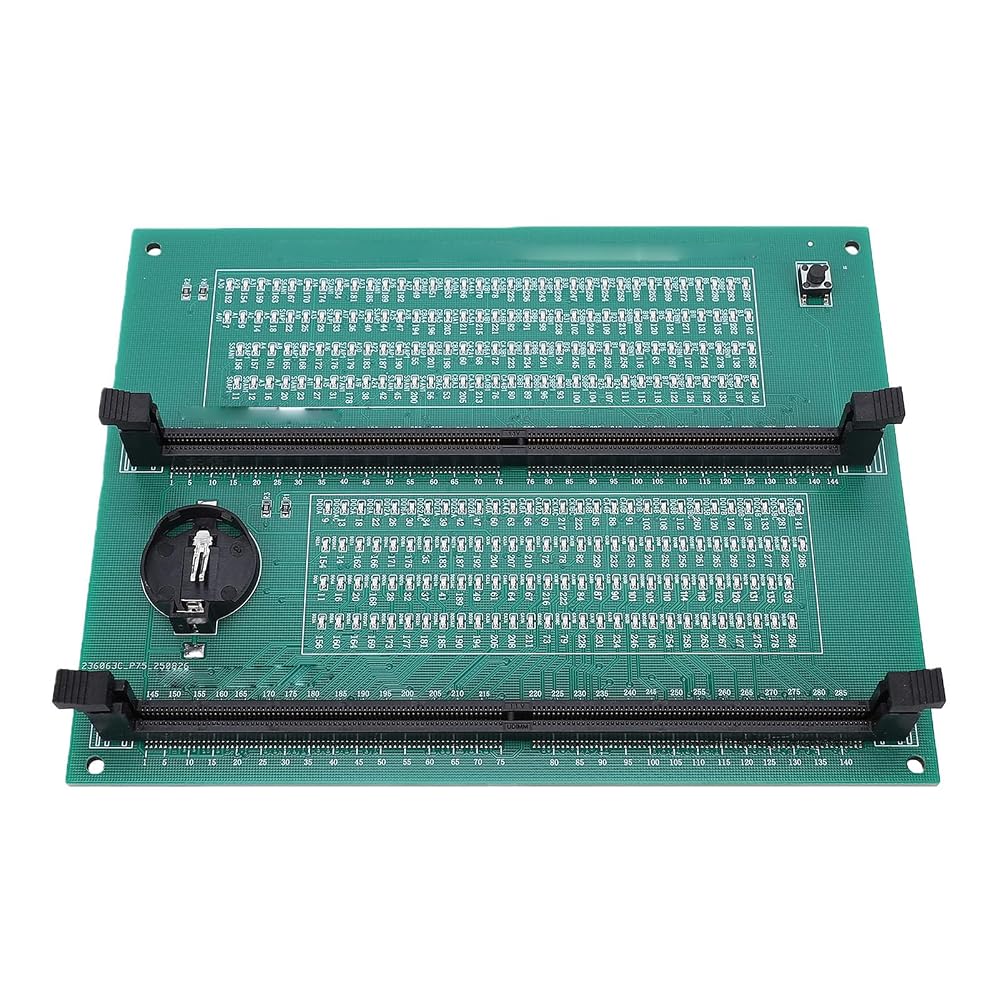

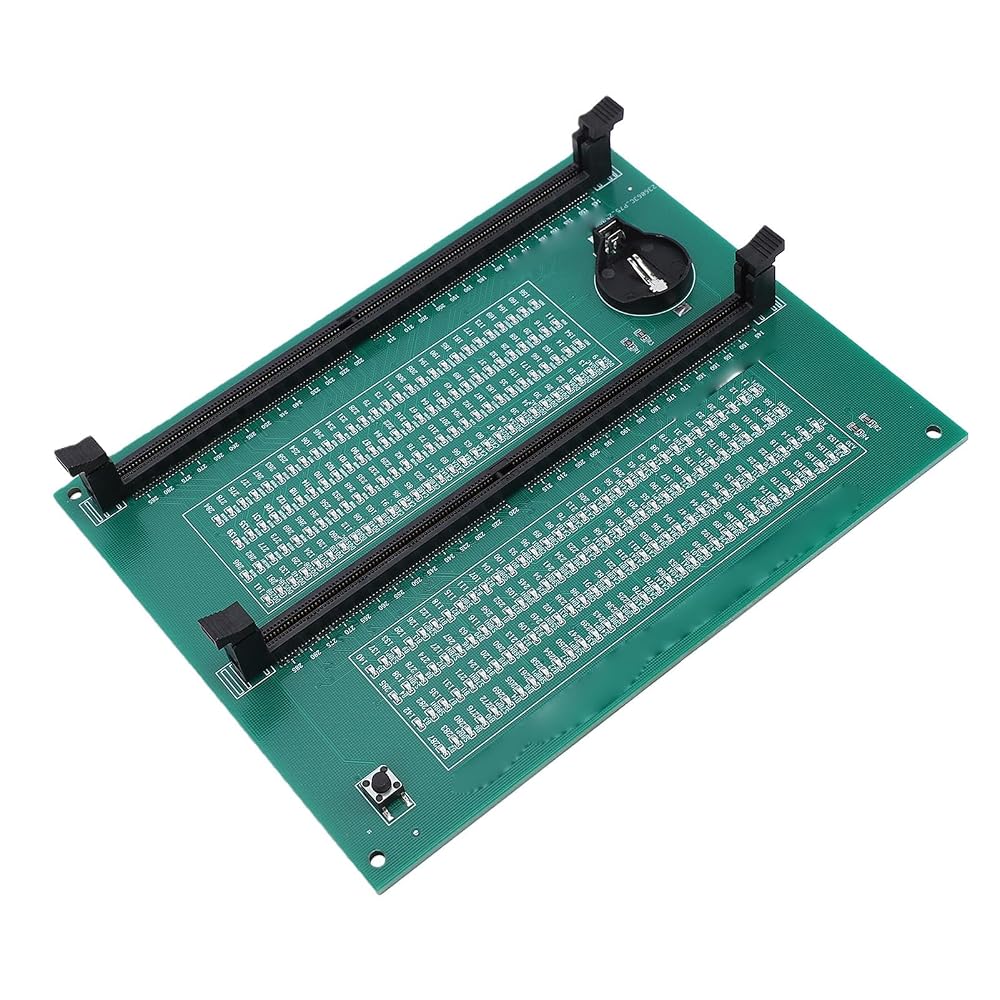

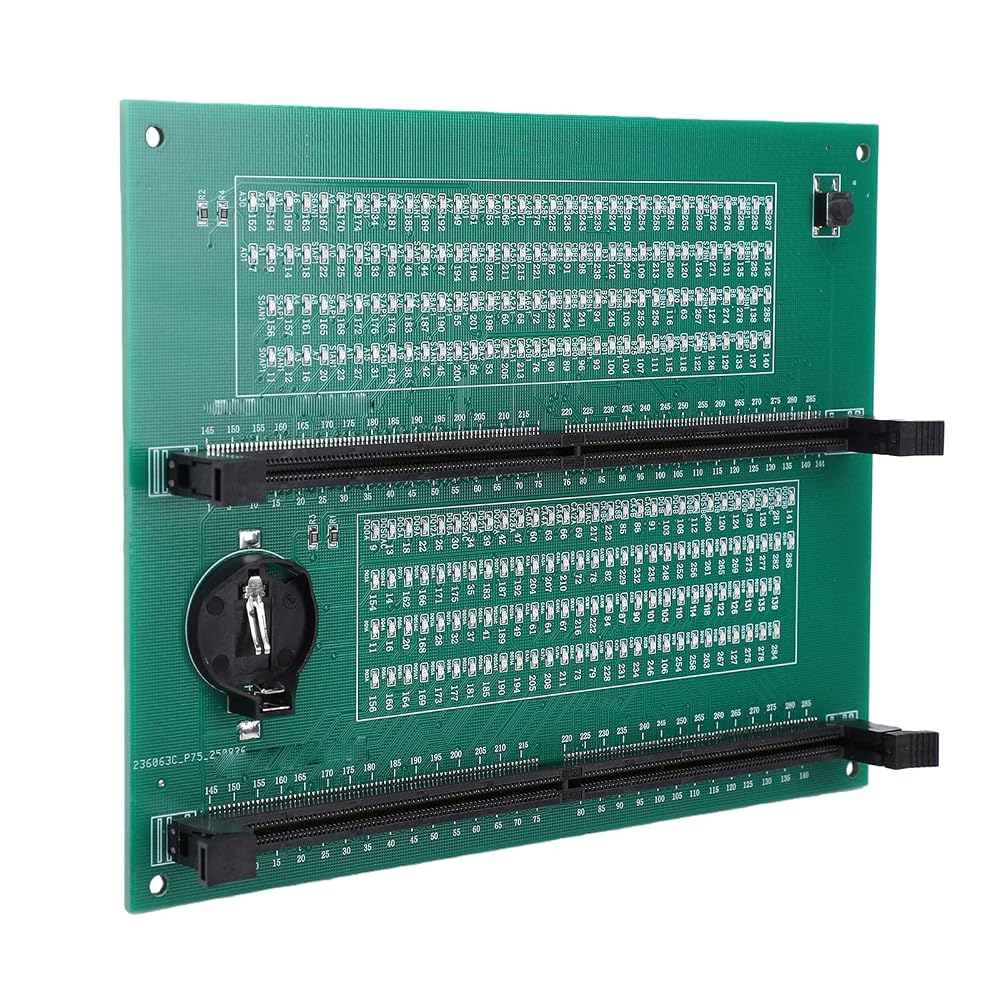

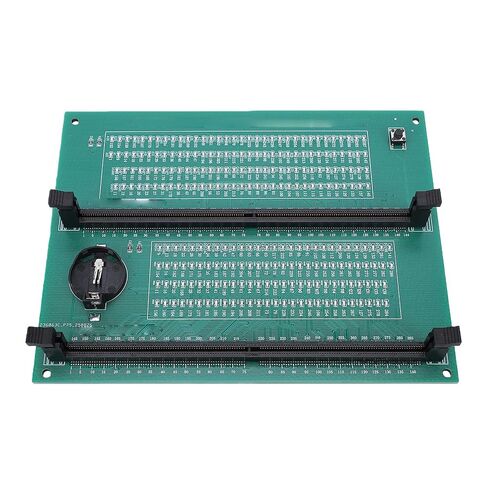

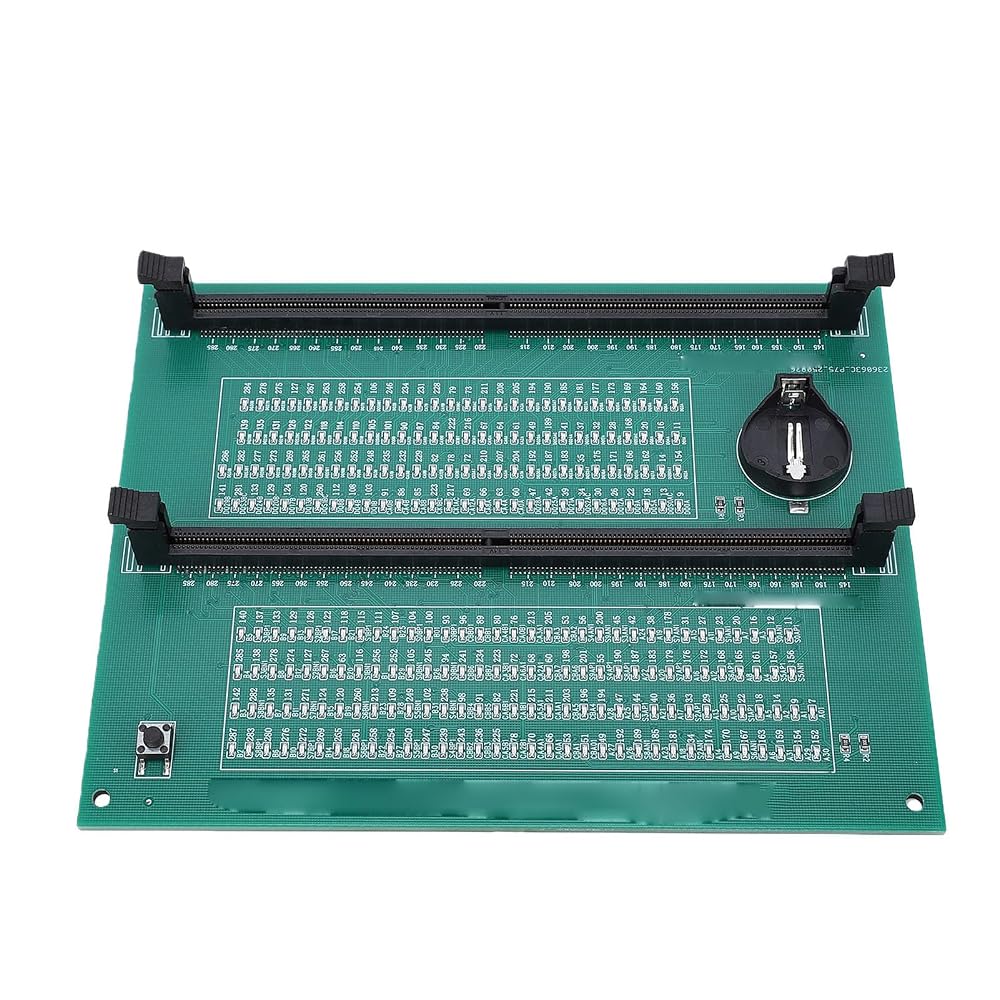

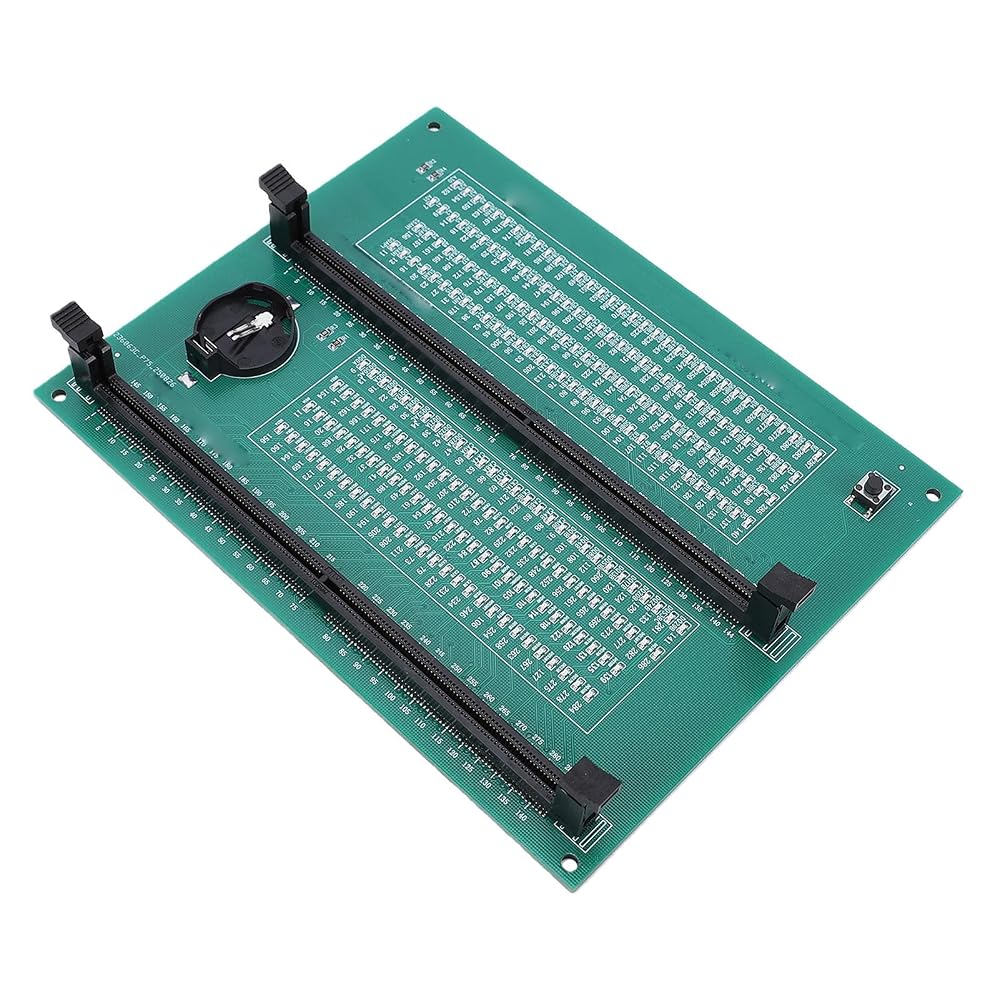

[INTUITIVE LED VISUAL INDICATOR SYSTEM] Featuring a sophisticated array of light emitting tube indicators, this tool translates electrical signals into easy-to-read brightness levels. When a hardware fault exists within the memory module's data circuits, the corresponding LED's brightness will visibly change. This immediate visual cue whether the light is unusually bright or dim helps you rapidly locate the exact fault point on the memory stick, making the troubleshooting process straightforward
[SIMPLE BATTERY OR USB C POWERED OPERATION] Designed for convenience and portability, the tester is powered either by a standard battery (not included) inserted into its holder or via a modern TYPE C cable connection. Testing is a simple two-step process: power the unit and then securely insert the memory module into the dedicated slot. Within seconds, the LED array illuminates, providing a comprehensive overview of the module's hardware health, enabling efficient workflow in workshops or on-sit

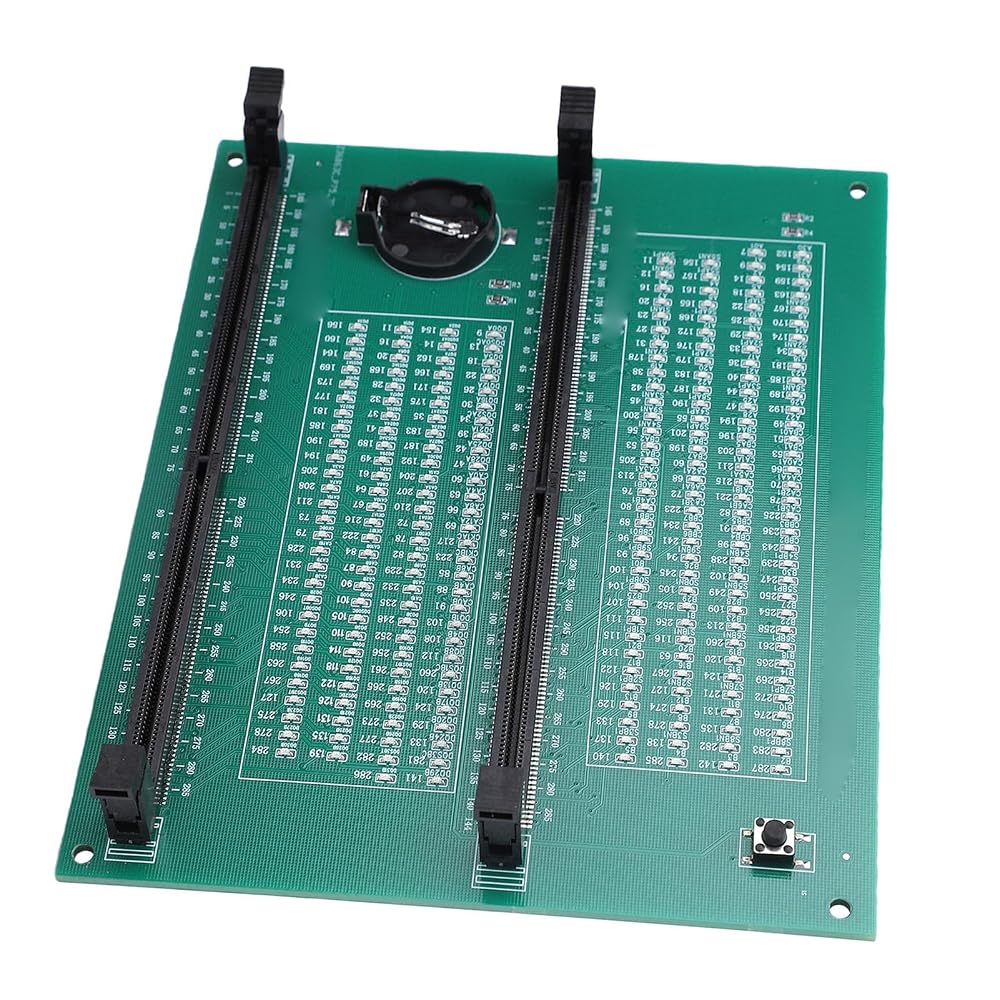

[COMPREHENSIVE FAULT INTERPRETATION GUIDE] The device offers detailed diagnostic outcomes based on the LED behavior. If all lights are on with uniform brightness, the data line circuit is clear of faults. A flashing indicator signals poor contact at the connecting finger, while an unlit LED confirms an open circuit hardware fault. Each indicator is numerically marked, allowing you to identify the specific faulty pin. This precise information guides , such as using a multimeter for
[PROFESSIONAL GRADE TOOL FOR MEMORY PERFORMANCE ISSUES] Beyond basic hardware fault detection, this tester addresses the need for diagnosing poor memory performance. After confirming the hardware integrity of the module, you can systematically eliminate physical causes and on performance-related faults within the graphics memory or other subsystems. It serves as an essential first step in a full diagnostic protocol, directing you to use alternative methods or specialized software
وصف
Spec:
Item Type: DDR5 Memory Tester
Material: PCB
Battery: 1 x Battery (Not Included)
Feature: Suitable for DDR5 UDIMM/RDIMM Type
Instructions:
1. Use LED lights to test all data cables in the memory. When hardware faults occur in these data cable circuits, the brightness of the LED indicator lights will change, regardless of whether they are particularly bright or not.
2. Install the battery (not included) into the battery holder or use TYPE C cable. Insert the memory module to be tested into the slot of the memory tester. If all indicator lights are on and the brightness is consistent, it indicates that there is no open or short circuit fault in the data line circuit of the memory module.
3. If the indicator light flashes during the testing process, it indicates poor touch with the connecting finger.
4. If the indicator light is not on, it indicates that there is an open circuit fault in the hardware. Check the wear of the connecting finger, whether the resistor is damaged, and whether the PCB circuit is open. Identify the faulty pin based on the numerical indication of the indicator light, and then use a multimeter to determine the specific cause of the fault.
5. After hardware testing of the memory module, the issue of poor performance of the graphics memory should be considered, and alternative methods or corresponding testing software should be used to locate the faulty graphics memory.
