Note Different product models have different appearance size and weight parameters

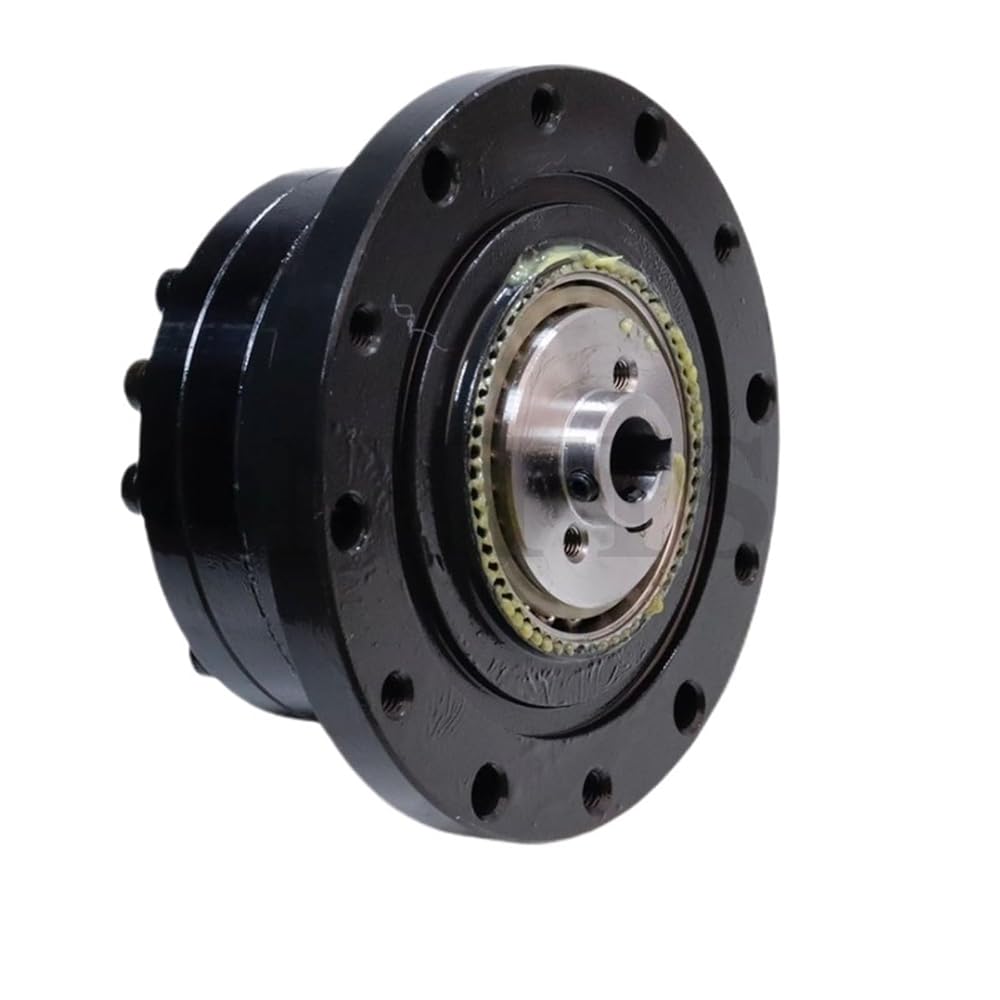

XZS17-30
Reduction ratio: 30
Rated Tq when inputting 2000r/min: 8.8 Nm(0.9 kgfm)
Allowable peak Tq when starting and stopping: 16 Nm(1.6 kgfm)
Allowable maximum value of average load Tq: 12 Nm(1.2 kgfm)
Momentary allowable maximum Tq: 30 Nm(3.1 kgfm)
Allowable maximum input speed: 7300 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
XZS17-50
Reduction ratio: 50
Rated Tq when inputting 2000r/min:21 Nm(2.1 kgfm)
Allowable peak Tq when starting and stopping: 44 Nm(4.5 kgfm)
Allowable maximum value of average load Tq: 34 Nm(3.4 kgfm)
Momentary allowable maximum Tq: 91 Nm(9 kgfm)
Allowable maximum input speed: 7300 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
XZS17-80
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 29 Nm(2.9 kgfm)
Allowable peak Tq when starting and stopping: 56 Nm(5.7 kgfm)
Allowable maximum value of average load Tq: 35 Nm(3.6 kgfm)
Momentary allowable maximum Tq: 113 Nm(12 kgfm)
Allowable maximum input speed: 7300 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
XZS17-100
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 31 Nm(3.2 kgfm)
Allowable peak Tq when starting and stopping: 70 Nm(7.2 kgfm)
Allowable maximum value of average load Tq: 51 Nm(5.2 kgfm)
Momentary allowable maximum Tq: 143 Nm(15 kgfm)
Allowable maximum input speed: 7300 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
the product does not include lubricant.
