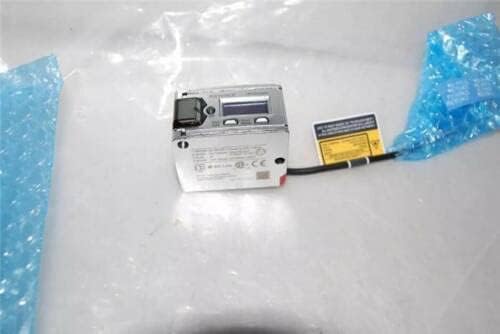

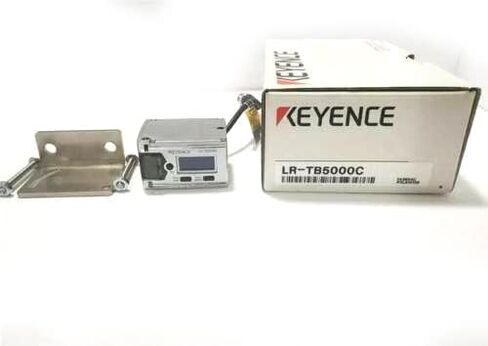

KEYENCE LR-TB5000C Laser Sensor New

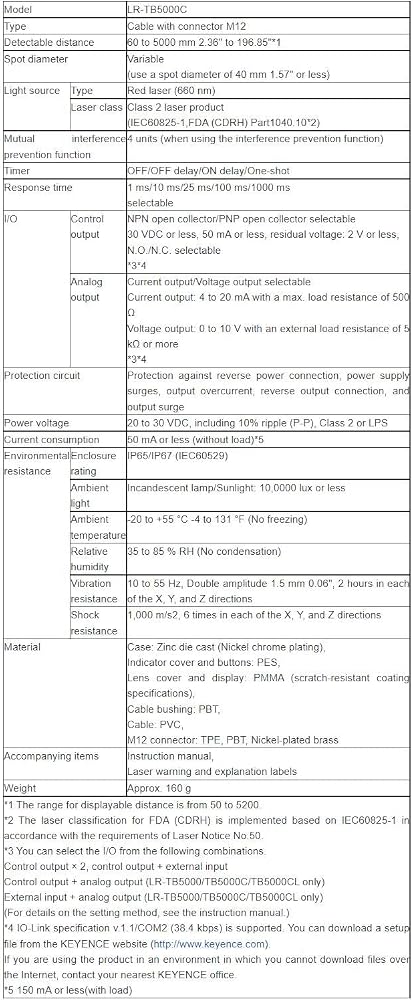

Specifications:
Model: LR-TB5000C
Type: Cable with connector M12
Detectable distance: 60 to 5000 mm 2.36" to 196.85"*1
Spot diameter: Variable (use a spot diameter of 40 mm 1.57" or less)
Light source:
1. Type: Red laser (660 nm)
2. Laser class: Class 2 laser product (IEC60825-1,FDA (CDRH) Part1040.10*2)
Mutual interference prevention function: 4 units (when using the interference prevention function)
Timer: OFF/OFF delay/ON delay/One-shot
Response time: 1 ms/10 ms/25 ms/100 ms/1000 ms selectable
I/O:
1. Control output: NPN open collector/PNP open collector selectable 30 VDC or less, 50 mA or less, residual voltage: 2 V or less, N.O./N.C. selectable *3*4
2. Analog output: Current output/Voltage output selectable Current output: 4 to 20 mA with a max. load resistance of 500 Ω Voltage output: 0 to 10 V with an external load resistance of 5 kΩ or more *3*4
Protection circuit: Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge
Power voltage: 20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Current consumption: 50 mA or less (without load)*5
Environmental resistance:
1. Enclosure rating: IP65/IP67 (IEC60529)
2. Ambient light: Incandescent lamp/Sunlight: 10,0000 lux or less
3. Ambient temperature: -20 to +55 °C -4 to 131 °F (No freezing)
4. Relative humidity: 35 to 85 % RH (No condensation)
5. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
5. Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Material: Case: Zinc die cast (Nickel chrome plating), Indicator cover and buttons: PES, Lens cover and display: PMMA (scratch-resistant coating specifications)
