مميزات خاصة

Stable thread quality: Through the advanced and flexible tapping system, high-quality thread holes can be continuously obtained. This system supports adjustable forward and backward speeds, and using imported servo motors can effectively prevent tap breakage in complex blind and deep hole tapping scenarios.

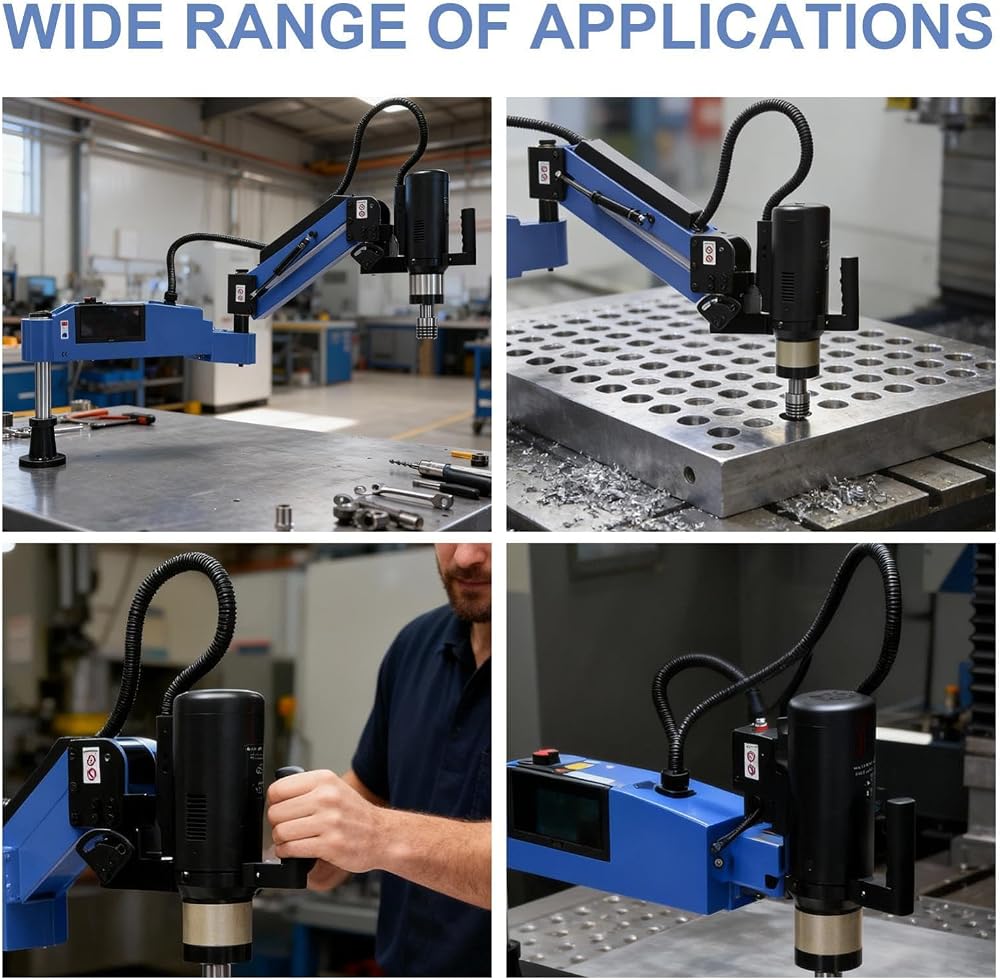

Diverse tapping capabilities: Seamless can be achieved on materials such as iron, steel, copper, aluminum, wood, nylon, cast iron, A3 steel, NAK80 molds, mold steel, Q235, 45# steel, cast iron, and lead, ensuring reliable results on various workpieces.
Adaptive tapping functions: Support for single-piece manual operations, deep hole precision processing, and automatic batch operations, providing flexibility for effectively responding to various processing requirements.
Durable tapping mechanism: With a flexible design, it can resist deformation, perform tapping in all directions, and achieve high-speed accuracy through its advanced engineering and materials.

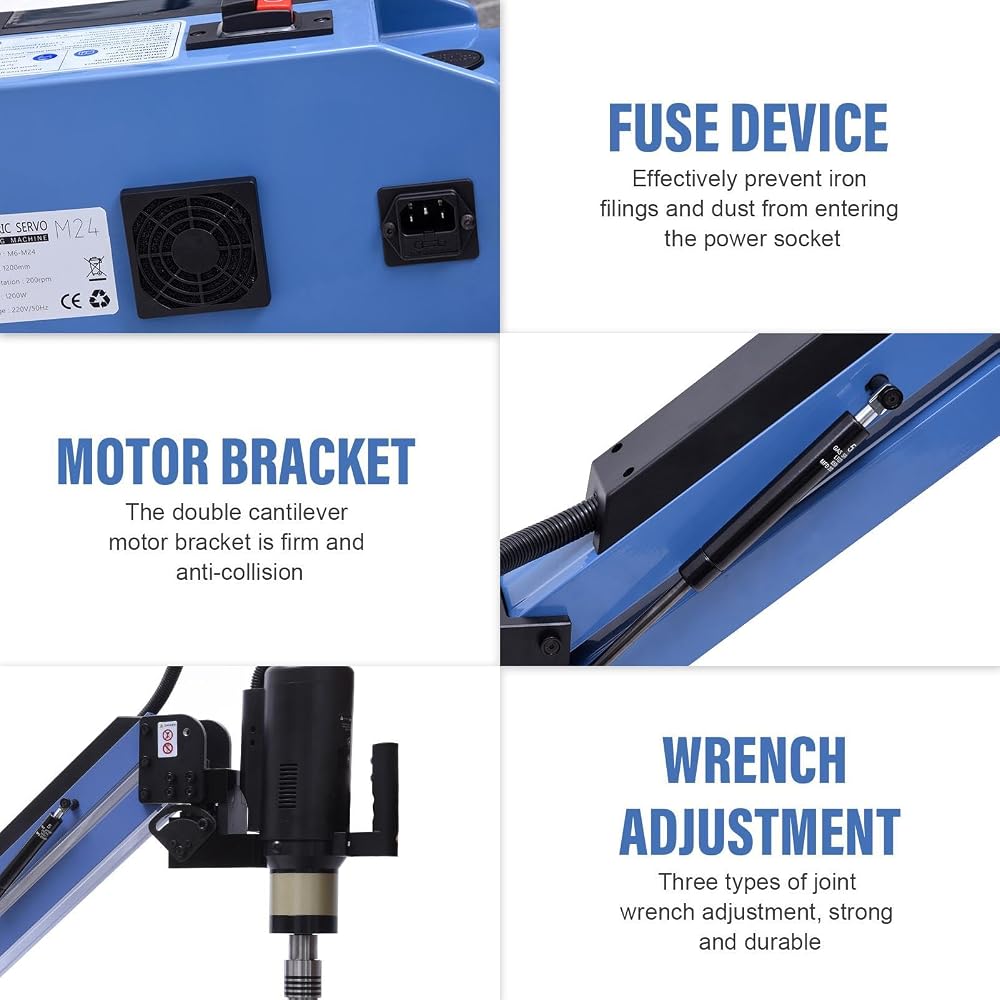

Comprehensive function integration: Combining a user-friendly touch screen, rotating installation device, PL-type reducer with a sturdy double-arm bracket and hydraulic system to achieve reliable ; at the same time, protective functions such as cooling fans and sealing sockets can effectively prevent damage caused by dust and overheating.

وصف

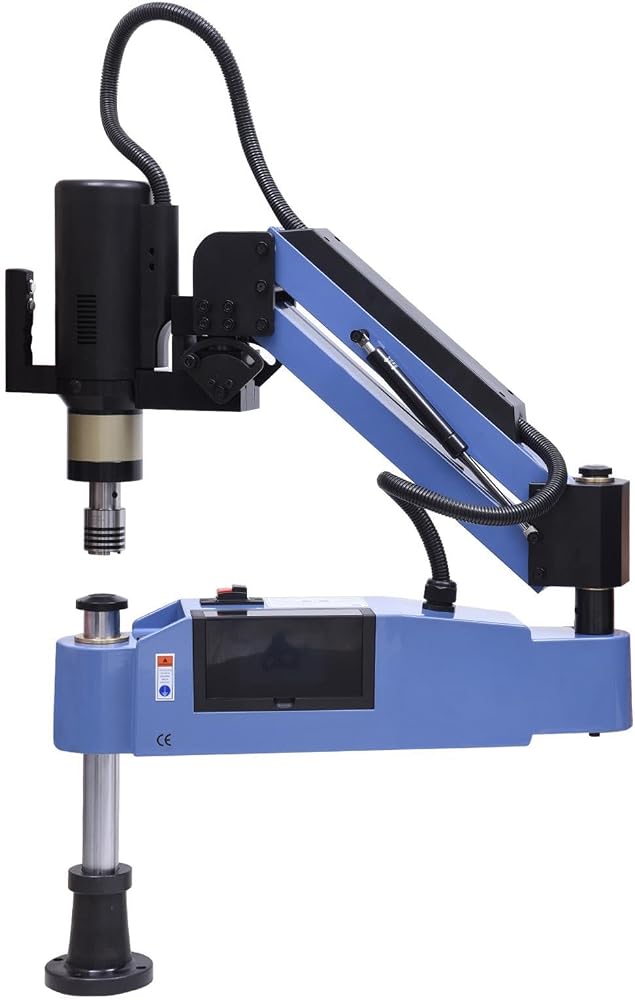

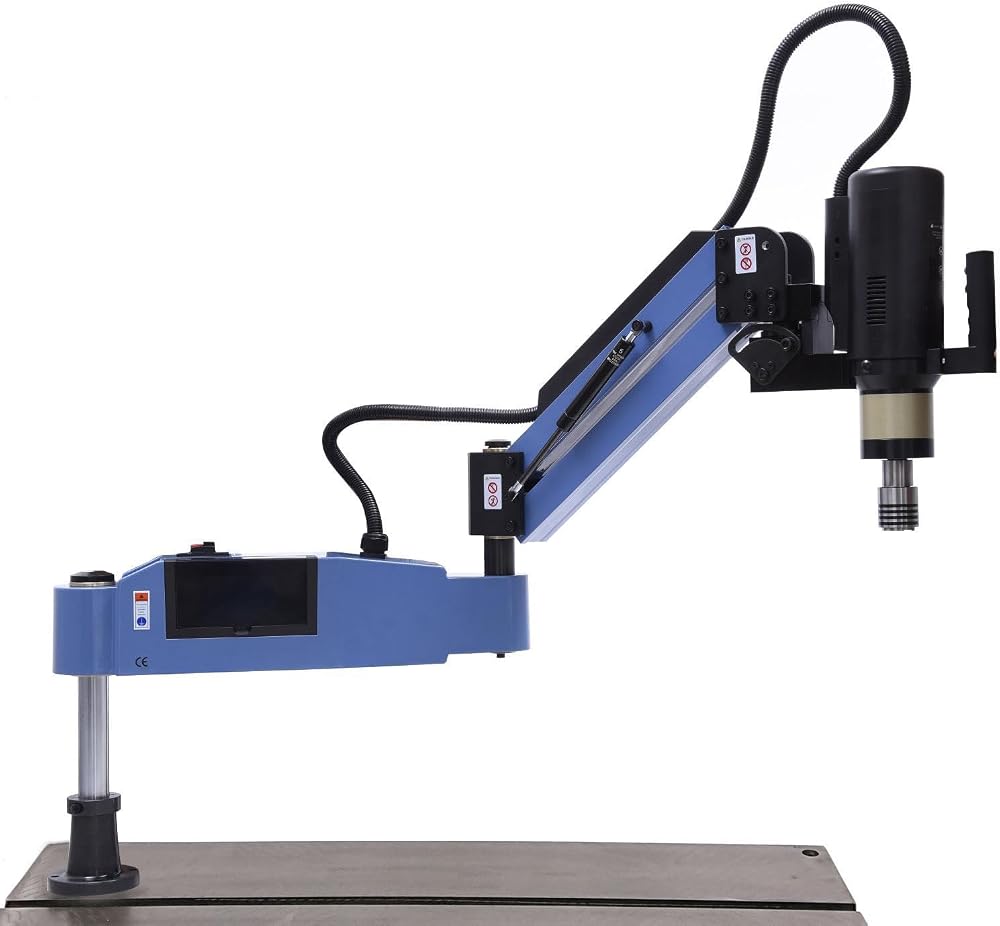

This tapping machine features a vertical tapper with collets, ideal for accurate tap threading and drilling tasks. Its flexible arm allows effortless adjustments.

Specification:
Product Name: Tapping Machine
Type 1:
Models M3-M16
Voltage: 110V
Rating Power: 600W
Measured Power: 420W
Maximum Speed: 375RPM
Working Modes: Manual, Automatic, and Batch
Vertical Extension: 470mm/18.5in
Working Radius: 1045mm/41.1in
Chuck Models: 1/16in (1.5mm), 5/32in (3.9mm), 3/16in (4.7mm), 7/32in (5.5mm), 1/4in (6.3mm), 5/16in (7.9mm), 3/8in (9.5mm), 7/16in (11.1mm), and 1/2in (12.7mm)
Applicable to metal materials: aluminum, copper, A3 steel, 45 steel, cast iron, raw iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel, as well as PP and wood.

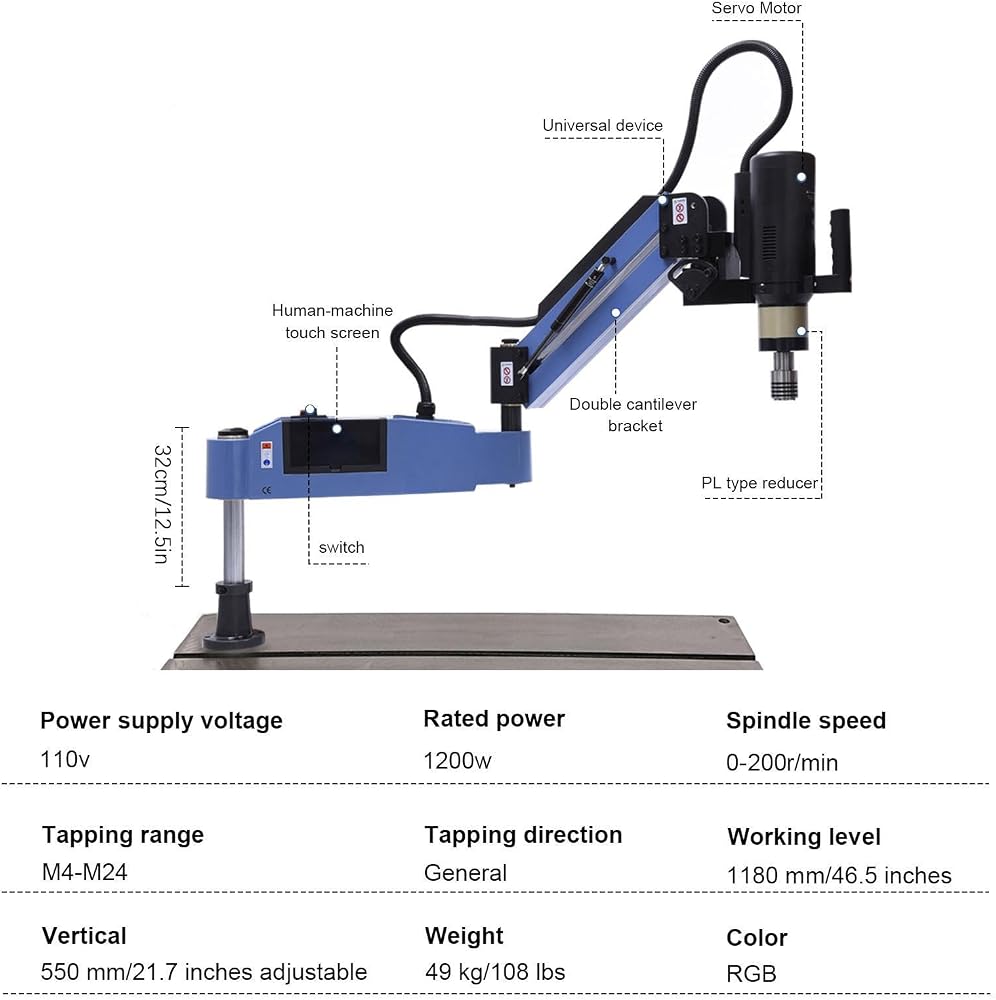

Type 2:
Models M4-M24
Voltage: 110V
Rating Power: 1200W
Measured power: 840W
Maximum speed: 200 RPM
Working modes: Manual, automatic, batch processing
Vertical reach: 550mm/21.6in
Working radius: 1180mm/46.4in
Chuck models: 1/4in (6.35mm), 5/16in (7.9mm), 3/8in (9.5mm), 1/2in (12.7mm), 9/16in(14.2mm), 5/8in(15.8mm), 11/16in(17.4mm), 13/16in(20.6mm), 7/8in(22.2mm), 15/16in(23.8mm)
Applicable to metal materials such as aluminum, copper, A3 steel, 45 steel, cast iron, raw iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel, PP, and wood.

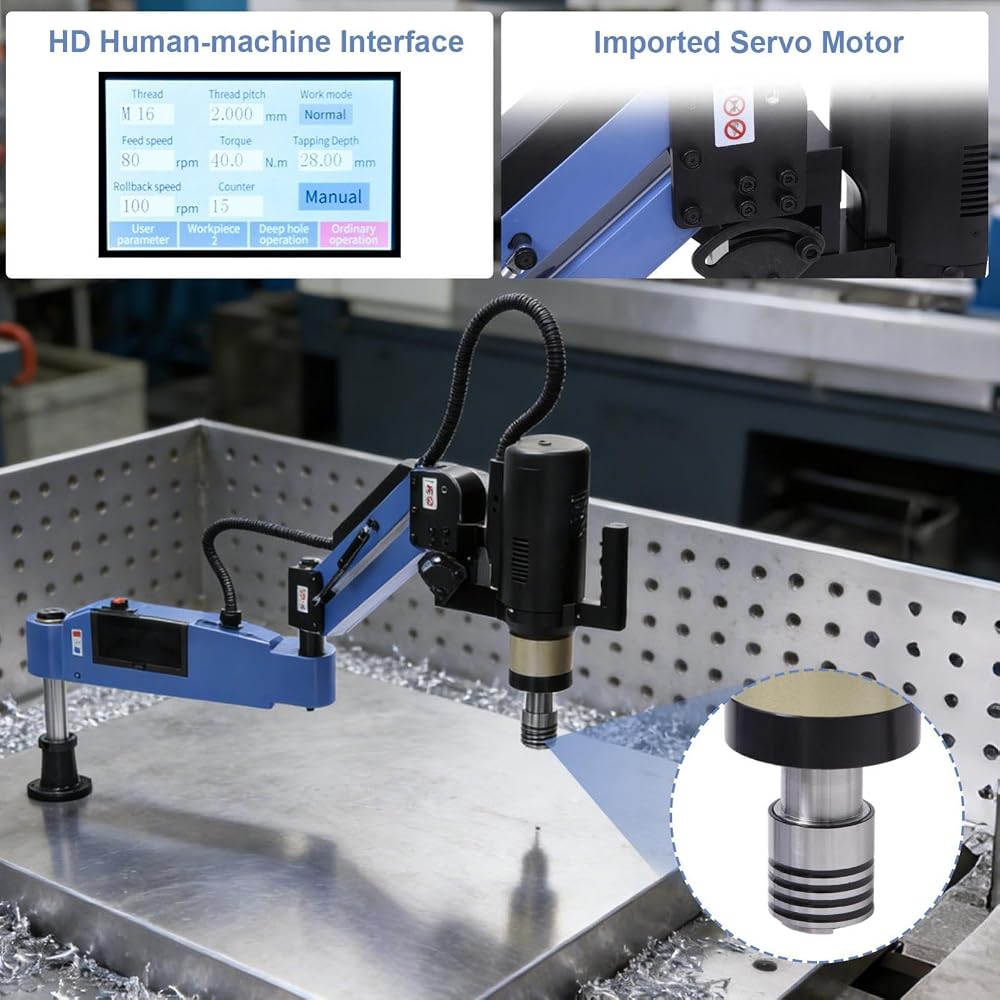

① Manual Mode: Set tapping speed and pitch, monitor displayed values, and manually retract the tap fully. Ideal for single-piece machining.
② Automatic Mode: Input tapping speed, retraction speed, and depth; touch screen type automatically adjusts torque for efficient batch production.
③ Deep Hole Mode: Designed for deep hole tapping, it uses an intelligent forward-backward cycle (1:1, then 2:2 steps) to ensure chip removal and optimal results.

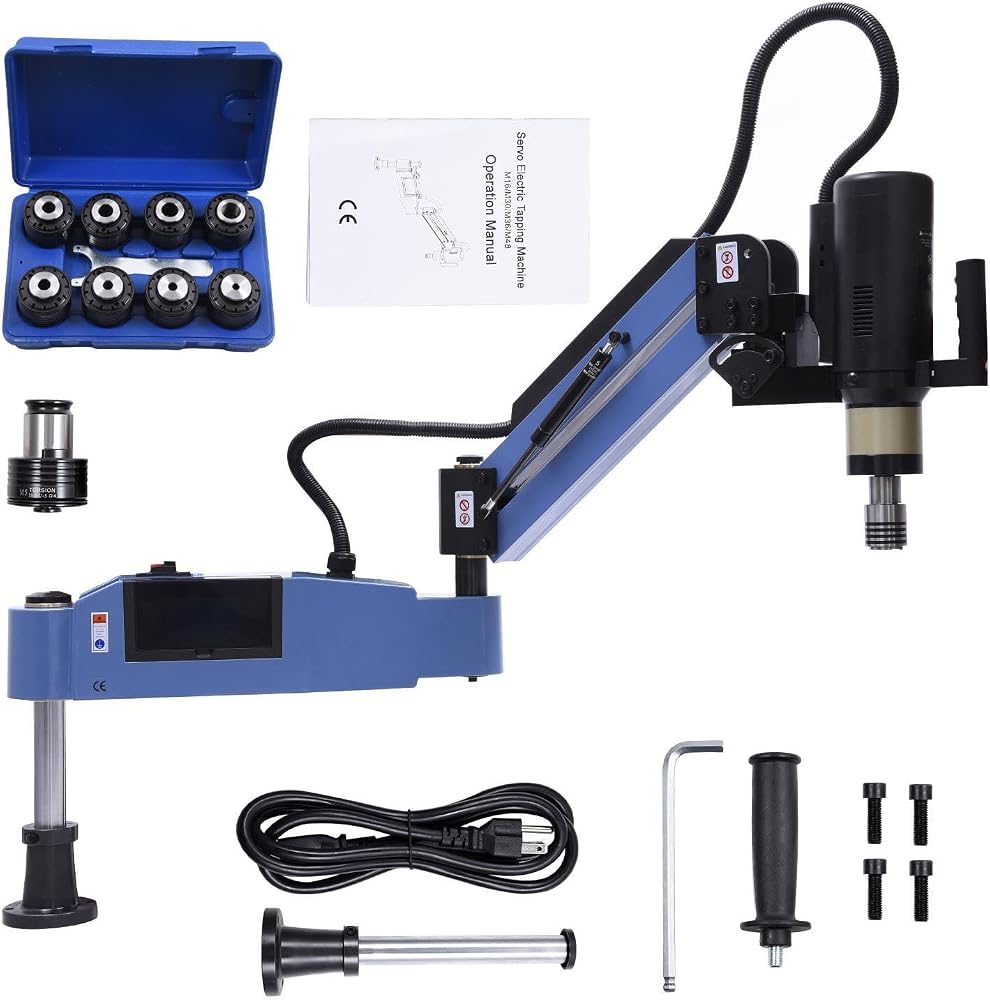

Packing List:
1 * Tapping Machine (M3-M16 or M4-M24 available)
1 Set * Collets
1 * Power Cord
1 * Post
