مميزات خاصة

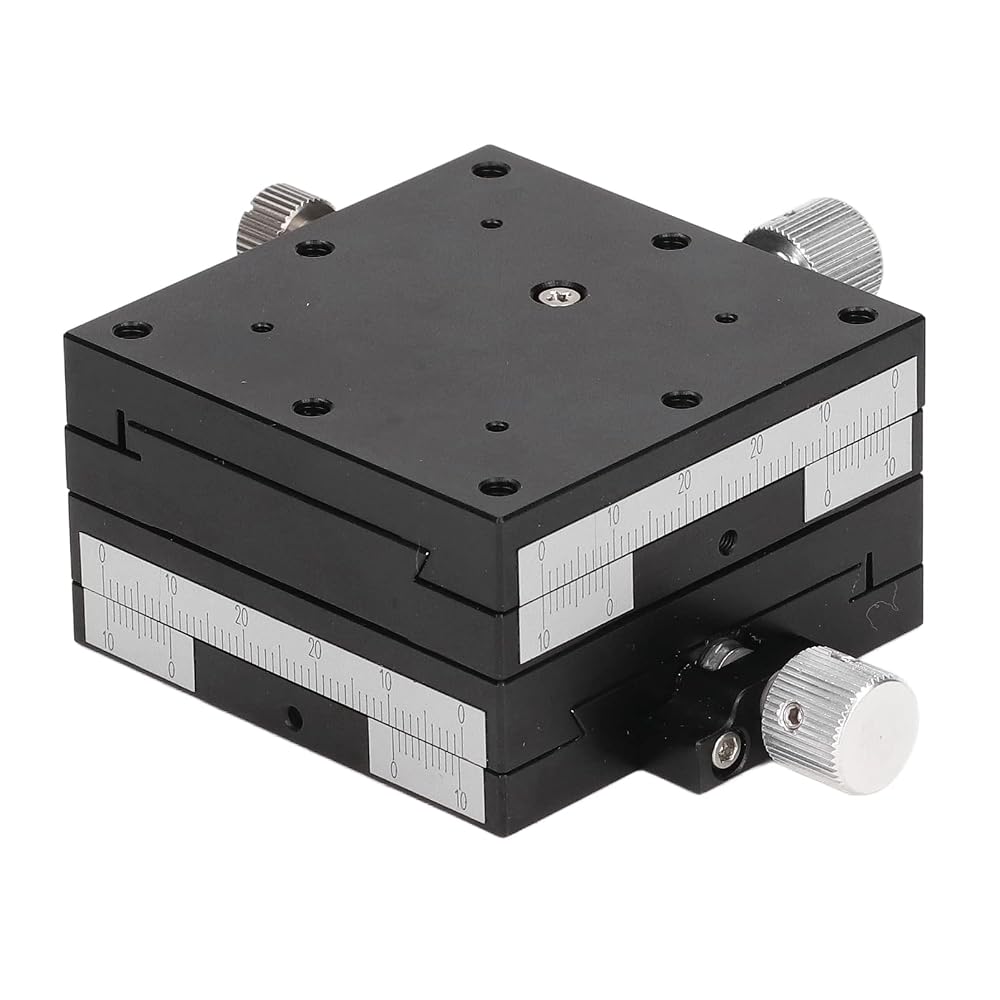

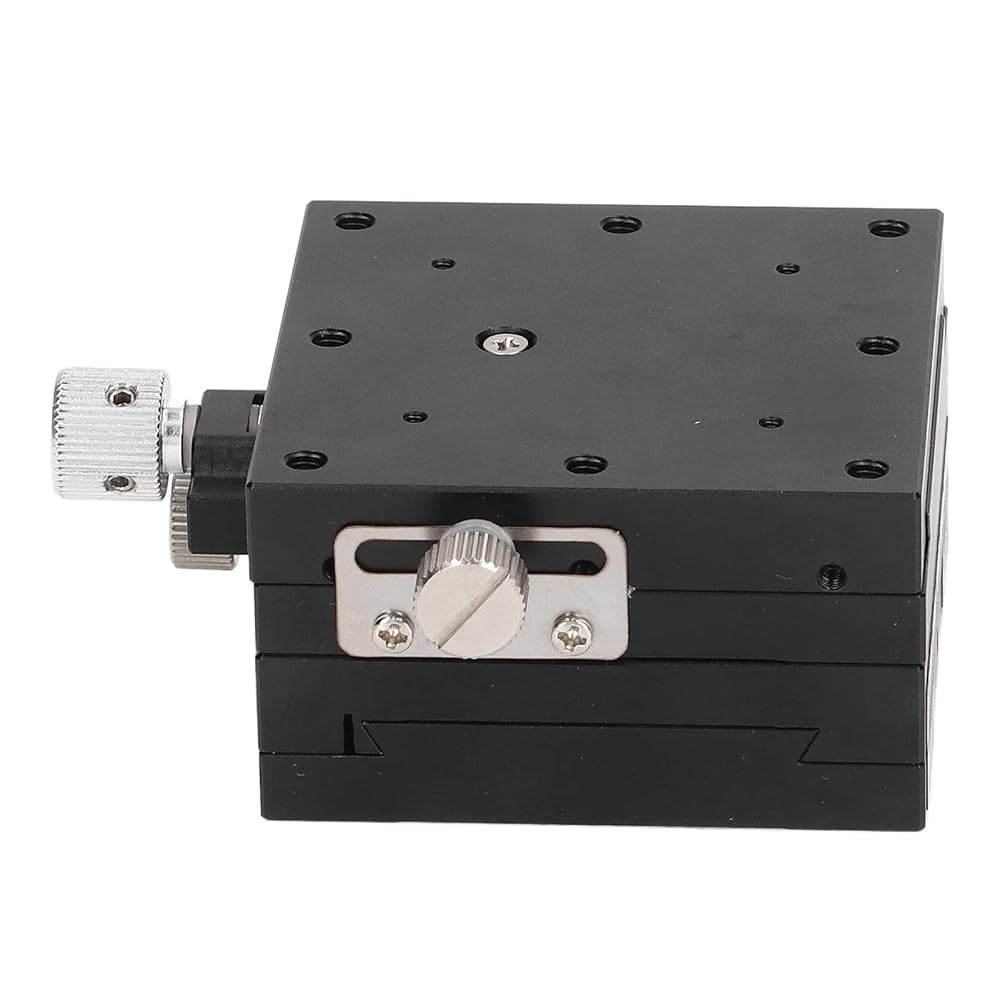

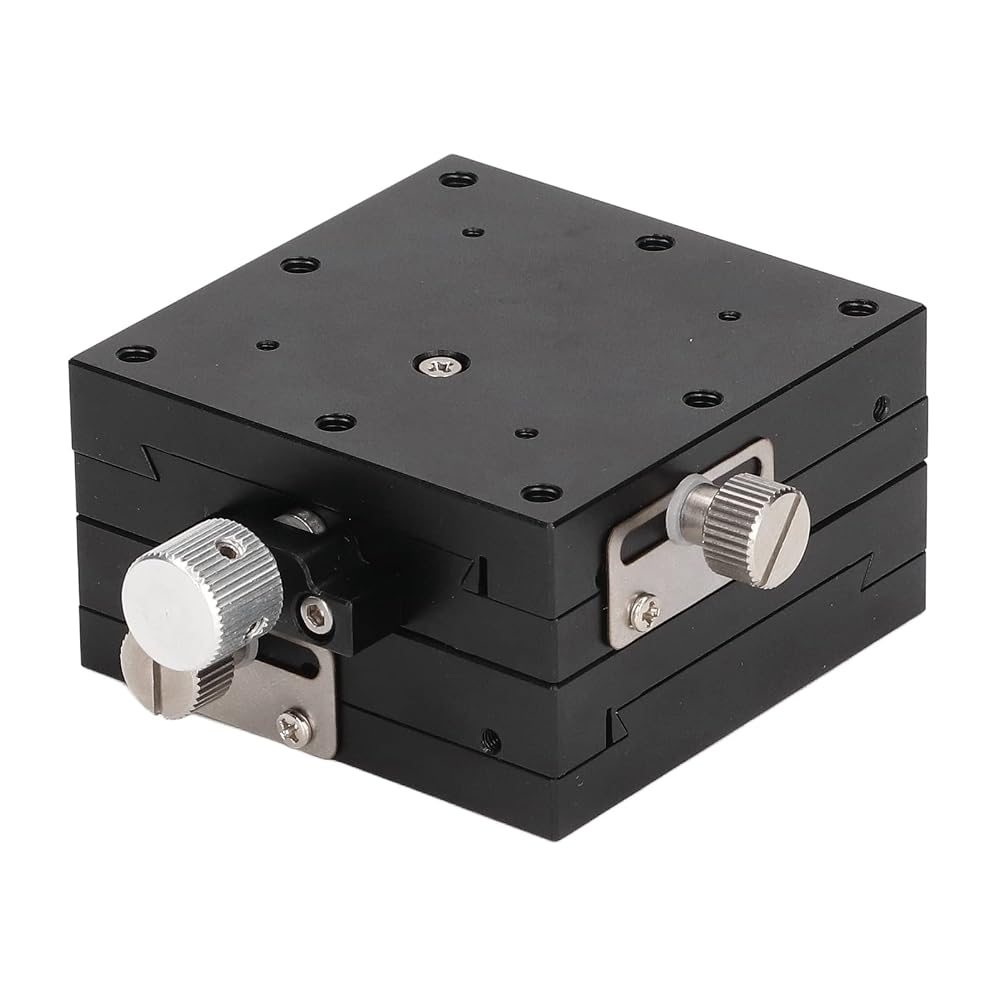

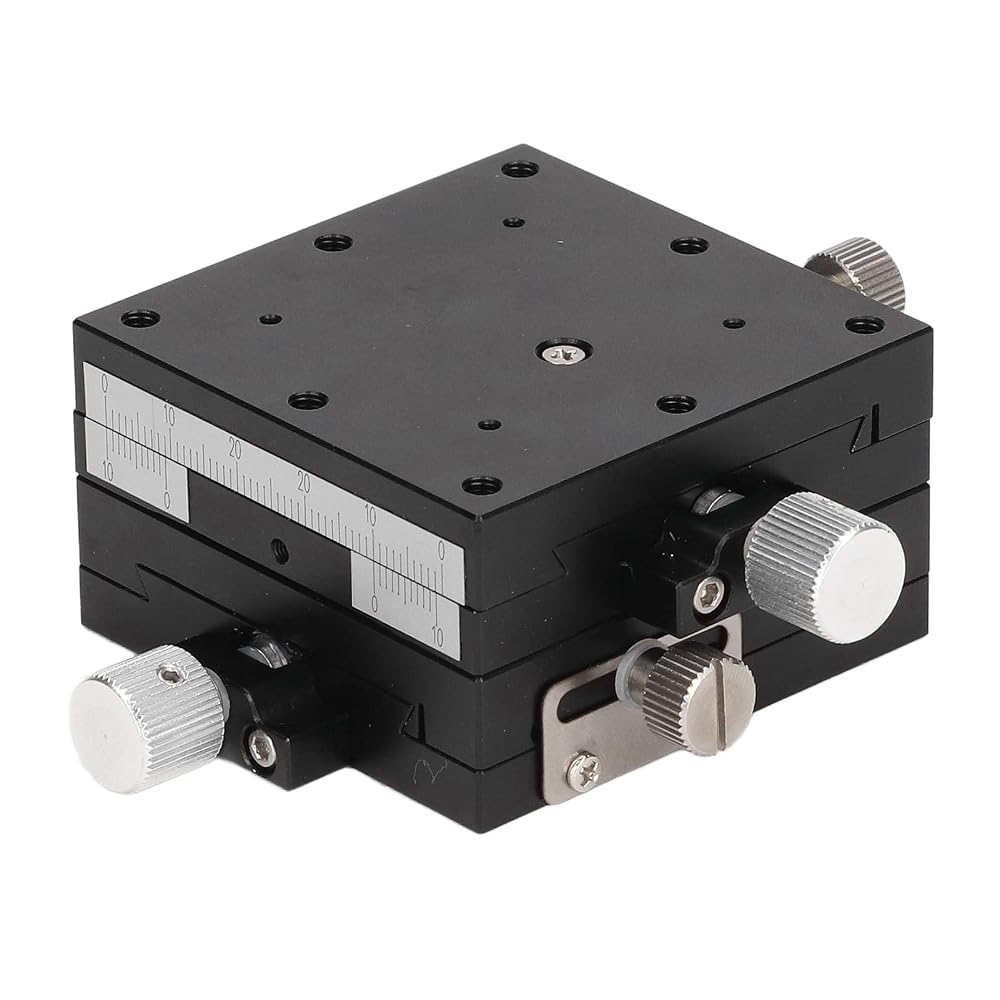

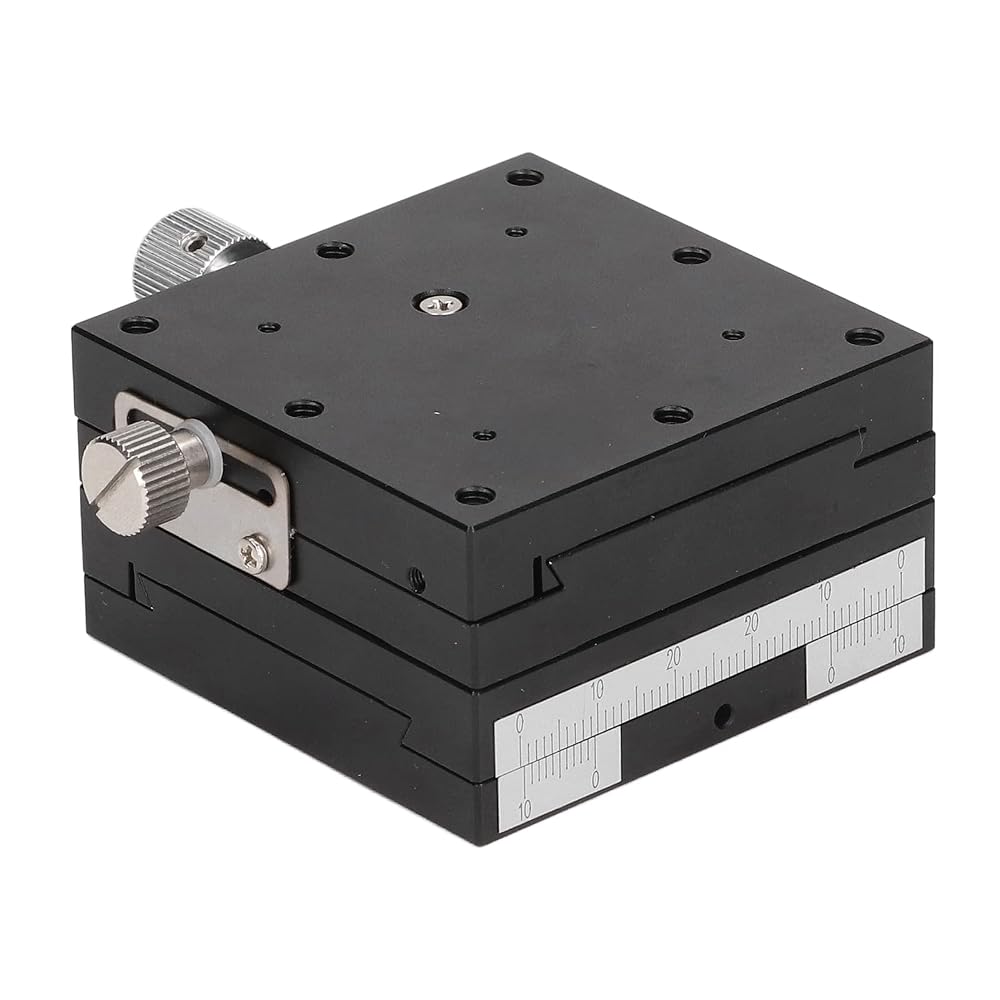

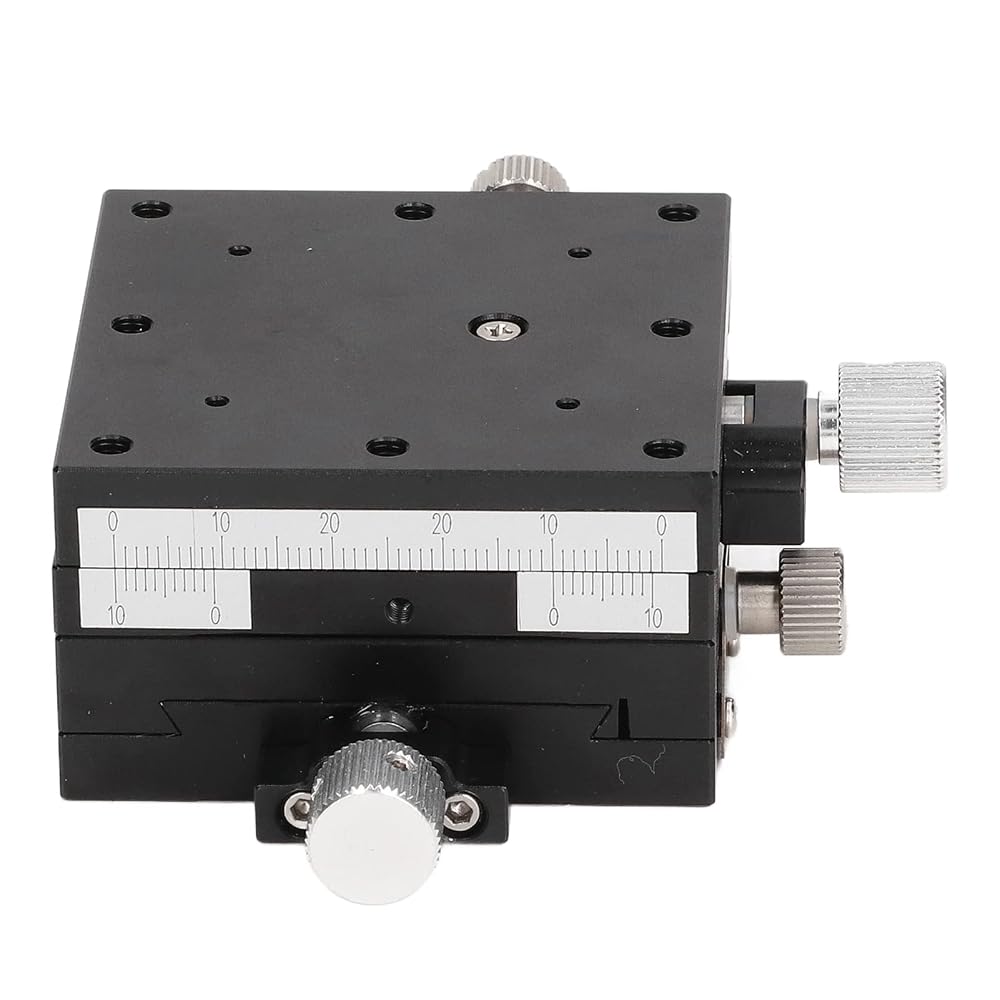

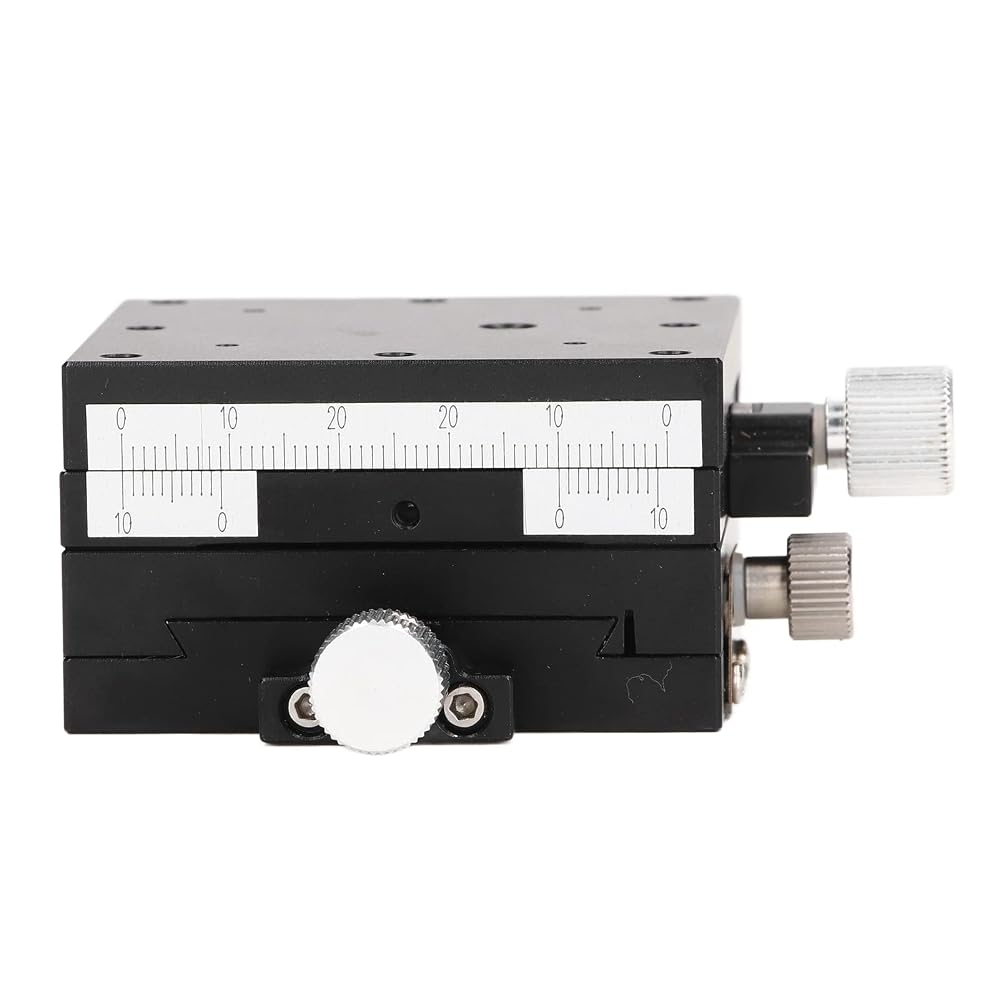

【Precise XY Control】Manual linear stage with screw type XY sliding table design delivers controlled positioning. Each knob rotation moves 0.5mm, supporting precise linear displacement for adjustment tasks.
【Compact Travel Range】This XY linear stage features a sliding table with ±9mm movement amount, suitable for compact setups where measured travel and stable manual positioning are required.
【Aluminum Alloy Build】Made of aluminum alloy with black anodized finish, this displacement platform is suited for production equipment and optical instruments requiring a structured mechanical adjustment base.
【Defined Accuracy Data】Movement accuracy includes 30μm straightness and 70μm XY axes orthogonality, helping users handle alignment work with clear reference values during manual positioning tasks.
【Equipment Integration】Load capacity is 33.3N with allowable moment load of 4.0N.m for up down swing left right swing and side scrolling, fitting laboratory fixtures inspection devices and mechanical equipment.

وصف

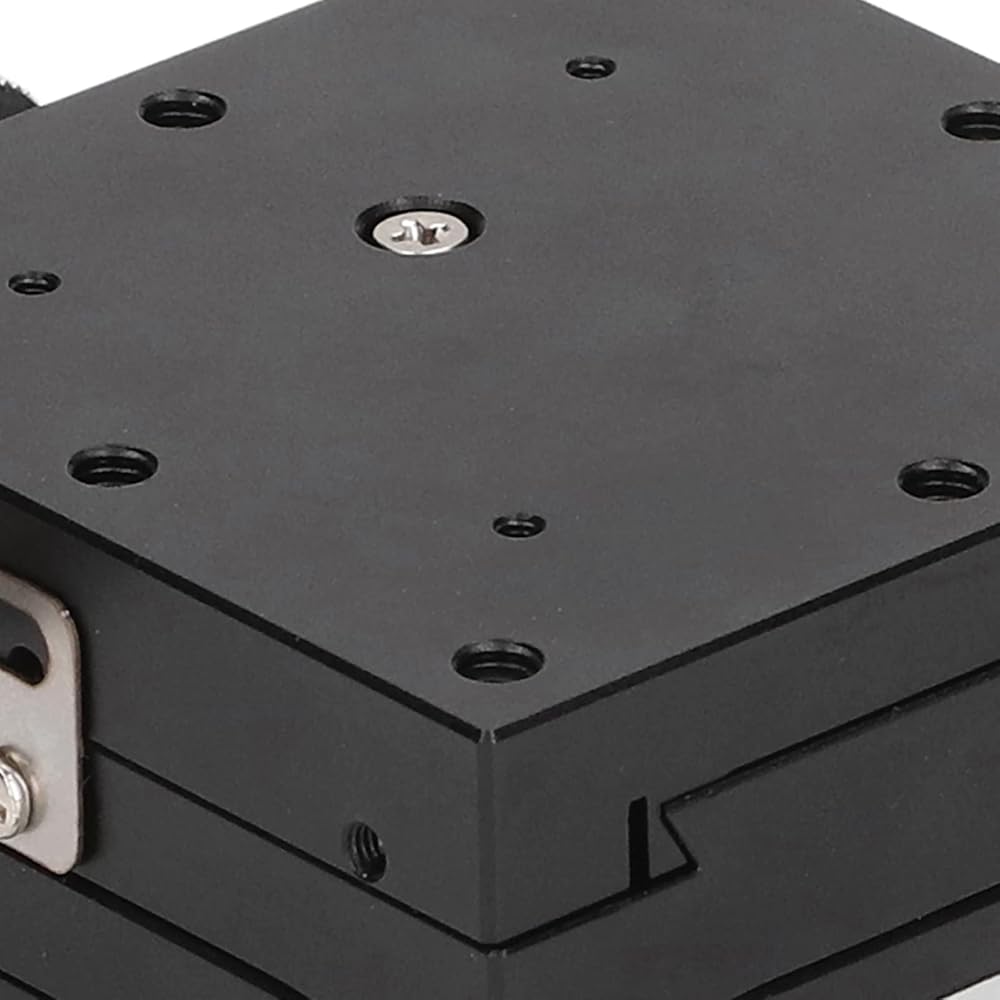

1. Precise Machining: This sliding table adopts excellent manufacturing process, black anodized finish, not easy to be damaged and corroded
2. Durability-Optimized: The sliding table has Durability-Optimized, provides you with excellent use effect, has good reliability and long service life
3. Sturdy and Durable: The manual linear stage is made of aluminum alloy material, which is sturdy and durable
4. Applicable Equipment: The linear stage has high practicability and can be widely used in capacitive touch screen production equipment, fixtures, optical instruments, etc.
5. Wide Application: The displacement platform is suitable for laboratory precise testing, mechanical equipment positioning and movement, various optical fiber coupling, optical waveguide alignment, fiber core adjustment, packaging systems, etc.

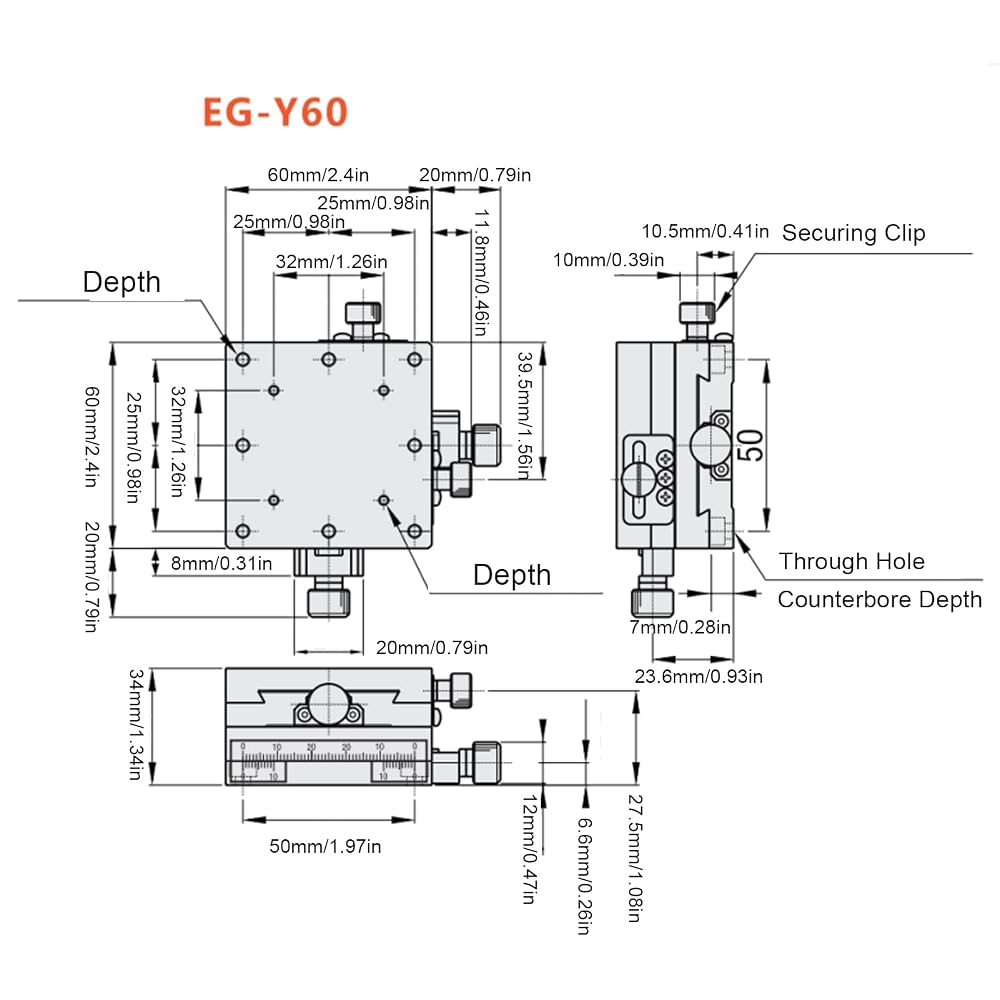

Specification:
Item Type: Manual Linear Stage
Material: Aluminum Alloy
Finish: Black Anodized
Sliding Table: Approx./2.4x2.4in
Movement Amount: ±9mm
Movement Amount for One Rotation of The Knob: 0.5mm
Load : 33.3N
Movement Accuracy: Straightness 30μm
XY Axes Orthogonality: 70μm
Allowable Moment Load:
Swing Up and Down: 4.0N.m
Swing Left and Right: 4.0N.m
Side Scrolling: 4.0N.m

packing list:
1 xManual Linear Stage

Notice:
1. Pay attention to the correct operation.2. Maintain the sliding table in time.
