Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications in Kuwait

Manual Goniometer Stage,60x60mm Linear Stage with ±20° Tilt Adjustment,Optical Positioning Sliding Table for Lab Equipment,Versatile Applications

KWD 63.500
– 1 +

Special Features

  • Versatile: Suitable for optical equipment, measuring instruments, semiconductor manufacturing, testing machines,and photographic equipment. This dovetail groove stage delivers precise performance across various fields.

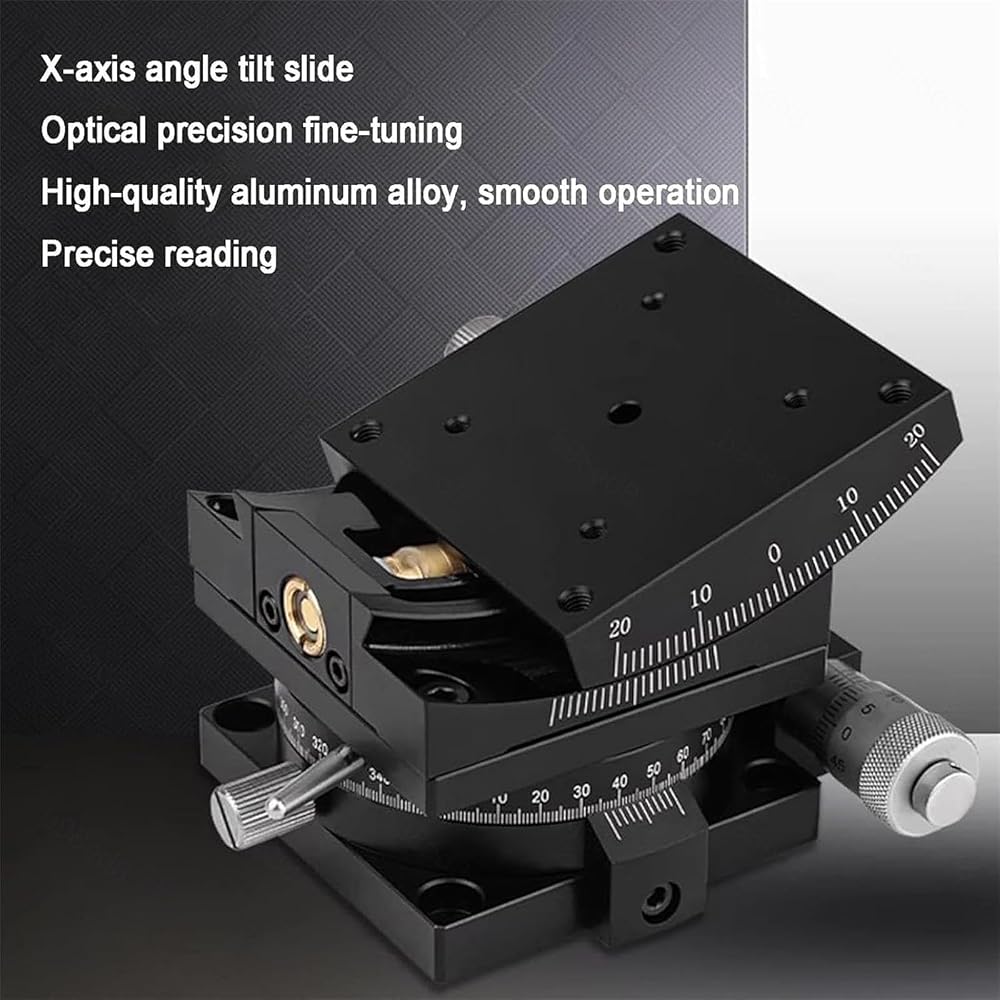

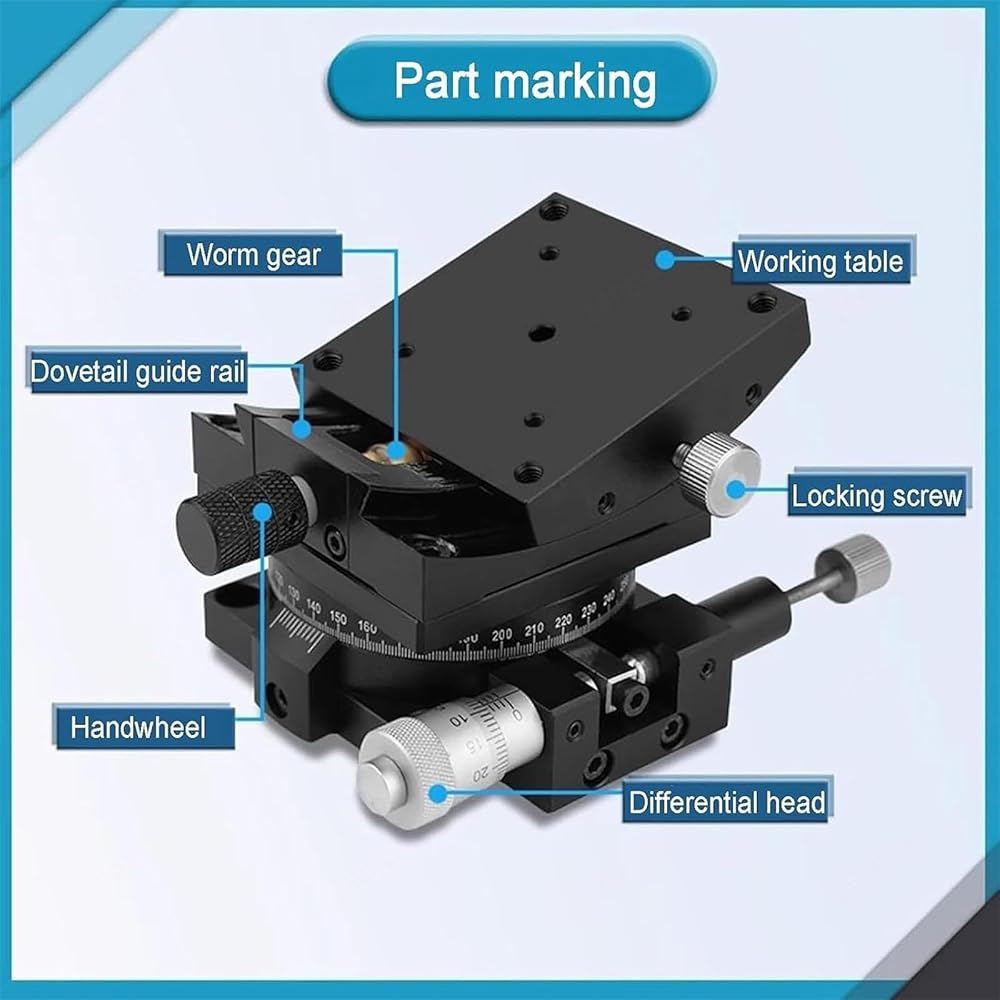

  • High Precision: The manual precision linear stage features a central worm gear drive and adjustable dovetail guide rail, offering smooth movement and minimal deflection. With a ±20° stroke and 1° minimum reading scale, it delivers exceptional accuracy for all your applications.
  • Aluminum Alloy Construction: Made of durable hard aluminum with anodized blackening to prevent light reflection, this stage is ideal for optical equipment. Its robust build ensures optimal performance in sensitive environments.
  • Rounded Corner Protection: The 60x60mm worm gear dovetail groove stage includes R corner protection, eliminating burrs and preventing bumps. This design enhances safety and reliability during operation.. It allows flexible setups for diverse tasks.
  • Multi-Dimensional Combination: Easy to operate with an extended handwheel, this stage features a porous design with standard hole spacing for versatile combination with other stages

Description

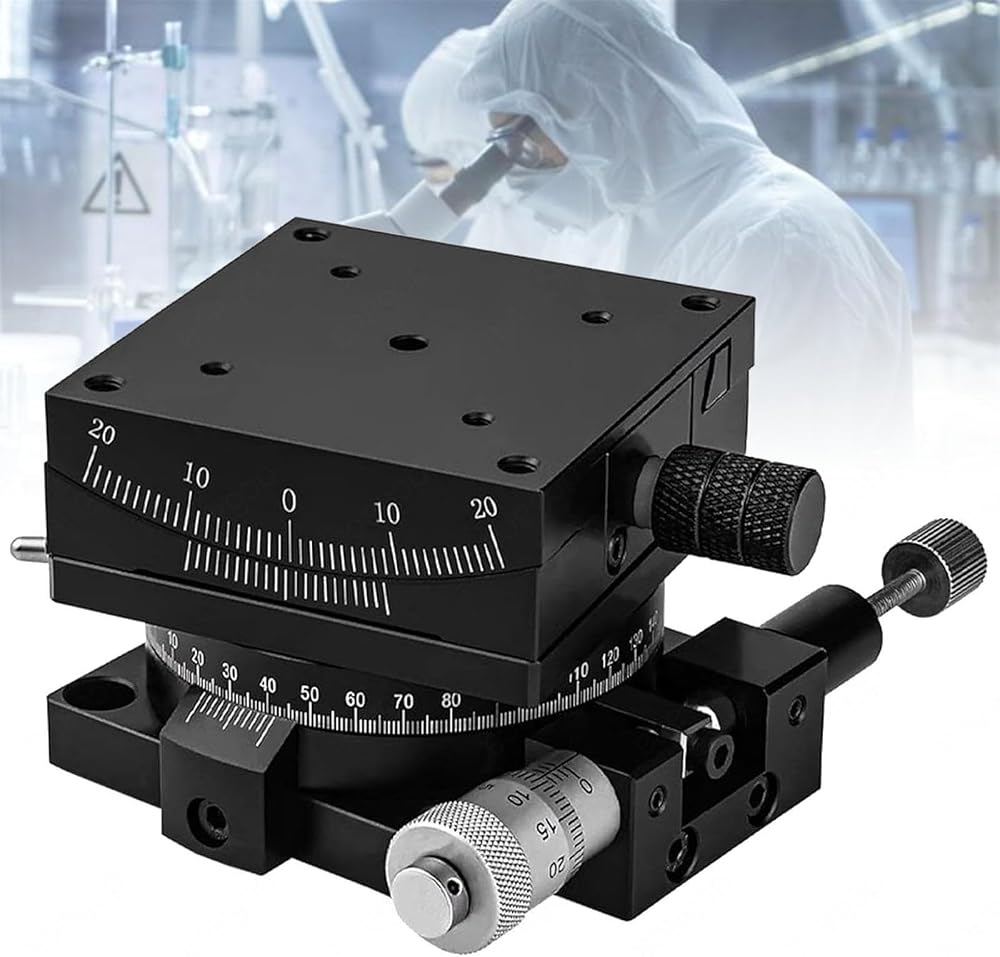

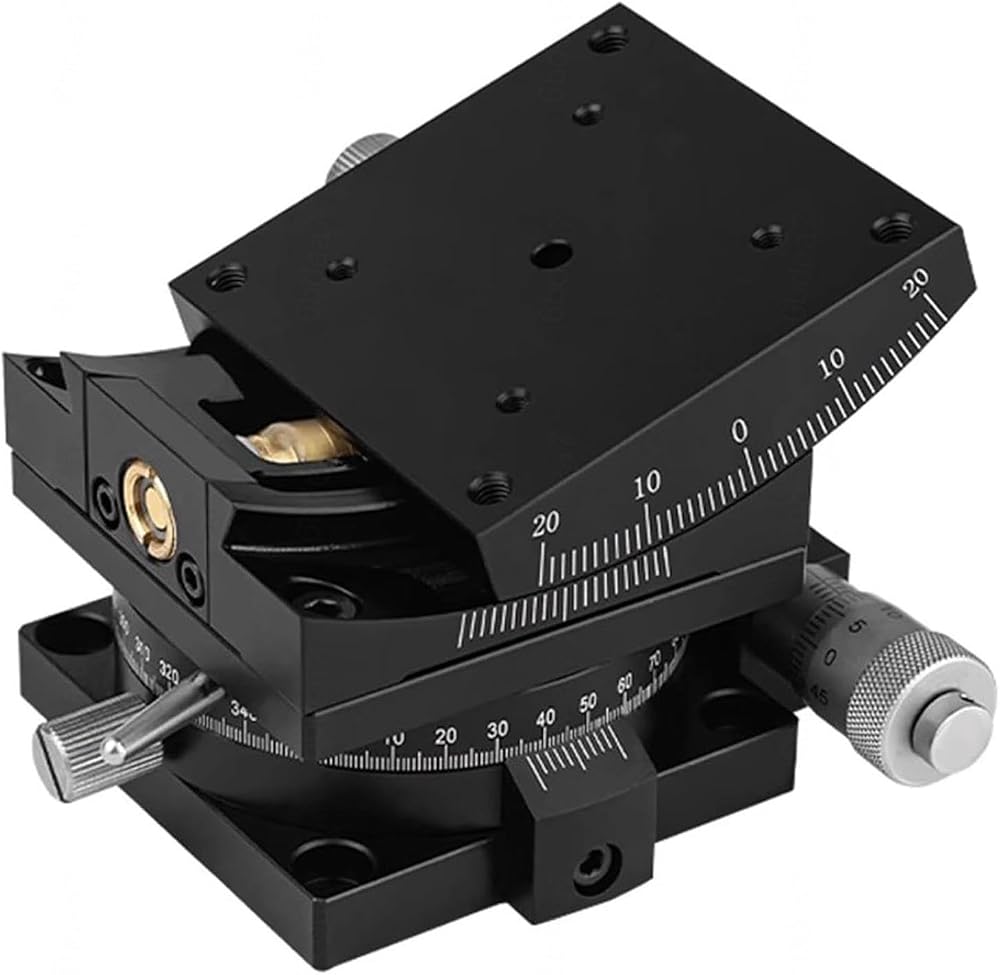

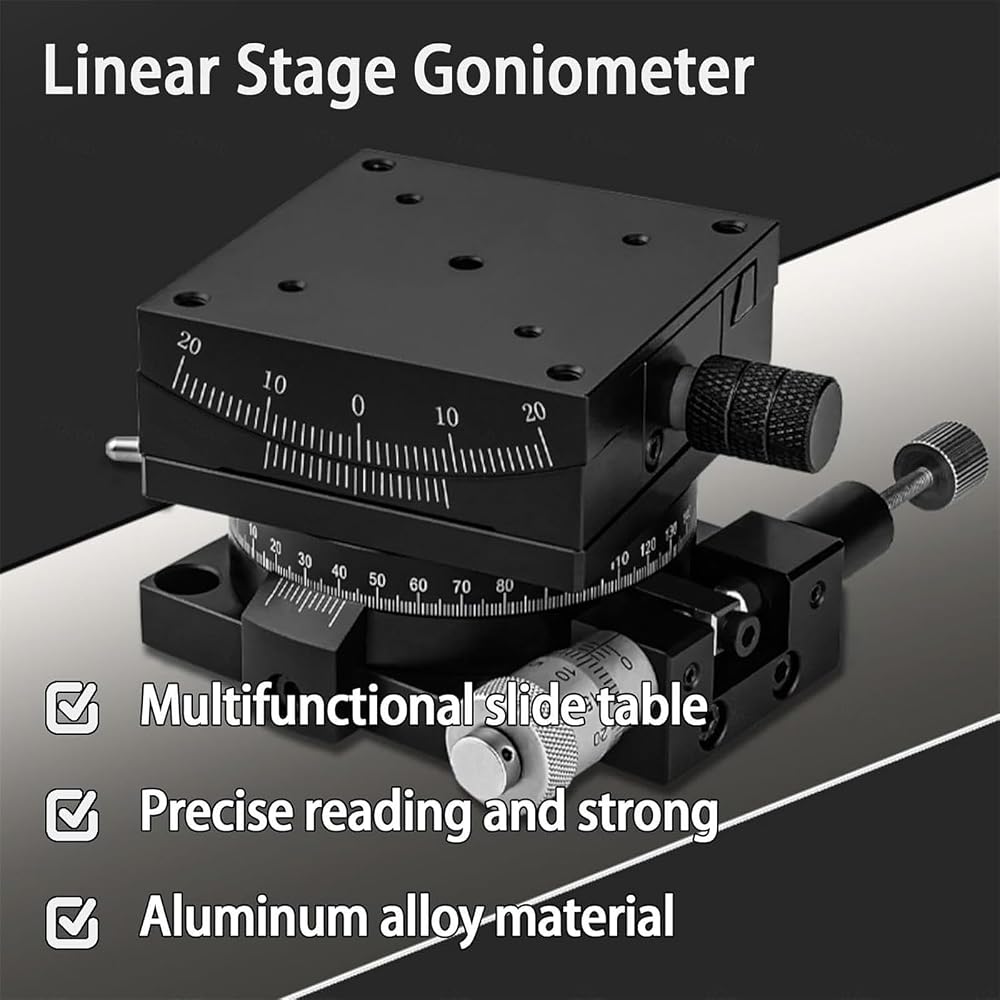

This dovetail groove platform is versatile for use in optical equipment, measuring tools, semiconductor production equipment, testing instruments, microscopes, and photographic equipment. It features a central worm gear drive and adjustable dovetail slide rail with a movable range of 20° and minimum scale of 1°. The table size is 60×60mm, providing stable movement and high precision to avoid deviation. The main body is constructed from hard aluminum alloy with a black anodized surface finish.

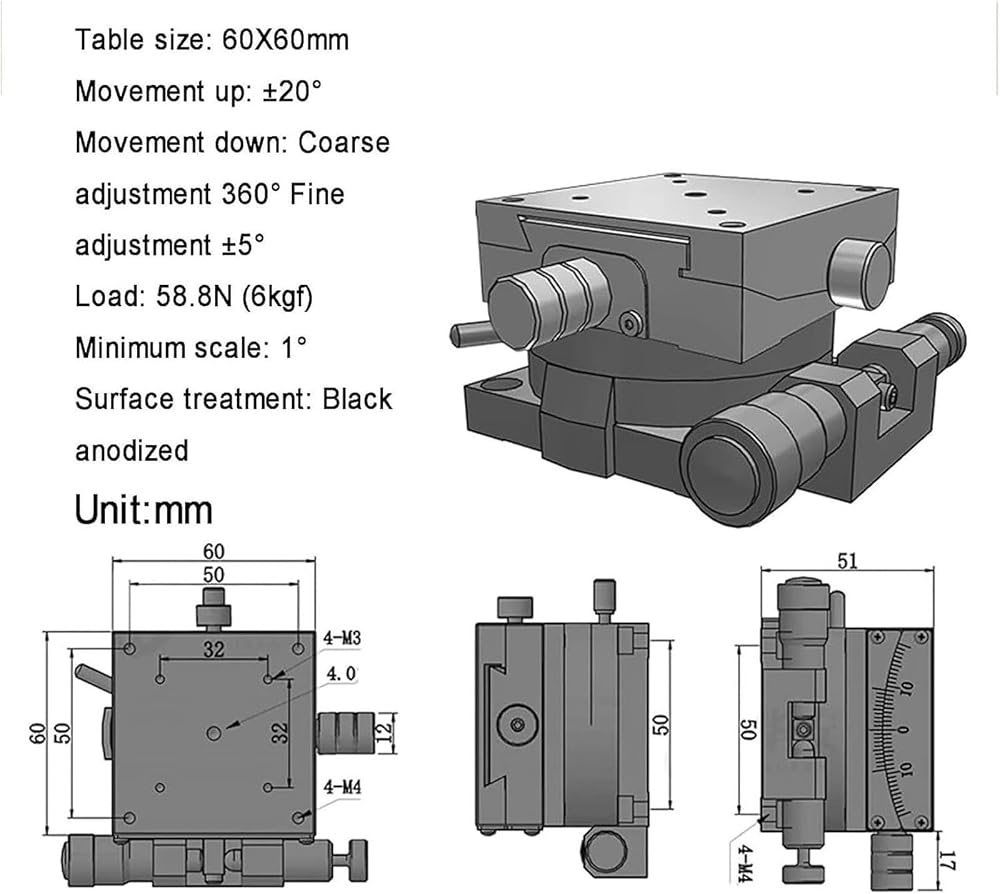

Specifications:
Name: Manual Linear Stage
Material: Aluminum Alloy
Surface Treatment: Black Anodized
Table Size: 60x60mm
Movement Up: ±20°

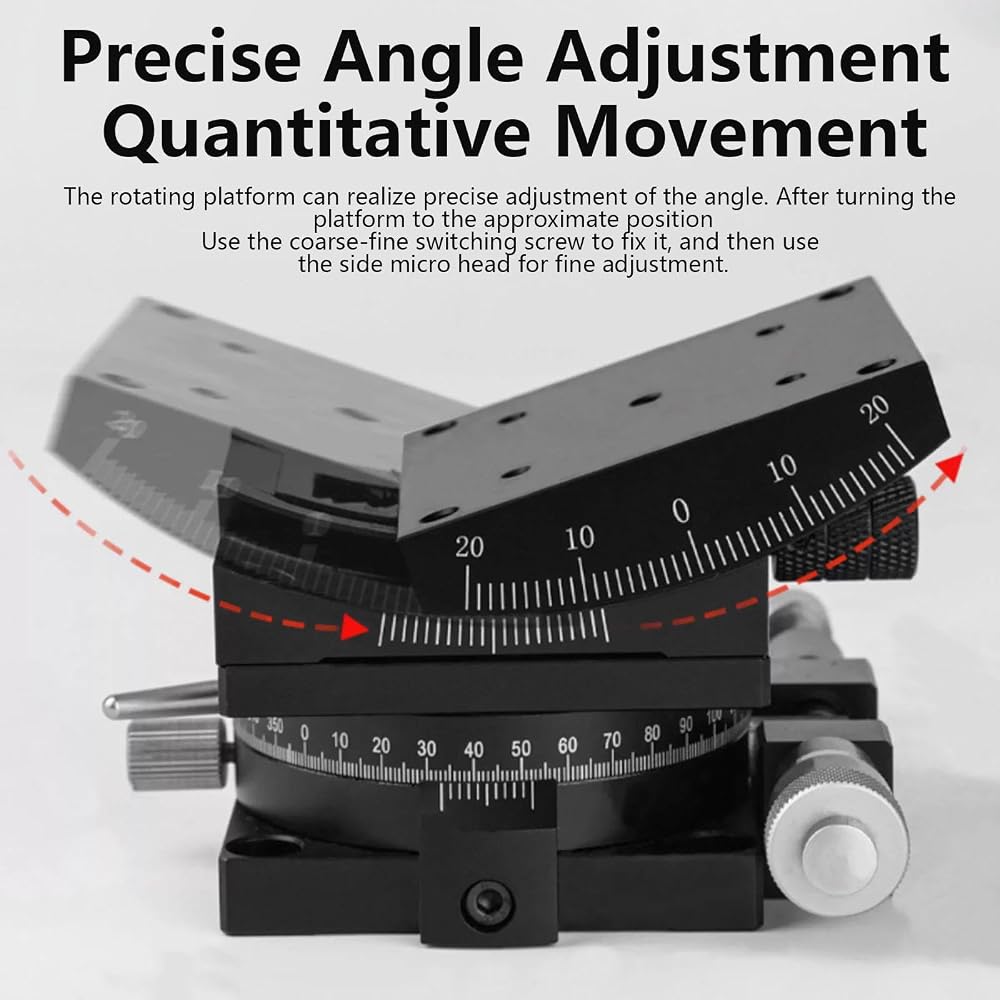

Movement Down: Coarse Adjustment 360°, Fine Adjustment ±5°
Load: 58.8N/6kgf
Minimum Scale: 1°
Net Weight: 0.86kg/1.9Ib
Gross Weight: 1.5kg/3.3Ib

Package Includes:
1 x Manual Linear Stage
