KCT10 الحالي 5A/5mA 5A/2.5mA 10A/5mA 50A/25mA تيار سبليت صغير 10 مللي متر (10A 10mA) in Kuwait

KCT10 الحالي 5A/5mA 5A/2.5mA 10A/5mA 50A/25mA تيار سبليت صغير 10 مللي متر (10A 10mA)

KWD 14
اللون10A 10MA
– 1 +

مميزات خاصة

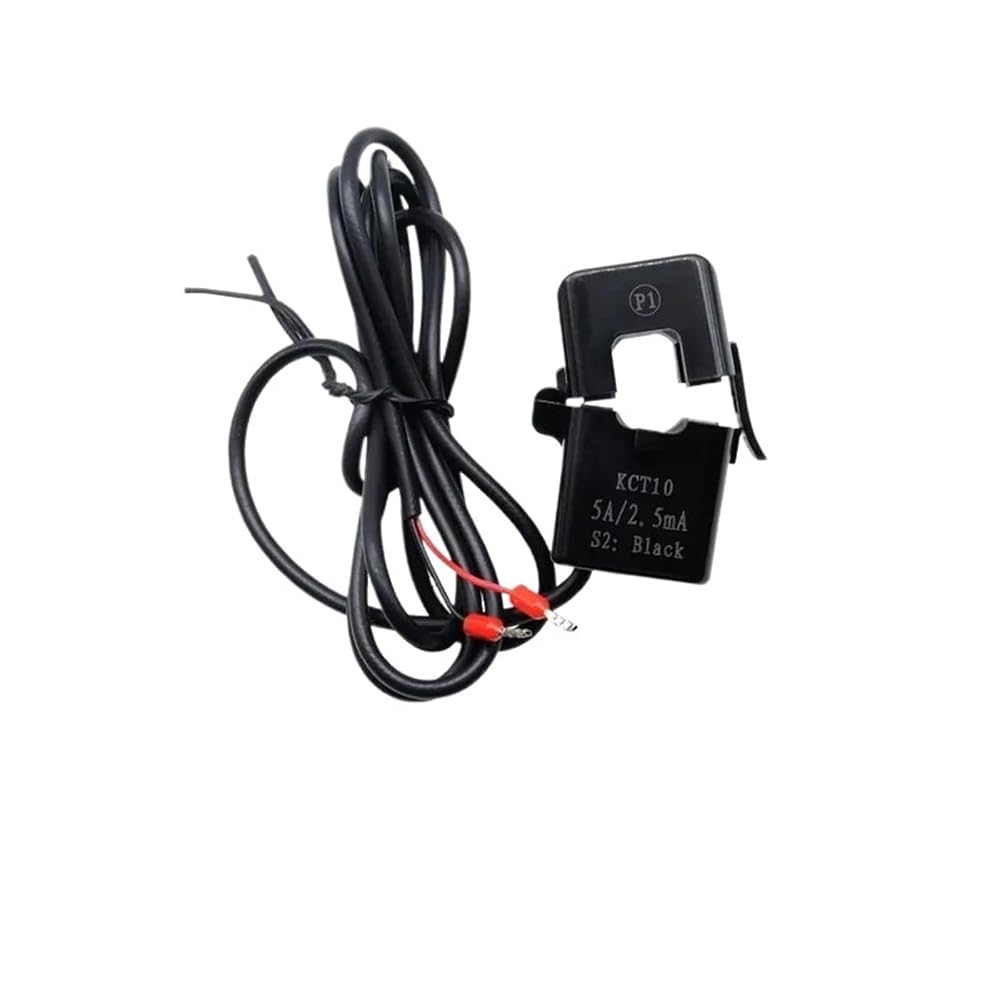

  • KCT10 Current 5A/5mA 5A/2.5mA 10A/5mA 50A/25mA Mini Split Core Current 10mm

وصف

>>Specifications
Frequency: 50-2KHz
Rated input: 5A-630A
Measurement Range: 10% In -120% In
Rated output: 0.333V (AC) or 0-500mA
Error: ± 1.0%
Angle Difference: ± 60min
Insulation Strength: 2.5KV/1mA/1min
Insulation Resistance: DC500V/100MQmin
Shell: PA/UL94-V0
Copper Tube Material: PBT
Iron Core: silicon steel
Internal Structure: epoxy
Installation Method: buckle
Working Temperature: -25C~75
Output Connection: UI101520AWG standard double lead wire 1 meter
>>Package Included
1×KCT10 Current
