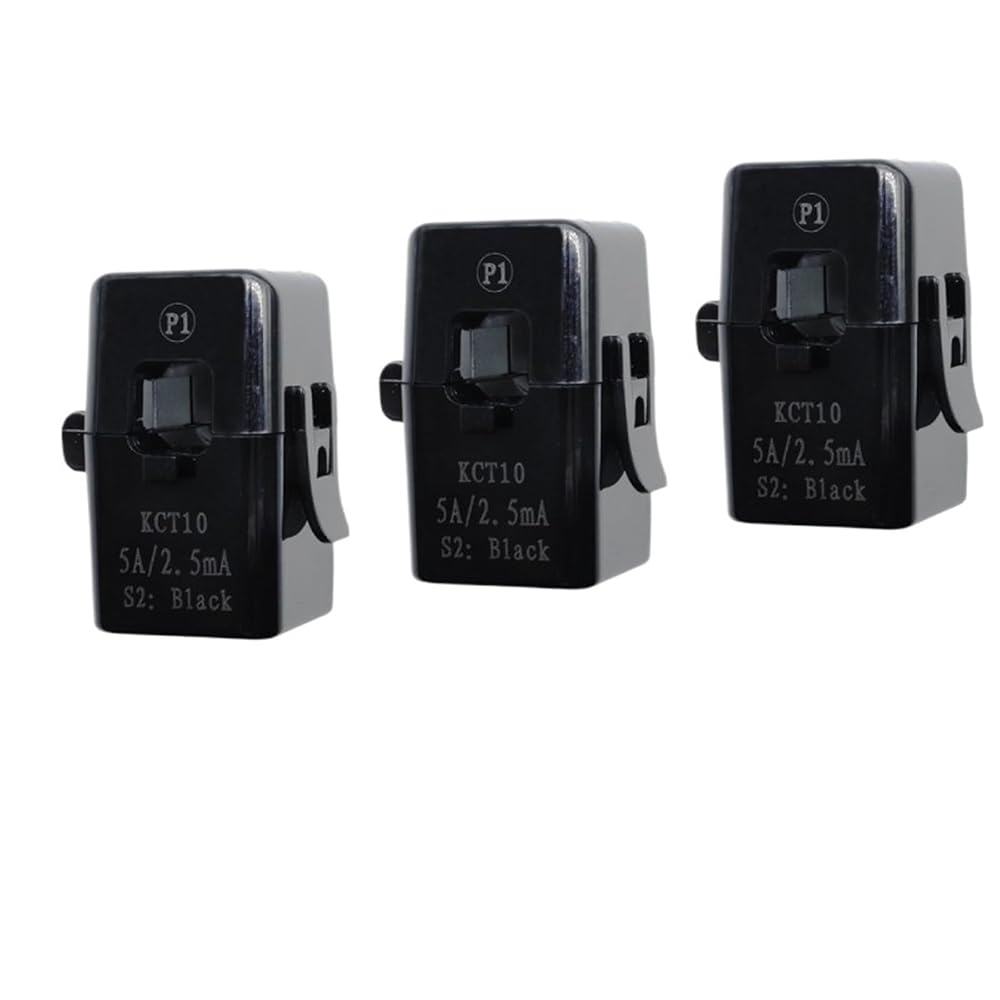

3 قطعة KCT10 تيار سبليت صغير 10 مللي متر 5A/5mA 5A/2.5mA 10A/5mA 50A/25mA(3 قطعة 50A 50mA) in Kuwait

3 قطع 20 أمبير 20 مللي أمبير

KWD 18
اللون3 قطع 20 أمبير 20 مللي أمبير
– 1 +

مميزات خاصة

  • 3PCS KCT10 Mini Split Core Current 10mm 5A/5mA 5A/2.5mA 10A/5mA 50A/25mA

وصف

>>Specifications
Frequency:50-2KHz
Rated input: 5A-630A
Measurement Range:10% In -120% In
Rated output:0.333V (AC) or 0-500mA
Error: ± 1.0%
Angle Difference: ± 60min
Insulation Strength:2.5KV/1mA/1min
Insulation Resistance: DC500V/100MQmin
Shell:PA/UL94-V0
Copper Tube Material: PBT
Iron Core:silicon steel
Internal Structure:epoxy
Installation Method:buckle
Working Temperature:-25C~75C
Output Connection: UI101520AWG standard double lead wire 1 meter
>>Package Included
3×KCT10 Current
