>>Descripe

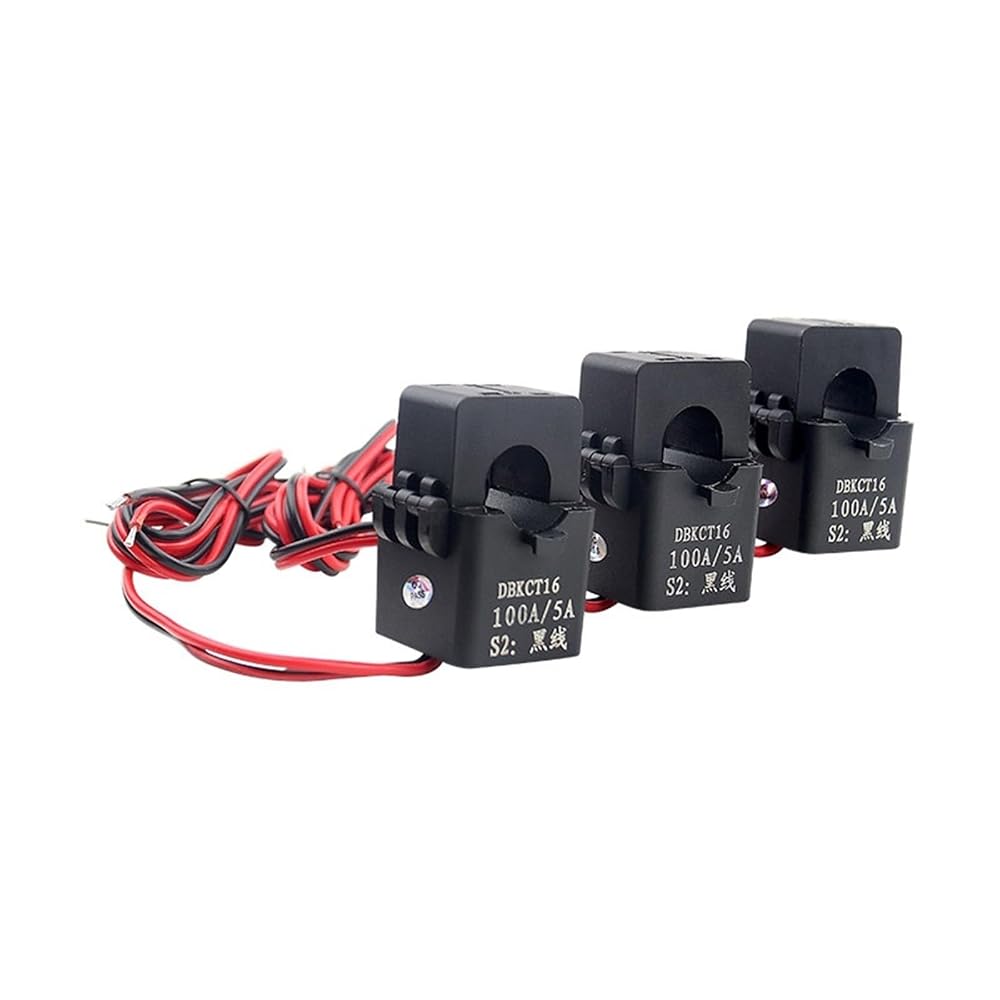

KCT series open current is specially designed and installed in a small space without disconnecting the circuit. The precision resistor installed at the output end of the product can provide safe low-voltage output. The biggest difference is that it is light and easy to install. It can be directly hung on the cable, which saves more manpower than other .
>>Specification
Mode:DBKCT16
Range: 10%-120%in
Resistance: DC500V/100M
Humidity: 85%
Insulation: 2.5KV/1mA/1min
Temperature Resistance: -25~+75
Angle Difference: ±60min
Magnetic Core: silicon steel
Lead: 1 meter
Current Ratio: 50/5A 100/5A 150/5A 200/5A
Accuracy: 0.5
Shell: flame-retardant pc
Winding: 99.9% pure copper (R=0.56mm)
