5 واط SMA-KK قابل للتعديل RF المخفف DC-4 جيجا هرتز 60dB 90dB خطوة زر الضغط لاختبار الإشارة معدات الاتصالات (5W1-60DB) in Kuwait

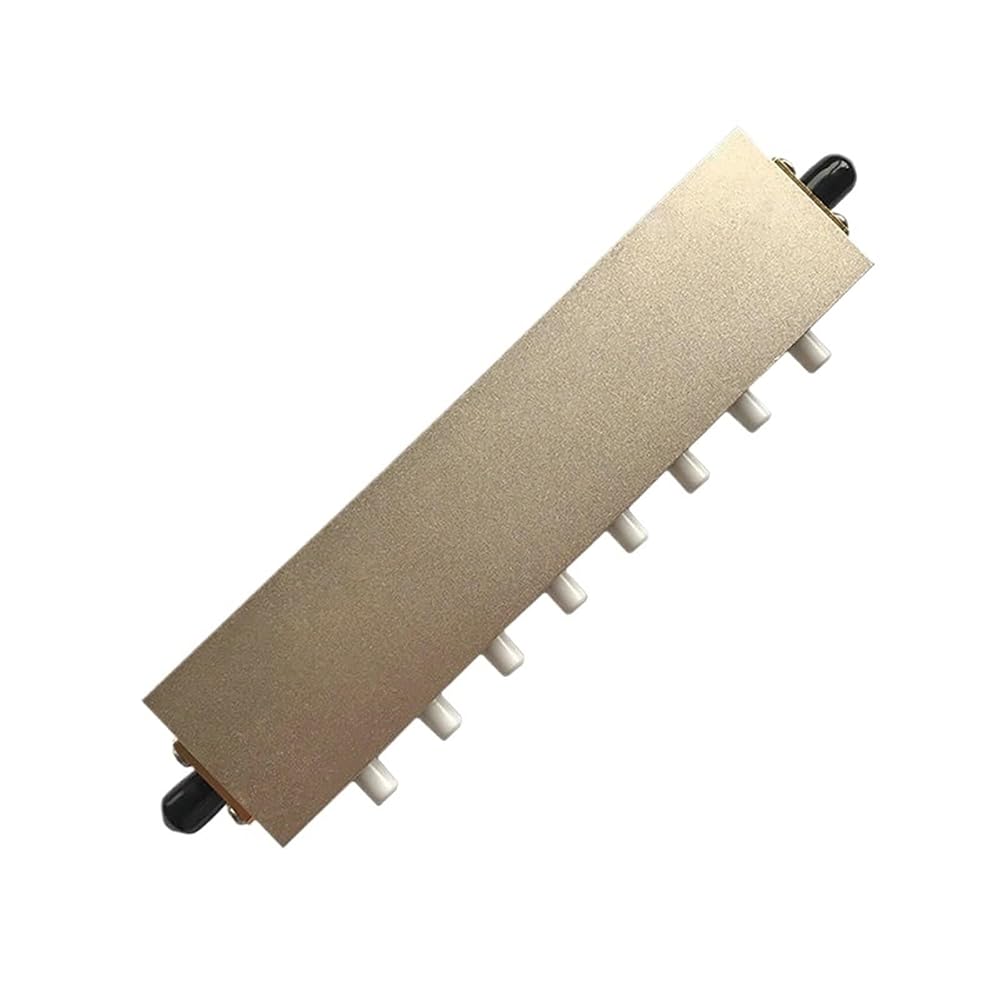

5 واط SMA-KK قابل للتعديل RF المخفف DC-4 جيجا هرتز 60dB 90dB خطوة زر الضغط لاختبار الإشارة معدات الاتصالات (5W1-60DB)

KWD 64.500
ماركة
Generic
وزن
0.6 kg
مقاس5W1-60DB
– 1 +

مميزات خاصة

  • Operates from DC to 4GHz with 5W power handling, offers 60dB and 90dB adjustable attenuation for precise RF signal control.
  • Features SMA-KK (female to female) connectors, 50 ohm impedance, low VSWR and low insertion loss for stable signal transmission.
  • Push button step adjustment design allows quick and accurate attenuation level setting for various testing and debugging scenarios.
  • Rugged and compact structure ensures reliable performance, good heat dissipation and long service life in daily use.
  • Widely used in signal calibration, power adjustment, lab testing, wireless communication and radio equipment maintenance.

وصف

Kind: Radio Frequency Coaxial (RF)
Insulator material: Stainless Steel
Application areas: Network Communication
Model: Push-Button Adjustable Attenuator
VSWR: 1.5
Power: 5W
Connector: SMA-KK
Frequency Range: DC to 4GHz
Impedance: 50Ω
Attenuation Range 0-60dB Step: 1, 2, 4, 8, 10, 10, 10, 16dB
Attenuation Range 0-90dB Step: 1, 2, 4, 8, 16, 20, 20, 20dB
Insertion Loss: ≤5dB
Attenuation Accuracy: 0-10dB±1dB; 11-30dB±1.5dB; ±5% @≥30dB
Operating Temperature: -10℃ ~ +50℃
Storage Temperature: -40℃ ~ +70℃
Switch Life: 5000 cycles at 15-20 cycles/sec
