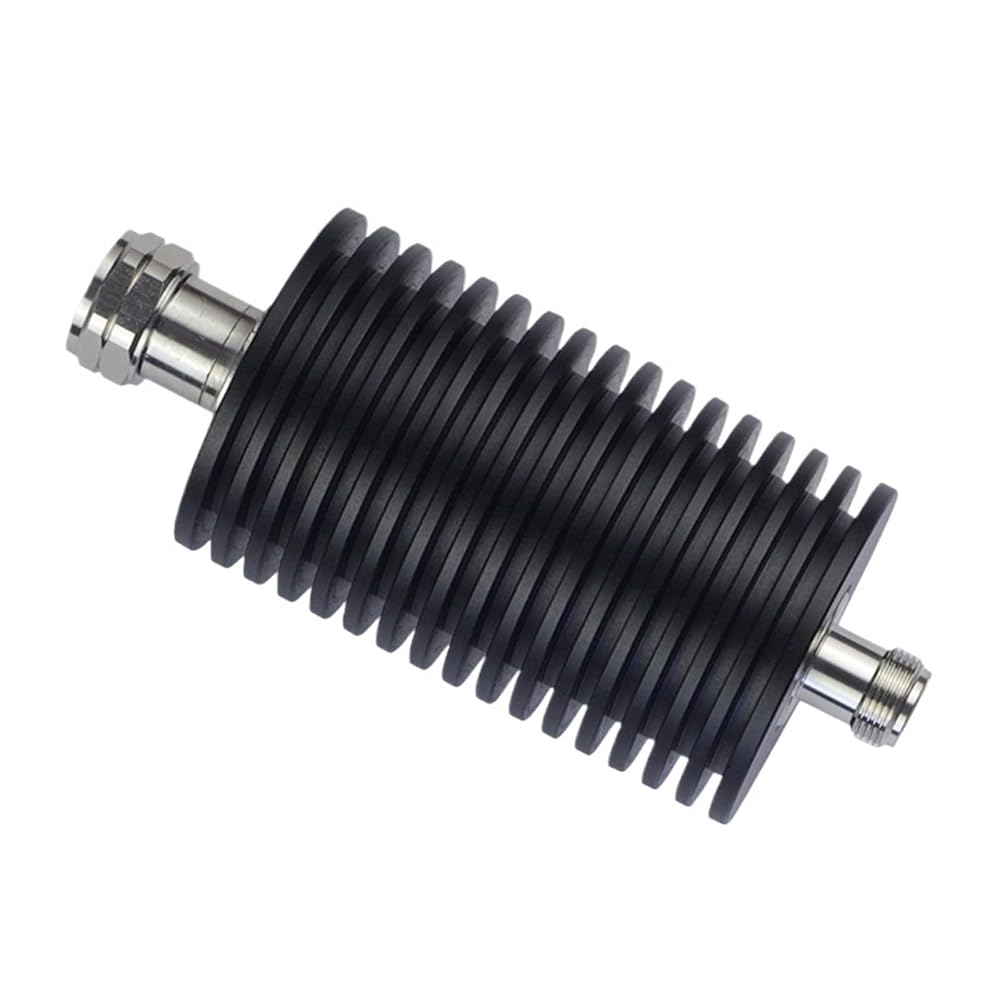

100 واط 4.3-10 ذكر إلى N أنثى RF المخفف الثابت 3 جيجا هرتز 50 أوم 30 ديسيبل 50 ديسيبل لأنظمة الاتصالات والاختبار (100W5DB) in Kuwait

100 واط 4.3-10 ذكر إلى N أنثى RF المخفف الثابت 3 جيجا هرتز 50 أوم 30 ديسيبل 50 ديسيبل لأنظمة الاتصالات والاختبار (100W1DB)

KWD 0
ماركة
Generic
مقاس
– 1 +

مميزات خاصة

  • 100W high power handling attenuator with 4.3-10 male to N female connector, operating up to 3GHz for heavy-duty RF applications.
  • Standard 50 ohm impedance with low VSWR and low insertion loss, ensuring stable signal transmission and high attenuation accuracy.
  • Available in 30dB and 50dB options, effectively reduces signal power and protects sensitive receivers and test equipment.
  • Rugged all-metal structure with excellent heat dissipation, supports long-term high-power operation in base stations and labs.
  • Widely used in signal testing, power limiting, base station debugging, telecommunication systems and laboratory measurement.

وصف

Kind: Radio Frequency Coaxial (RF)
Insulator material: Stainless Steel
Application areas: Network Communication
Model: 4.3-10 Fixed Attenuator
Power: 100W
Impedance: 50Ω
VSWR: ≤1.20
Frequency Range: DC to 3GHz
Operating Temperature: -55℃ to +125℃
Attenuation: 1, 3, 6, 10, 15, 20, 30dB; 1-30dB±1dB, 40-50dB±1.5dB
Connector: 4.3-10 Male to N Female
