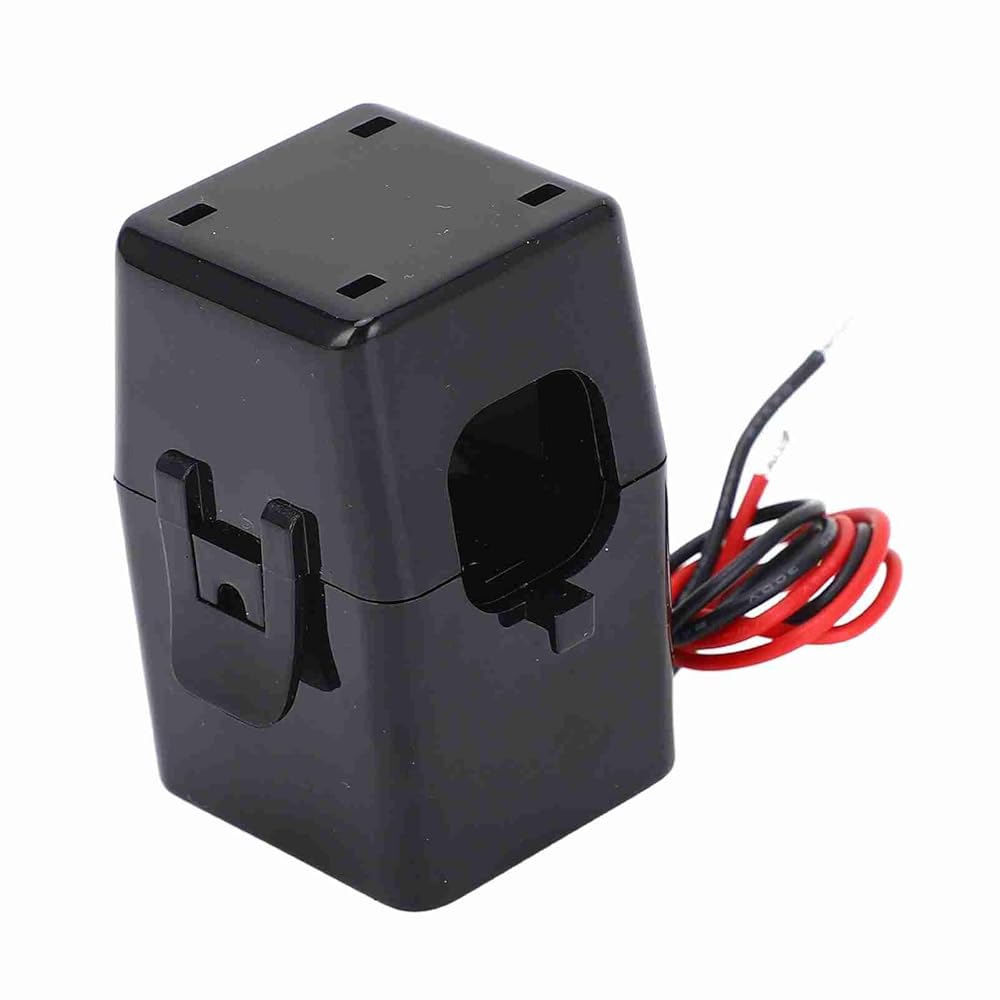

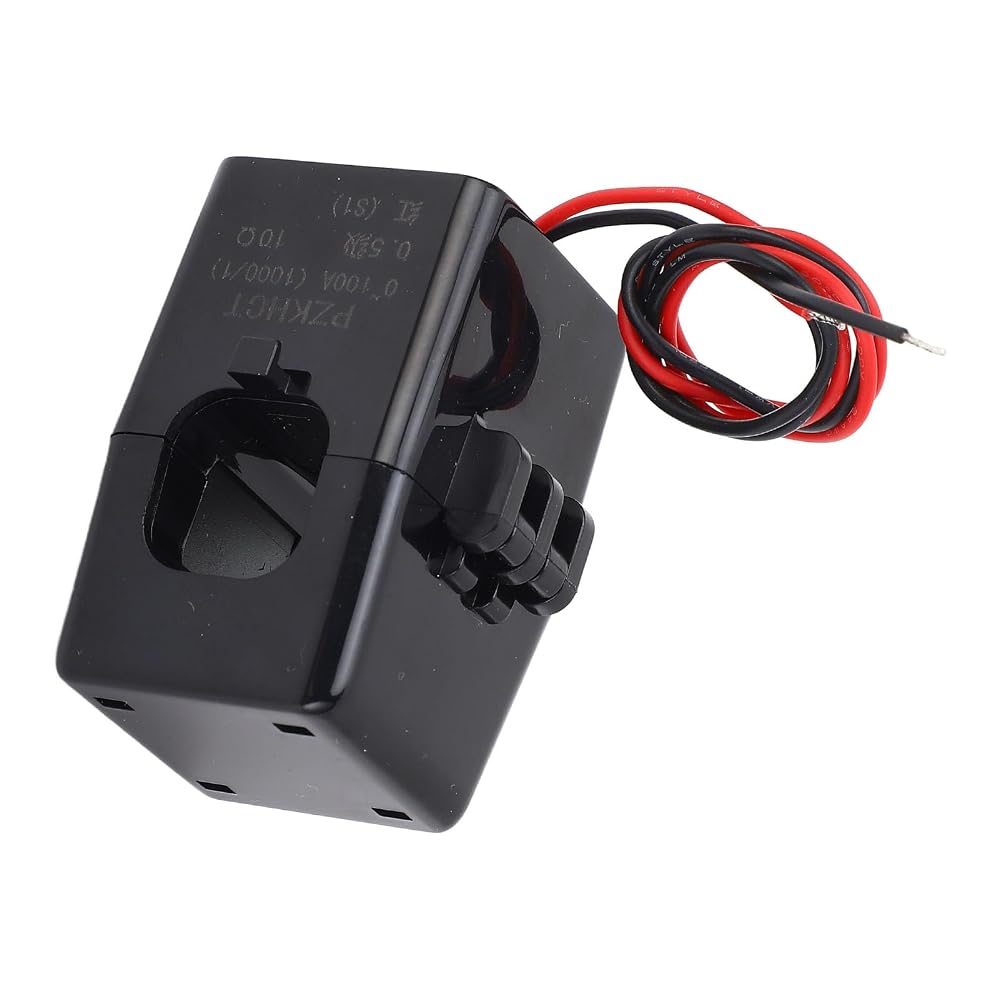

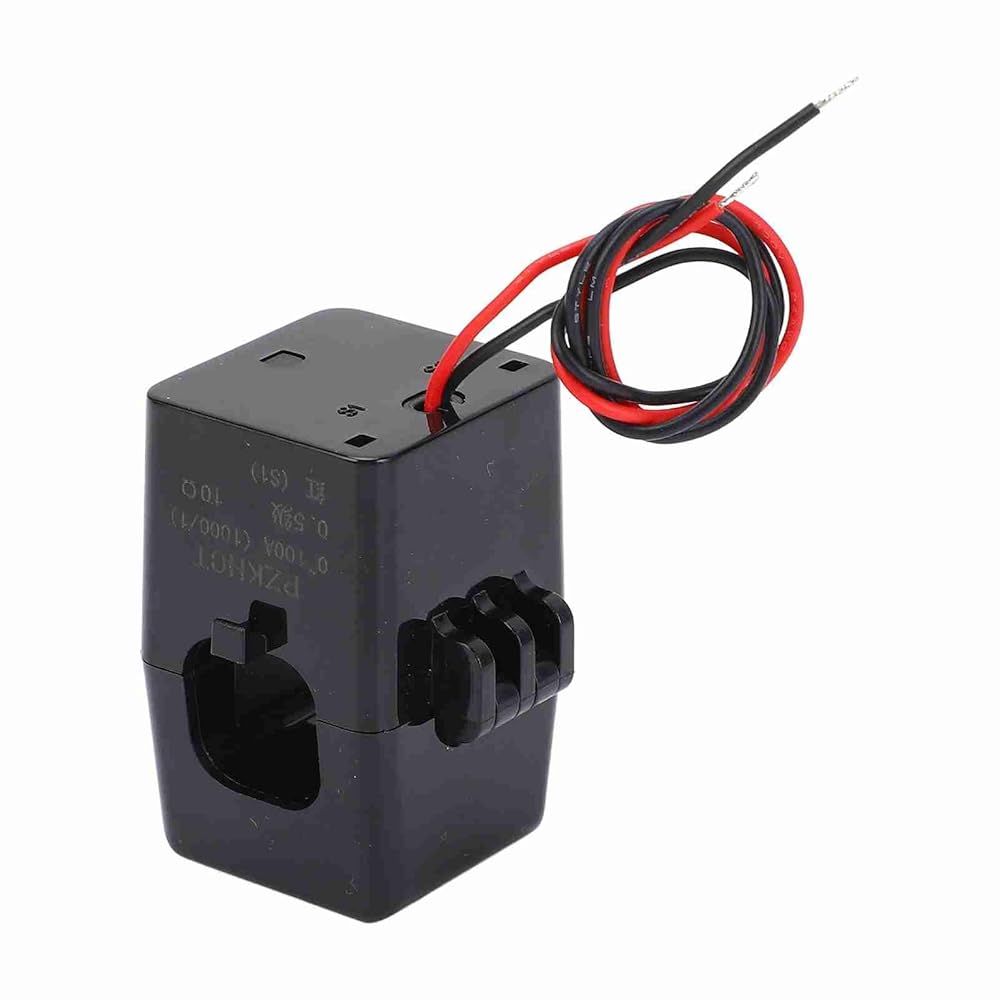

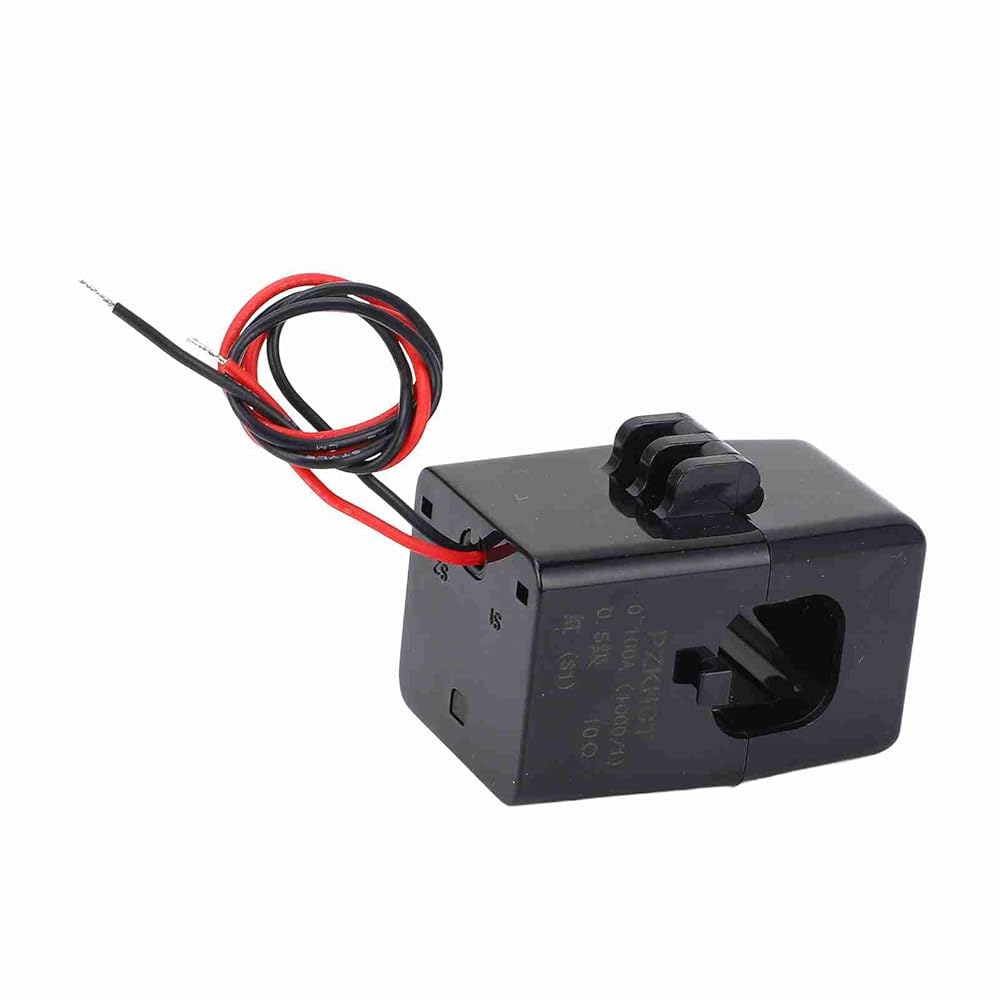

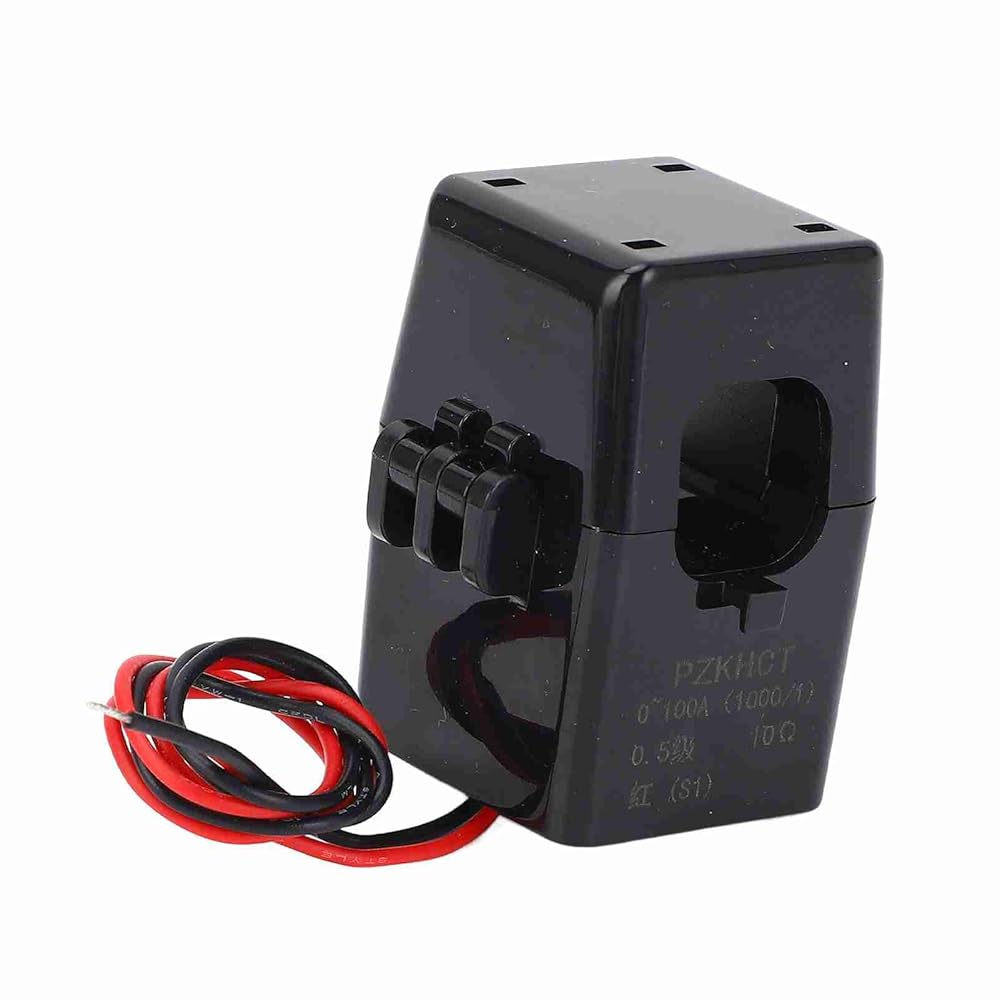

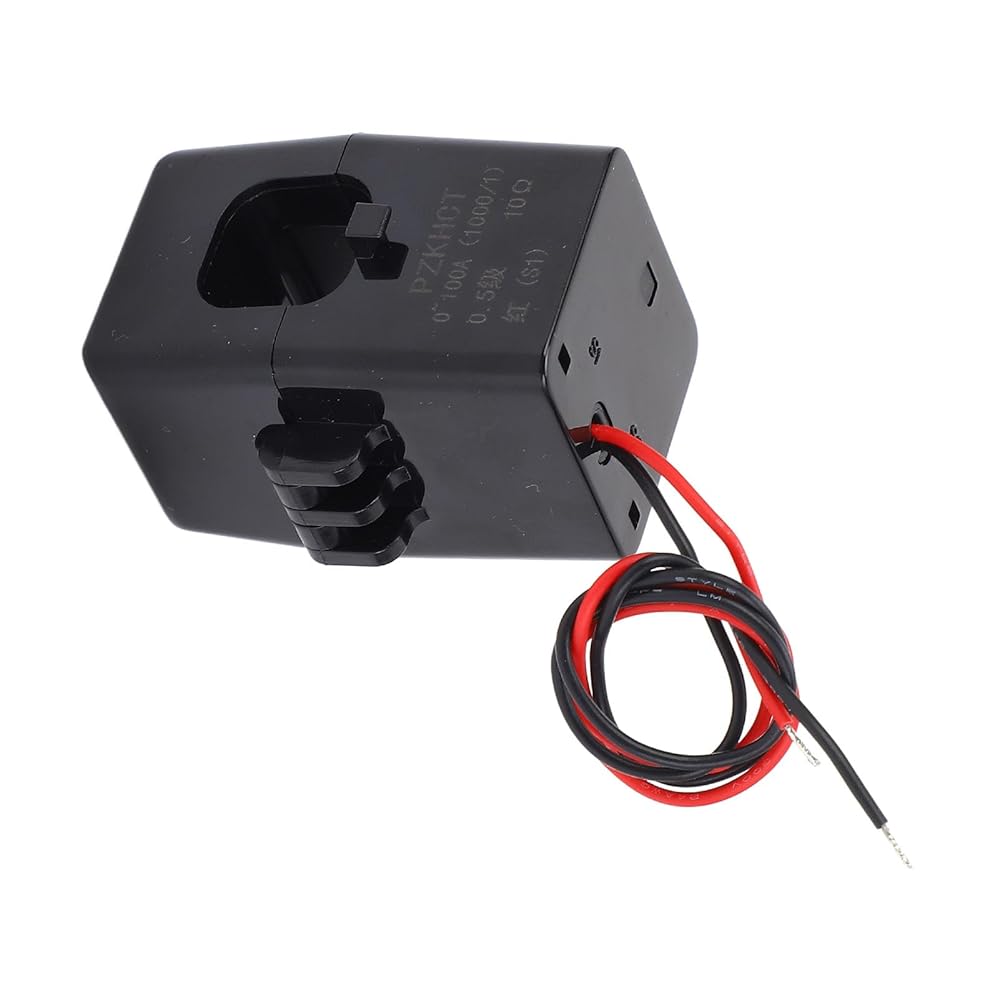

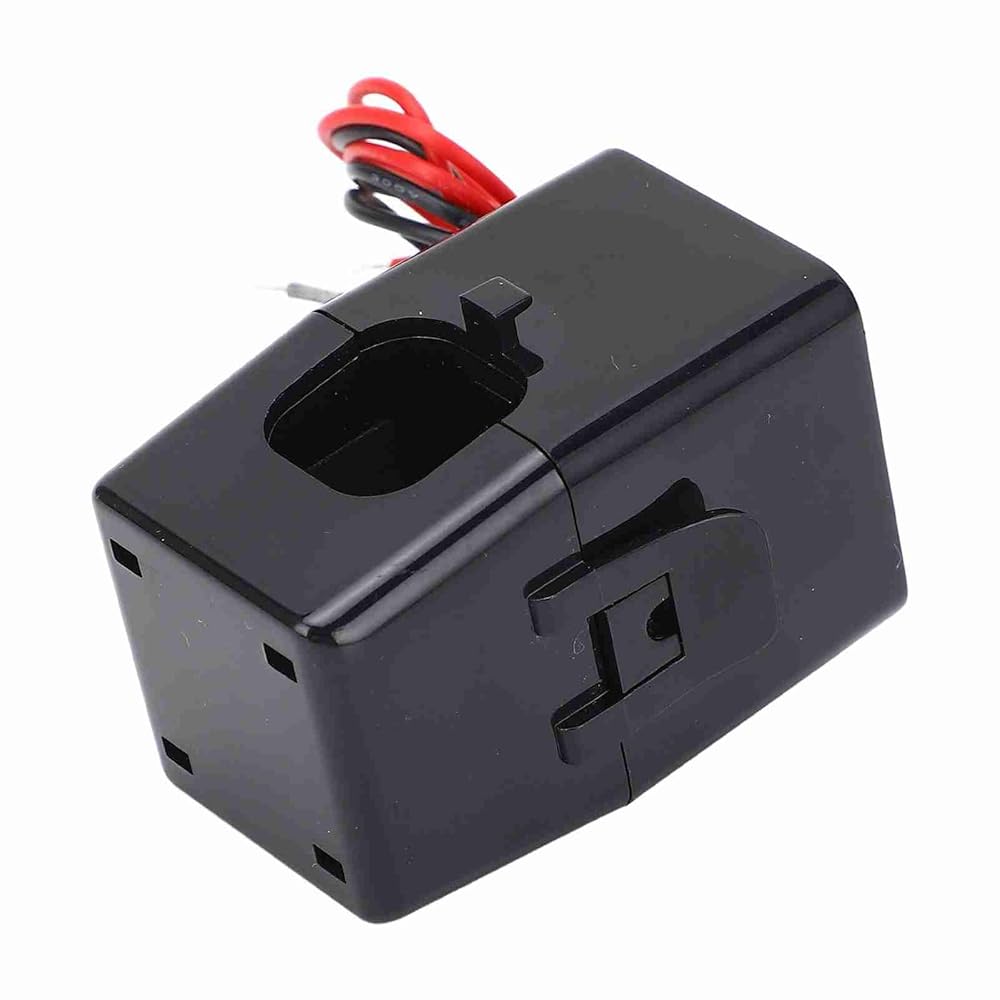

1. This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA)
2. The diameter of inner hole is 16mm, the accuracy is ≤0.5 grade

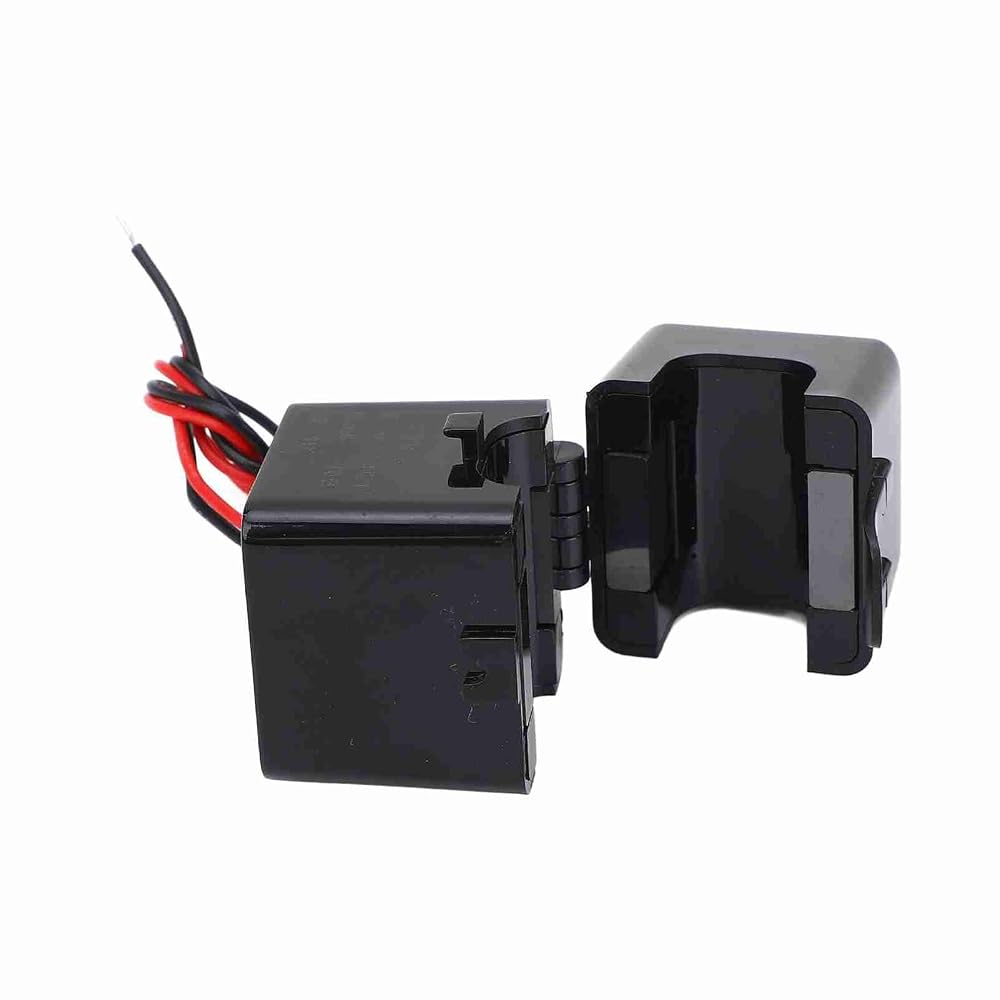

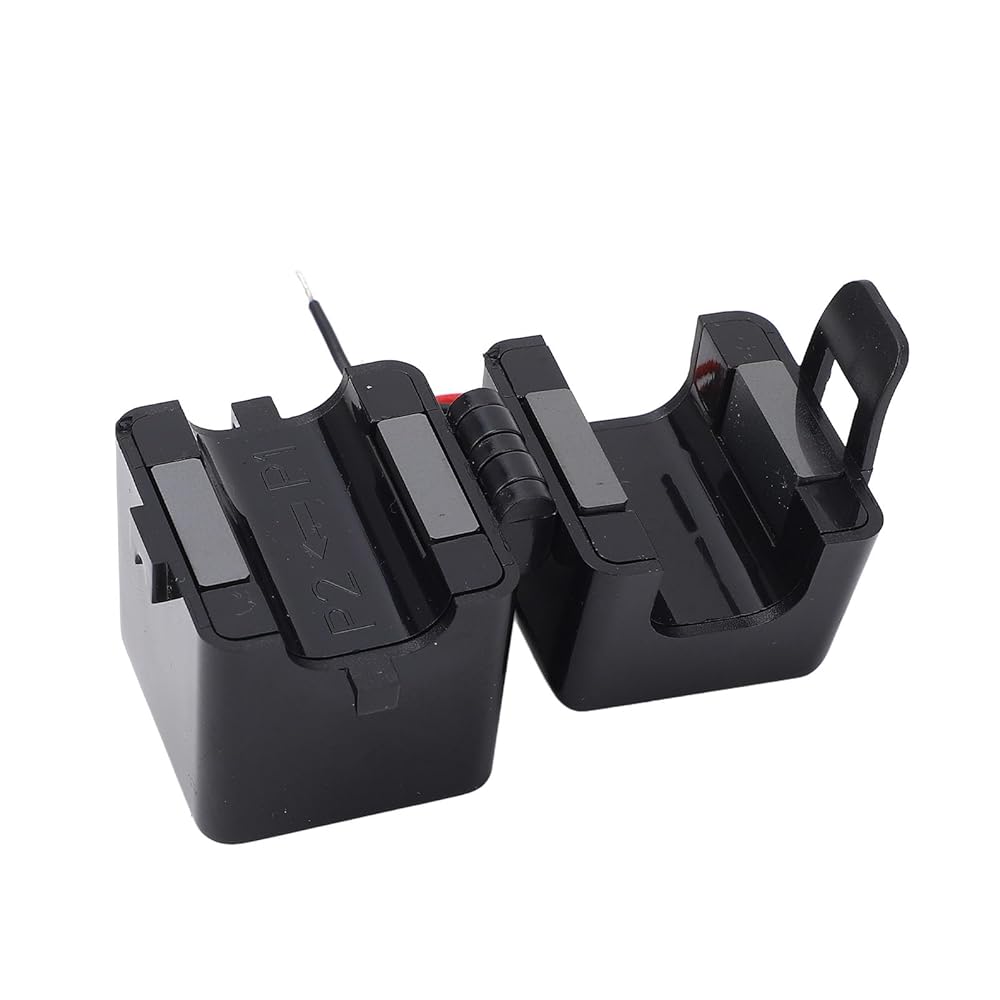

3. Using snap joint structure, it can be fixed to the cable directly through nylon ties
4. Built-in input coil; small and light, easy to install
5. Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability

Spec:
Descriptions:
This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA). Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability. Used for energy meter in special; AC 220v, 380v power supply can both be applied.
Features:
This is a mini split base current transformer; it's the smallest one compared to the similar products (output 100MA).
The diameter of inner hole is 16mm, the accuracy is ≤0.5 grade,
Using snap joint structure, it can be fixed to the cable directly through nylon ties.
Built-in input coil; small and light, easy to install.
Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
Specifications:
Model: PZKHCT
Environment temperature: -40℃~+85℃
Relative humidity: ≤ 90%(40℃)
Working frequency: 50Hz~60Hz
Insulation endurance grade: B grade (130℃)
Insulation resistance: >1000MΩ normally
Dielectric strength: can afford power frequency 1000V/1minute
Flame resistance: Conform to UL94-Vo grade
Internal resistance: 10Ω
Measuring range: 0-100A
Weight:59g
Application:
1. The current transformer is used for energy meter in special; AC 220v, 380v power supply can both be applied.
2. When you fix the energy meter, you don't need to cut off the power if you use this
