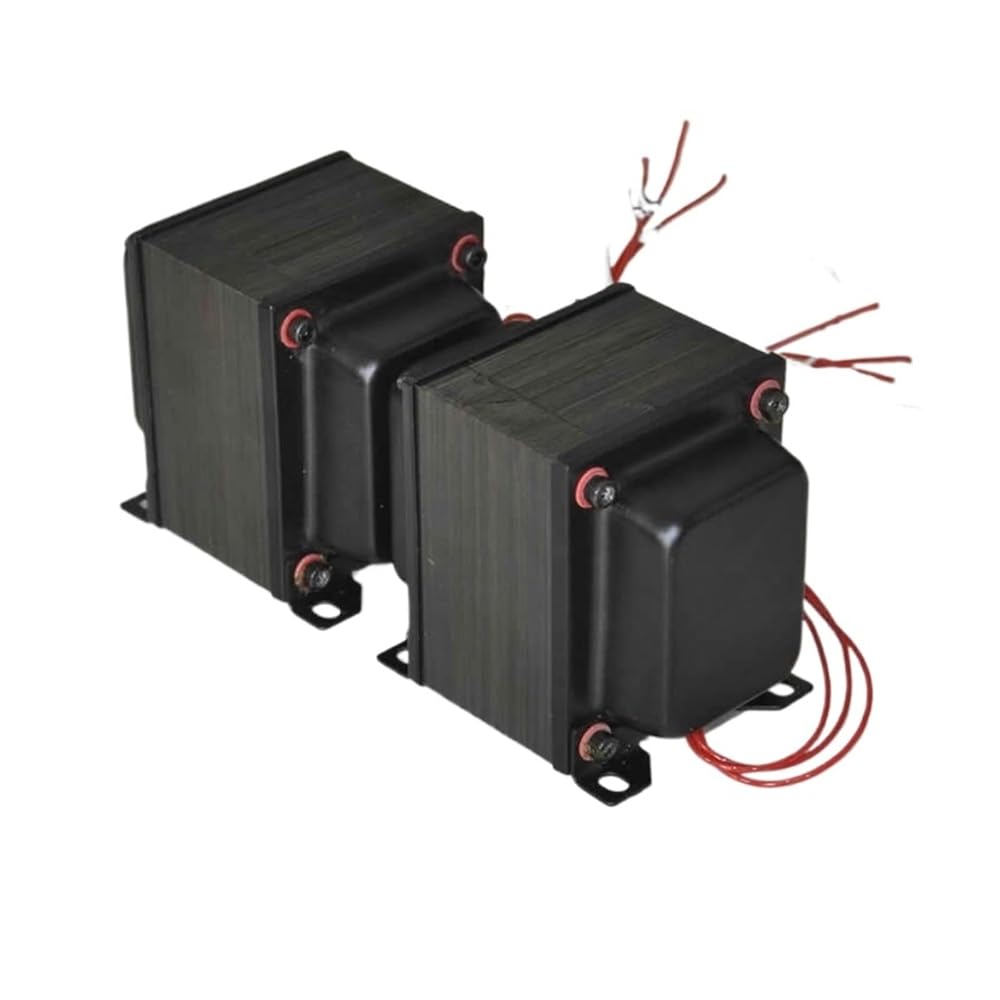

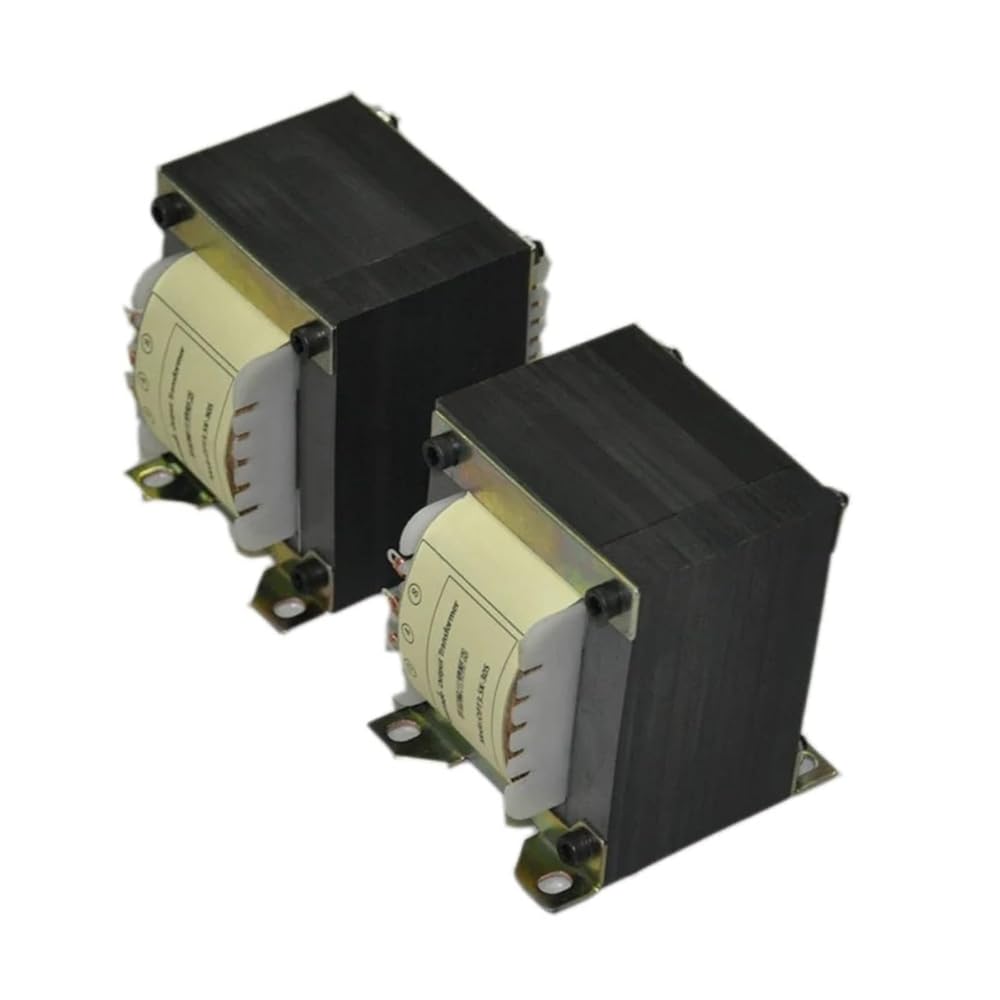

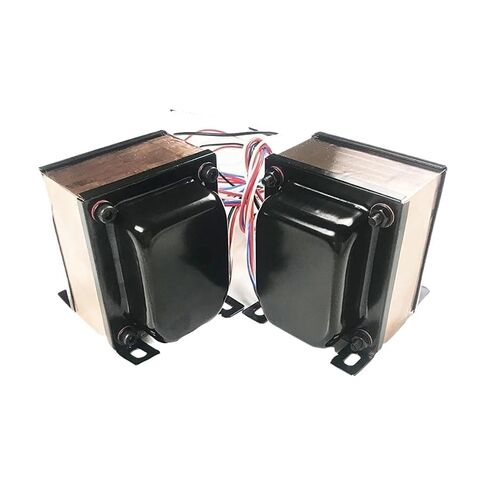

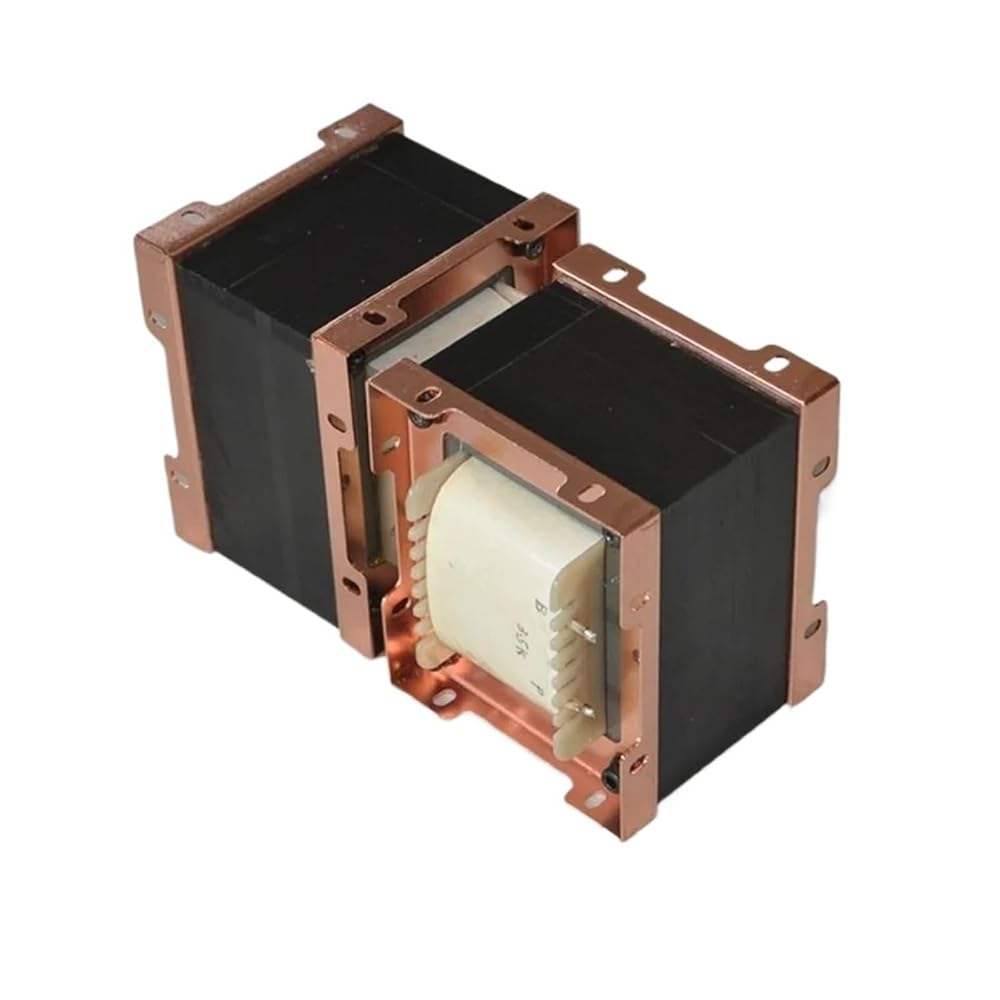

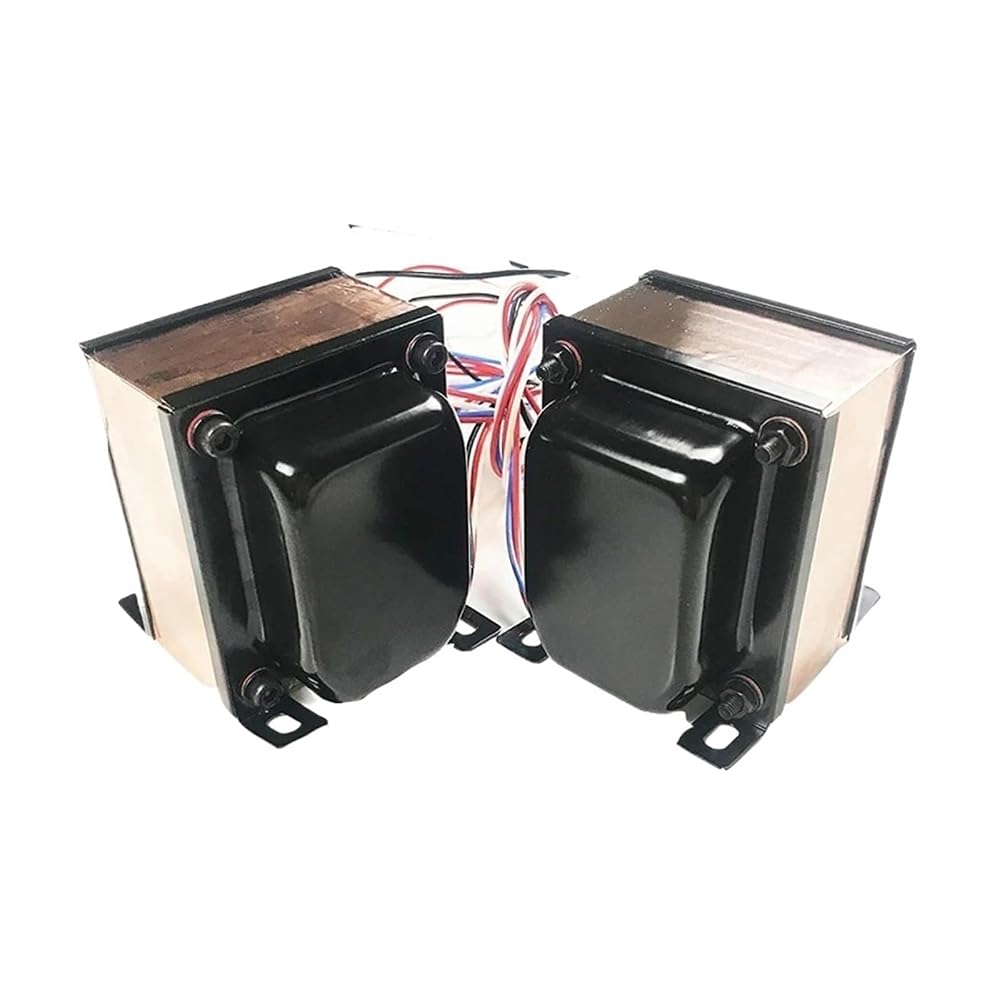

Amplifier Output Transformer 5.5K 80W Push-Pull Output Transformer, KT88 KT120 Tube Amplifier(OPT5.5KPP-80C) in Kuwait Amplifier Output Transformer 5.5K 80W Push-Pull Output Transformer, KT88 KT120 Tube Amplifier(OPT5.5KPP-80C) in Kuwait Amplifier Output Transformer 5.5K 80W Push-Pull Output Transformer, KT88 KT120 Tube Amplifier(OPT5.5KPP-80C) in Kuwait Amplifier Output Transformer 5.5K 80W Push-Pull Output Transformer, KT88 KT120 Tube Amplifier(OPT5.5KPP-80C) in Kuwait

Amplifier Output Transformer 5.5K 80W Push-Pull Output Transformer, KT88 KT120 Tube Amplifier(OPT5.5KPP-80A)

KWD 0
Brand
CAARLA
Color
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

5.5K 80W push-pull output transformer
Applicable tube amplifier KT88, KT120
Model: OPT5.5KPP-8
Core parameters: steel sheet Z11 EI105 * stack thickness 60mm
Winding structure: five clips four
Primary impedance: 5500
Secondary impedance: 0-4-8
Rated power: 80W
Primary overcurrent: 240mA
Secondary DC resistance: 0-4-8R: 0.25+0.1
Primary DC resistance: PP: 140, matching error within 1 ohm
Primary inductance: 45-100H, different materials have different inductance, and the matching error is within 1H
Leakage inductance: 6.2mH
Inter-stage capacitance: 6nf
Frequency response: 15Hz-50KHZ (-0.5dB), 8Hz-60KHZ (-1dB)
Weight: 8.2KG (one pair, 4.1KG single)
1. OPT5.5KPP-80A, H18 0.35MM steel sheet oxygen-free copper enameled wire
2. OPT5.5KPP-80B, Z11 0.35MM steel sheet, oxygen-free copper enameled wire
3. OPT5.5KPP-80C, Z10 0.27M steel sheet, oxygen-free copper enameled wire
4. OPT5.5KPP-80S, Z09 0.23MM steel sheet, oxygen-free copper enameled wire insulating paper
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
